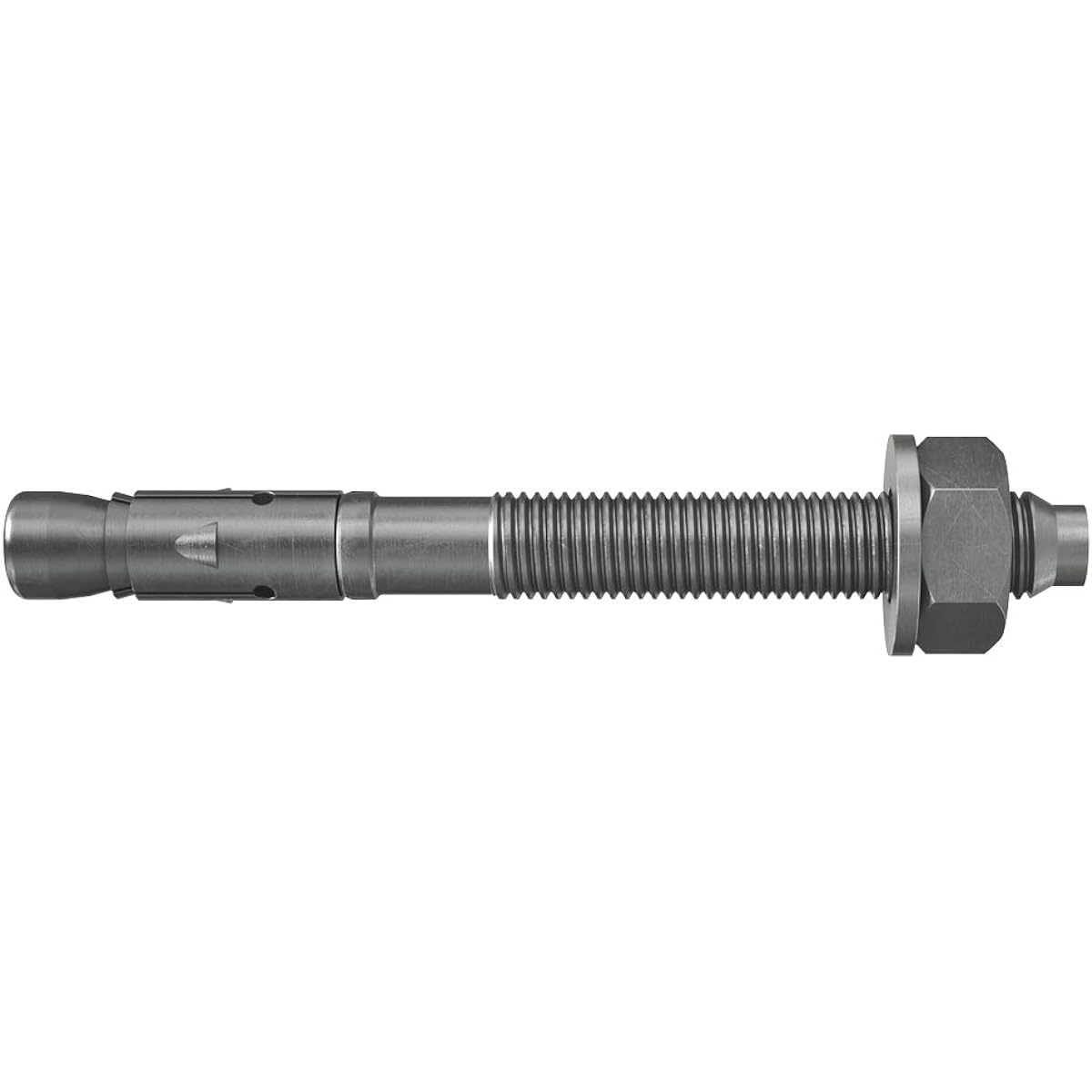

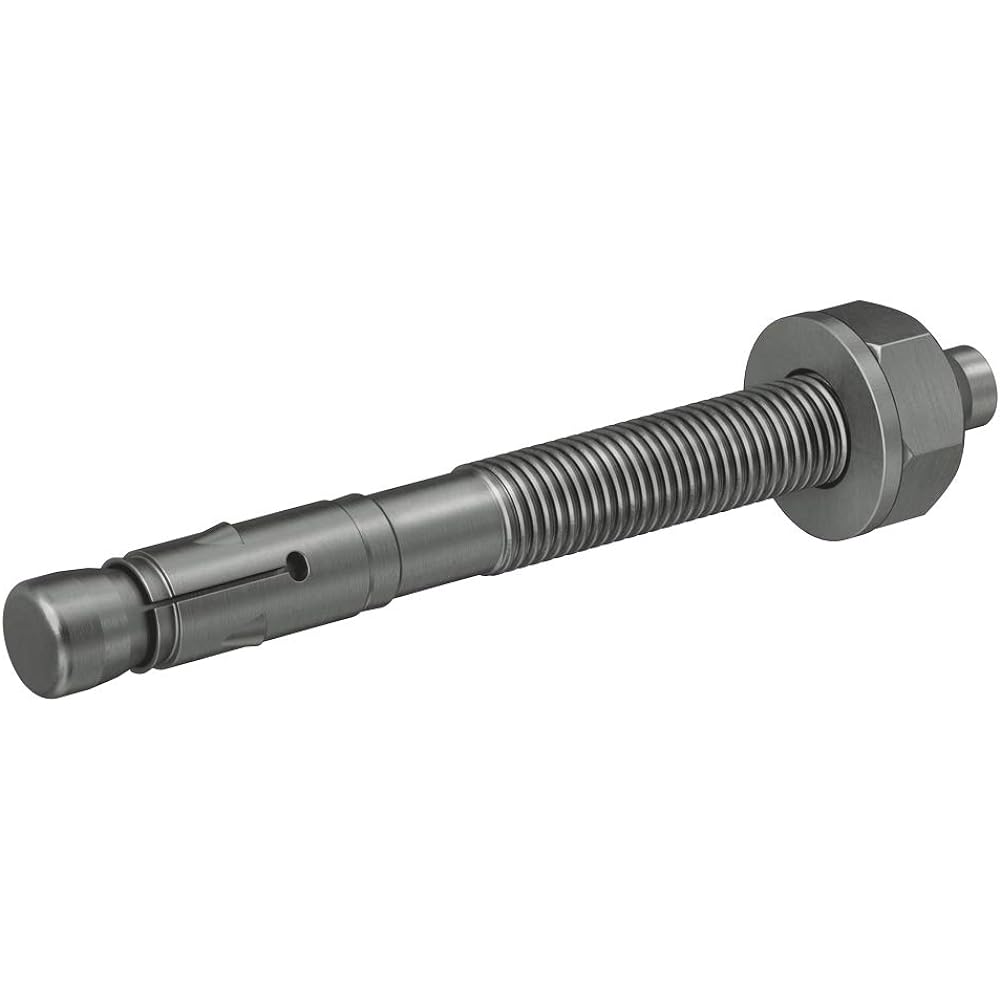

Fisher bolt anchor FAZ2 10/50 A4 20 pieces 501409

Thread designation: M10 Embedment depth (mm): 125 Pilot hole diameter (mm): 10 Maximum tensile load (kN): 7.6 Total length (mm): 135 Drill diameter (mm): 10 Thread length (mm) ):93 Maximum installation thickness (mm): 50 Effective embedment depth (mm): 60, Standard construction torque (N・m): 45.0, Maximum tensile load (kN): 7.6, Maximum shear load (kN): 11.4, Boxed Number (pieces): 20, European technical certification (ETA-05/0069), boxed, stainless steel (equivalent to SUS316) Increase display count

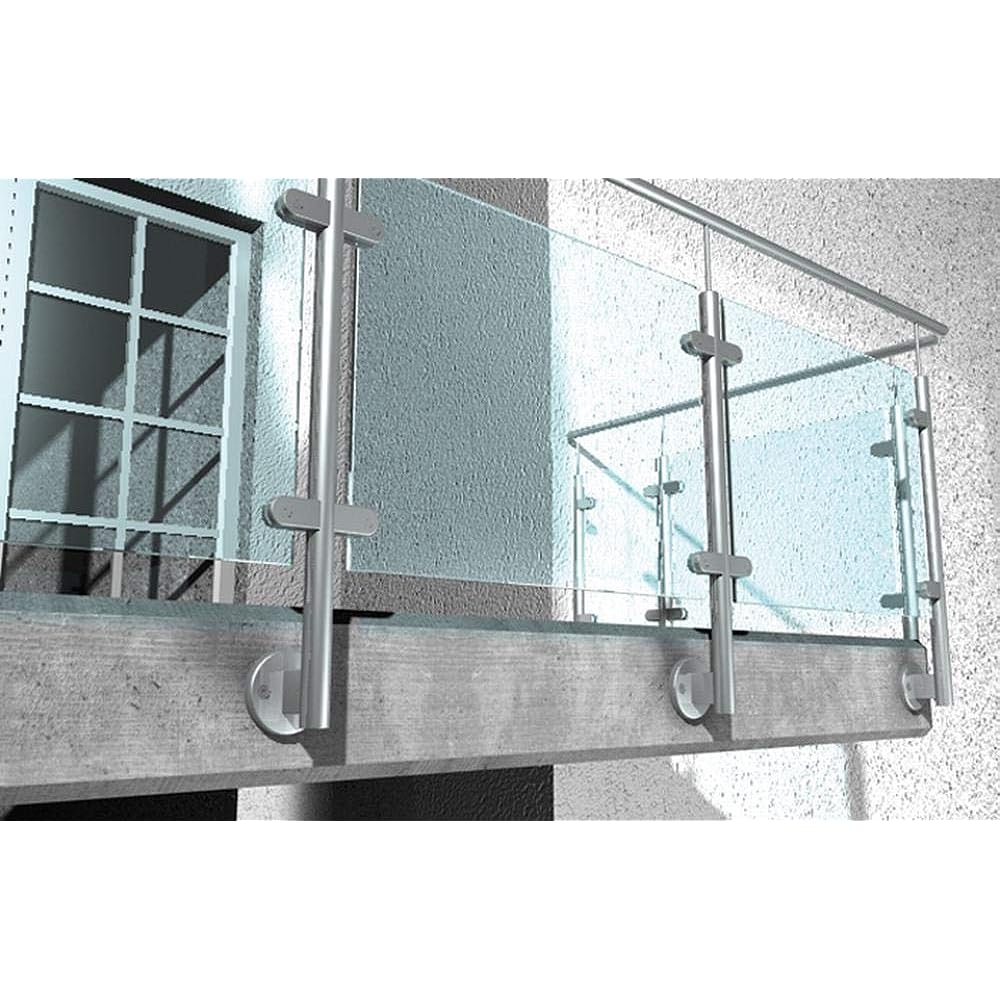

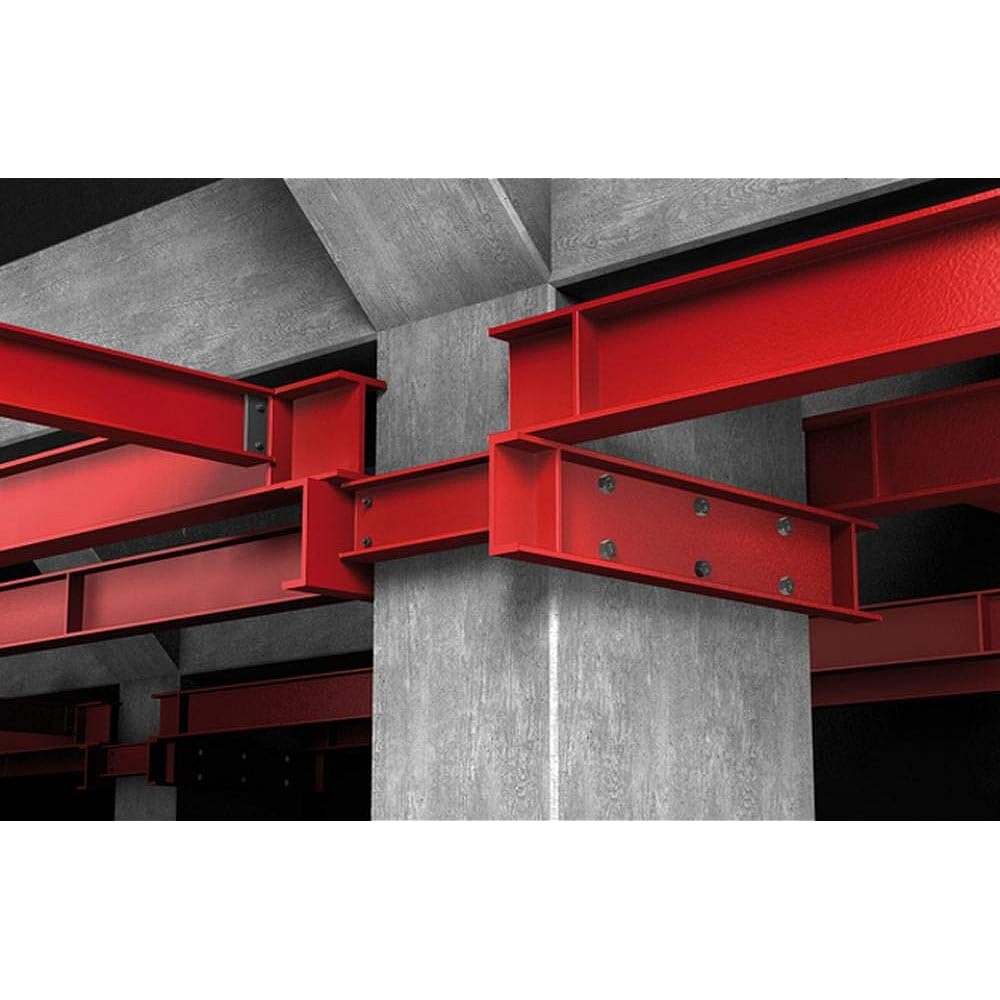

Fischer original construction expansion sleeve allows maximum load carrying capacity. Shallow embedment allows for shallow drill hole depths, reduces interference with reinforcing bars and enables faster construction. International certifications demonstrate maximum safety and best performance. For concrete and dense stone. Installation of various frames. Equipment work. Exterior construction of handrails, etc.


Brand: ‎fischer
Product model number: ‎501409
Product size: ‎13.5 x 1 x 13.5 cm; 900 g
Material: ‎Stainless steel
Quantity : 1
Battery included: No
Year: 2017
Product weight: 900 g
