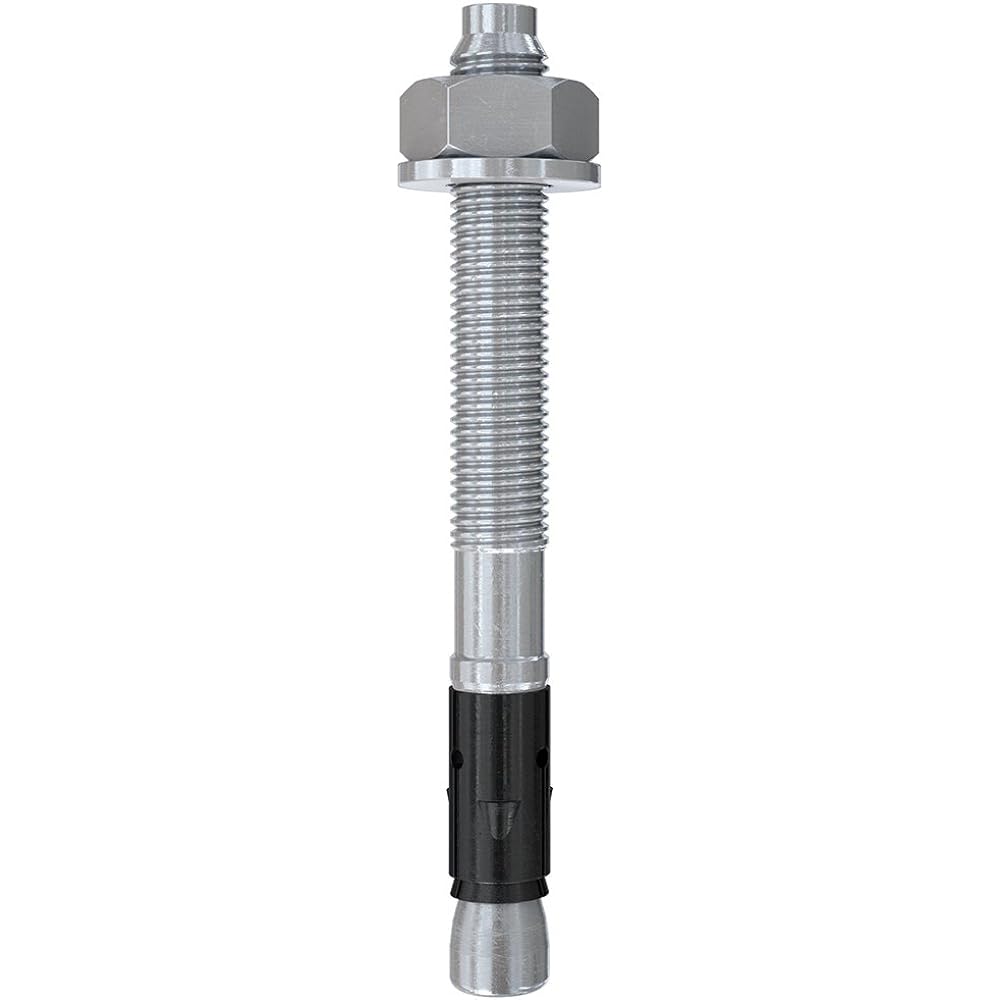

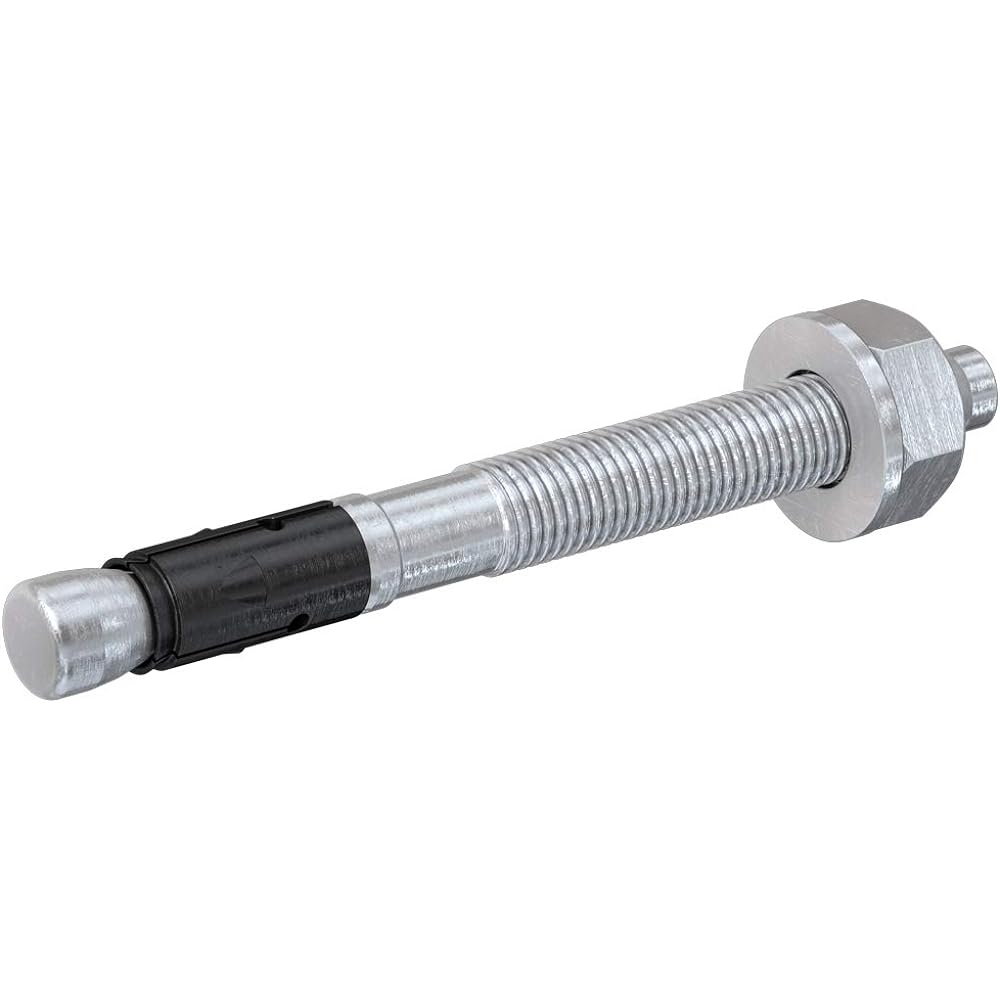

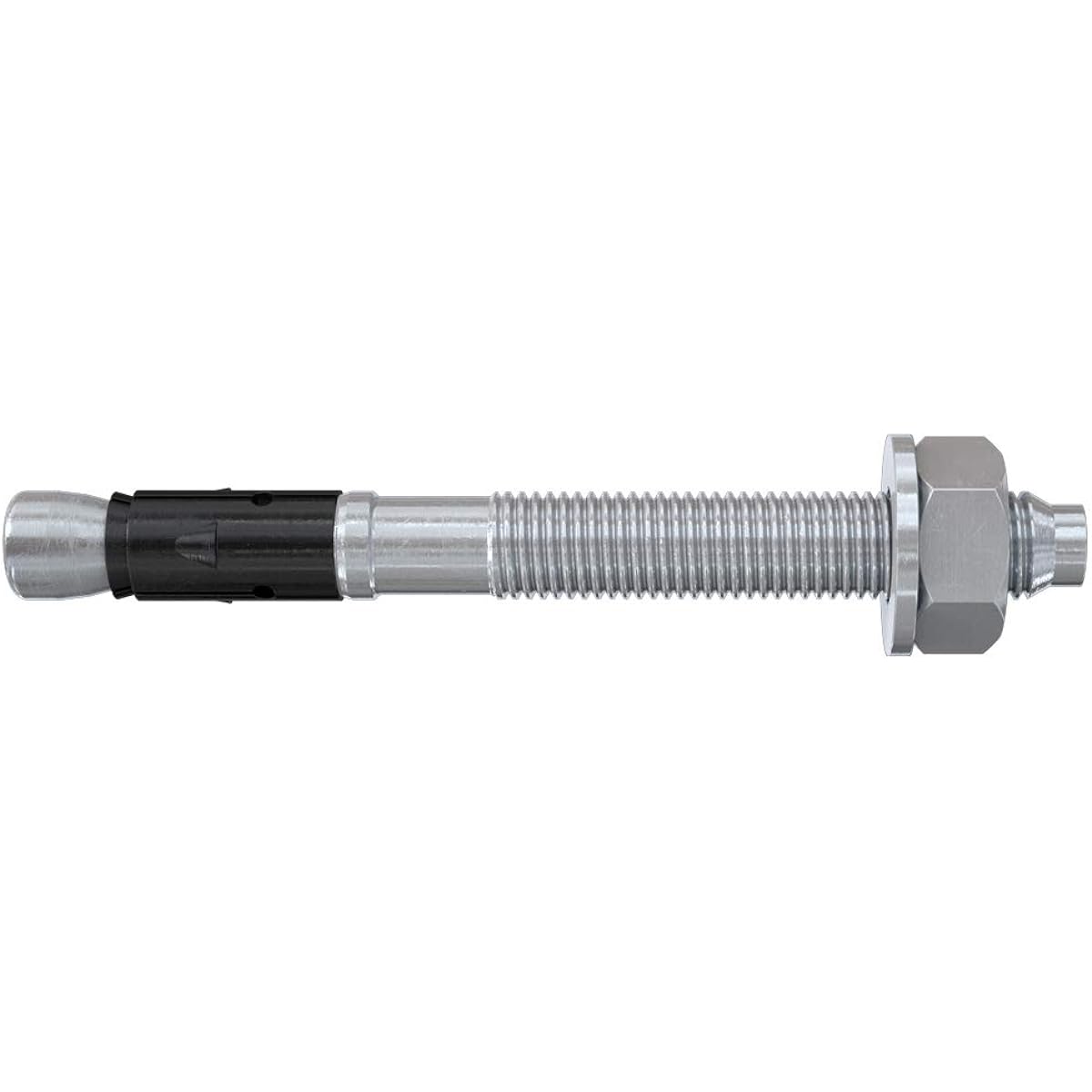

Fisher bolt anchor FAZ2 10/80 20 pieces 94985

Thread designation: M10 Embedment depth (mm): 155 Pilot hole diameter (mm): 10 Maximum tensile load (kN): 7.6 Total length (mm): 165 Drill diameter (mm): 10 Thread length (mm) ):one two three Maximum attachment thickness (mm): 80 Effective embedment depth (mm): 60, Standard construction torque (N・m): 45.0, Maximum tensile load (kN): 7.6, Maximum shear load (kN): 7.6, Boxed Number (pieces): 20, European technical certification (ETA-05/0069), boxed, steel, surface treatment: zinc plating (trivalent chromate treatment) Display more items

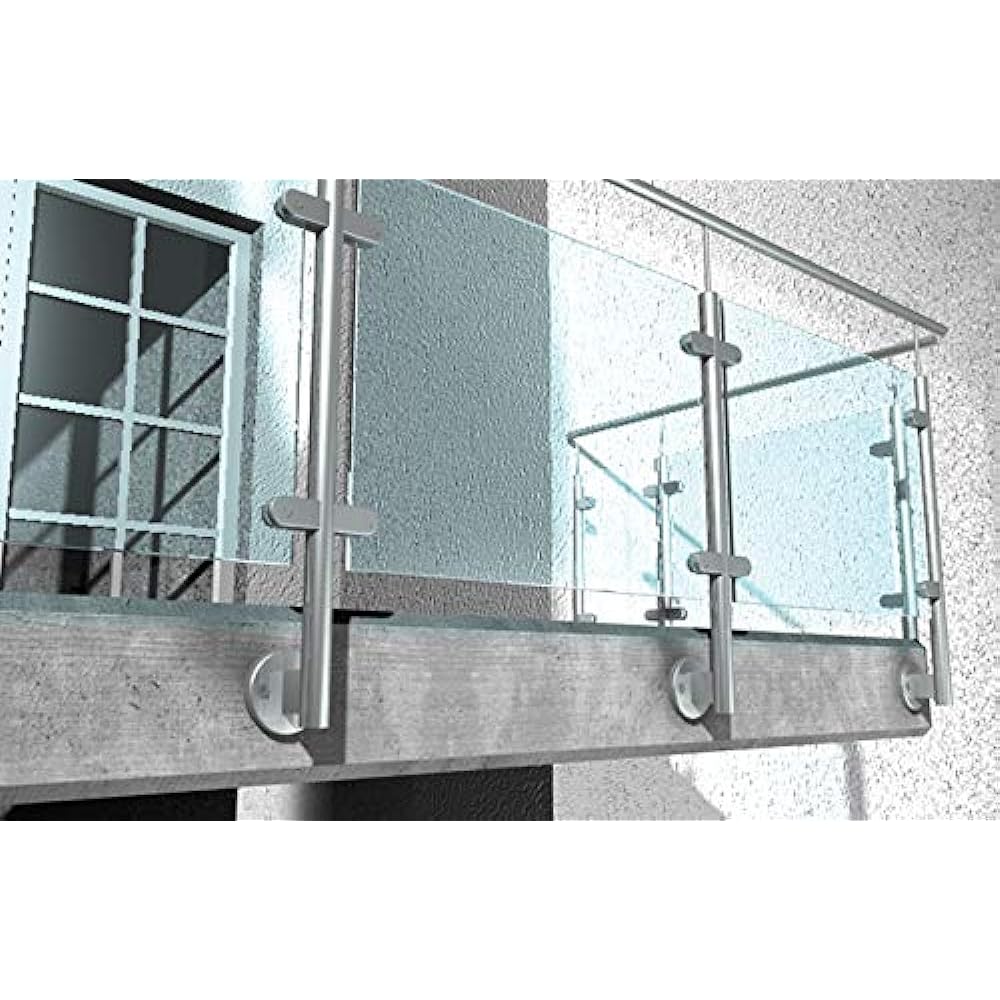

Fischer original construction expansion sleeve allows maximum load carrying capacity. Shallow embedment allows for shallow drill hole depths, reduces interference with reinforcing bars and enables faster construction. International certifications demonstrate maximum safety and best performance. For concrete and dense stone. Installation of various frames. Equipment work. Exterior construction of handrails, etc.


Brand: ‎fischer
Product model number: ‎94985
Product size: ‎25.5 x 9 x 6.75 cm; 190 g
Material: ‎Zinc, alloy steel
Quantity: 20
Battery included: No
Year: 2017
Product weight: 190 g
