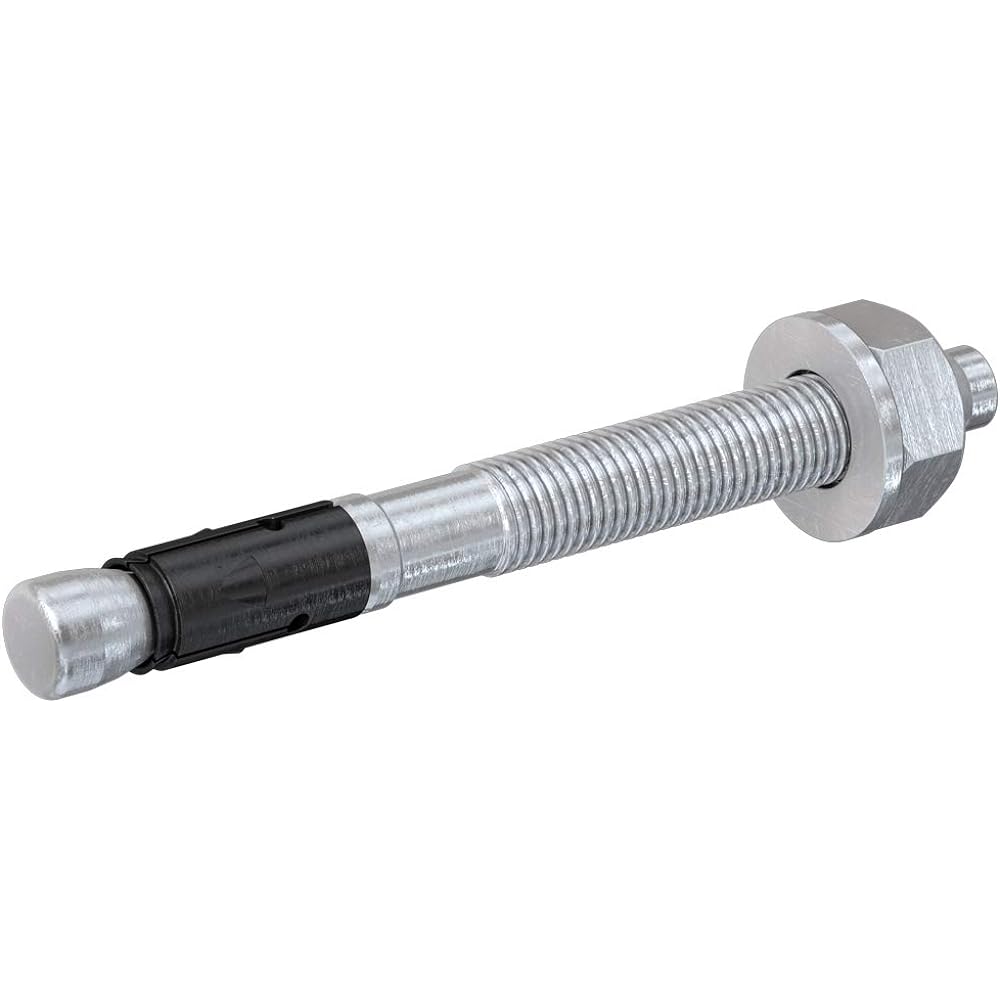

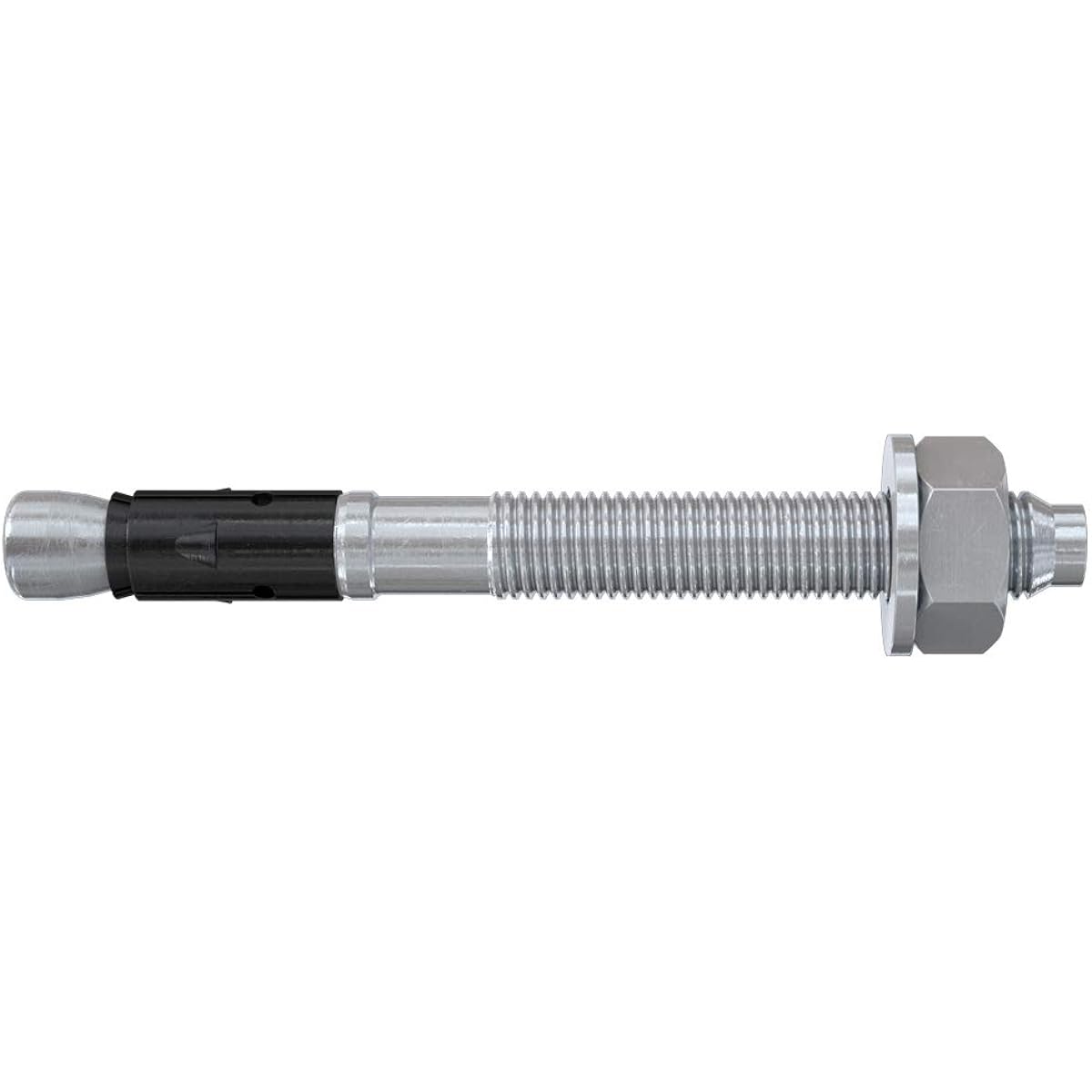

Fisher bolt anchor FAZ2 8/30 50 pieces 94877

Thread designation: M8 Embedment depth (mm): 85 Pilot hole diameter (mm): 8 Maximum tensile load (kN): 4.3 Total length (mm): 95 Drill diameter (mm): 8 Thread length (mm) ):58 Maximum installation thickness (mm): 30 Effective embedment depth (mm): 45, Standard construction torque (N m): 20.0, Maximum tensile load (kN): 4.3, Maximum shear load (kN): 6.9, Boxed Number (pieces): 50, European technical certification (ETA-05/0069), boxed, steel, surface treatment: zinc plating (trivalent chromate treatment) Display more items

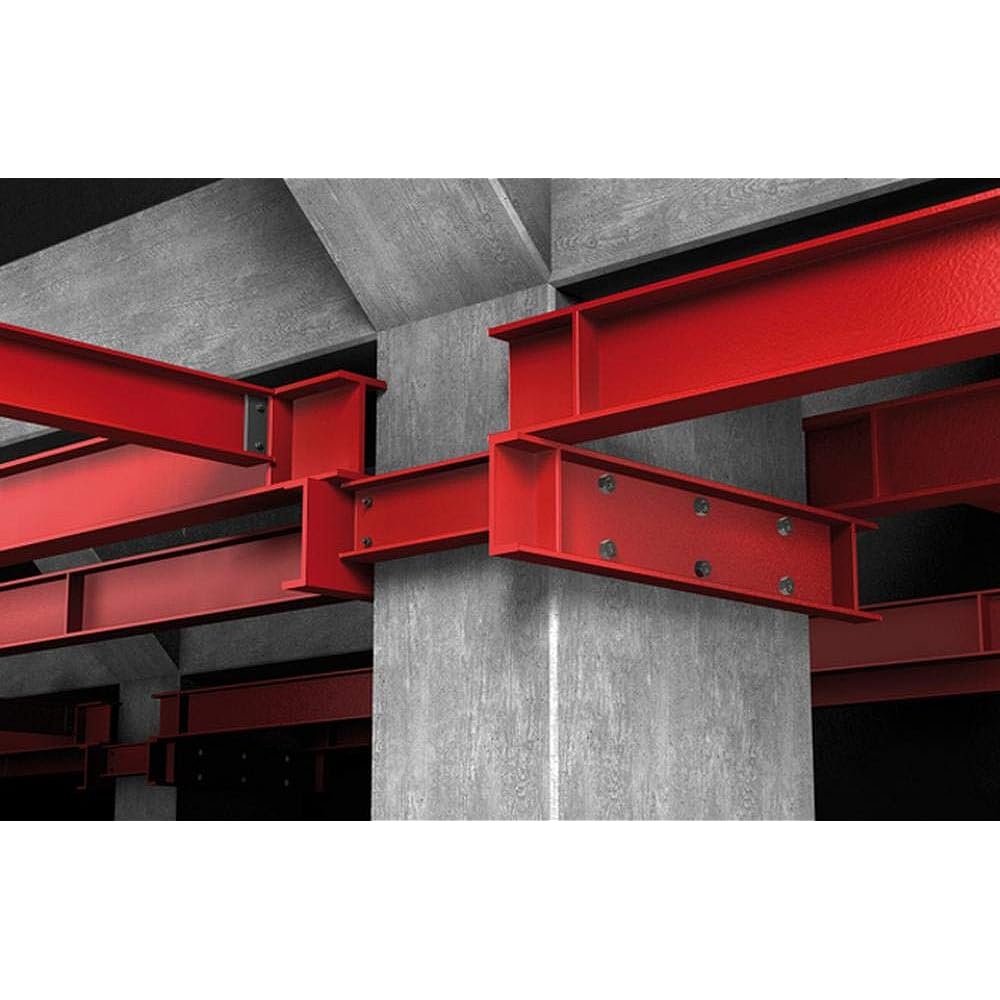

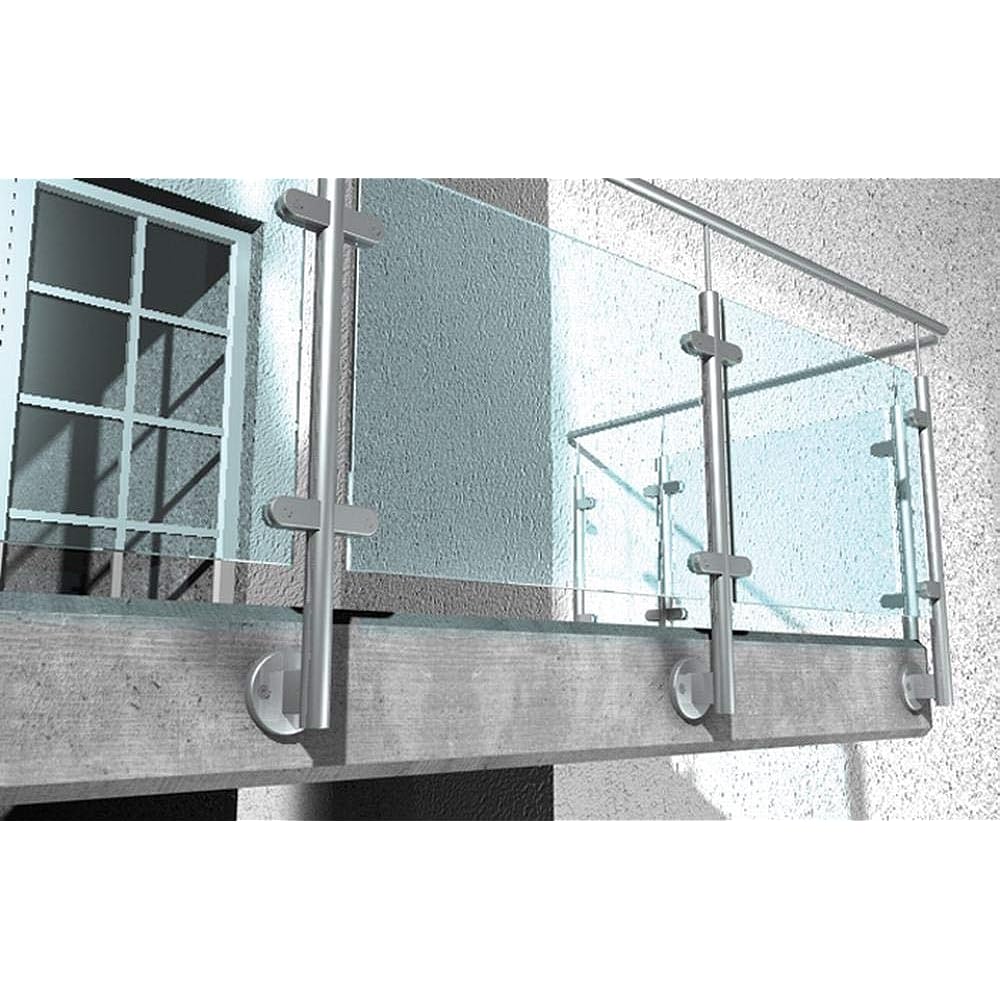

Fischer original construction expansion sleeve allows maximum load carrying capacity. Shallow embedment allows for shallow drill hole depths, reduces interference with reinforcing bars and enables faster construction. International certifications demonstrate maximum safety and best performance. For concrete and dense stone. Installation of various frames. Equipment work. Exterior construction of handrails, etc.


Brand: ‎fischer
Product model number: ‎94877
Product size: ‎9.5 x 0.8 x 9.5 cm; 20 g
Material: ‎Zinc
Quantity: 1
Battery included: No
Year: 2017
Product weight: 20 g
