Fisher bolt anchor FH2 12/10 S 50 pieces 44884

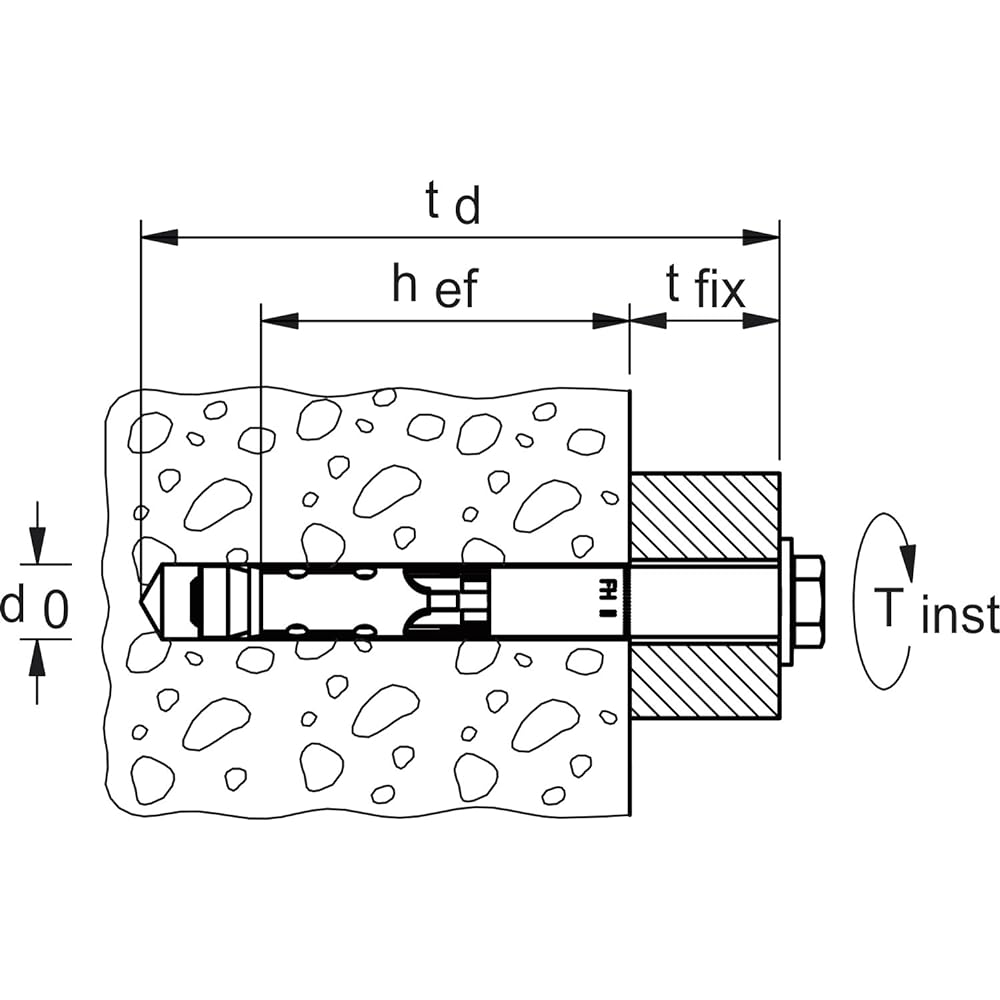

Thread designation: M8 Embedment depth (mm): 90 Pilot hole diameter (mm): 12 Maximum tensile load (kN): 11.2 Overall length (mm): 90 Drill diameter (mm): 12 Maximum installation thickness ( mm):10 Effective embedment depth (mm): 60 Standard construction torque (N m): 22.5, Maximum tensile load (kN): 11.2, Maximum shearing load (kN): 18.9, Number of boxes (pieces): 50, Width across flats (mm): 13, European technical certification (ETA-07/0025), International Standards Council certification, hexagonal head type, steel, surface treatment: zinc plating (trivalent chromate treatment) Display more items

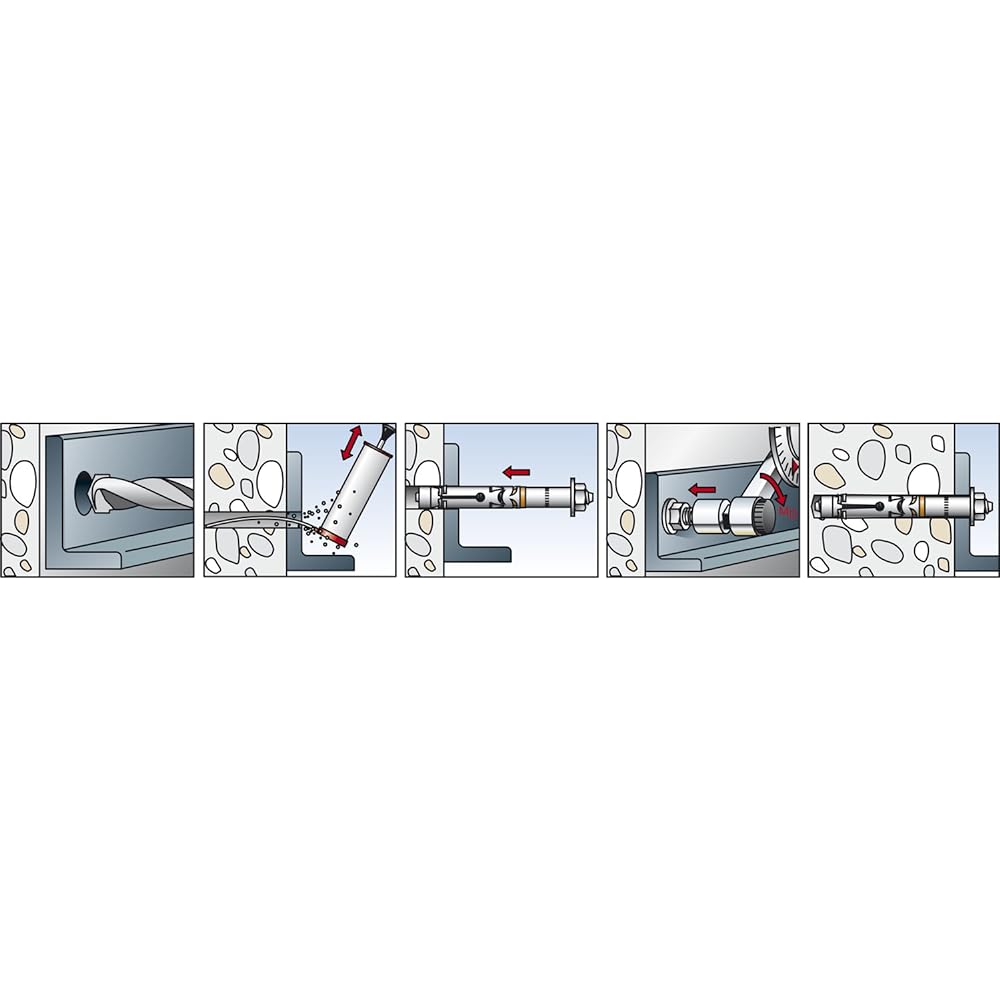

High shear load due to interaction between screw body and sleeve. Construction is possible with a small number of anchors. For concrete and dense stone. Installation of various frames. Equipment work. Exterior construction of handrails, etc.


Brand: ‎fischer
Product model number: ‎44884
Product size: ‎9 x 1.2 x 9 cm; 3.51 kg
Material: ‎Zinc, alloy steel
Quantity: 1
Battery included: No
Year: 2017
Product weight: 3.51 Kilograms
