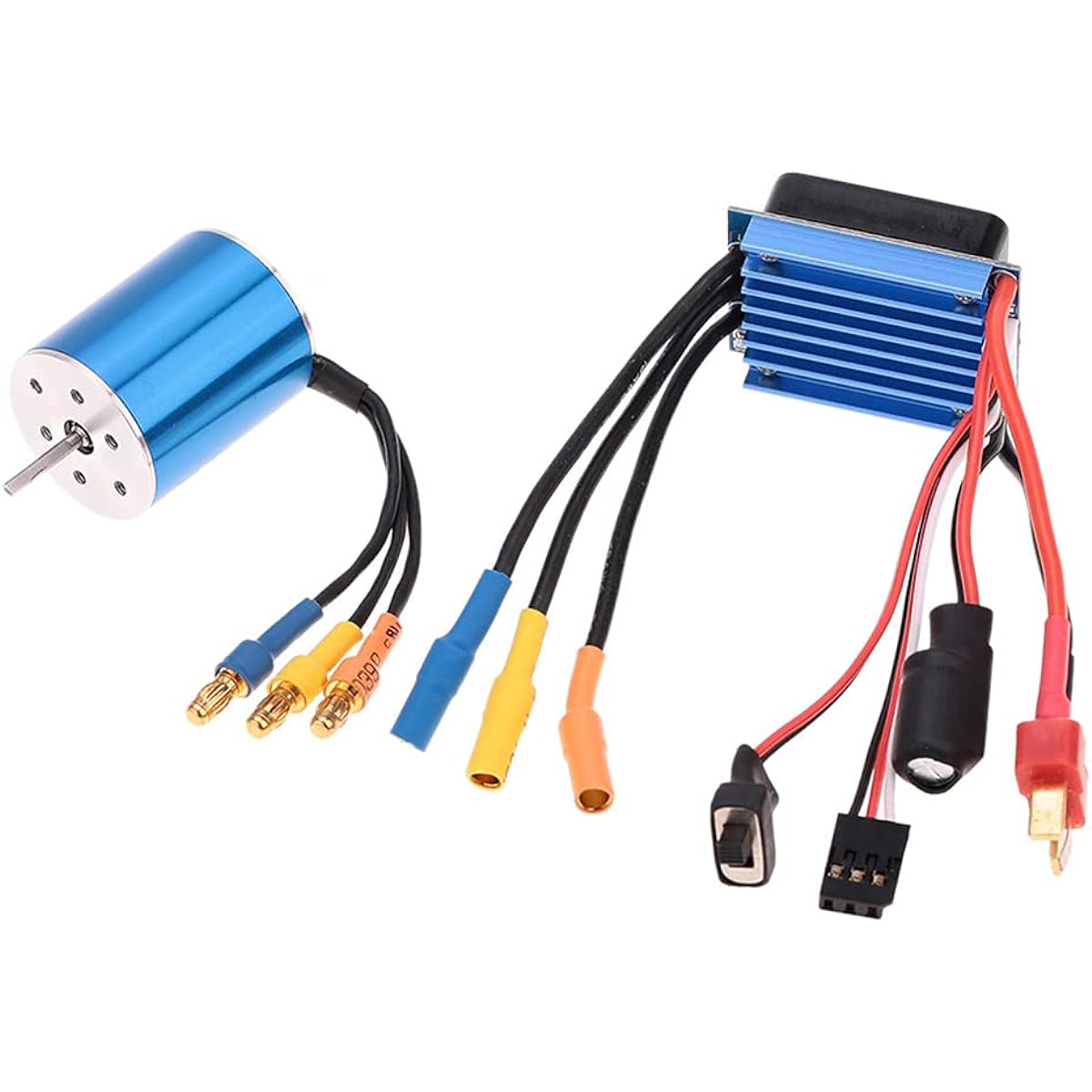

FEICHAO 2430 5800KV 7200KV 4P Sensorless Brushless Motor 25A Brushless ESC for 1/16 1/18 RC Car Truck Models (7200KV)
FEICHAO 2430 5800KV 7200KV 4P Sensorless Brushless Motor 25A Brushless ESC for 1/16 1/18 RC Car Truck Models (7200KV)
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
2430 MOTOR: 4 pole high torque motor design, 3.5mm gold plated connector 2.0mm shaft, multi-installation style with M2.5 thread, suitable for 1/16 or 1/18 brushless car. CNC machined tooled billet, 6061-T6 aluminum heat sink, secondary oxidation treatment, high-end appearance. High purity copper coil for maximum performance and temperature resistance 180-200°; High speed ABEC5 ultra-durable sealed bearing, low friction, low noise, high precision and long life. Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance. Precise waterproof designed motor for maximum power conversion. 25A ESC: Motor Plug: Female 3.5mm Bullet Connector; Power Plug: T Male, Battery: 2S LiPo / 4-6S NiMH (Not Included)
› View more
FEICHAO 2430 5800KV 7200KV 4P Sensorless Brushless Motor & 25A Brushless ESC Electric Speed Controller for 1/16 1/18 RC Car Truck Models Specification: 2430 Classic Series Motor Set: 4-Stage 12-Slot High Torque Motor Design. CNC Machine Tool Machined Billet, 6061-T6 Aluminum Heat Sink, Secondary Oxidation Treatment, High-end Appearance and Fineness. High Purity Copper Coil for Maximum Performance and 180-200° Heat Resistance. High Speed ABEC5 Ultra Heavy Duty Sealed Bearings, Low Friction, Low Noise, High Precision and Long Lasting. 3.5mm gold plated connector 2.0mm shaft, suitable for 1/16 or 1/18 brushless car. Multi-installation style with M2.5 screw. Highly balanced explosion-proof rotor, high smoothness, high precision, high speed, dynamic balance control within 10mg, removable and replaceable later. Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance. Accurate waterproof designed motor for maximum power conversion. Compatible with most brands of 1/16 .1/18 cars. 2430 Motor: RPM: 7200KV/5800KV(optional). Max Current: 24A. Max Wattage: 200W. Can Diameter: 24mm. Can Length: 30mm. Shaft Diameter: 2mm. Shaft Length: 12mm. Bullet Connector: 3.5mm. Weight: 46g. Max Voltage: 7.4V (2S). 25A ESC: Burst Current: 90A. Battery: 2 cell LiPo/4-6 cell NiMH. BEC Output: 5V/1A. Power Plug: T Male. Motor Plug: Female 3.5mm Bullet Connector. Weight: 30g.
Model Number: Z43310
Battery Required: No
Batteries Included: No
Manufacturer Recommended Age: 180+
Product Model Number: Z43310
Package Dimensions: 11.99 x 11.3 x 5.59 cm; 30 g
FEICHAO 2430 5800KV 7200KV 4P Sensorless Brushless Motor & 25A Brushless ESC Electric Speed Controller for 1/16 1/18 RC Car Truck Models Specification: 2430 Classic Series Motor Set: 4-Stage 12-Slot High Torque Motor Design. CNC Machine Tool Machined Billet, 6061-T6 Aluminum Heat Sink, Secondary Oxidation Treatment, High-end Appearance and Fineness. High Purity Copper Coil for Maximum Performance and 180-200° Heat Resistance. High Speed ABEC5 Ultra Heavy Duty Sealed Bearings, Low Friction, Low Noise, High Precision and Long Lasting. 3.5mm gold plated connector 2.0mm shaft, suitable for 1/16 or 1/18 brushless car. Multi-installation style with M2.5 screw. Highly balanced explosion-proof rotor, high smoothness, high precision, high speed, dynamic balance control within 10mg, removable and replaceable later. Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance. Accurate waterproof designed motor for maximum power conversion. Compatible with most brands of 1/16 .1/18 cars. 2430 Motor: RPM: 7200KV/5800KV(optional). Max Current: 24A. Max Wattage: 200W. Can Diameter: 24mm. Can Length: 30mm. Shaft Diameter: 2mm. Shaft Length: 12mm. Bullet Connector: 3.5mm. Weight: 46g. Max Voltage: 7.4V (2S). 25A ESC: Burst Current: 90A. Battery: 2 cell LiPo/4-6 cell NiMH. BEC Output: 5V/1A. Power Plug: T Male. Motor Plug: Female 3.5mm Bullet Connector. Weight: 30g.
Model Number: Z43310
Battery Required: No
Batteries Included: No
Manufacturer Recommended Age: 180+
Product Model Number: Z43310
Package Dimensions: 11.99 x 11.3 x 5.59 cm; 30 g
