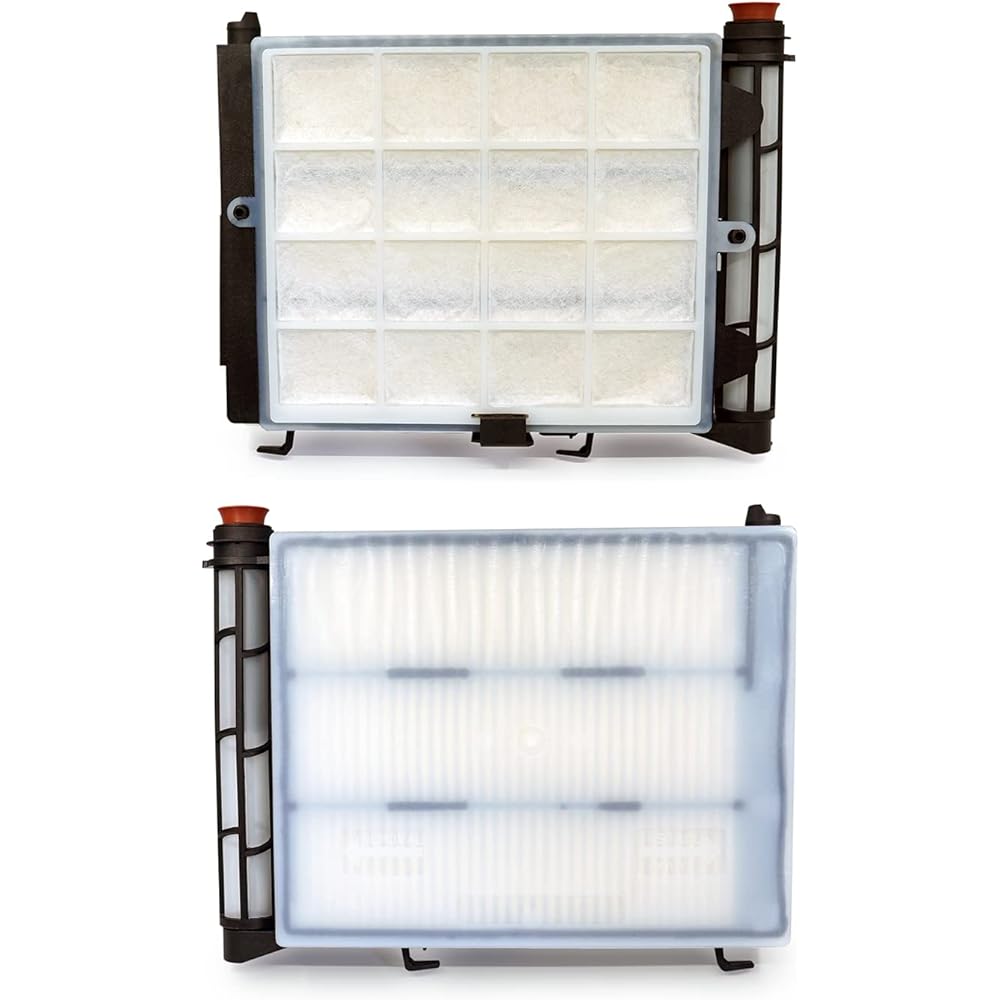

FD-4624 FD-4625 6.7 Power stroke diesel fuel filter Element 2017-2022 Ford F-250 F-350 F-550 SUPER DUTY V8 #FD-4624 FD-4625 HC3Z-9N184-B HC3Z-9N184-c
FD-4624 FD-4625 6.7 Power stroke diesel fuel filter Element 2017-2022 Ford F-250 F-350 F-550 SUPER DUTY V8 #FD-4624 FD-4625 HC3Z-9N184-B HC3Z-9N184-c
Regular price
$127.00 USD
Regular price
Sale price
$127.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

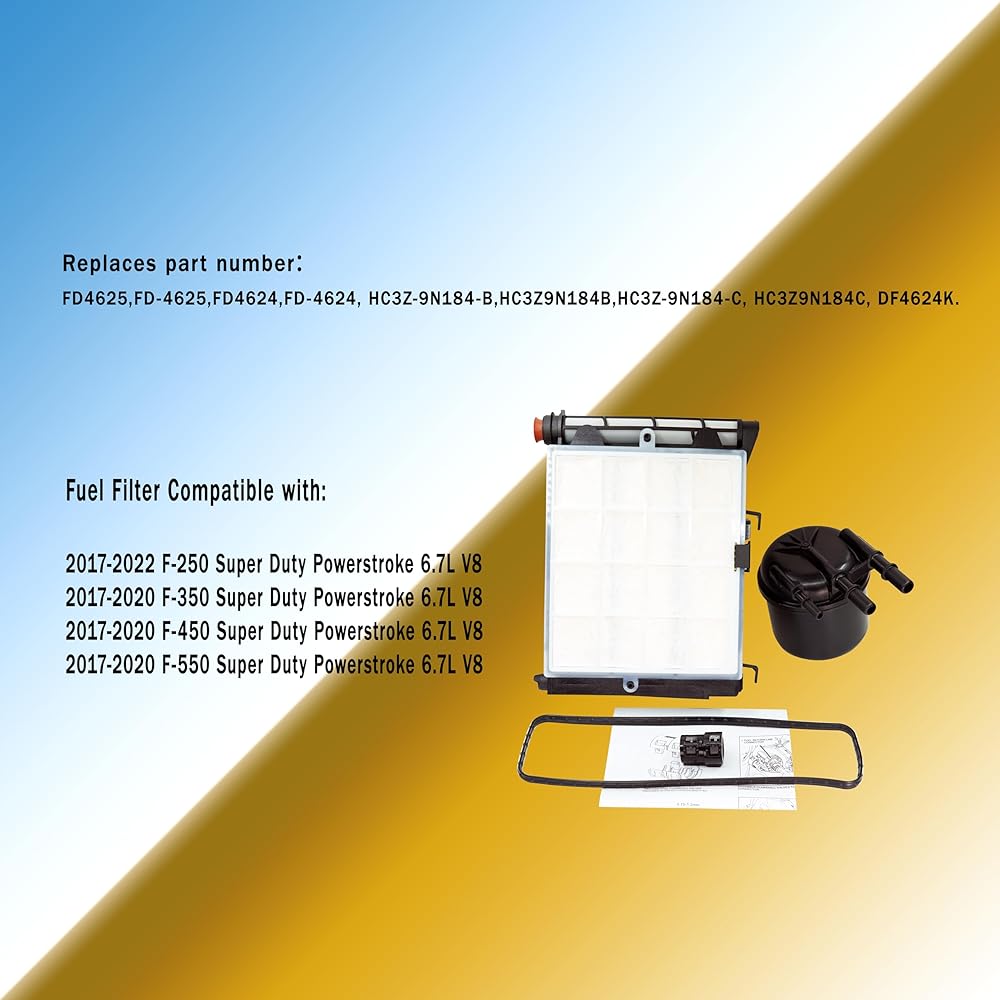

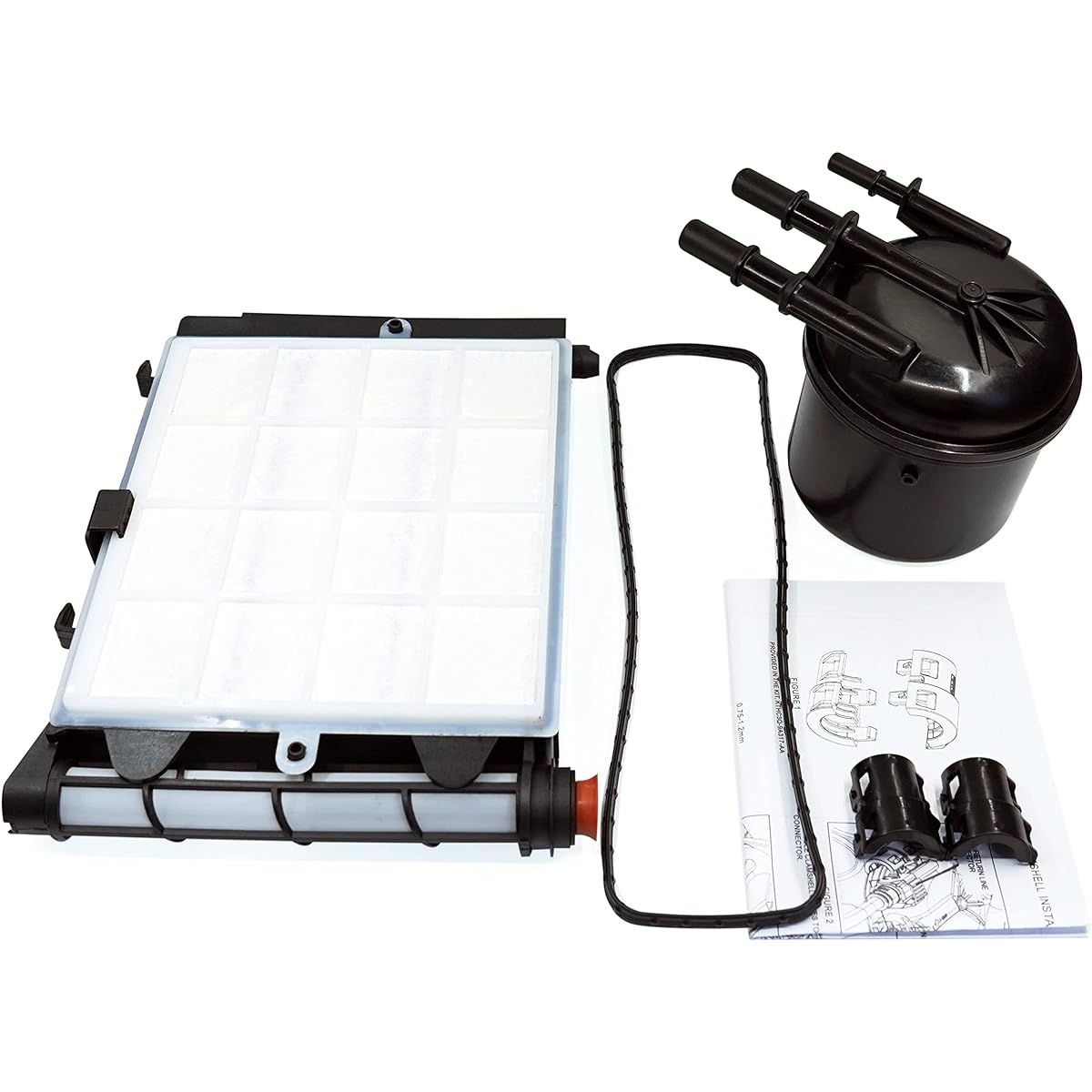

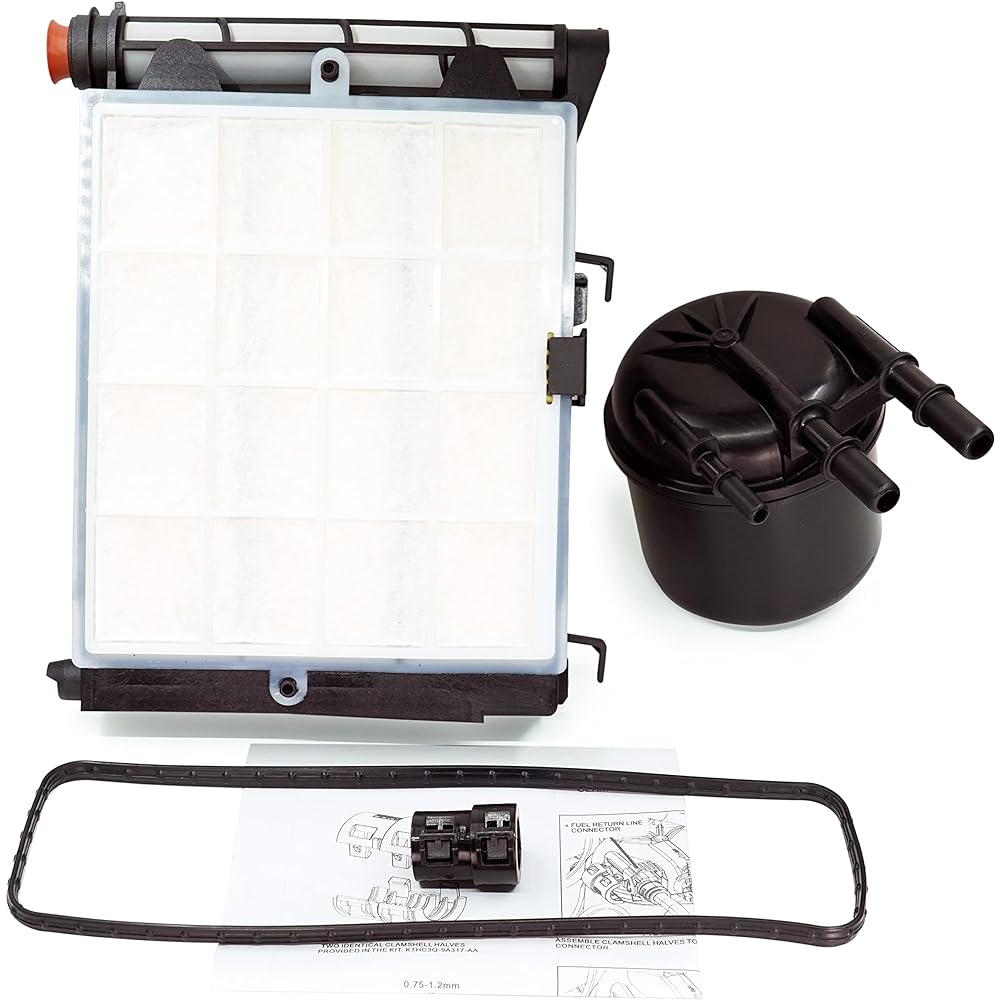

YRBY [Replacement part number] FD4625, FD-4625, FD4624, FD-4624, HC3Z-9N184-B, HC3Z9N184B, HC3Z-9N184-C, HC3Z9N184C, DF4624K. YRBY [Compatibility] Ford 2017-2022 F-250 Super Duty, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty. YRBY【Features】This 6.7L fuel separator meets the optimal fuel flow requirements of modern diesel engines, ensuring the system is free of contaminants and water. 98% water separation efficiency. Effectively filters impurities. YRBY [Package Contents] Engine mount filter x 1, frame mount filter x 1, filter gasket, and 1 pair of clips. Instruction manual x 1 Recommended Replacement Period: Replace the fuel filter every 15,000 miles. YRBY [After-sales Service] Our team values customer experience. If you have any questions, please feel free to contact us. 1 year warranty, worry-free return and refund policy.
6.7L Powerstroke Fuel Filter Compatible with: 2017-2022 F-250 Super Duty Powerstroke 6.7L V8. 2017-2020 F-350 Super Duty Power Stroke 6.7L V8. 2017-2020 F-450 Super Duty Power Stroke 6.7L V8. 2017-2020 F-550 Super Duty Power Stroke 6.7L V8. 1. Frame Rail Filter Replacement: Place a drain pan under the water in the fuel separator filter housing under the carb between the frame rails to drain the fuel. Remove the five fuel filter housing mounting bolts using an 8mm socket and replace the filter element and housing gasket. Reinstall the filter housing and plug the water into the fuel sensor connector. 2. Engine Filter Replacement: This fuel filter is located on the driver's side of the engine bay and contains three fuel lines. Remove all three fuel lines leading to the filter by sliding the plastic clips and pulling the lines away from the filter one at a time. Loosen the filter from the housing by turning it 1/4 turn. Install and tighten the new fuel filter. Turn the key to the on position and leave it at 30. seconds. Turn the key. With the key in the off position, repeat the back on three times.
Manufacturer: ZIMGLOBAL
Brand: ZIMGLOBAL
Model Name: FD-4624 FD-4625 Fuel Filter.
Package size: 24.61 x 22.81 x 16.61 cm; 889 g
Product model number: HM-067-01
Exterior condition: Filter
Original product number: FD4625,FD-4625, FD4624,FD-4624, HC3Z-9N184-B,HC3Z9N184B,HC3Z-9N184-C, HC3Z9N184C, DF4624K.
API grade: Replacement part
Product weight: 889 g
6.7L Powerstroke Fuel Filter Compatible with: 2017-2022 F-250 Super Duty Powerstroke 6.7L V8. 2017-2020 F-350 Super Duty Power Stroke 6.7L V8. 2017-2020 F-450 Super Duty Power Stroke 6.7L V8. 2017-2020 F-550 Super Duty Power Stroke 6.7L V8. 1. Frame Rail Filter Replacement: Place a drain pan under the water in the fuel separator filter housing under the carb between the frame rails to drain the fuel. Remove the five fuel filter housing mounting bolts using an 8mm socket and replace the filter element and housing gasket. Reinstall the filter housing and plug the water into the fuel sensor connector. 2. Engine Filter Replacement: This fuel filter is located on the driver's side of the engine bay and contains three fuel lines. Remove all three fuel lines leading to the filter by sliding the plastic clips and pulling the lines away from the filter one at a time. Loosen the filter from the housing by turning it 1/4 turn. Install and tighten the new fuel filter. Turn the key to the on position and leave it at 30. seconds. Turn the key. With the key in the off position, repeat the back on three times.
Manufacturer: ZIMGLOBAL
Brand: ZIMGLOBAL
Model Name: FD-4624 FD-4625 Fuel Filter.
Package size: 24.61 x 22.81 x 16.61 cm; 889 g
Product model number: HM-067-01
Exterior condition: Filter
Original product number: FD4625,FD-4625, FD4624,FD-4624, HC3Z-9N184-B,HC3Z9N184B,HC3Z-9N184-C, HC3Z9N184C, DF4624K.
API grade: Replacement part
Product weight: 889 g
