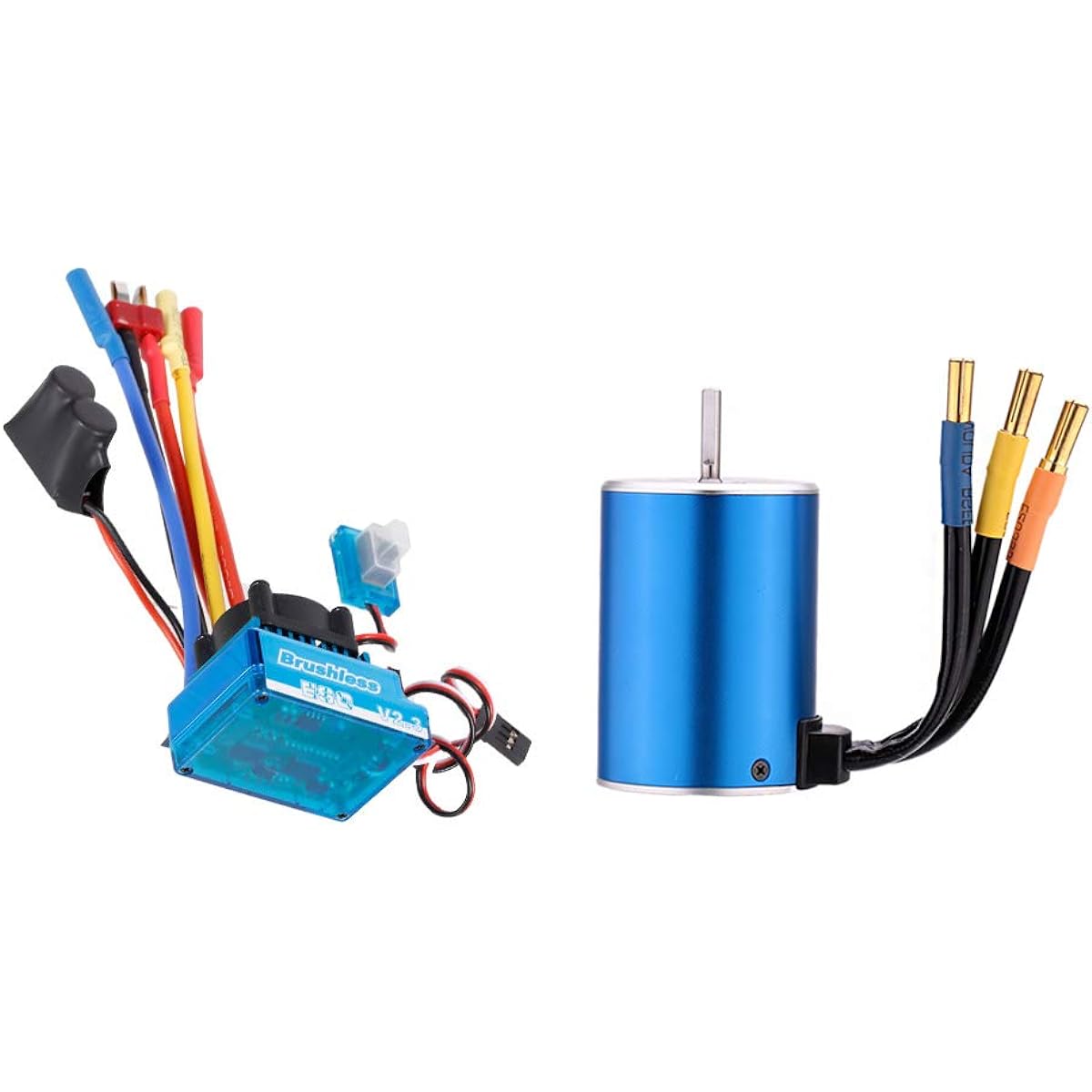

fangzi Motor Speed Controller, 3650 3100KV 4P Sensorless Brushless Motor 60A Brushless ESC (Electronic Speed Controller) for 1/10 RC Radio Control Car Truck
fangzi Motor Speed Controller, 3650 3100KV 4P Sensorless Brushless Motor 60A Brushless ESC (Electronic Speed Controller) for 1/10 RC Radio Control Car Truck
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
4 pole 12 slots, high torque motor design. CNC machined 6061 T6 billet aluminum heat sink motor. Motor Features High purity copper windings maximize efficiency. ESC key: Advanced software interface to set up or update software. Mutiple protection functions of ESC: Low voltage cut off protection, over temperature protection, throttle signal loss protection.
MOTOR Features: 4 pole high torque motor design. CNC machined, 6061 T6 billet aluminum heat sink motor. High purity copper windings maximize efficiency. High RPM ABEC5 oversized bearings. M3 threads compatible with all 1/10 brushless car multi-mount systems. Precision balanced rotor provides best reliability and maximum RPM. Stator - Ultra thin (0.35mm) lamination. Replaceable/removable. Precision engineered design for maximum energy conversion. ROAR legal. Specifications: RPM: 3100KV Max Current: 56A Max Watts: 900W Can Size: 3650 With Sensor: No Can Diameter: 36mm Can Length: 50mm Shaft Diameter: 3.175mm Shaft Length: 15mm Bullet Connector: 4mm Weight: 180.8g/6.4oz Max Voltage: 7.4V(2S)-14.8V(3S) Note: Small deviation is possible due to manual measurement. Electric Speed Controller Features: Supports sensorless brushless motors. High anti-interference ability. Advanced software interface to configure and update software. Super smooth and accurate throttle linearity. Throttle is agile. Various protection functions: low voltage cut-off protection, throttle signal loss protection. Specification: Continuous Current: 60A Burst Current: 320A/10sec Battery: 2-3 cells Lipo/4-9 cells NiMH SBEC: Yes SBEC Output: 5.8V/3A Power Plug: T Male Motor Plug: Female 4mm Bullet Connector Size: 45*35*35(Fan not included) Weight: 76.3g/2.68oz Package Size: 10 * 8 * 6.5cm/ 3.9 * 3.1 * 2.5in Package Weight: 288g/10.1 oz Package List: 1 * 3650 3100KV 4P Sensorless Brushless Motor 1 * 60A Brushless Electric Speed Controller
Manufacturer: fangzi
Product Size: 10 x 8 x 6.5 cm
MOTOR Features: 4 pole high torque motor design. CNC machined, 6061 T6 billet aluminum heat sink motor. High purity copper windings maximize efficiency. High RPM ABEC5 oversized bearings. M3 threads compatible with all 1/10 brushless car multi-mount systems. Precision balanced rotor provides best reliability and maximum RPM. Stator - Ultra thin (0.35mm) lamination. Replaceable/removable. Precision engineered design for maximum energy conversion. ROAR legal. Specifications: RPM: 3100KV Max Current: 56A Max Watts: 900W Can Size: 3650 With Sensor: No Can Diameter: 36mm Can Length: 50mm Shaft Diameter: 3.175mm Shaft Length: 15mm Bullet Connector: 4mm Weight: 180.8g/6.4oz Max Voltage: 7.4V(2S)-14.8V(3S) Note: Small deviation is possible due to manual measurement. Electric Speed Controller Features: Supports sensorless brushless motors. High anti-interference ability. Advanced software interface to configure and update software. Super smooth and accurate throttle linearity. Throttle is agile. Various protection functions: low voltage cut-off protection, throttle signal loss protection. Specification: Continuous Current: 60A Burst Current: 320A/10sec Battery: 2-3 cells Lipo/4-9 cells NiMH SBEC: Yes SBEC Output: 5.8V/3A Power Plug: T Male Motor Plug: Female 4mm Bullet Connector Size: 45*35*35(Fan not included) Weight: 76.3g/2.68oz Package Size: 10 * 8 * 6.5cm/ 3.9 * 3.1 * 2.5in Package Weight: 288g/10.1 oz Package List: 1 * 3650 3100KV 4P Sensorless Brushless Motor 1 * 60A Brushless Electric Speed Controller
Manufacturer: fangzi
Product Size: 10 x 8 x 6.5 cm
