fangzi Brushless Motor, 2435 4500KV Brushless Motor with 25A ESC Programming Card Replacement for HSP 1/16 1/18 Remote Control Truck Car

Precision balanced rotors, smooth for maximum reliability, maximum RPM. Excellent throttle linearity and driving feel. 4 pole 12 slot high torque motor design. CNC machined 6061 T6 billet aluminum heat sink can, high purity copper windings for maximum efficiency, high RPM ABEC5 oversized bearings. Universal fit, replacement for HSP 1/16 1/18 remote control truck car. Stator - Ultra thin (0.35mm) laminations.

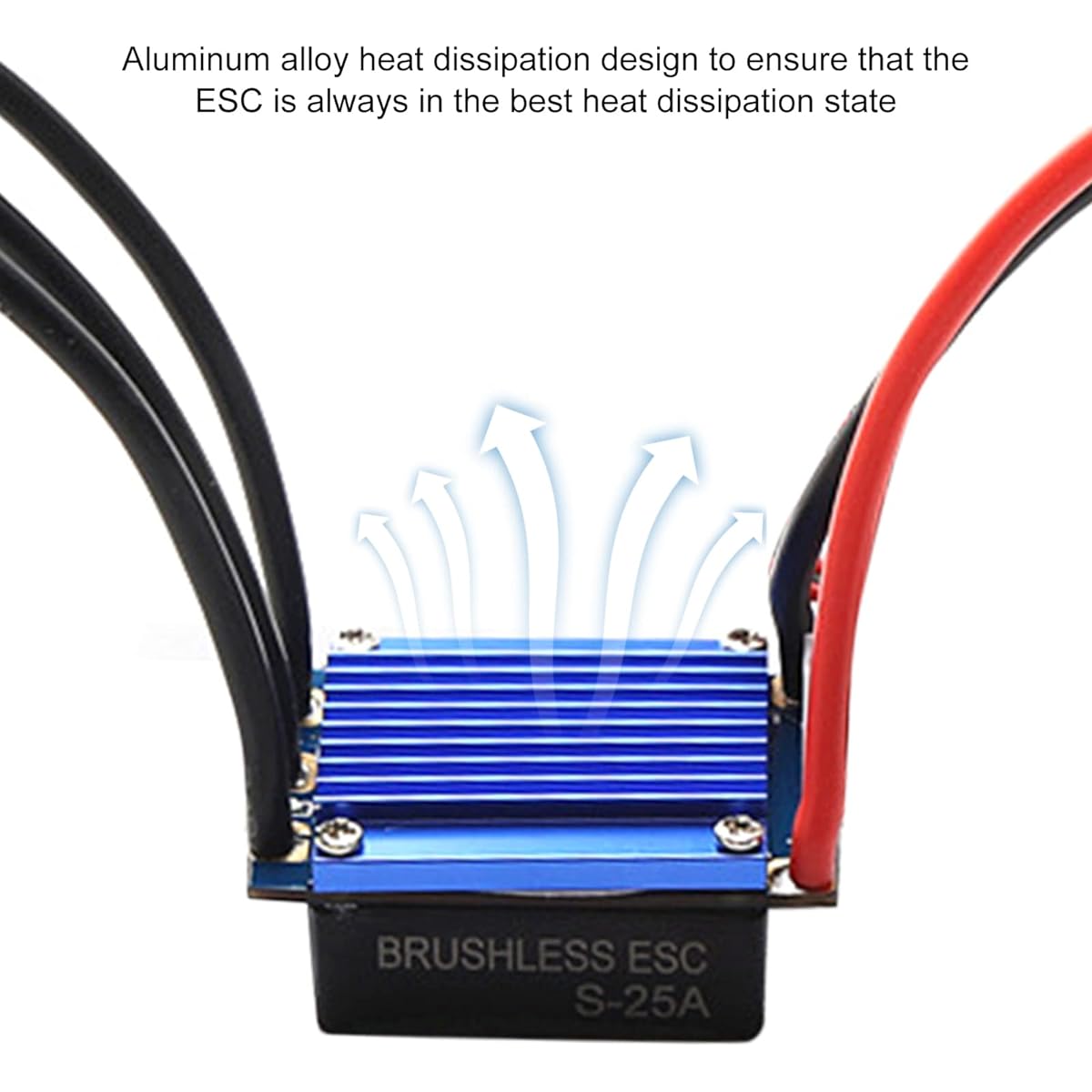

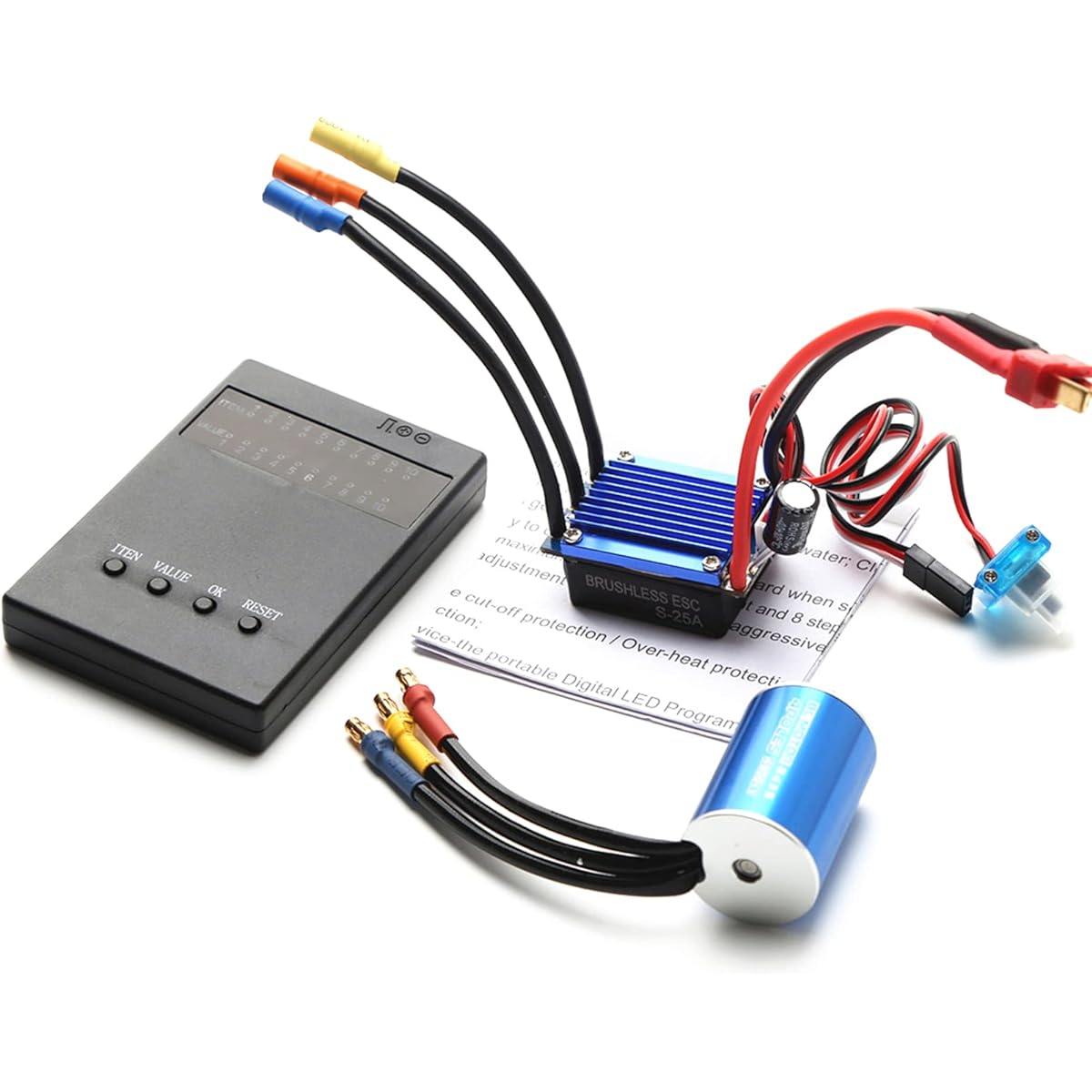

Features: Precision balanced rotors, smooth for maximum reliability, maximum RPM. Excellent throttle linearity and driving feel. 4 pole 12 slot high torque motor design. CNC machined 6061 T6 billet aluminum heat sink can, high purity copper windings for maximum efficiency, high RPM ABEC5 oversized bearings. Universal fit, Replacement for HSP 1/16 1/18 Remote Control Truck Cars. Stator - Ultra Thin (0.35mm) Lamination. Specification:Item: 4500KV Brushless Motor Blue ColorKV (RPM/Volts): 4500KVWatts: 300Max RPM: 60000Max Voltage: <13.2VMax Ampere: 22ARotor Poles: 4Diameter: 24mmLength: 34mmShaft: 2.0mmShaft Length: 12mmConnector: 3.5mm GoldWeight: 59g25A ESC:Continuous Current: 25ABurst Current: 90A/10 secBattery: 2 Cell Lipo / 4-6 Cell NiMhBEC: YesBEC Output: 5V/1APower Plug: T MaleMotor Plug: Female 3.5mm Bullet ConnectorSize: 40*27*15mmWeight: 29gProgramming Card:Low Voltage Cutoff: 3.1V/cell 2.8V/cell 3.3V/cell No cutoffStart mode: medium, soft, strongMax brake force: 25%, 50%, 75%, 100%Max reverse force: 25%, 50%, 75%, 100%Neutral range: 6%, 9%, 12%, working conditionPackage information:Package size: 12*8*5cmPackage weight: 143gPacking list:1 * 4500KV Brushless motor1 * 25A ESC1 * Programming card


Size : ‎4500KV
Manufacturer : ‎fangzi
Product size : ‎12 x 8 x 5 cm
