Auto Parts Tokyo
ELPA Voltage Detection Pen Voltage Detector Pen Type 7V~1000V Contact Type Non-Contact Type With LED Light Voltage Discrimination Function V-17
ELPA Voltage Detection Pen Voltage Detector Pen Type 7V~1000V Contact Type Non-Contact Type With LED Light Voltage Discrimination Function V-17
Regular price
$38.00 USD
Regular price
Sale price
$38.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

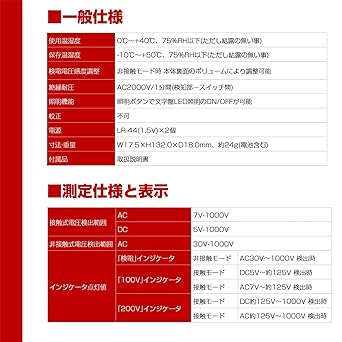

Contact voltage detection range: AC7V~1000V
Non-contact voltage detection range: AC30V~1000V
Indicator: Voltage detection LED: 100V LED that lights up when a voltage of AC30V~1000V is detected in non-contact mode :Lights up when a voltage of AC7V~125V is detected in contact mode.200V LED:Lights up when a voltage of around AC125V~1000V is detected in contact mode
Sensitivity adjustment function:Adjust the sensitivity of the detection voltage with the volume on the back of the main unit is possible (valid only in non-contact mode)
Dielectric strength: AC2000V/1 minute (between detection part and switch)
Lighting function: LED light can be turned on/off each time the LED button is pressed
Operating temperature and humidity: 0℃~+40℃, 75%RH or less (no condensation) Storage temperature/humidity: -10℃~+50℃, 75%RH or less (no condensation)
Power supply: LR44 button batteries x 2 (built-in for testing)

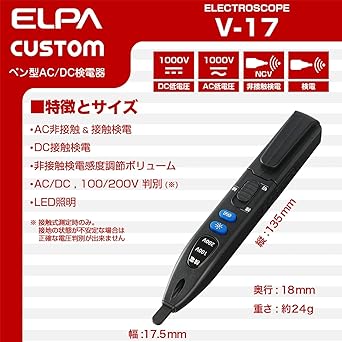

External dimensions (approx.): W17.5XH132XD18 (mm)
Weight: approx. 24g (including batteries)

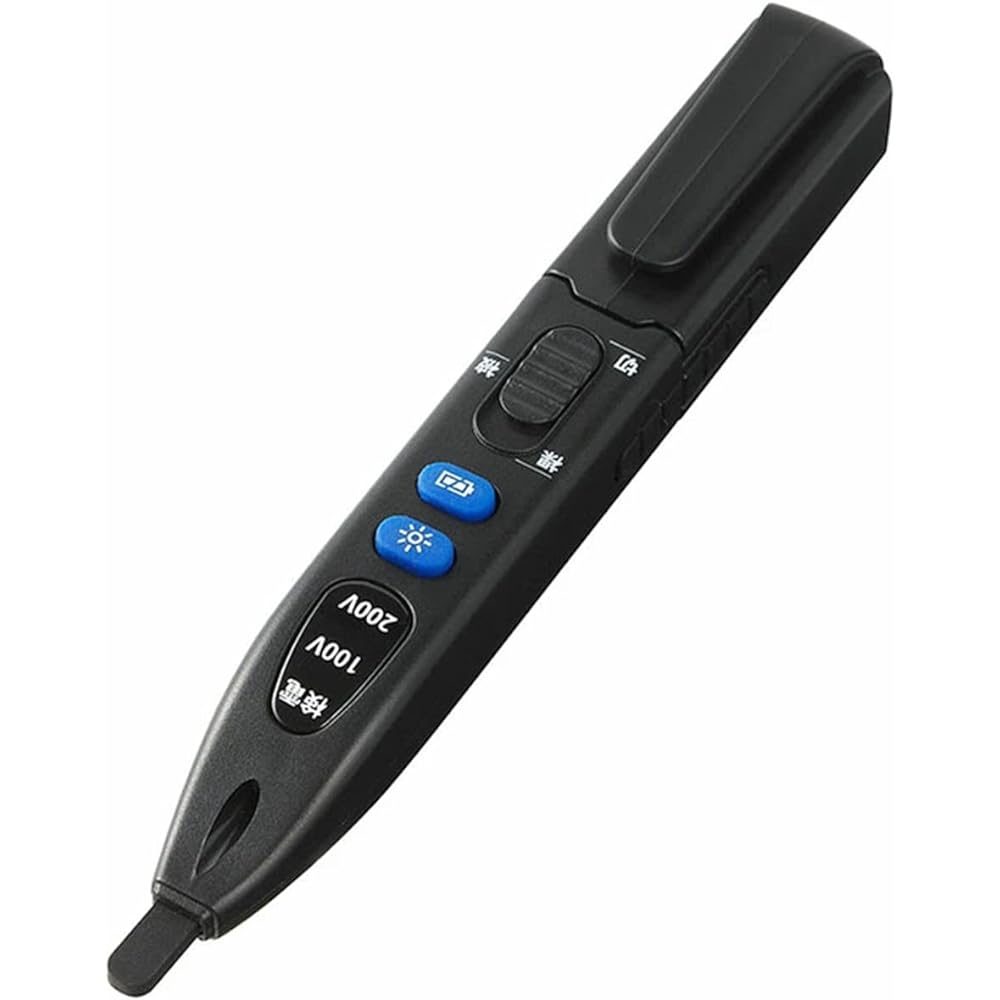

This is a pen-type voltage detector that allows you to easily check the energization status of non-contact type (AC) and contact type (AC). Equipped with a volume that allows sensitivity adjustment during non-contact measurement. Equipped with AC100V/200V voltage discrimination function. (Only for contact measurement. Accurate voltage determination cannot be made if the grounding condition is unstable.) Comes with an LED light that is convenient in dark places.
Manufacturer: ELPA
Part number: V-17
Product weight: 24 g
Product size: 1.8 x 1.75 x 13.2 cm; 24 g
Batteries: 2 unknown batteries (included)
Discontinued by manufacturer: No
Style: Contact type
Power type: Ac
Accessories: No
Battery included: Yes
Battery used: No
Battery type: Manganese
Product dimensions (Length x Width x Height): 18 x 17 x 132 mm
Non-contact voltage detection range: AC30V~1000V
Indicator: Voltage detection LED: 100V LED that lights up when a voltage of AC30V~1000V is detected in non-contact mode :Lights up when a voltage of AC7V~125V is detected in contact mode.200V LED:Lights up when a voltage of around AC125V~1000V is detected in contact mode
Sensitivity adjustment function:Adjust the sensitivity of the detection voltage with the volume on the back of the main unit is possible (valid only in non-contact mode)
Dielectric strength: AC2000V/1 minute (between detection part and switch)
Lighting function: LED light can be turned on/off each time the LED button is pressed
Operating temperature and humidity: 0℃~+40℃, 75%RH or less (no condensation) Storage temperature/humidity: -10℃~+50℃, 75%RH or less (no condensation)
Power supply: LR44 button batteries x 2 (built-in for testing)
External dimensions (approx.): W17.5XH132XD18 (mm)
Weight: approx. 24g (including batteries)
This is a pen-type voltage detector that allows you to easily check the energization status of non-contact type (AC) and contact type (AC). Equipped with a volume that allows sensitivity adjustment during non-contact measurement. Equipped with AC100V/200V voltage discrimination function. (Only for contact measurement. Accurate voltage determination cannot be made if the grounding condition is unstable.) Comes with an LED light that is convenient in dark places.
Manufacturer: ELPA
Part number: V-17
Product weight: 24 g
Product size: 1.8 x 1.75 x 13.2 cm; 24 g
Batteries: 2 unknown batteries (included)
Discontinued by manufacturer: No
Style: Contact type
Power type: Ac
Accessories: No
Battery included: Yes
Battery used: No
Battery type: Manganese
Product dimensions (Length x Width x Height): 18 x 17 x 132 mm
