ELECOM LAN Cable CAT6A Compatible 15m Nail Break Prevention Simple Package Compliant with EU RoHS Directive Twisted Wire Blue LD-GPAT/BU15/RS

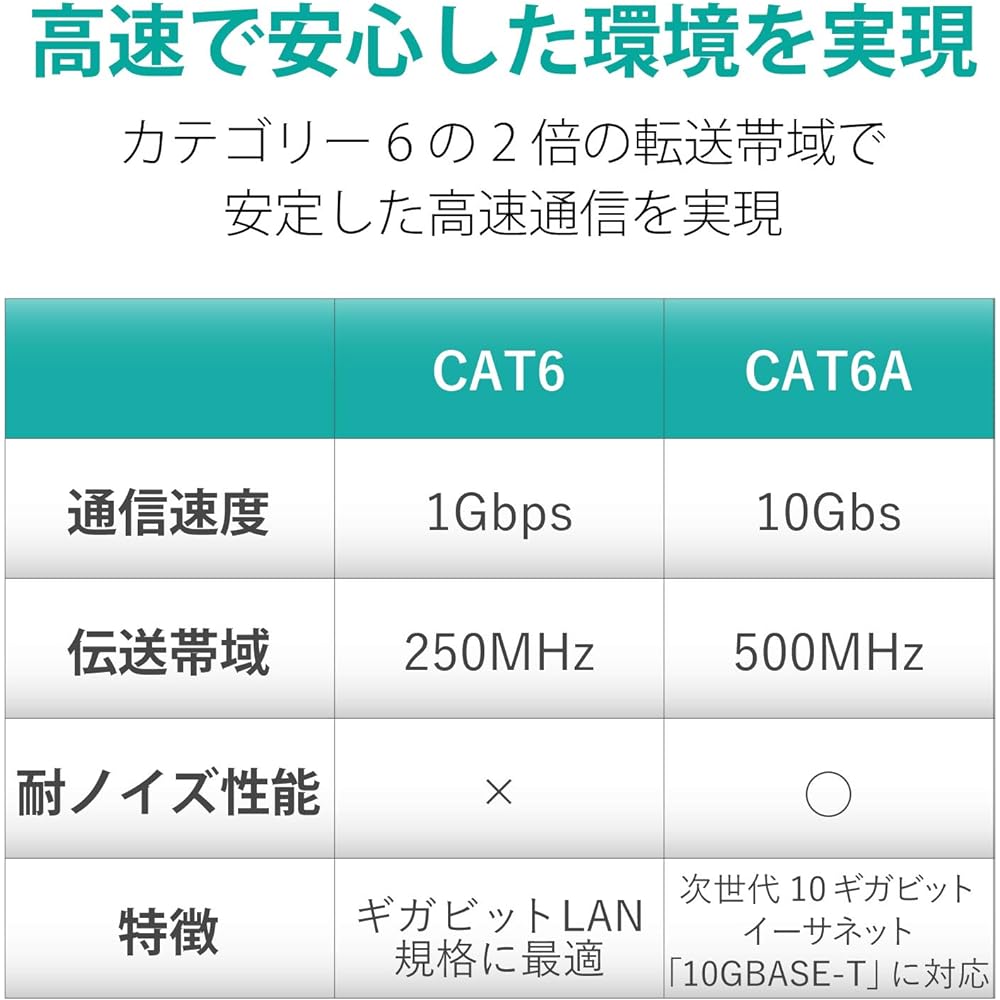

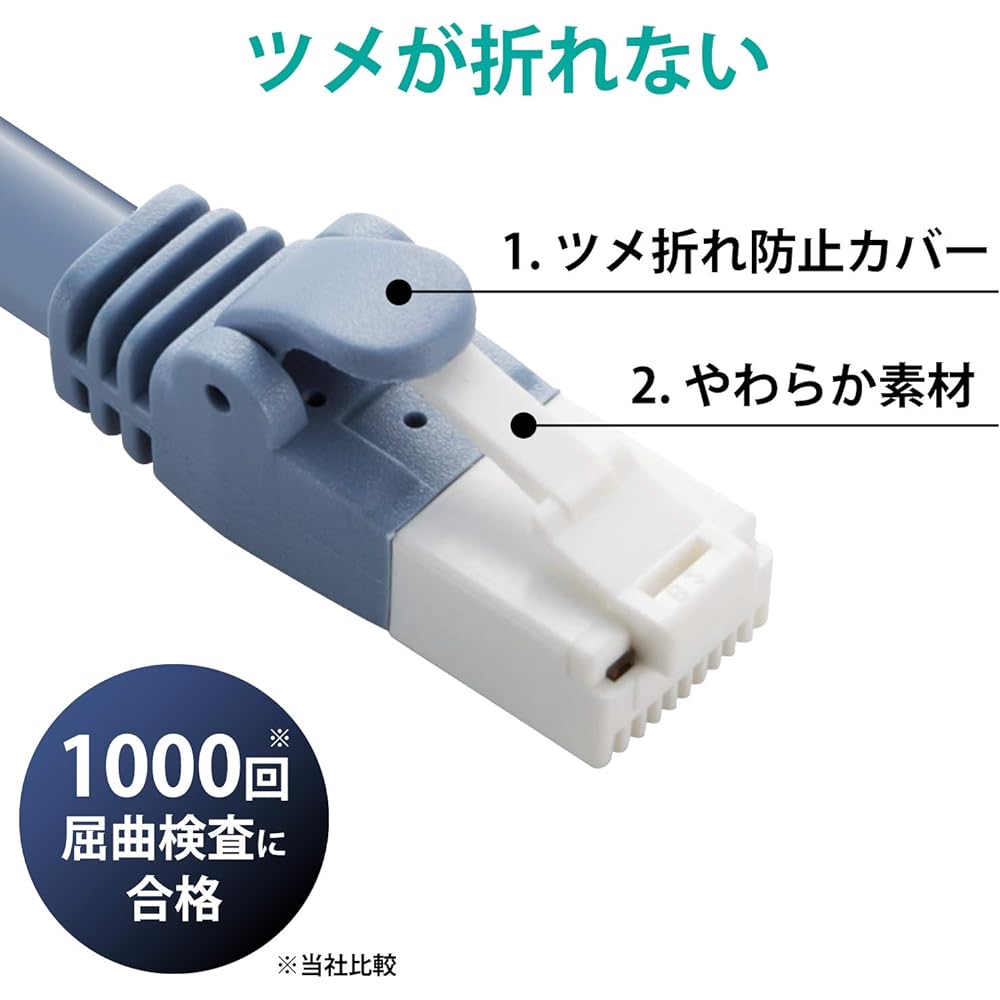

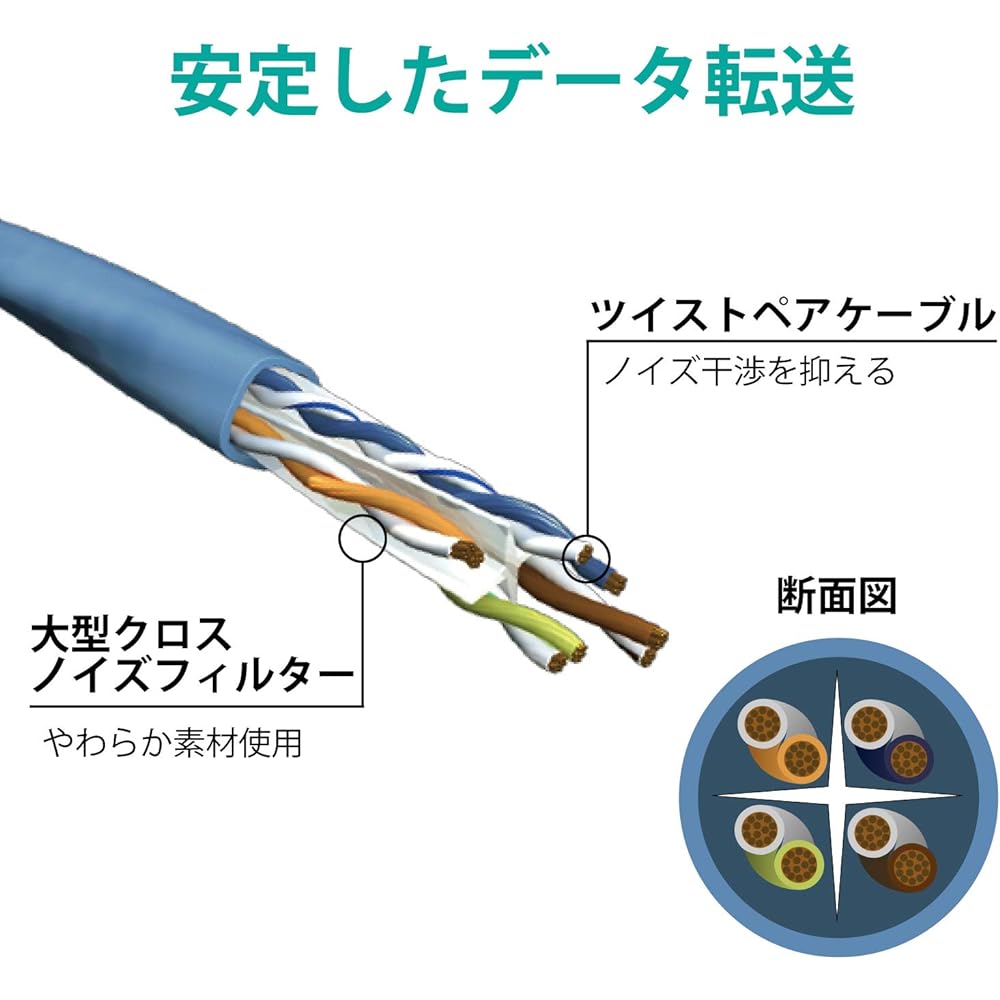

This is a standard type of Cat6A compatible LAN cable. This LAN cable has a double structure that uses a protector to prevent the tabs from breaking and a connector made of a material that is highly durable against bending, making the tabs difficult to break. *Passed 1000 bending tests (verified by our company) Prevents the cable from falling off due to bent tabs, allowing it to be securely fixed to the LAN port for a long period of time. A simple packaging type that is environmentally friendly, reduces waste, and makes unpacking smooth. It supports 10 Gigabit Ethernet "10GBASE-T", which is suitable for high-speed optical communication. It supports high frequency bands up to 500MHz, twice that of Cat6, is resistant to noise interference, and provides a high-speed and stable network environment. Ensures stable data transfer speed in 1000BASE-TX/1000BASE-T/100BASE-T environments. By inserting a cross member inside the cable, signal interference is prevented and stable data transmission is achieved. It is a twisted wire specification that is softer than single wire and easier to handle. It has flame retardant properties that pass the 60 degree tilt test (JIS C 3005). Increase number of displayed items

[Specifications] ■Color: Blue ■Interface: RJ-45 connector ■Environmental considerations: EU RoHS directive compliant (10 substances) ■Standard: Cat6A compatible (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE -T compatible) ■ Transmission speed: 10 Gbps ■ Transmission band: 500 MHz ■ Cable length: Approx. 15 m *Not including connector ■ Cable thickness: Approx. 6.5 mm ■ Number of cores: 8 cores ■ Connection method: Straight connection ■ Twisted pair core wire Cable): ○ ■ Shield: None (UTP specification) ■ Cross material: ○ ■ External sheath (coating) material: PVC ■ With length mark: × ■ Conductor configuration: Twisted wire (24AWG) ■ Connector presence: With connectors on both ends ■ Molded connector: ○ ■ Slim connector: ○ ■ Connector with cover to prevent nail breakage: ○ ■ Cable winding function: × ■ Package form: Polybag (environmentally friendly type) ■ Connector with no break of nail: ○ ■ PoE: PoE++ compatible [Description] ■Standard type of Cat6A compatible LAN cable. ■This LAN cable has a double structure that uses a protector to prevent tabs from breaking and a connector made of a material that is highly durable against bending, making the tabs difficult to break. *Passed 1000 bending tests (verified by our company) ■Prevents the cable from falling off due to bent tabs, allowing it to be securely fixed to the LAN port for a long period of time. ■A simple package type that is environmentally friendly, reduces waste, and makes unpacking smooth. ■Compatible with 10 Gigabit Ethernet "10GBASE-T" suitable for high-speed optical communication. ■It supports high frequency bands up to 500MHz, twice that of Cat6, is resistant to noise interference, and provides a high-speed and stable network environment. ■Ensures stable data transfer speed in 1000BASE-TX/1000BASE-T/100BASE-T environments. ■Inserting a cross member inside the cable prevents signal interference and achieves stable data transfer. ■It is a twisted wire specification that is softer than single wire and easier to handle. ■It has flame retardant properties that pass the 60 degree tilt test (JIS C 3005). ■This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances). ■Products that meet one or more of our company's environmental certification standards and display the "THINK ECOLOGY" mark. ■In an effort to protect the environment, this product is packaged only in paper, cardboard, and plastic bags. [Inquiries regarding products] ELECOM General Information Center TEL. 0570-084-465FAX. 0570-050-012 Reception hours / 10:00~19:00 Open all year round


Brand: ELECOM
Manufacturer: ELECOM
Package size: 20.4 x 19.2 x 4.6 cm; 570 g
Product model number: LD-GPAT/BU15/ RS
Color: Blue
Battery included: No
Product weight: 570 g
