ELECOM LAN Cable 100m Homemade CAT5e RoHS Directive Compliant Blue LD-CT2/BU100/RS

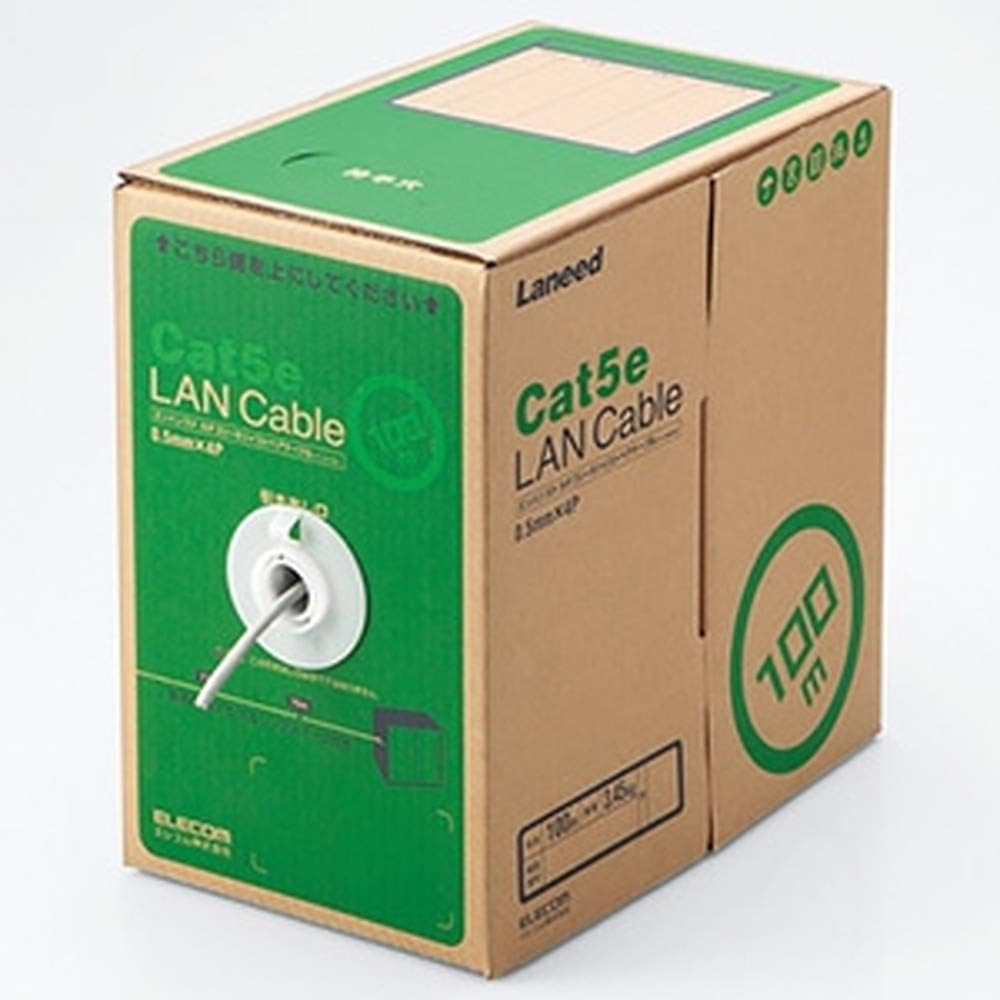

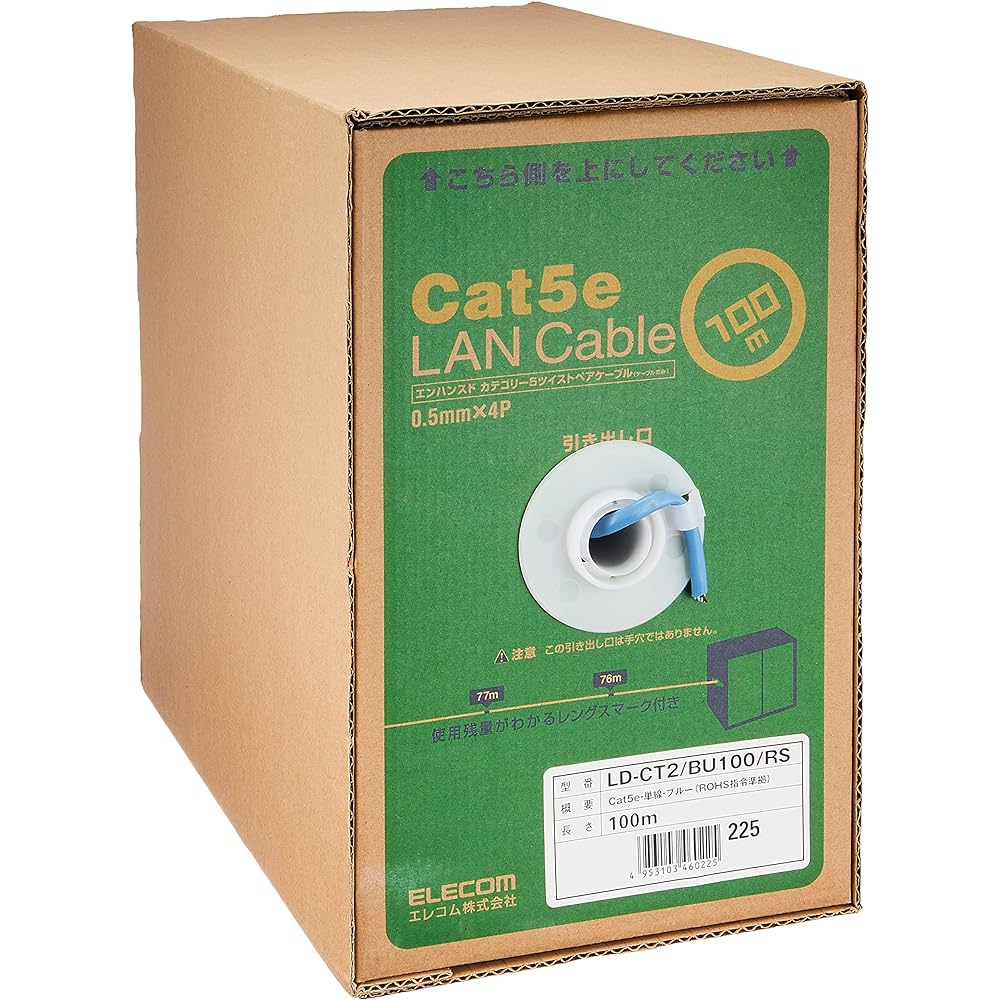

This is a long homemade Cat5e compatible LAN cable that allows stable data transfer with little transfer loss in 100BASE-TX and 1000BASE-T environments. This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances). It is a rex type that comes in a box that prevents the cable from getting tangled. Comes with a length mark that lets you know how much is left. *The length mark is a guide to the remaining amount. Single wire specification with low conduction loss and stable data transfer. It has flame retardant properties that pass the 60 degree tilt test (JIS C 3005). Compatible with optical communication lines, CATV lines, ADSL lines, and ISDN lines. Compatible connectors are LD-RJ45T10/T (10 pieces), LD-RJ45T10A (10 pieces), and LD-RJ45T100 (100 pieces).

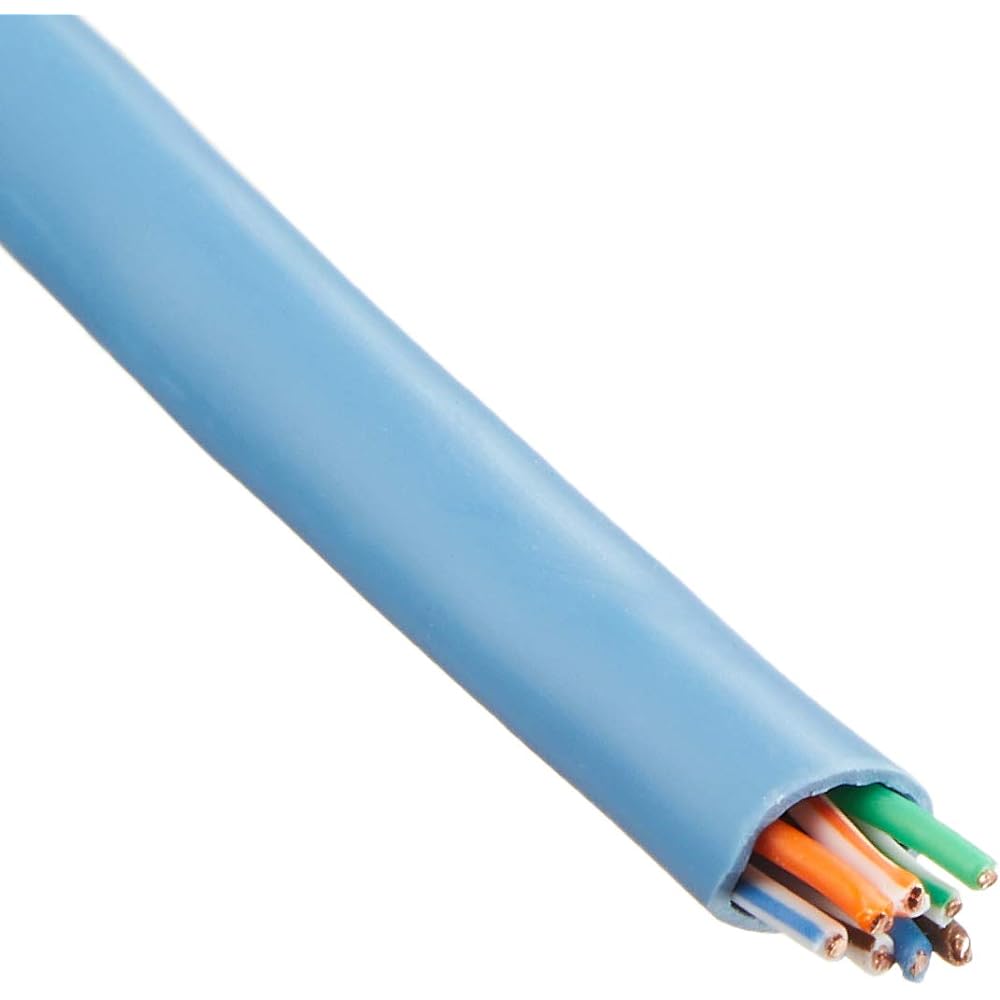

[Specifications] ■Standard: Cat5e compatible (10BASE-T, 100BASE-TX, 1000BASE-T) ■Transmission speed: 1Gbps ■Transmission band: up to 100MHz ■Cable length: Approx. 100m ■Cable thickness: Approx. 5.1mm ■Number of cores: 8 cores ■ Connection method: - ■ Twisted pair core wire (twisted pair cable): ○ ■ Shield: None (UTP specification) ■ Cross material: × ■ External sheath (coating) material: PVC ■ With length mark: ○ ■ Color: Blue ■Conductor composition: Single wire (24AWG) ■Conductor thickness: AWG24 ■Presence of connector: None ■Molded connector: × ■Slim connector: × ■Connector with claw break prevention cover: × ■Cable winding function: × ■Package form: Cardboard box (Relex winding) ■Environmental considerations: EU RoHS directive compliant (10 substances), environmentally friendly package ■Compatible connectors: LD-RJ45T10/T, LD-RJ45T10A, LD-RJ45T100 [Description] ■100BASE-TX and 1000BASE- This is a homemade long type of Cat5e compatible LAN cable that allows stable data transfer with little transfer loss in the T environment. ■This is an environmentally friendly product that complies with the EU's RoHS Directive (Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) (10 substances). ■It is a rex type that comes in a box that prevents the cable from getting tangled. ■Comes with a length mark that lets you know how much is left to use. *The length mark is a guide to the remaining amount. ■Single wire specification with low conduction loss and stable data transfer. ■It has flame retardant properties that pass the 60 degree tilt test (JIS C 3005). ■Compatible with optical communication lines, CATV lines, ADSL lines, and ISDN lines. ■Compatible connectors are LD-RJ45T10/T (10 pieces), LD-RJ45T10A (10 pieces), and LD-RJ45T100 (100 pieces). ■Products that meet one or more of our company's environmental certification standards and display the "THINK ECOLOGY" mark. ■In an effort to protect the environment, this product is packaged only in paper, cardboard, and plastic bags. [Inquiries regarding products] ELECOM General Information Center TEL. 0570-084-465FAX. 0570-050-012 Reception hours / 10:00~19:00 Open all year round


Male/Female connector : ‎Male-Male
Color: ‎Blue
Shape: ‎Round
Battery included: ‎No
Batteries used: ‎No
Brand name: ‎ELECOM
Manufacturer : ‎ELECOM
Product model number: LD-CT2/BU100/RS
Accessories: ‎Main unit only
Others Functions: ‎Enhanced Category 5 compliant with EU RoHS Directive (10 substances) (Cat5e)” compatible LAN cable. Single wire specification with low conduction loss and stable data transfer. Since it is a Relex specification, it is possible to pull out the cable smoothly.
Size: 100m
Cable shape: Ethernet

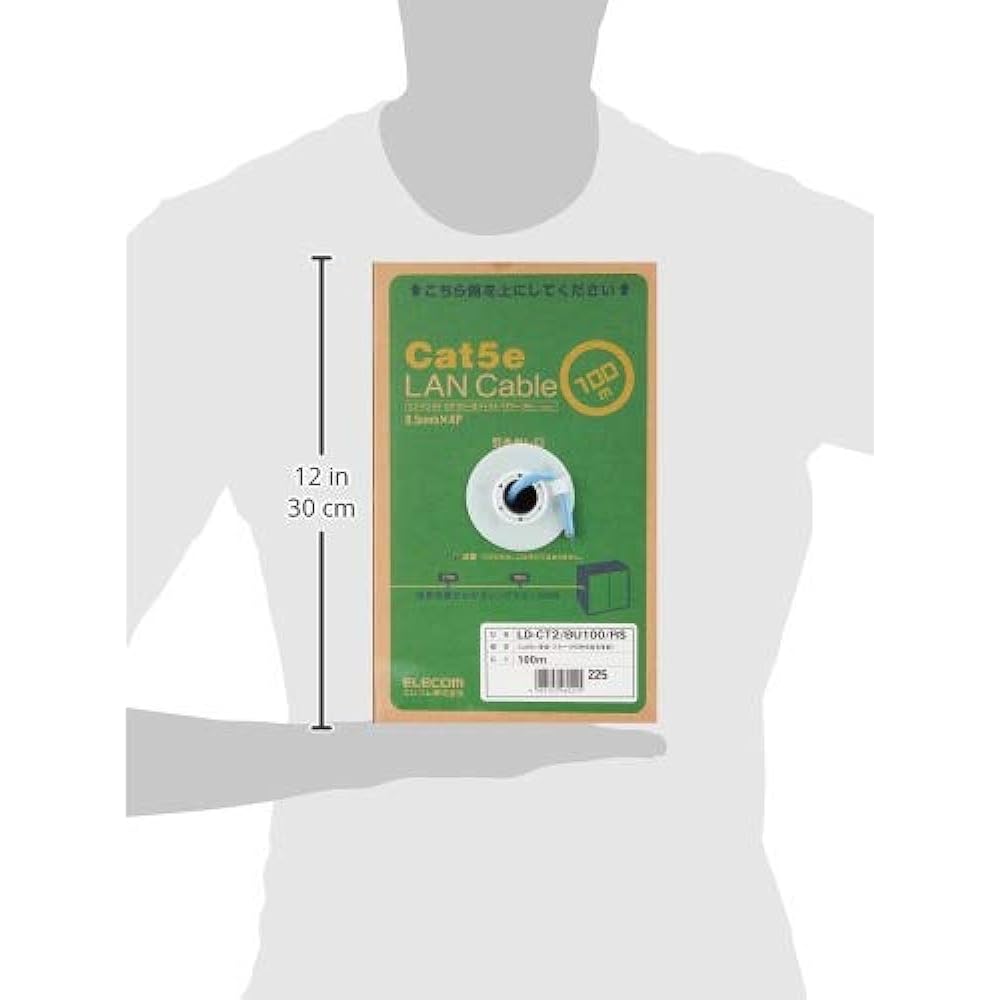

Product size: 28 x 28 x 28 cm; 3.63 kg
