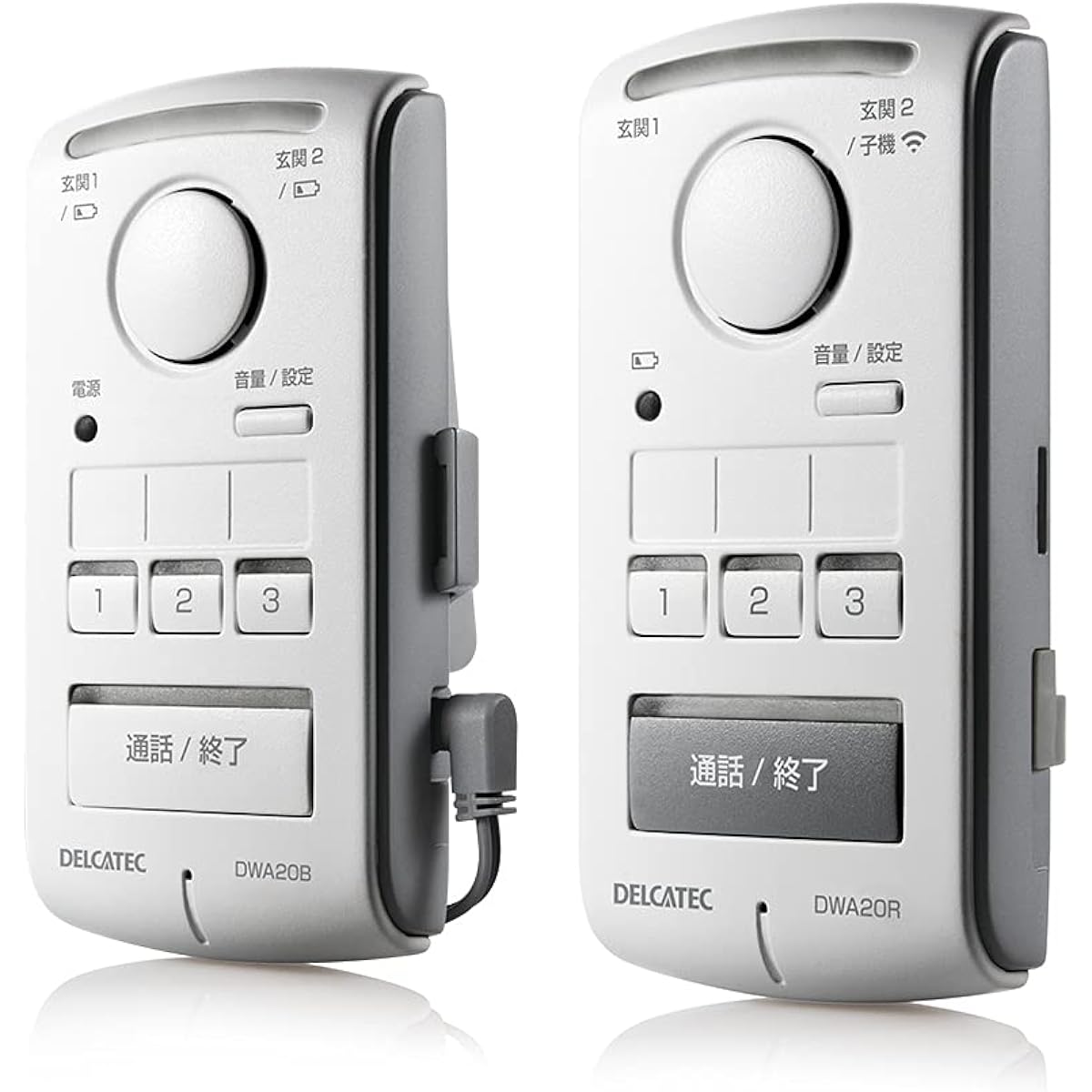

DX Antenna Wireless Intercom Door Phone Indoor Base Unit & Indoor Handset Set No Wiring Required DWA20BR

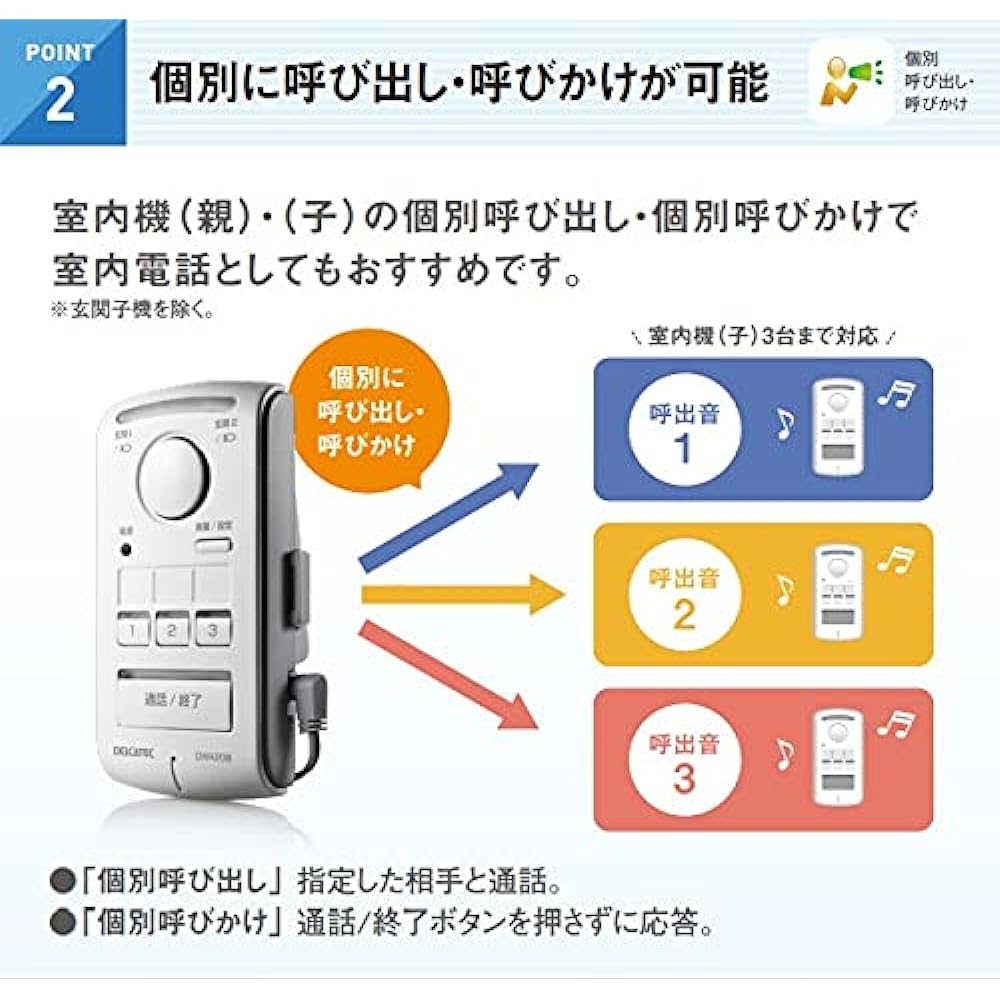

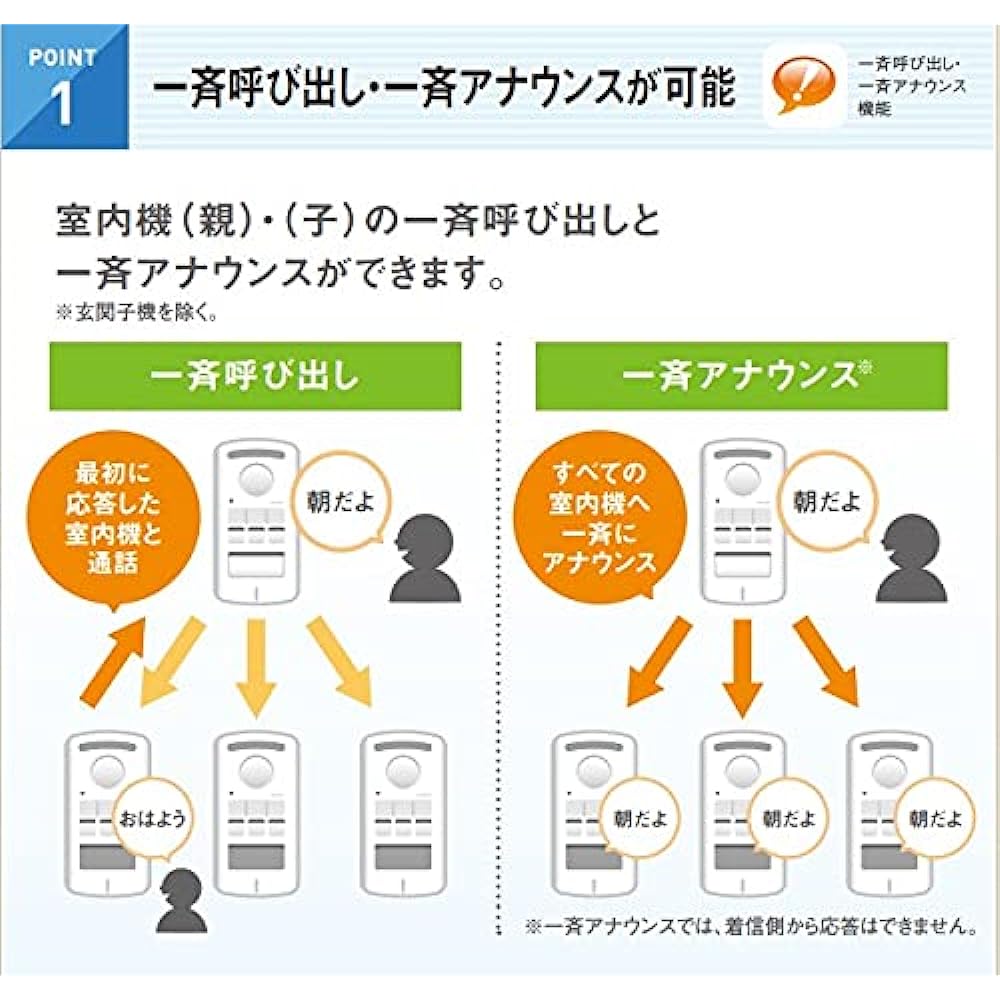

This is a set of wireless intercom indoor unit (parent) and indoor unit (child). No wiring is required, so you can use it immediately after installation. The indoor unit (child) is a nickel metal hydride rechargeable battery (built-in), so it can be moved indoors. Communication is DECT compliant. Compliant with standard ARIB STD-T101. The simple operation makes it easy to use even for elderly people. The large, easy-to-read incoming call lamp and the indoor unit 1 button lamp flash, so you can see at a glance when there is a call from the indoor unit. Even elderly people who have difficulty hearing ringtones can recognize incoming calls. Call sounds are clear, high quality and easy to hear. The ringtone volume can be set to 6 levels, the call volume can be set to 4 levels, the ringtone (call from the indoor unit) can be selected from 3 types, and no one is around the indoor unit (parent) when the indoor unit (child) calls. If you are not there, you can set a missed call display to notify you of a call. The communication distance is up to 100m in line of sight.

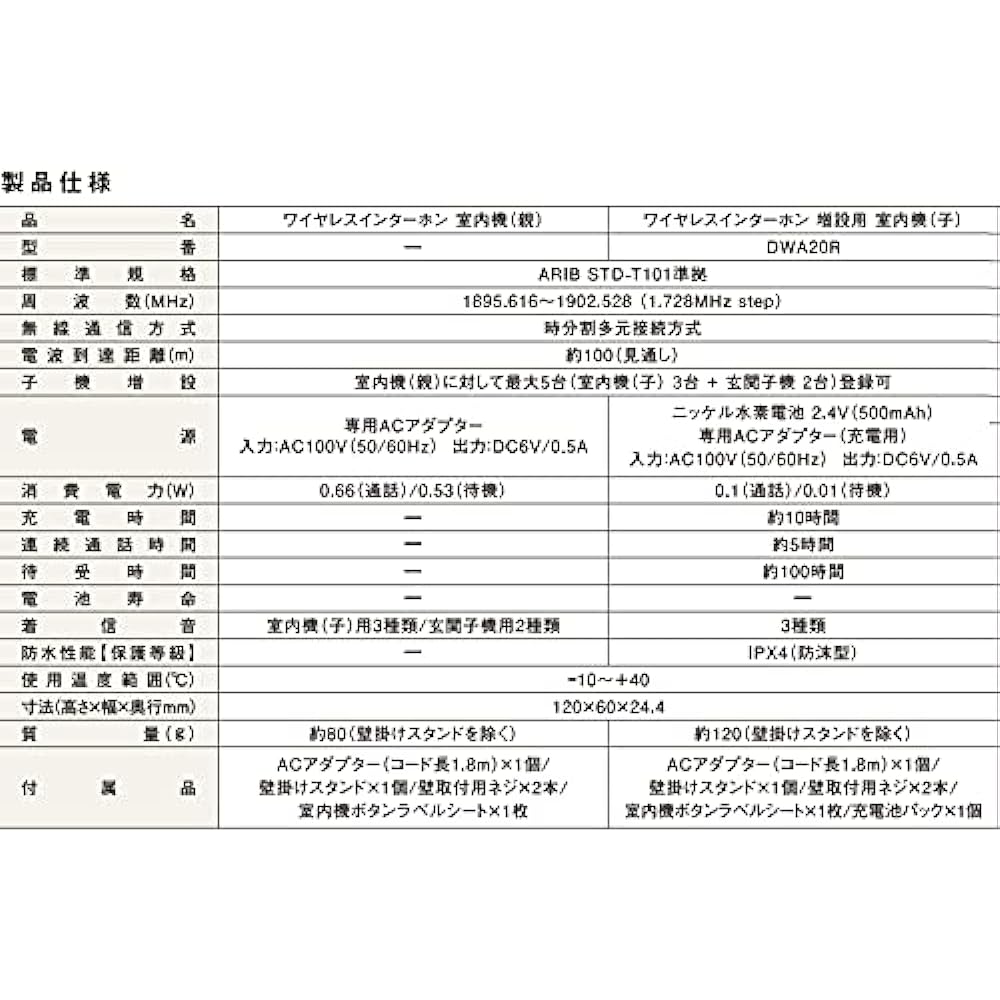

[Specifications] ■ Set contents: Indoor unit (parent), indoor unit (child) ■ Standard specification: Conforms to ARIB STD-101 ■ Frequency: 1,895.616 to 1,902.528MHz (1.728MHzStep) ■ Communication method: Time division multiple access method (TDMA) ■ Calling distance: Approximately 100m (line of sight) * Entrance slave unit and additional indoor unit (child): Approximately 200m (line of sight) Based on indoor unit (parent) relay. ■ Number of additional slave units registered: Indoor unit (parent) only: 3 indoor units (child), 2 entrance slave units can be registered ■ Waterproof performance: Indoor unit (child) only: IPX4 (splash-proof) ■ Continuous calls Time: Up to 5 hours *When the indoor unit (child) is fully charged. *Calls with the additional entrance slave unit can last up to 3 minutes (automatically stops after 3 minutes)■ Power source: Indoor unit (parent): Uses dedicated AC adapter (included), Indoor unit (child): Dedicated nickel metal hydride battery 2.5V 500mAh (Included), AC adapter for charging (Included) *Charging time: Up to 10 hours (until fully charged) ■ Power consumption: Indoor unit (parent): 0.66W during call, 0.53W during standby, Indoor unit (child): Standby 0.1W during standby, 0.01W during standby ■ Ring tone: Indoor unit (parent): 3 types for indoor unit, 2 types for entrance slave unit, indoor unit (child): 3 types for indoor unit ■ Volume setting: Ring volume 5 levels , 4 levels of call volume, 6 levels of ringtone ■ Standby time: Indoor unit (child) only: Approximately 100 hours (when fully charged)■ Operating temperature range: -10 to +40℃■ External dimensions: 120 x 60 x each 24.4mm ■ Mass: Indoor unit (parent): Approx. 90g (excluding wall-mounted stand), Indoor unit (child): Approx. 120g (including battery, excluding wall-mounted stand) ■ Accessories: 2 indoor unit button label sheets, 2 wall-mounted stands pcs, 2 dedicated AC adapters, 1 dedicated rechargeable battery pack, 4 wall mounting screws (M4 x 16mm), 1 instruction manual (warranty included, warranty period 1 year) [Description] ■ Wireless intercom indoor unit This is a set of (parent) and indoor unit (child). No wiring is required, so you can use it immediately after installation. ■ Communication is DECT compliant. Compliant with standard ARIB STD-T101. ■ The call distance is up to 100m with line of sight. ■ Simple operation makes it easy for elderly people to use. The large, easy-to-read incoming call lamp and the indoor unit 1 button lamp flash, so you can see at a glance when there is a call from the indoor unit. Even elderly people who have difficulty hearing ringtones can recognize incoming calls. Call sounds are clear, high quality and easy to hear. ■ The ringtone volume can be set to 6 levels, the call volume can be set to 4 levels, and the ringtone (call from the indoor unit) can be selected from 3 types. If you are not present, you can set a missed call display to notify you that you have been called. ■ There are five basic calling/calling methods (individual call, individual call, all call, all announcement, emergency call mode). With a variety of calling and calling functions, you can build a communication system that makes the home life of elderly people and people in hospital beds safer. ■ [Individual call] You can call or talk by pressing the button on the specified indoor unit. For this set product, the indoor unit (child) is already registered as indoor unit 1. You can make a call, make a call, and end the call by pressing the 1 button on the indoor unit. ■ [Individual call] By operating the button on each indoor unit, the receiving party can make a call without pressing a button. This is convenient for use in situations where the receiving party is at work or in a hospital bed, and cannot operate the buttons. ■ [Call all at once] Call all indoor units at once. The set product that allows you to make a call to the indoor unit that first presses the "Call/End" button operates in the same way as a normal call. ■ [All at once announcement] You can call all registered indoor units by pressing the call/end button and make a unilateral call (talk). Two-way calls are not possible. Pressing the "Call/End" button on the receiving side will end only that indoor unit. This set product also ends on the calling side. ■ [Emergency call mode] If you set the emergency call button on the indoor units (child), you can make an emergency call (alarm sounds) from the set indoor units (child) all at once. You can talk to the indoor unit for which you pressed the call/stop button first. Convenient for emergency calls from elderly people, people in hospital beds, etc. ■ The indoor unit (child) has a key lock setting to prevent accidental operation when carrying it around. ■ Wall-mounted stand allows for both wall and tabletop use.


Brand: DX antenna
Product model number: DWA20BR
Package size: 18 x 14.3 x 6.4 cm; 480 g
Color: White
Accessories: Indoor unit (parent) ): AC adapter (cord length 1.8m) x 1, wall hanging stand x 1, wall mounting screws x 2, indoor unit button label sheet x 1, indoor unit (child): AC adapter (cord length 1.8m) ) x 1, wall hanging stand x 1, wall mounting screws x 2, indoor unit button label sheet x 1, rechargeable battery pack x 1
Battery included: Yes
Battery type: Nickel Hydrogen
About the warranty: ‎1 year
Product weight: ‎480 g
