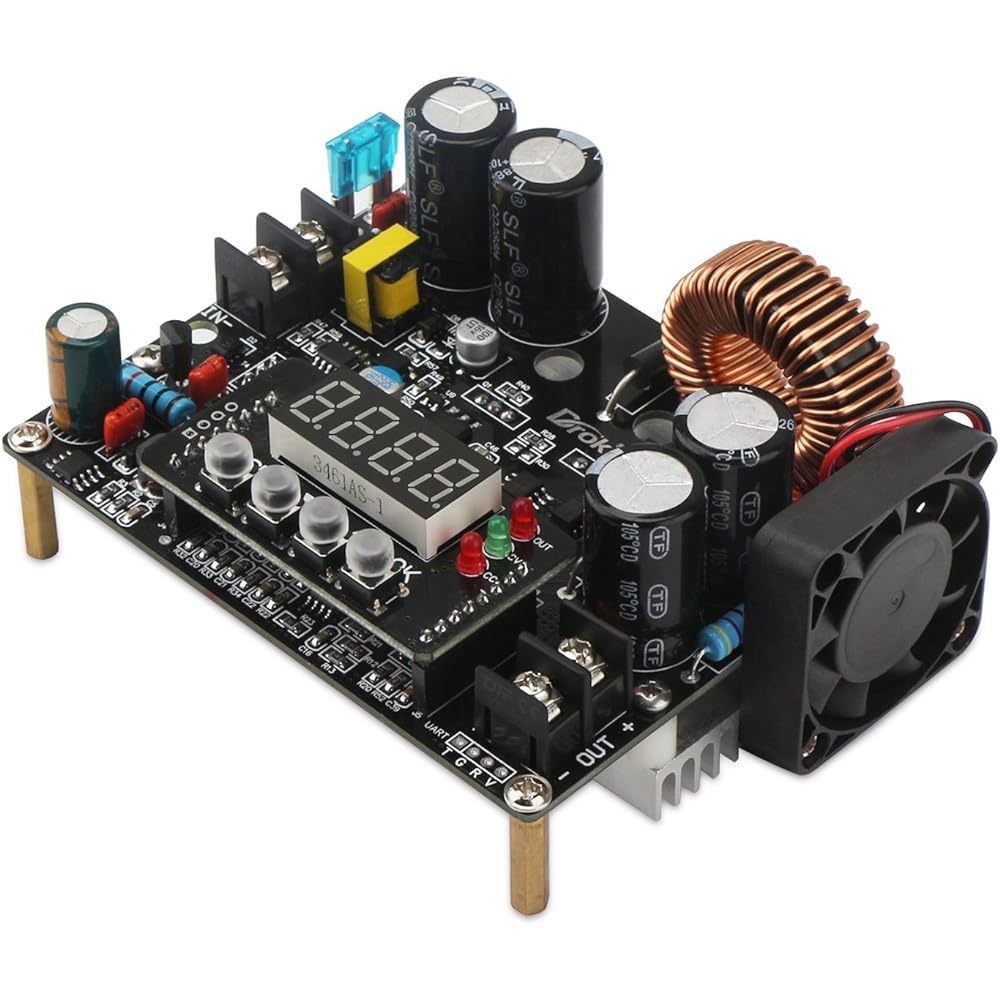

DROK Step-Down Transformer DC-DC Step-Down Converter 10-65V~0-60V 12A 720W Maximum Input 15A Input Fused Digital Control Voltage Regulator Voltage Current Capacity Time Meter Power Supply Module Constant Voltage/Current
DROK Step-Down Transformer DC-DC Step-Down Converter 10-65V~0-60V 12A 720W Maximum Input 15A Input Fused Digital Control Voltage Regulator Voltage Current Capacity Time Meter Power Supply Module Constant Voltage/Current
Regular price
$58.00 USD
Regular price
Sale price
$58.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
DROK buck converter input voltage range is 10-65V, maximum input 15A with input fuse, adjustable output voltage range is 0-60V, and adjustable output current range is 0-12A. Constant Current Constant Voltage: DROK's step-down converters can be key-adjusted for constant output voltage or constant output current. LED Display: DROK voltage regulator has a digital LED display, which can display voltage, current, capacity and time in real time. Automatic output: After powering on, the programmable voltage transformer can be set automatically. Equipped with a cooling fan: The power converter is equipped with a small cooling fan.
Product parameters: Input voltage range: 10V~65V Adjustable output voltage range: 0-60V Adjustable output current range: 0-12A Output power: 0~720W Output voltage setting resolution: 10mV Output current setting resolution: 10mA Power effect : CV <0.5% + 10mV CC <1% + 10mA Load effect: CV <0.5% + 10mV CC <1% + 10mA Output ripple: <50mVpp (input 54V, output 12V, current 5A) 100Hz fluctuation transmission ratio: <1 /10000 Typical efficiency: 94% (input 54V, output 30V, current 5A) Voltage display error: ±1% + 20mV Current display error: ±1% + 20mA Response time: <50ms Save operation: M0~M9 10 groups Data on Operating Temperature: 0~40℃ Dimensions: 3.97x2.95x1.89 inches Product Features: DROK DC-DC Numerical Control Buck Voltage Converter is a programmable buck with all-digital LED display that can display real-time voltage and current It's a module. Comparing with similar products, you will find that this step-down module has a compact size and operates efficiently and stably. This buck module has advanced microprocessor control. The voltage and current can be precisely adjusted by pressing the button, and it can be adjusted to output constant voltage and current. If you want to secondary develop this item, please connect the reserved port to a single-chip microcomputer or computer communication. You can also check the operating status by checking the indicators. This voltage regulator outputs automatically once you turn on the power. You can turn this feature on/off as needed. You can also lock the key to avoid accidentally making incorrect adjustments. Package Contents: 1 ~0-60V 12A 720W
Packing weight: 0.35 kg
Battery usage: No
Battery included: No
Brand name: DROK
Product parameters: Input voltage range: 10V~65V Adjustable output voltage range: 0-60V Adjustable output current range: 0-12A Output power: 0~720W Output voltage setting resolution: 10mV Output current setting resolution: 10mA Power effect : CV <0.5% + 10mV CC <1% + 10mA Load effect: CV <0.5% + 10mV CC <1% + 10mA Output ripple: <50mVpp (input 54V, output 12V, current 5A) 100Hz fluctuation transmission ratio: <1 /10000 Typical efficiency: 94% (input 54V, output 30V, current 5A) Voltage display error: ±1% + 20mV Current display error: ±1% + 20mA Response time: <50ms Save operation: M0~M9 10 groups Data on Operating Temperature: 0~40℃ Dimensions: 3.97x2.95x1.89 inches Product Features: DROK DC-DC Numerical Control Buck Voltage Converter is a programmable buck with all-digital LED display that can display real-time voltage and current It's a module. Comparing with similar products, you will find that this step-down module has a compact size and operates efficiently and stably. This buck module has advanced microprocessor control. The voltage and current can be precisely adjusted by pressing the button, and it can be adjusted to output constant voltage and current. If you want to secondary develop this item, please connect the reserved port to a single-chip microcomputer or computer communication. You can also check the operating status by checking the indicators. This voltage regulator outputs automatically once you turn on the power. You can turn this feature on/off as needed. You can also lock the key to avoid accidentally making incorrect adjustments. Package Contents: 1 ~0-60V 12A 720W
Packing weight: 0.35 kg
Battery usage: No
Battery included: No
Brand name: DROK
