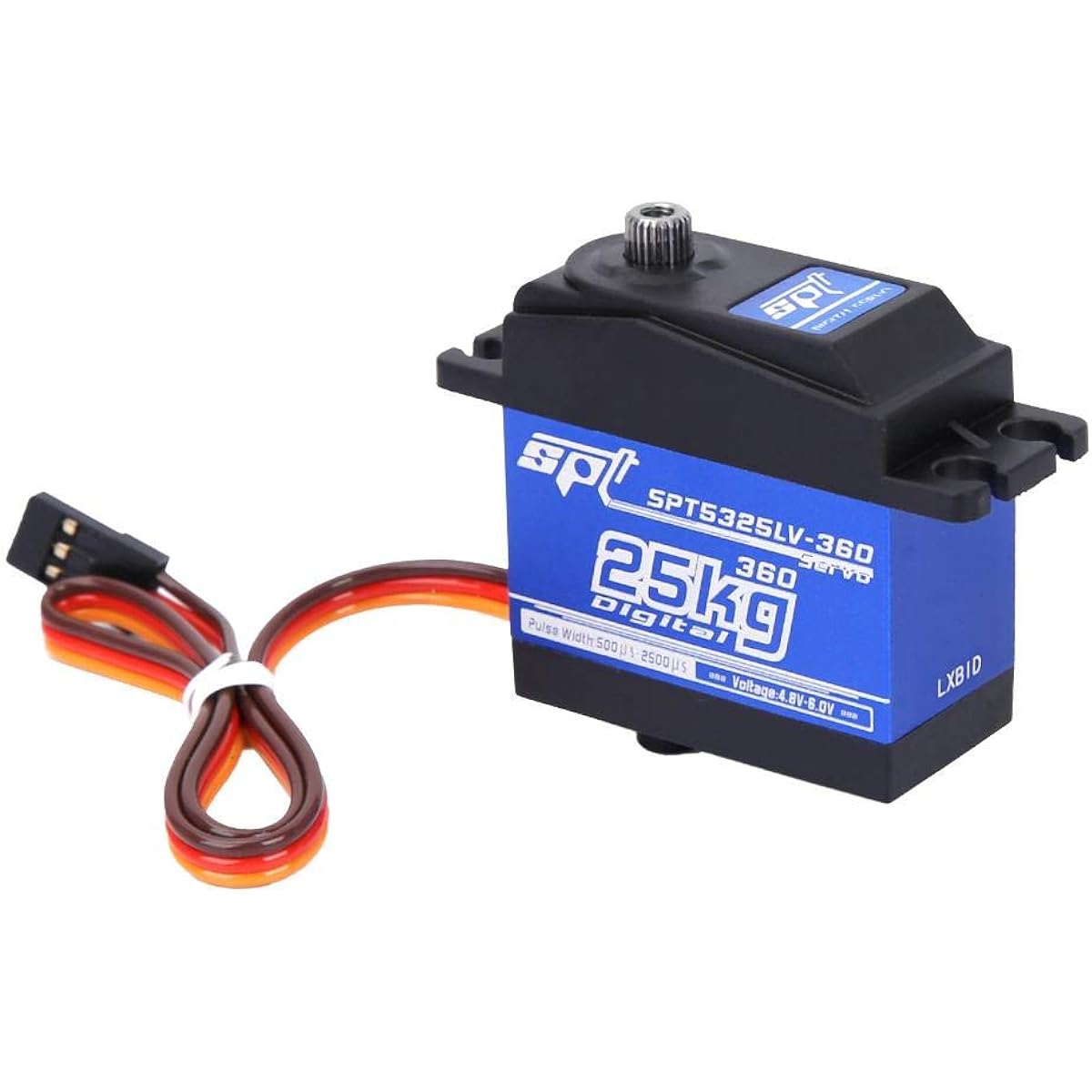

Drfeify RC Digital Servo 1500μs/330hz SPT5525LV-360 25KG Digital Servo Robot RC Upgrade Parts

Easy to carry: The servo is easy to install and disassemble, easy to use, convenient to carry and without burden. Durability: The servo is made of superior metal material, sturdy and durable, not easy to damage. Suitable for: Stable servo performance during use and operation, suitable for RC robot. Upgrade accessories: It is an upgrade replacement part for old or damaged RC robot. High sensitivity: The core motor is a professional product, with high sensitivity and high reliability.

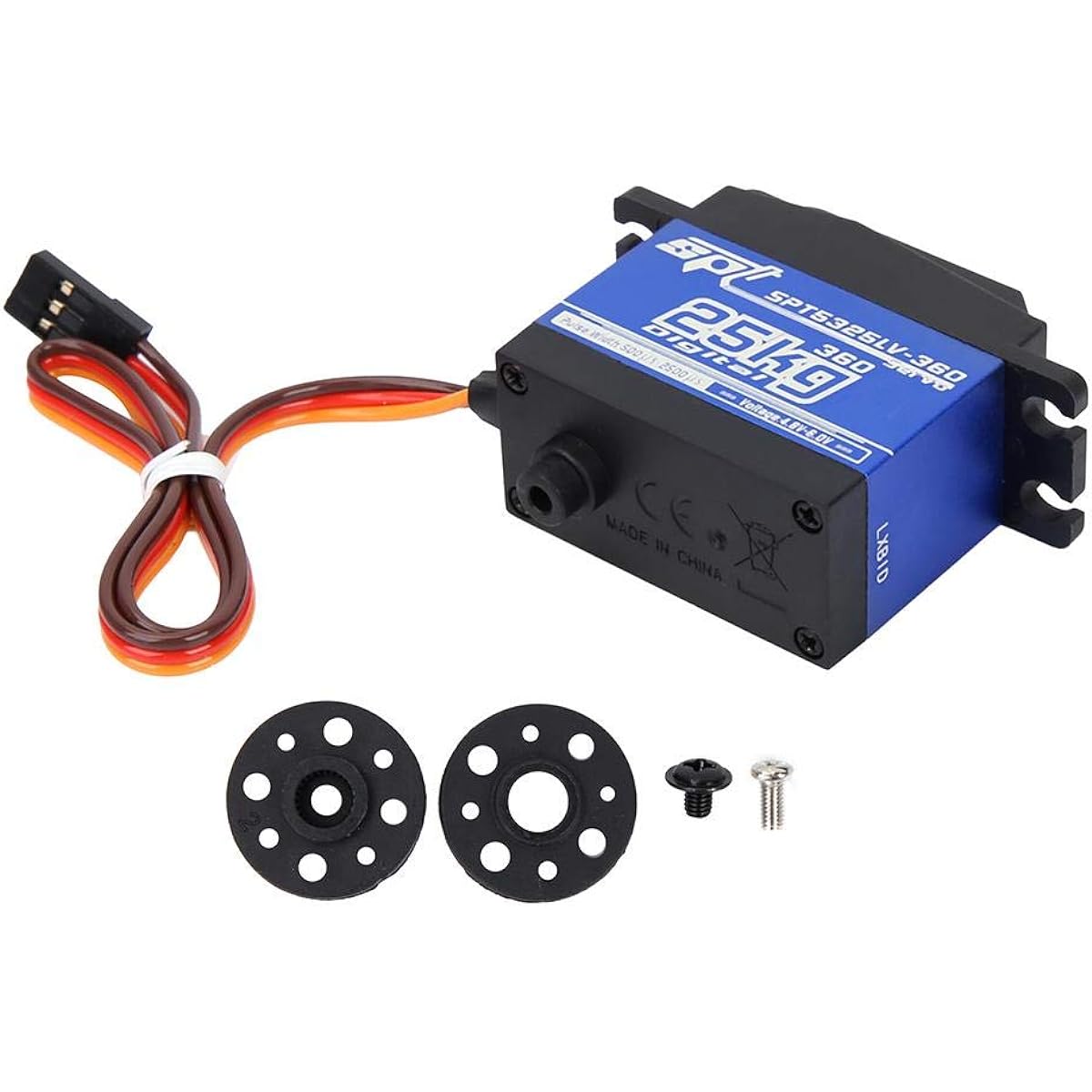

Specification: Condition: Brand new Material: Metal. Color: Please refer to the picture. Product: SPT5525LV-360 25KG digital servo. Dead band: 4 ¼ seconds. Neutral position: 1500 ¼s/330hz. Motor: Core motor 500-2500 ¼s Angle: 360 degree continuous rotation Voltage range: 4.8V-6.0V. Working speed (4.8V): 44rpm. Working speed (6.0V): 55rpm. Stall Torque(4.8V):24 kg.cm Stall Torque(6.0V):26 kg.cm Dimensions:40.5×20×40.5mm/1.6×0.8×1.6in. Weight:Approx.68g/2.4oz. Connector Wire Length:JR 260mm/10.2in. Bearings:2BB Adapt to control board pulse width support 500 ¼s-2500 ¼s 360 degree continuous rotation, the midpoint stop position is 1450-1550 ¼s. 1450-1000I¼s has a linear change counterclockwise. 1550-2000I¼s has a linear change clockwise. Maximum rotation speed 1000~500 ¼s, 2000~2500 ¼s. Suitable for robots Package List: 1 x SPT5525LV-360 25KG Digital Servo Accessories x 1. 2 screws.
