DOREMIDI Expression Pedal Converter Pedal Sustain Pedal Expander MPC-10

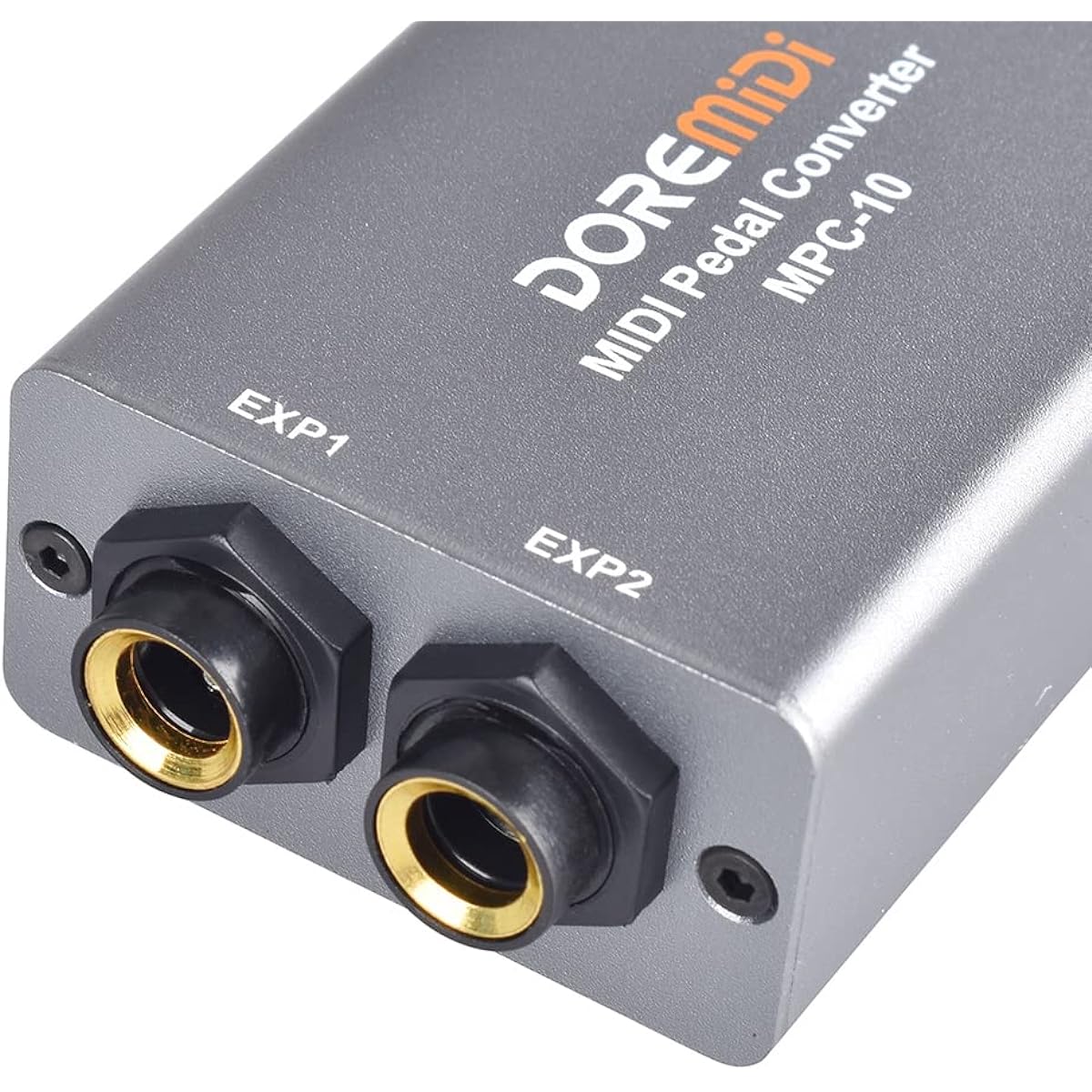

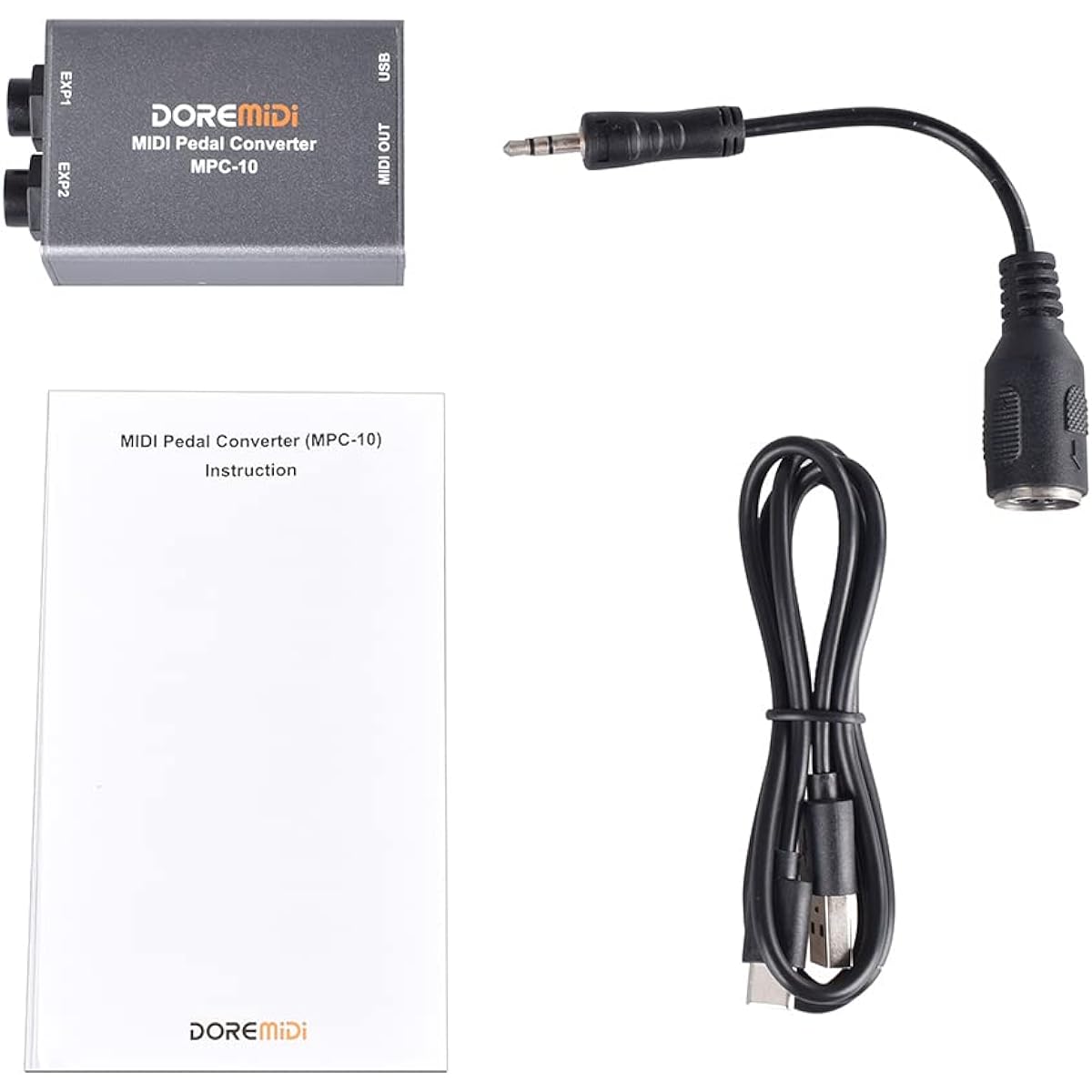

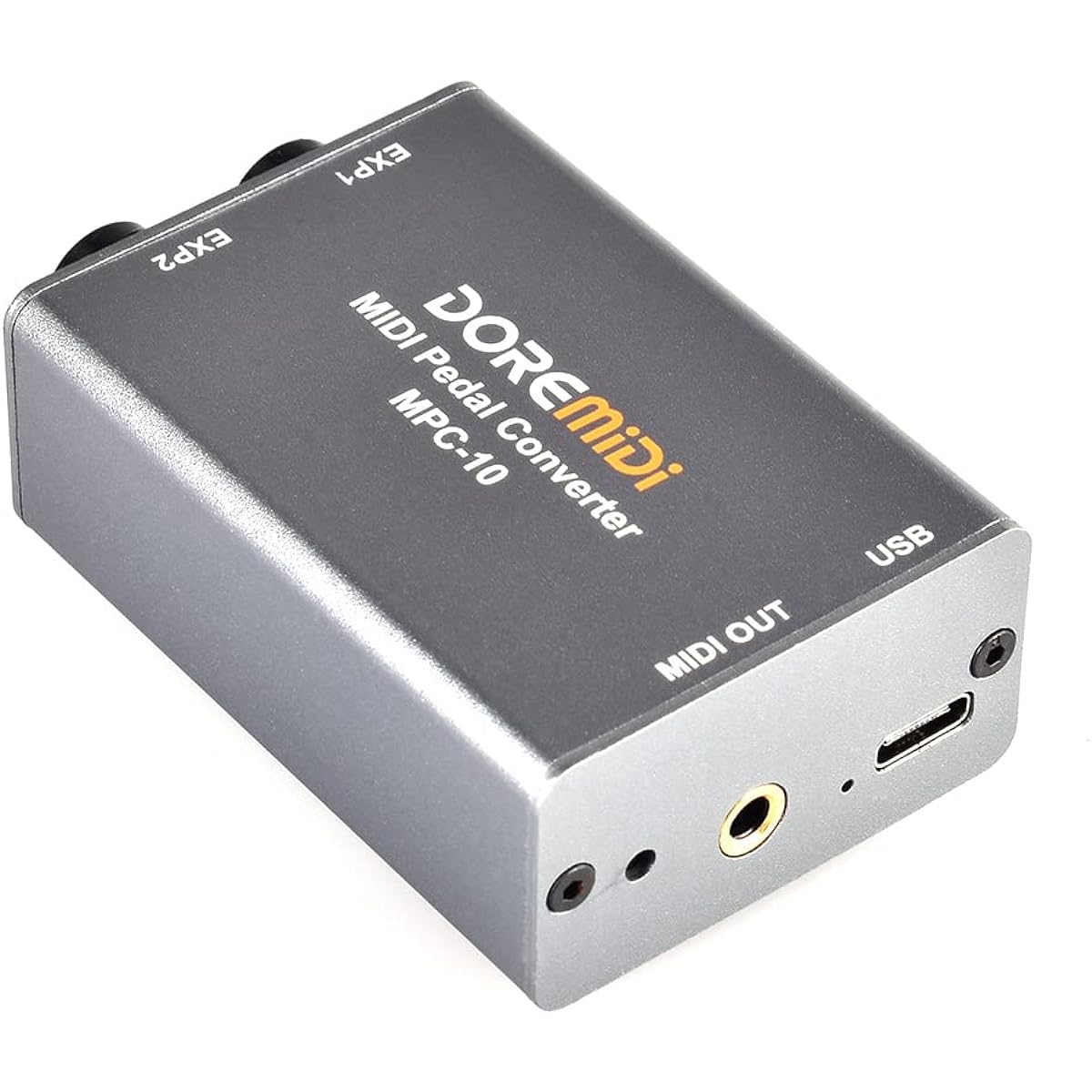

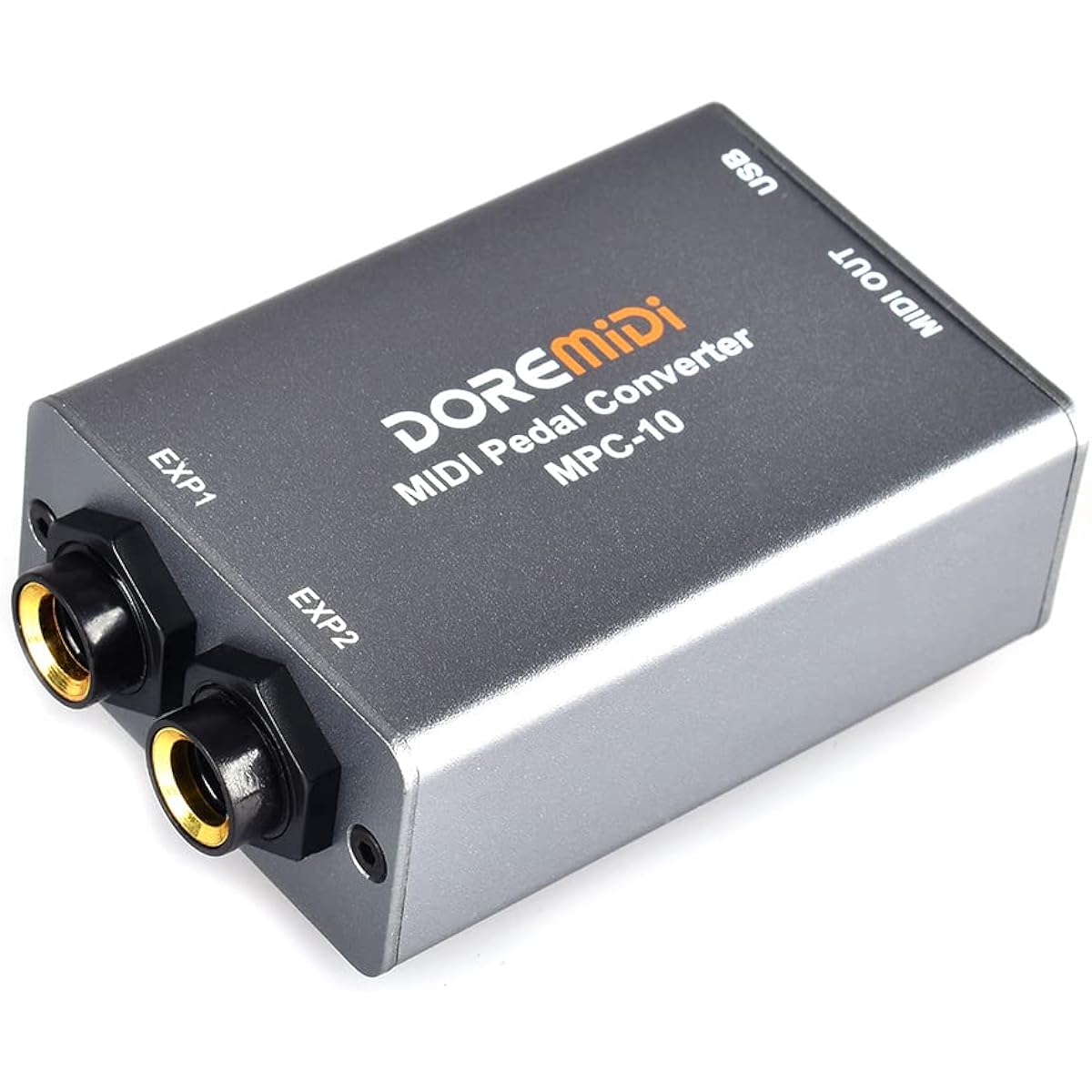

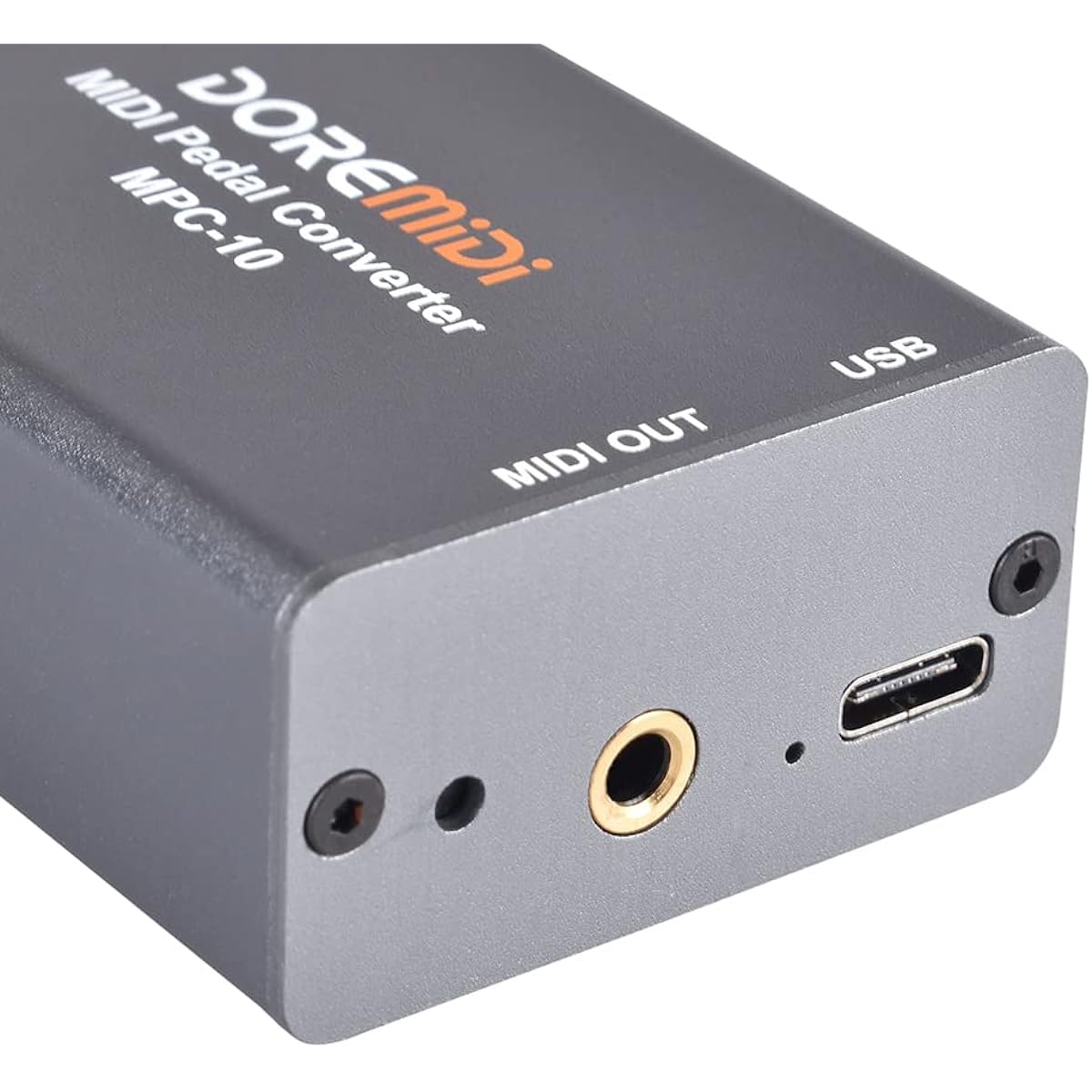

MPC-10 has two pedal connection interfaces, allowing you to connect two types of pedals. It also adopts automatic pedal detection design inside, which can automatically detect different types of pedals. The MPC-10 is currently compatible with positive polarity expression pedals, reverse polarity expression pedals, sustain pedals, dual switch type pedals, and FSR electronic hi-hats. The MPC-10 has a MIDI output interface that allows you to connect directly to instruments with a MIDI input interface. To maintain its portable design, the MPC-10 uses a 3.5 audio port as MIDI output, which can be converted to a standard MIDI DIN interface using a 3.5-MIDI 5-pin cable. Connect to a Computer The MPC-10 is equipped with USB MIDI functionality and can be directly connected to a computer, mobile phone, or other terminal device for MIDI control. Compatible with Windows, Mac, iOS, Android and other systems, no driver installation or plug and play required. The MPC-10 allows you to flexibly configure MIDI messages for each pedal using DOREMiDi's pedal configuration software. Depending on performance requirements, users can set various MIDI messages after pedaling, such as MIDI channel, CC controller, PC controller, notes, and flip effects when pedaling. Considering subsequent optimization issues, MPC-10 also designed firmware upgrade function, which can provide personalized customization for different users.
