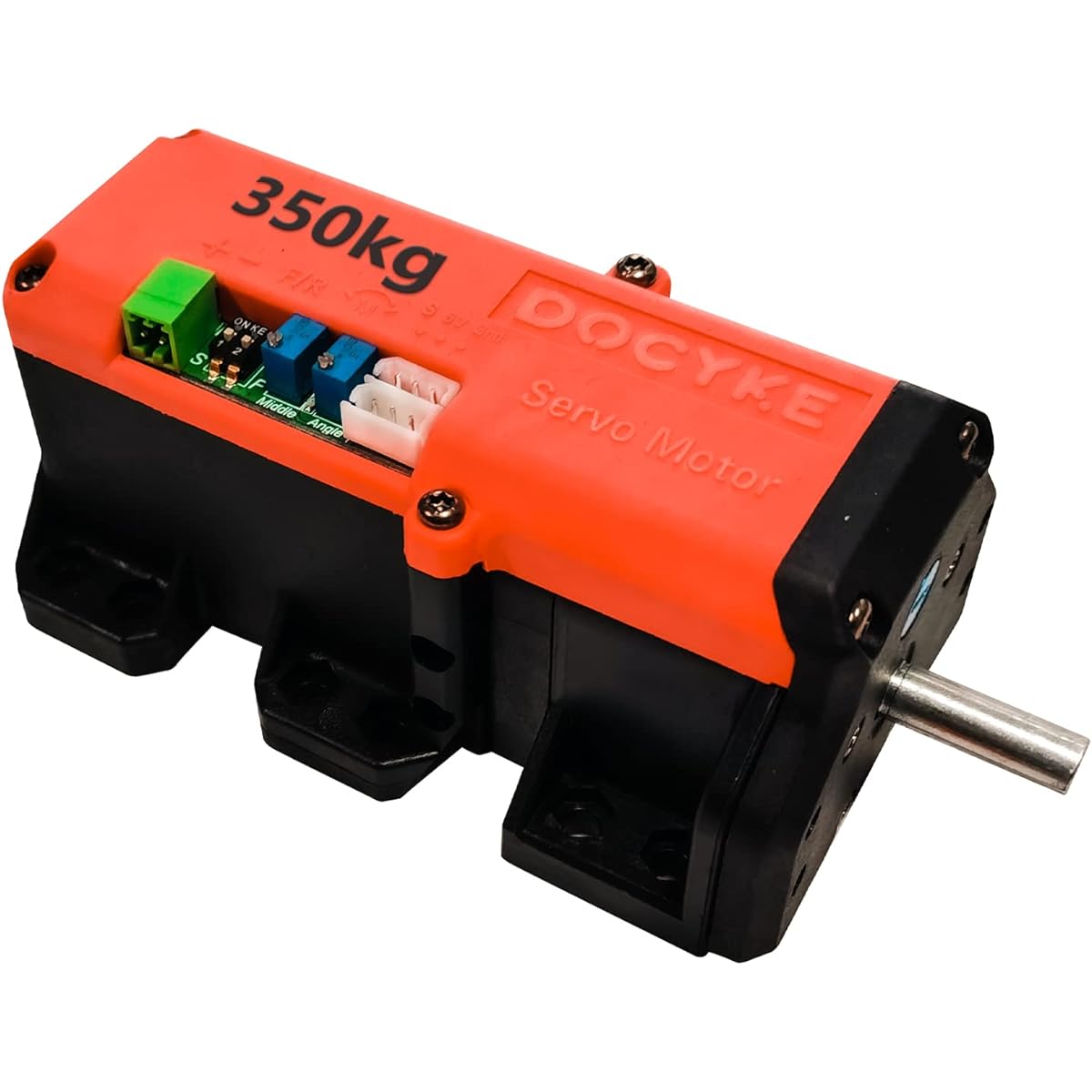

DOCYKE 350kg High Torque RC Servo 2 in 1 Servo and Motor 12V~24V High Pressure Full Metal Gear Digital Servo (360° Control Angle)
DOCYKE 350kg High Torque RC Servo 2 in 1 Servo and Motor 12V~24V High Pressure Full Metal Gear Digital Servo (360° Control Angle)
Regular price
$306.00 USD
Regular price
Sale price
$306.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

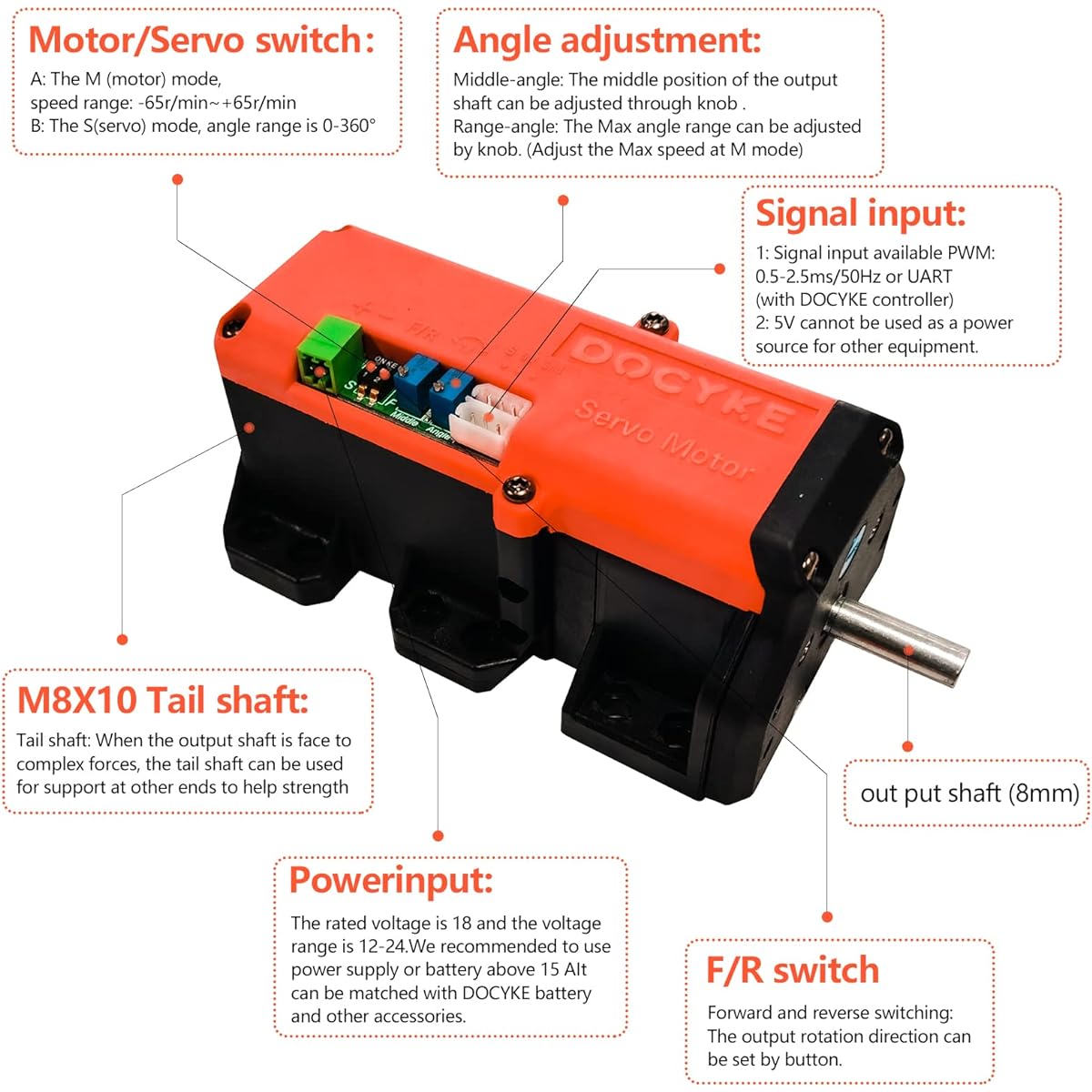

High torque servo: 16V-24V (Rate 18V) Speed (18V): 0.16s/60° Maximum torque: 350kg.cm Rated torque: 150kg.cm Angle range: 0-360° Input signal: PWM: 50us~ 2200us, 50-400Hz High quality servo: magnetic encoder feedback, high repeatability; hardened steel planetary gear transmission, high durability; overcurrent protection; jam protection; double shaft positionable: one drive shaft and one assistant It's a shaft. Servo size: length: 143mm, width: 66mm, height: 58m. Weight: 550g.Product contents: 350kg servo*1, accessories: big bracket*2, small bracket*2, cable*1 Wide range of servo uses: as well as ordinary servos and motors, advanced robots, robot arms, PTZ cameras , remote control vehicles and other mechanical projects can be done by DIY. In motor mode, it can be used like a wheel drive or DC motor. Fully compatible with Futaba, JR, SANWA, HITEC and other remote systems, Arduino PCB. Two modes: servo position and motor drive, selectable with DIP switch. In servo mode, the shaft rotation moves from 0 to 360 degrees with a pulse width of 0.5 to 2.5 uSec. It has gain and offset potentiometers to adjust motion over a standard servo range. There is also a reverse DIP switch, which allows you to change the rotation sensation. Note: Because it is a high power servo, it requires a high output power supply (16-24V, 25A), so we recommend using a 20V battery.
DOCYKE Servo-350B has two modes: perfectly compatible with servos and motors, robots, models (Futaba, JR, SANWA, HITEC, other remote controls, Arduino PCB), toys and other fields. It has super high torque and power. Our product concept: powerful, durable and universal. 1: Maximum output torque 350kg/cm. 2: Super power (180W) and torque can be output with lightweight (550G). 3: Uses high hardness steel gears that can handle various conditions. Even if it exceeds twice the maximum torque.4 Control signals and connections are almost the same as normal servos. 5: Motor mode and servo mode can be easily switched. 6: With its own mounting holes, it can be mounted on profiles, sheet metal parts and other places without additional support, making it suitable for various occasions. 7: Double shaft installation can be used to increase reliability with special forces. (One drive shaft and one assistant shaft). 8: Industrial level design using planetary reducer. 9: We carry out rigorous manufacturing of motors, gears, PCBs, etc. Ensure reliability and durability. 10: Uses magnetic encoder as feedback, has high repeatability, no wear and good durability. 11: The PCB has various protection functions such as jam, overcurrent, and overtemperature.
Product number: 697394023
Quantity: 1
Battery usage: No
Battery included: No
Main material: Steel
Target gender : Unisex
Manufacturer recommended age: 12 months and above
Product model number: 697394023
Product size: 12.19 x 6.6 x 5.08 cm; 550 g
DOCYKE Servo-350B has two modes: perfectly compatible with servos and motors, robots, models (Futaba, JR, SANWA, HITEC, other remote controls, Arduino PCB), toys and other fields. It has super high torque and power. Our product concept: powerful, durable and universal. 1: Maximum output torque 350kg/cm. 2: Super power (180W) and torque can be output with lightweight (550G). 3: Uses high hardness steel gears that can handle various conditions. Even if it exceeds twice the maximum torque.4 Control signals and connections are almost the same as normal servos. 5: Motor mode and servo mode can be easily switched. 6: With its own mounting holes, it can be mounted on profiles, sheet metal parts and other places without additional support, making it suitable for various occasions. 7: Double shaft installation can be used to increase reliability with special forces. (One drive shaft and one assistant shaft). 8: Industrial level design using planetary reducer. 9: We carry out rigorous manufacturing of motors, gears, PCBs, etc. Ensure reliability and durability. 10: Uses magnetic encoder as feedback, has high repeatability, no wear and good durability. 11: The PCB has various protection functions such as jam, overcurrent, and overtemperature.
Product number: 697394023
Quantity: 1
Battery usage: No
Battery included: No
Main material: Steel
Target gender : Unisex
Manufacturer recommended age: 12 months and above
Product model number: 697394023
Product size: 12.19 x 6.6 x 5.08 cm; 550 g
