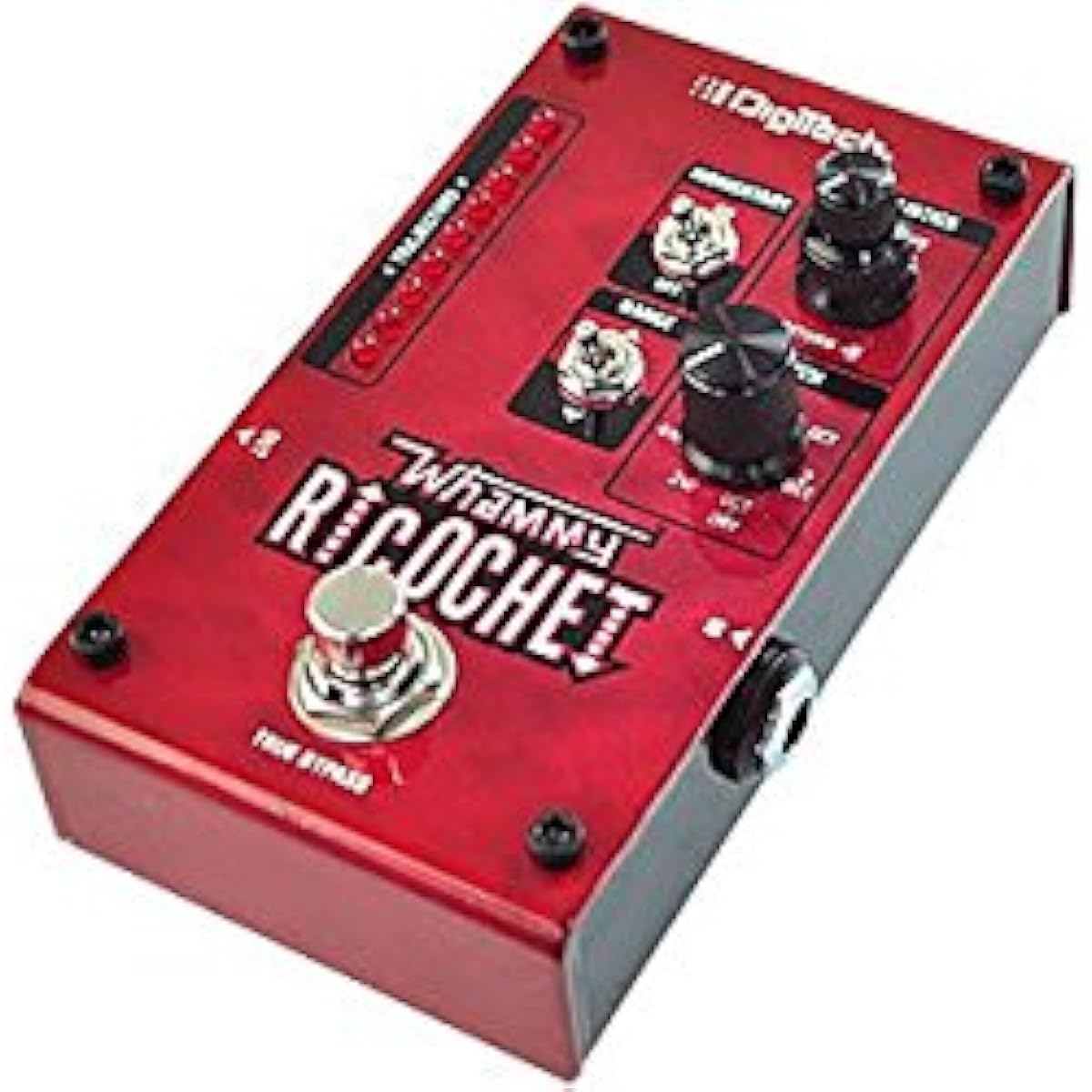

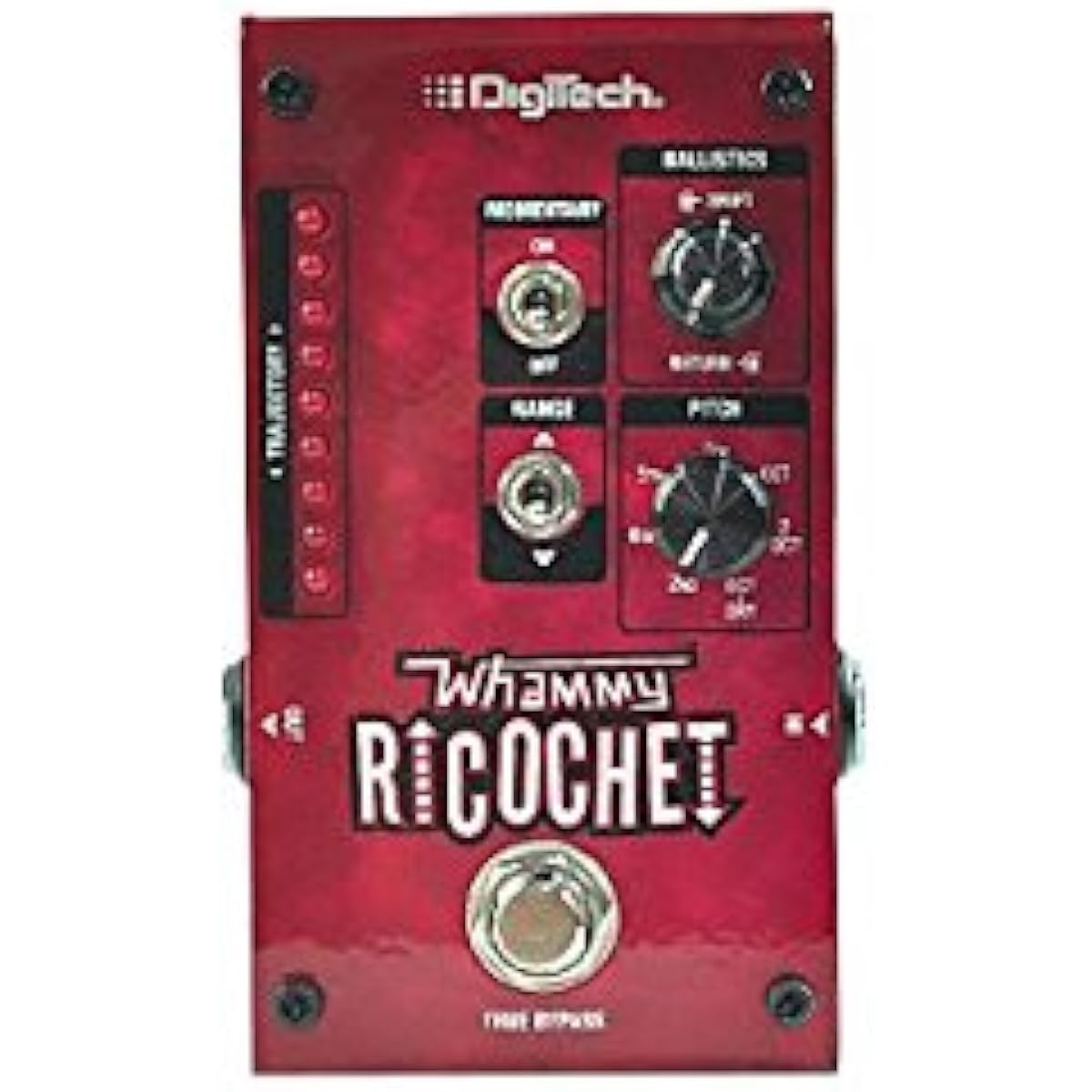

DIGITECH Pitch Shift Pedal Whammy Ricochet

■Pitch shift pedal■Specifications・Input: 1/4 unbalanced・Max Input Level: +5dBu・Input Impedance: 1 MΩ (Momentary switch ON) / True Bypass (Momentary switch OFF)・Output: 1/4 unbalanced ・Max Output Level: +10 dBu・Output Impedance: kΩ (Momentary switch ON) / True Bypass (Momentary switch OFF)・Controls: Ballistics, Pitch, Range Switch, Momentary Switch・Sample Rate: 4.1 kHz (Classic mode) / 22 kHz (Chords mode)・Frequency Response: 20 Hz-16 kHz (Classic mode) / 20 Hz-11 kHz (Chords mode) ・Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth・A/D/A Converter: 24-bit・THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain・Power Consumption: 2.1 Watts (235 mA typical @ 9 VDC)■Power supply: 9 VDC (external AC adapter sold separately only) ■Current consumption: 9 VDC 300mA■Size, weight: 124mm (L) x 76mm (W) x 47mm (H), 361g■By eliminating the pedal, the effect board space is saved. ■Two algorithms can be selected・CLASSIC: Single tone mode specialized for response speed Product images include usage images, etc. Please note that anything other than what is specified in the is not included.
