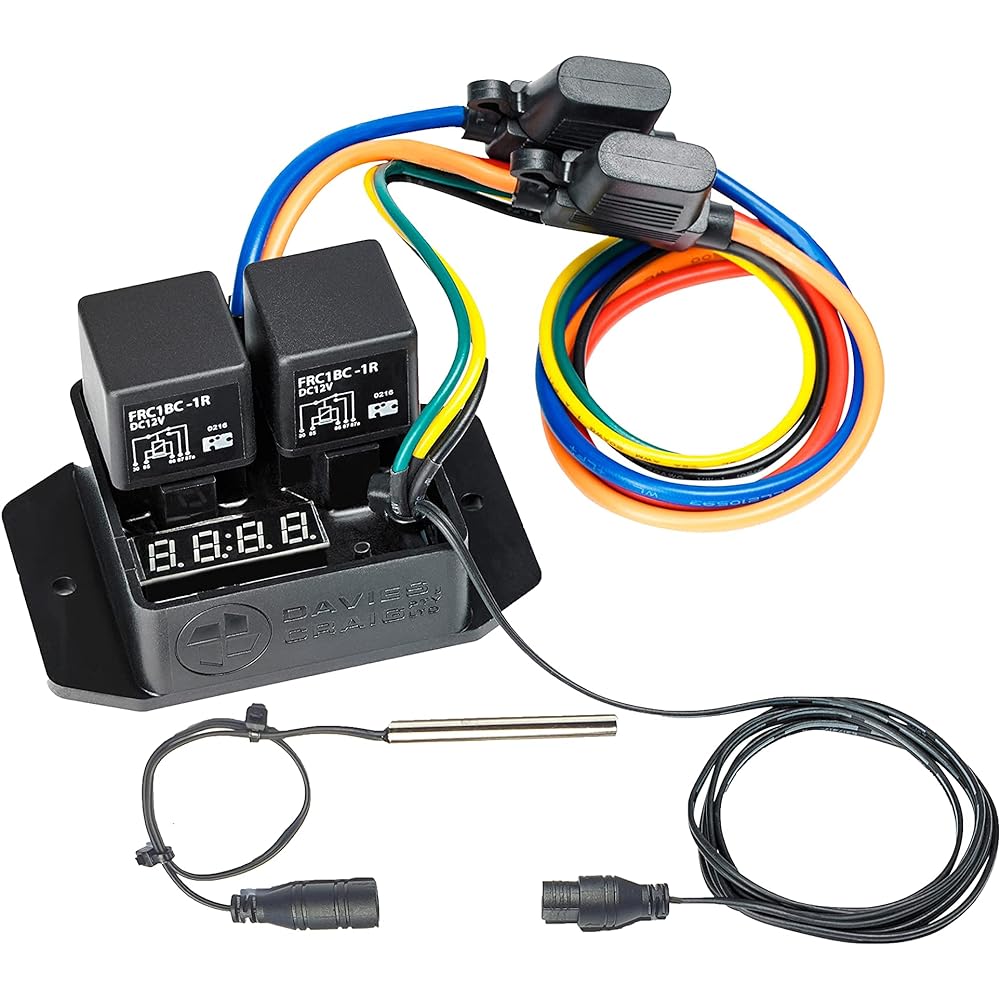

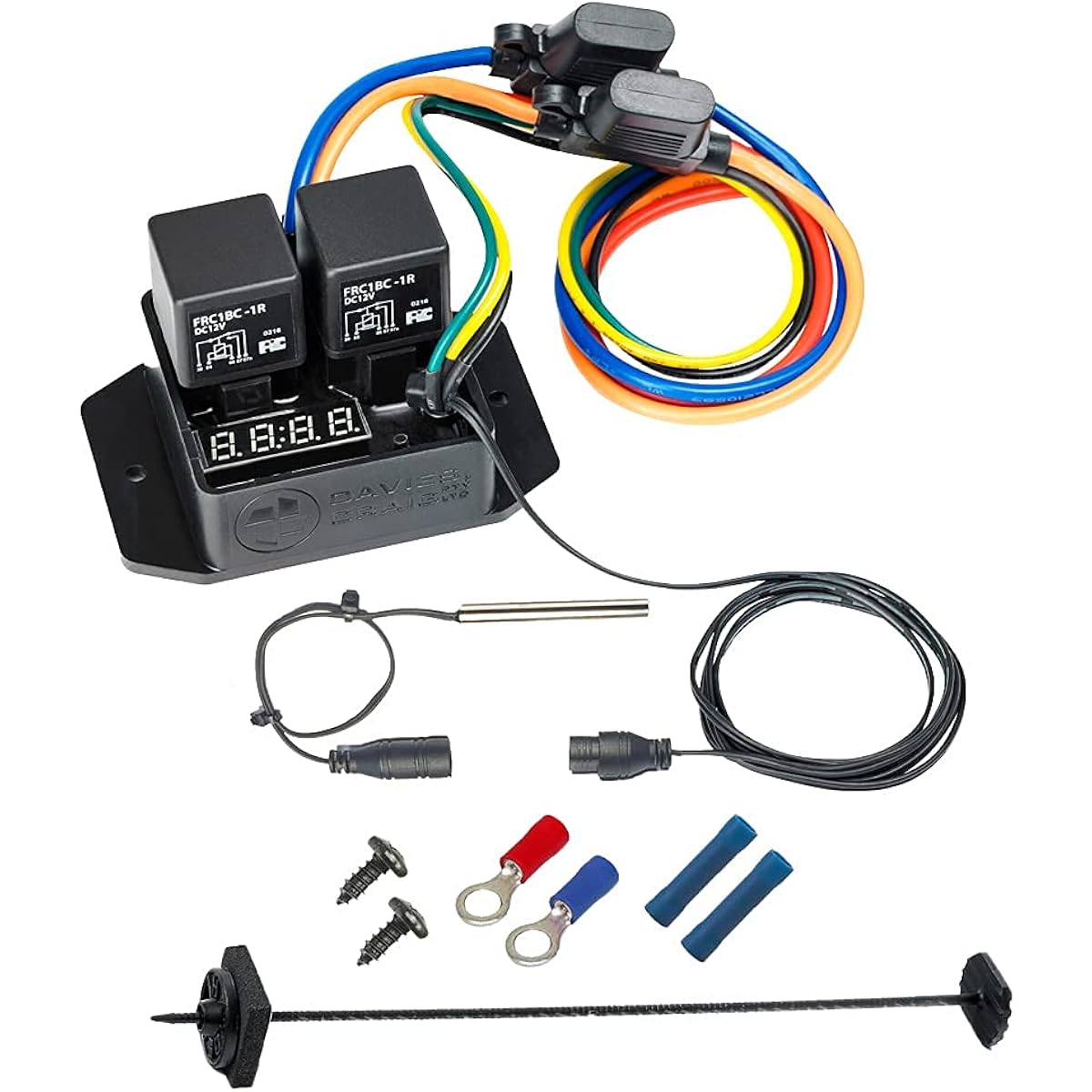

Digital Thermatic Electric Fan Control Switch Kit in Engine Room

The temperature probe (air or coolant), which is a sensor, senses the air temperature as it passes through the radiator with the sensor installed in the radiator fin section. Alternatively, the sensor can be placed directly into the cooling system in conjunction with the Temperature Sensor Adapter Kit (#0409). Sensor wire length: wire from switch 1120mm, sensor connector 300mm. The switch can control one or two fans. The adjustable temperature range is 40° to 110°. - When the set temperature is reached, fan #1 starts. - If fan #2 is set, it will start approximately 10 seconds after fan #1 starts. The fan will run until the temperature drops 5° below the set temperature. IP66 rating: IP66 rating to prevent ingress of dust, high pressure water jets, etc. (not waterproof) Maximum voltage: 12V Maximum current: Rated at 30 amps per fan (40 amps max per fan) Unit has 2 x 30 amps Comes with fuse and 2x40 amp relay Relay configuration: dual relay Sensor wire length: 142cm total (wire from switch 112cm and sensor connector 30cm) Speed: single speed, starts second fan 10 seconds delay for application: Suitable for single and dual fan applications Screen display: LED digital temperature display, actual temperature + set temperature Temperature display: Celsius or Fahrenheit Temperature setting: 40°C to 110 °C (104°F to 230°F) Temperature Setting: Push Button Circuit Type: Pre-programmed Microcontroller Output Lines: Bat+Butt-IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe ・Mounting location: Engine room ・Dimensions: 95x65x56 mm ★[Note]★When using this switch with EWP, the pump will turn ON/OFF at the set temperature instead of changing the pump speed according to the engine temperature. Switch. For EWP control, we recommend #8002, which can manage both EWP and Thermatic fans. ★[About delivery schedule]★As a general rule, orders placed by 12:00 noon, including Saturdays, Sundays, and holidays, will be shipped the same day (excluding New Year's Day), but due to our company's work and business trips, shipping may not be possible. Therefore, the shipping time is 2 days. This product is in stock and shipped by APJ, an authorized Japanese distributor. ★[About returns and instructions]★The instruction manual is only available in English. Japanese version is not included. This product is intended for people with knowledge and qualifications related to product characteristics, specifications, purposes, or car customization and tuning. Regarding returns and refunds, we will replace the product (including defective parts and the main unit only) only if we have confirmed the initial defect, damage, or malfunction. We cannot accept returns or refunds once the package has been opened. Increase number of displayed items

Maximum Voltage: 12V Maximum Current: Rated at 30 amps per fan (up to 40 amps per fan) Unit comes with 2 x 30 amp fuses and 2 x 40 amp relays Relay Configuration: Dual Relays Sensor Wire Length : Total 142cm (wire from switch 112cm and sensor connector 30cm) Speed: Single speed, 10 seconds delay to start the second fan Application: Suitable for single and dual fan applications Screen display: LED digital temperature display , actual temperature + set temperature Temperature display: Celsius or Fahrenheit Temperature setting: 40°c to 110°c (104°F to 230°F) Temperature setting: Push button Circuit type: Pre-programmed microcontroller Output line: Butt+Butt-IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe Installation location: Engine room Dimensions: 95x65x56 mm [Note] If you use this switch with EWP, please adjust the pump speed according to the engine temperature. Rather than changing the temperature, the pump is turned on and off at the set temperature. For EWP control, we recommend #8002, which can manage both EWP and Thermatic fans. ★[About delivery schedule]★As a general rule, orders placed by 12:00 noon, including Saturdays, Sundays, and holidays, will be shipped the same day (excluding New Year's Day), but due to our company's work and business trips, shipping may not be possible. Therefore, the shipping time is 2 days. This product is in stock and shipped by APJ, an authorized Japanese distributor. ★[About returns and instructions]★The instruction manual is only available in English. Japanese version is not included. This product is intended for people with knowledge and qualifications related to product characteristics, specifications, purposes, or car customization and tuning. Regarding returns and refunds, we will replace the product (including defective parts and the main unit only) only if we have confirmed the initial defect, damage, or malfunction. We cannot accept returns or refunds once the package has been opened.


Manufacturer: ‎DAVIES, CRAIG
Brand: ‎DAVIES, CRAIG
Product size: ‎9.5 x 6.5 x 5.5 cm; 300 g
Product model number: ‎0444
Discontinued by manufacturer Now: ‎No
Genuine product number: ‎DC-0444
Lift type: ‎ON-OFF
Product dimensions: Depth x Width x Height: 9.5 x 6.5 x 5.5 cm
Product weight: ‎300 g
