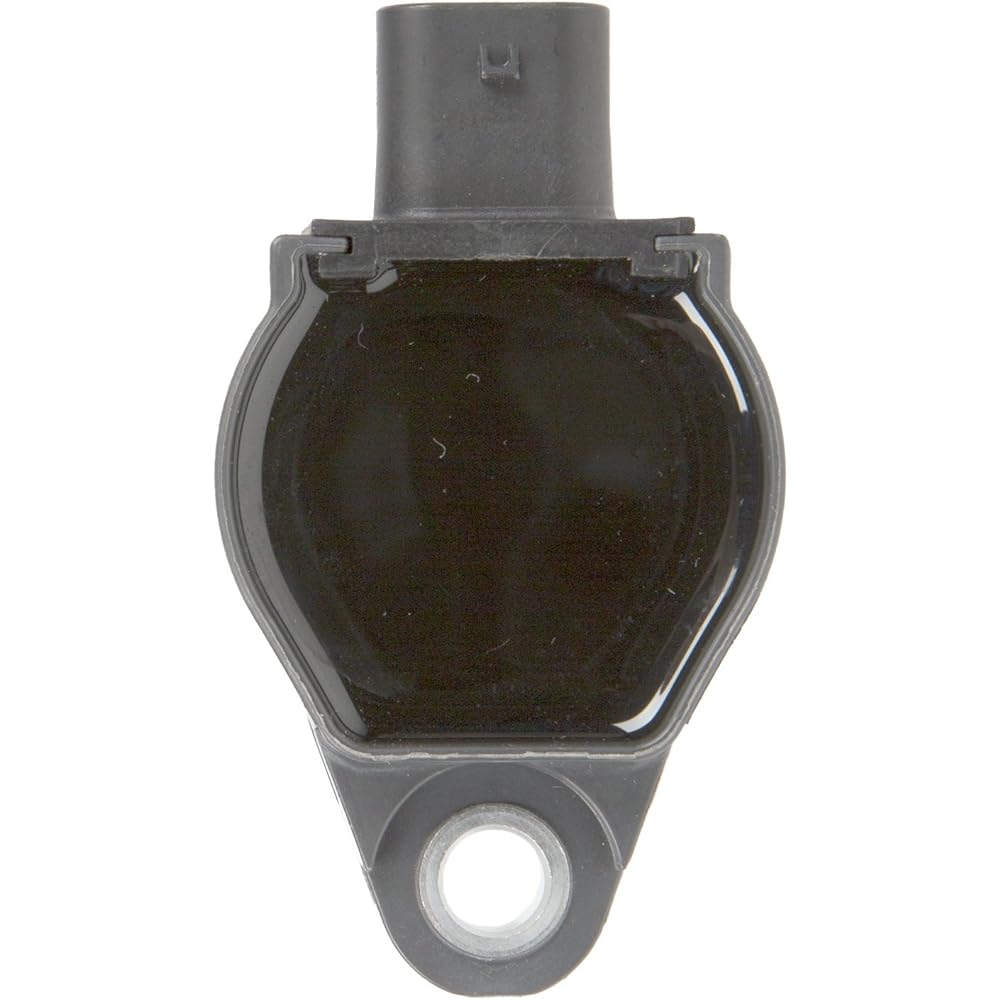

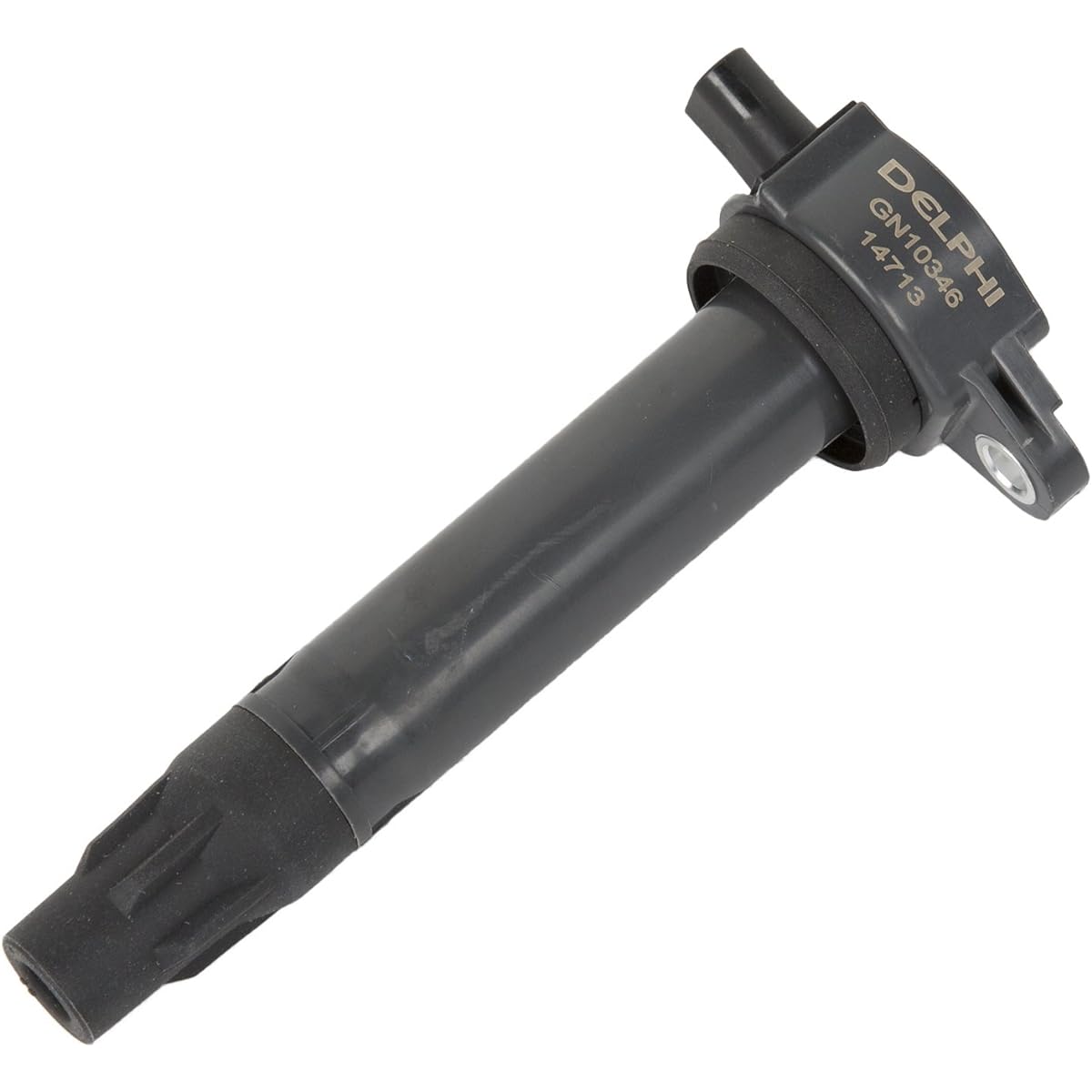

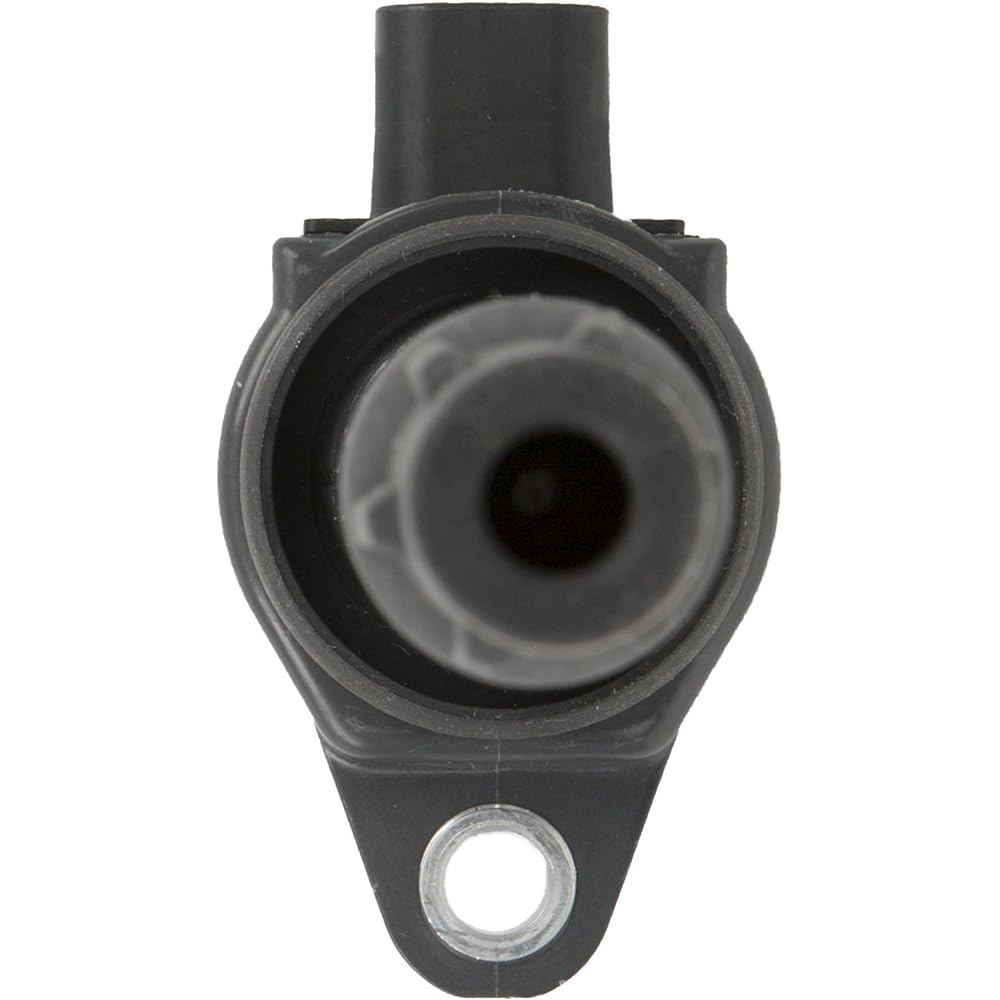

Delphi GN10346 Pencil type ignition coil

Delphi uses winding process technology to control the length of wire between adjacent windings. Larger lengths create larger voltage differences, which can increase pressure that can destroy insulation and wire coatings. Delphi ignition coils are designed to original equipment specifications. Delphi ignition coils are designed with proven materials, including high-quality wire and wire coatings, that resist cracks, pinholes, and imperfections that can cause failure issues. Epoxy vacuum technology reduces air bubbles within the epoxy. Because fewer air bubbles improve the insulation quality of the epoxy and reduce the chance of energy punch-through failure. Delphi coils are designed and durability tested to withstand common stresses that can cause failure.




Manufacturer: ‎Delphi
Brand: ‎Delphi
Model name: ‎GN10346
Product size: ‎8.38 x 6.35 x 19.05 cm ; 226.8 g
Product model number: ‎GN10346
Original part number: ‎36-8113, 4606 824AB, 4606 824AC, 50246, 52-1881, 5C1644, 673-5301, 921-2108, C-695, C1587 , CUF557, E1057, IC637, IC637SB, UF-557
Position: Left
Product dimensions Depth x Width x Height: 8.4 x 6.4 x 19.1 cm
Product weight: 227 g
