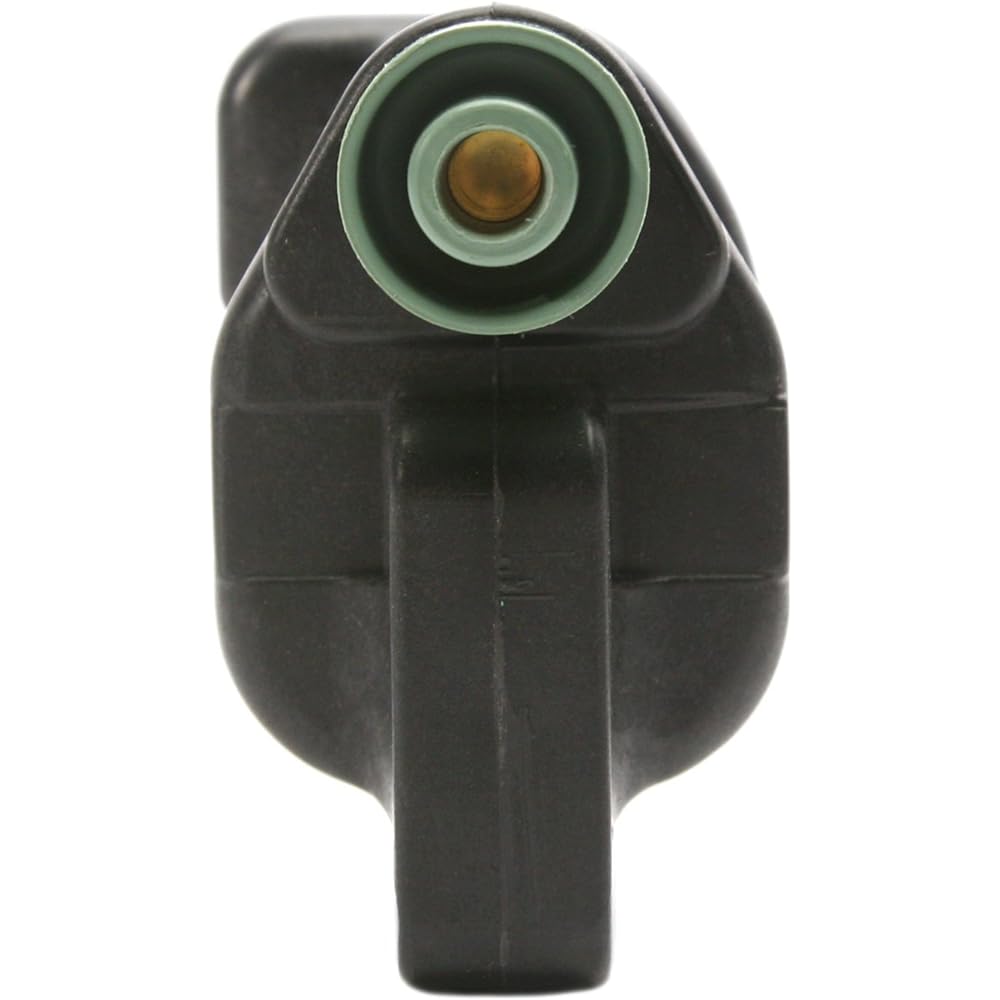

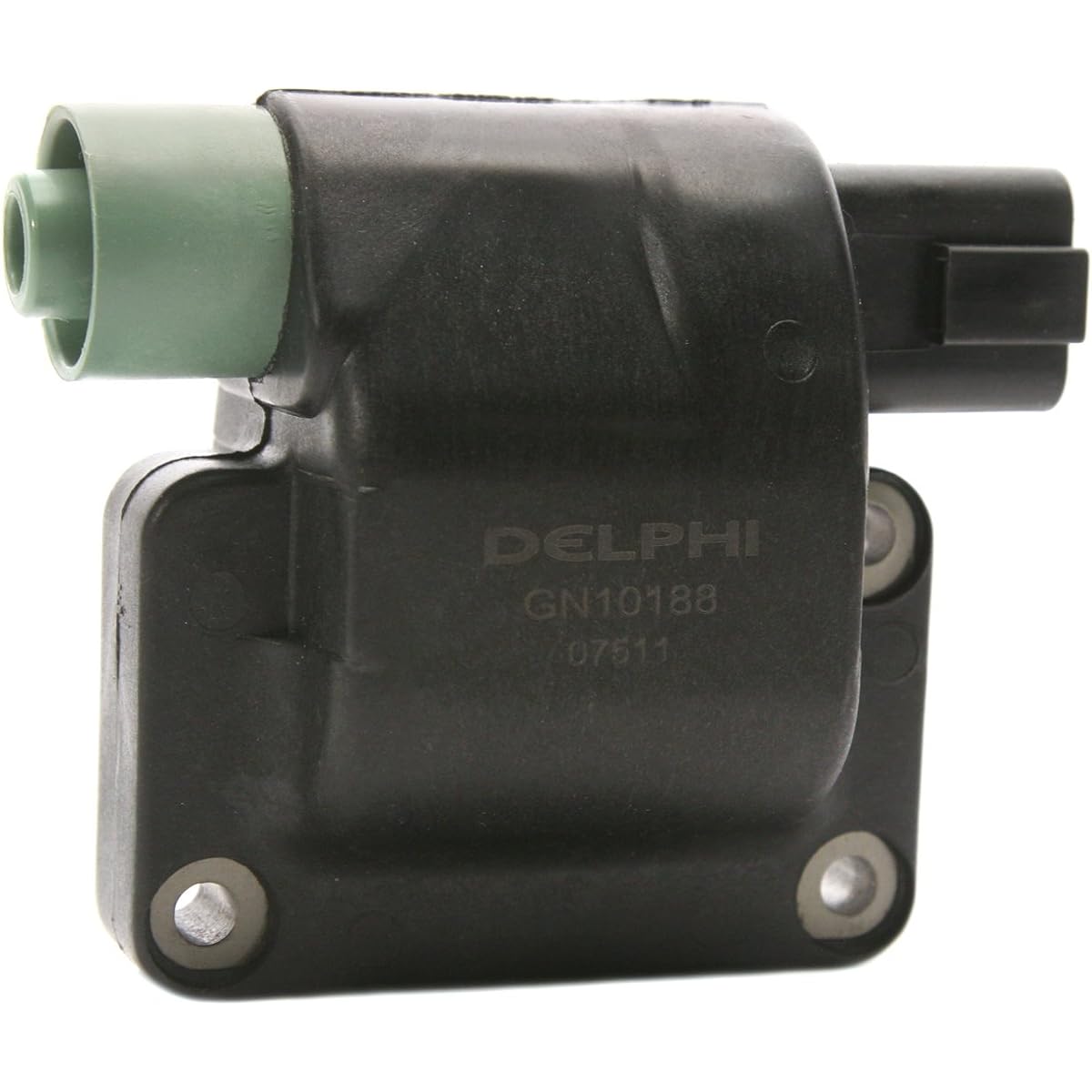

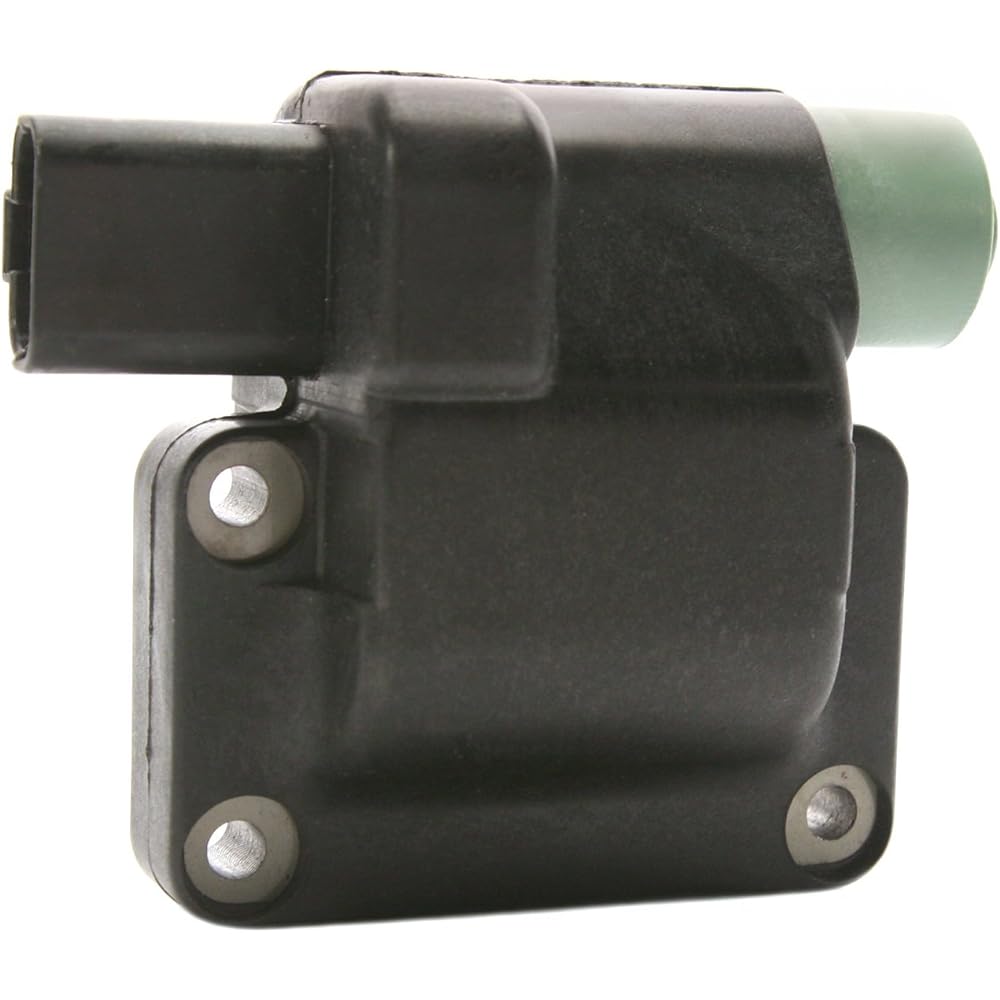

Delphi GN10188 Ignition Coil

Delphi uses winding process technology to control the length of wire between adjacent windings. This is important because the long length results in a large voltage difference and increased pressure that can destroy insulation and wire coatings. Delphi ignition coils are designed to original equipment specifications. Delphi's ignition coils are designed with proven materials such as high-quality wire and wire coatings to prevent cracks, pinholes, and imperfections that most often result in failure problems. Epoxy vacuum technology reduces air bubbles within the epoxy. This is because fewer air bubbles improve the insulation quality of the epoxy and reduce the chance of energy punch-through failure. Delphi coils are designed and durability tested to withstand common stresses that can cause failure.




Manufacturer: ‎Delphi
Brand: ‎Delphi
Product size: ‎8.38 x 8.38 x 12.7 cm; 544.31 g
Product model Number: GN10188
Genuine part number: 178-8247, 30520-PT3-A02, 30520-PT9-A02, 36-1141, 5104, 52-2008, 5C1141, 6-545, 920-1047, C-633 , C-633, C992, CLS1269, E558D, E598, E800, IC170, IC170SB, IC355, U1075, UF-205, UF-205T, UF-98
Product dimensions Depth x Width x Height: ‎8.4 x 8.4 x 12.7 cm
Product weight: ‎544 g
