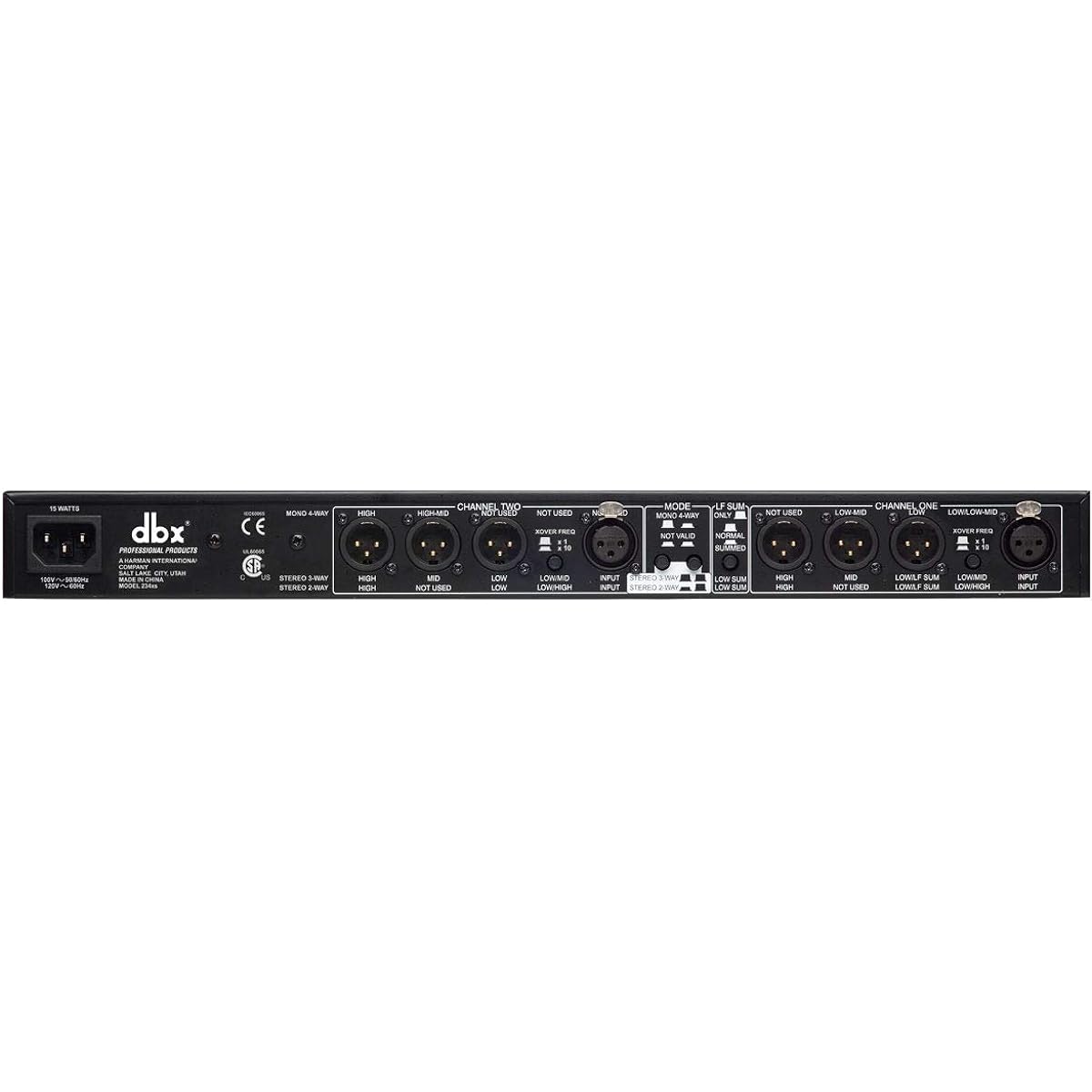

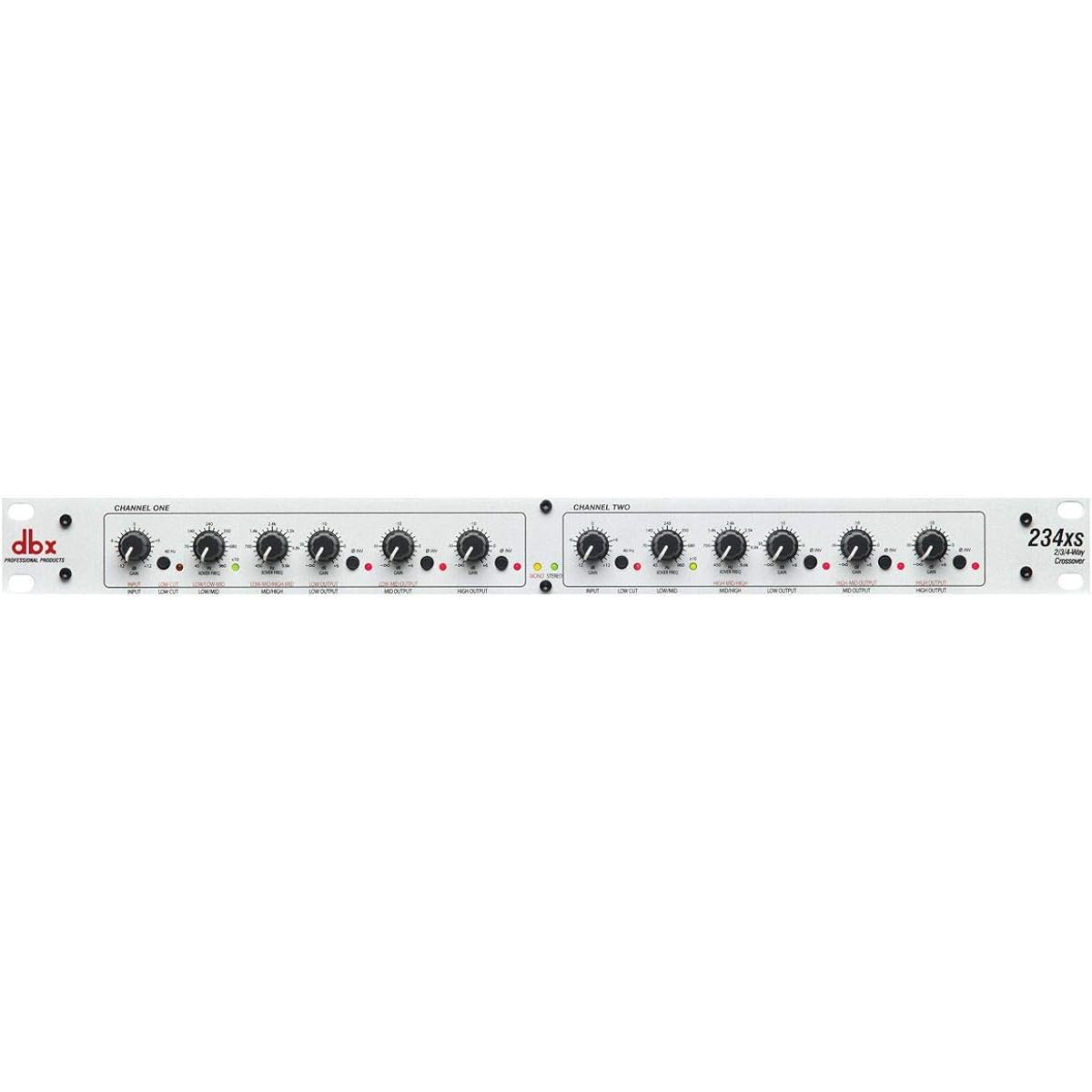

dbx (dbx) channel divider 234xs

[Input] Connector: XLR Type: Electronically balanced/unbalanced Impedance: >50kΩ (balanced), >25kΩ (unbalanced) Maximum input level: >+21dBu (balanced/unbalanced) [Output] Connector: XLR Type: Electronically balanced/unbalanced Impedance: 60Ω (balanced), 300Ω (unbalanced) Maximum output level: >+20dBu (balanced/unbalanced, 600Ω or more) [Crossover frequency] Stereo mode: Low/High 45-960 Hz or 450 Hz-9.6 kHz (x10 setting) Low/Mid 45-960 Hz, or 450 Hz-9.6 kHz (x10 setting) Mid/High: 450Hz-9.6kHz (x10 setting) Mono mode: Low/Low-Mid 45-960 Hz, or 450 Hz-9.6 kHz (x10 setting) Low-Mid/High-Mid 450 Hz to 9.6 kHzHigh-Mid/High 450 Hz to 9.6 kHzFilter type: Linkwitz-Riley, 24 dB/octave, state-variableFunction switchesLow cut: 40Hz Butterworth, 12 dB/octavePhase Invert: Phase inversion x10: Crossover frequency switchingMode: stereo/mono, 2/3/4-wayLF sum: normal (stereo), mono-summed (mono)IndicatorsStereo Operation: Green LEDMono Operation: Yellow LEDProduct images include images of use. Please note that nothing other than what is specified in the is included.
