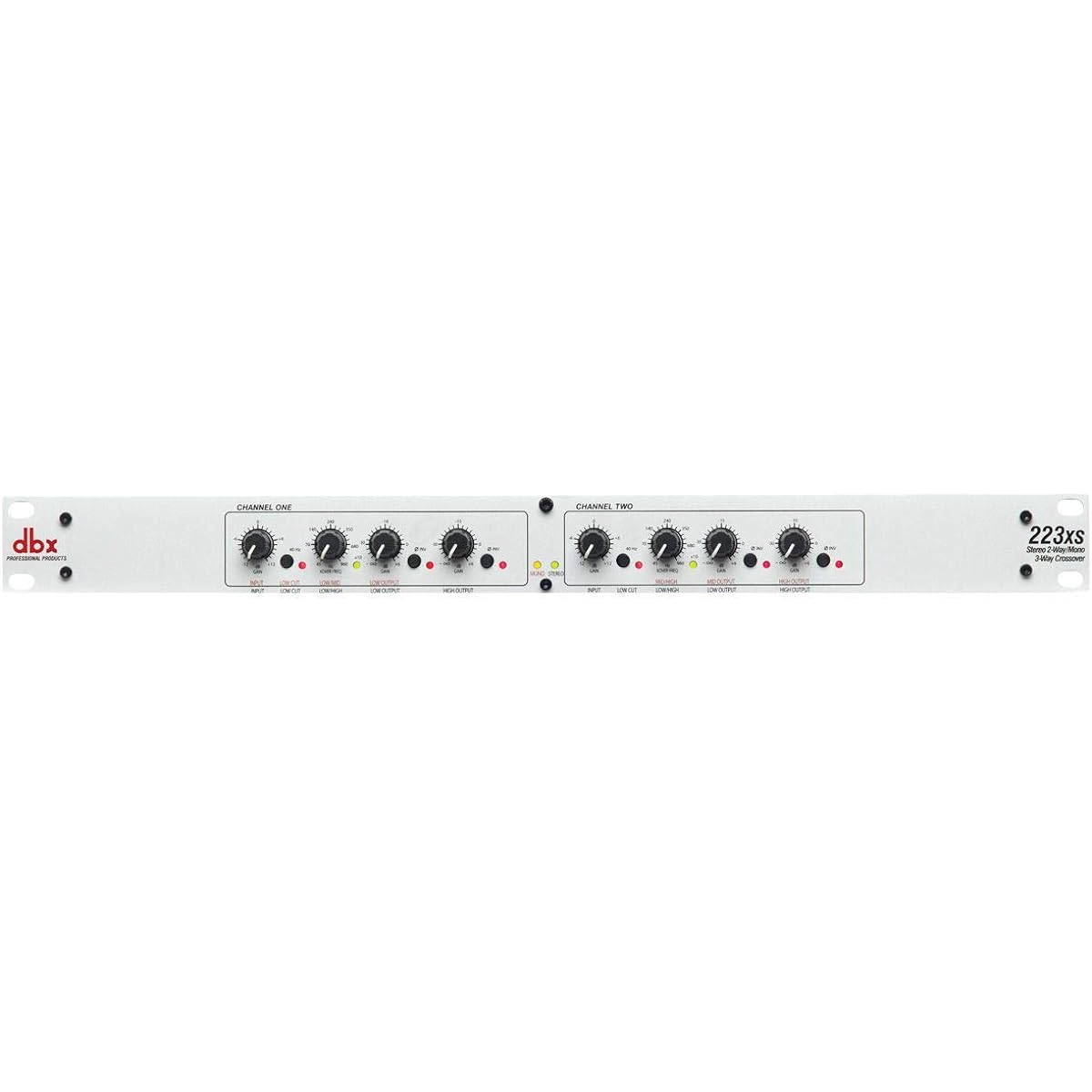

dbx (dbx) channel divider 223xs channel divider

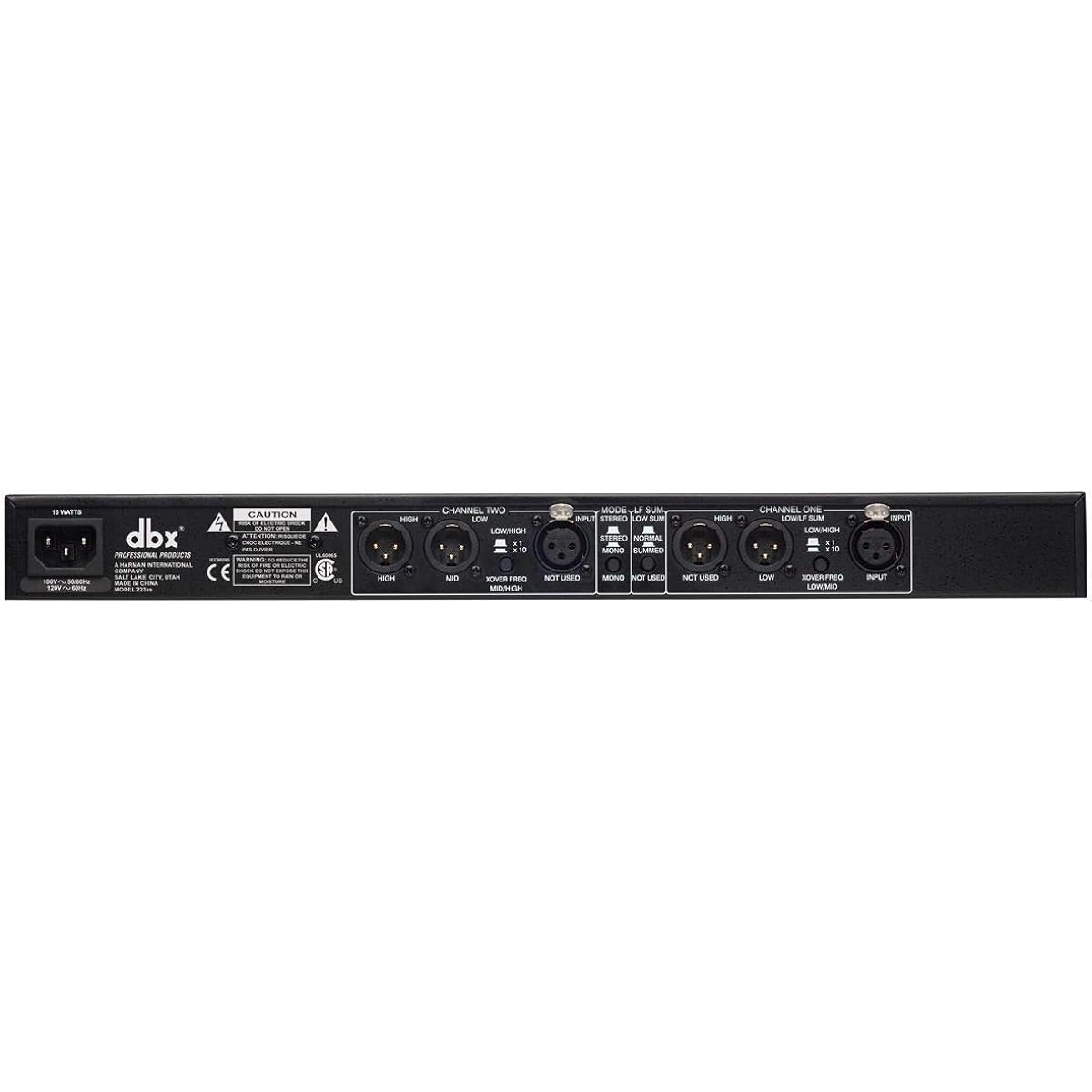

Input Connector: XLR (2nd hot) Type: Electronically balanced/unbalanced Impedance: >50kΩ (balanced), >25kΩ (unbalanced) Maximum input level: >+22dBu (balanced/unbalanced) Output Connector: XLR Type: Electronically balanced/unbalanced Impedance: 60Ω (balanced), 30Ω (unbalanced) Maximum output level: >+20dBu (balanced/unbalanced, 600Ω or more) Crossover frequencies Stereo mode: Low/High: 45-960Hz, or 450Hz-9.6kHz (x10) Mono mode: Low/Mid: 45-960Hz, or 450Hz-9.6kHz (x10) Mid/High: 45-960Hz, or 450Hz-9.6kHz (x10) Filter type: Linkwitz-Riley, 24 dB/octave Function switch Low cut: 40Hz Butterworth, 12 dB/octavePhase: Phase inversion x10: Crossover frequency switchingMode: stereo/mono, 2/3 wayLF sum: normal (stereo) or mono-summed(mono)Indicators: Stereo Operation: Green LEDMono Operation: Yellow LEDLow Cut: Red LED per channelx10 Green LED per channelPhase Invert: Red LED per output (3 per channel)System: Bandwidth: 20Hz to 20kHz, +0/-0.5dB Product images include images of use. Please note that anything other than what is specified in the is not included.
