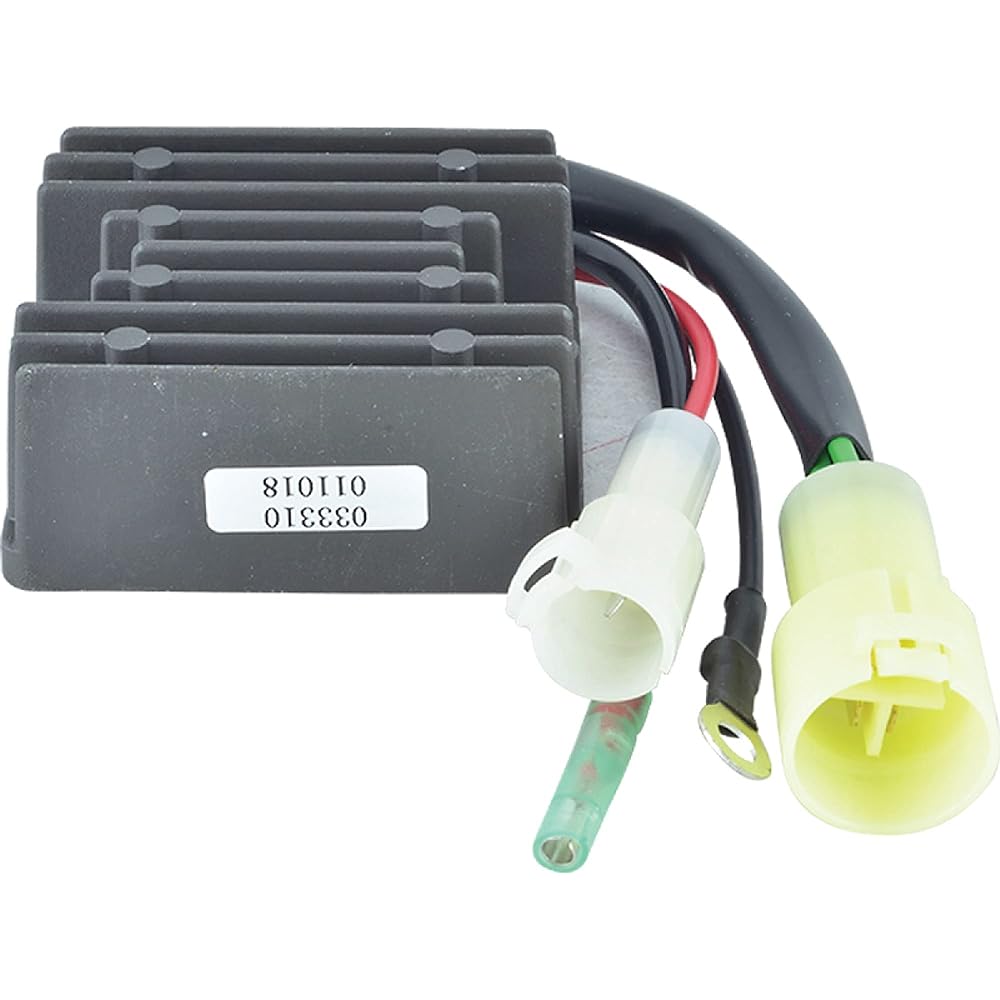

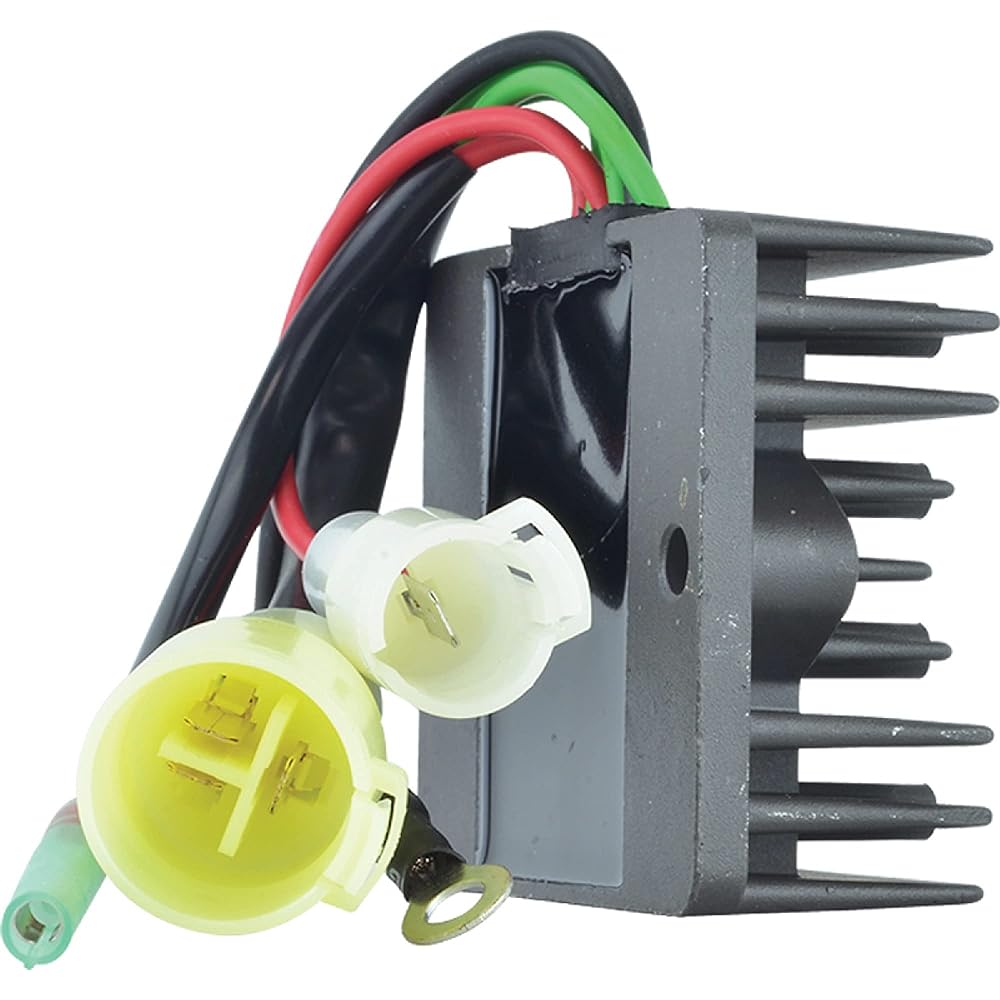

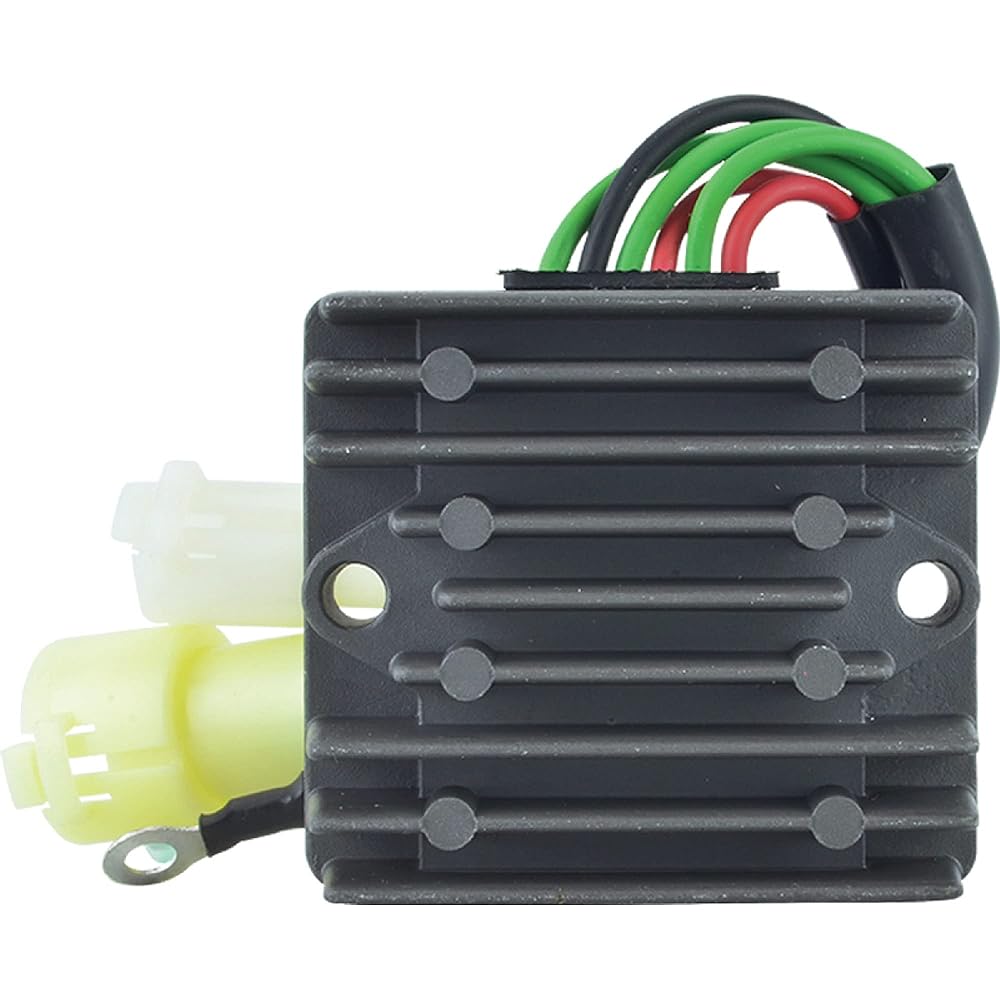

DB Electrical 230-58240 Voltage Regulator/Rectifier 12V Compatible with YAMAHA Various 197-0001 SH601-13 6R3-81960-10-00

Specifications: Rectifier/Regulator, Voltage: 12, Dimensions: L 79. Aftermarket rectifier/regulator made to meet OEM specifications.

**Please ensure parts fit before purchasing** Specifications: Unit Type: Rectifier/Regulator Voltage: 12 Dimensions: 79.7mm L x 72.6mm W x 35.1mm Thick, Plug #1 - Green 3 wires (charging coil), 7.5", plug #2 - 1 red wire (B+), 5.25", 1 red wire with bullet 8" (for fuse), 1 black wire with eyelet (B-), 8.5 inches 2 rounds Mt. g. Hole, 73.9mm (outside), 60.1mm (inside), Overview: Yamaha 115HP, 130HP, 150HP, 175HP, 200HP, 225HP outboard engines 1990 onwards. It is also used in M/C applications other than Suzuki. Replacement OEM Number: Arrowhead: 230-58240. J&N:230-58240 SHINDENGEN:SH601-13, SH647-14 Yamaha:6R3-81960-10-00


Manufacturer: ‎DB Electrical
Brand: ‎DB Electrical
Model name : ‎Voltage Regulator Rectifier
Product size: ‎2.54 x 2.54 x 2.54 cm; 453.59 g
Product model number: ‎230-58240
Exterior condition: ‎Machined
Original part number: ‎197- 0001 6R3-81960-10-00 SH601-13
Product dimensions Depth x Width x Height: ‎25 x 25 x 25 mm
Number of bolts: ‎12 bolts
Product weight: ‎454 g
