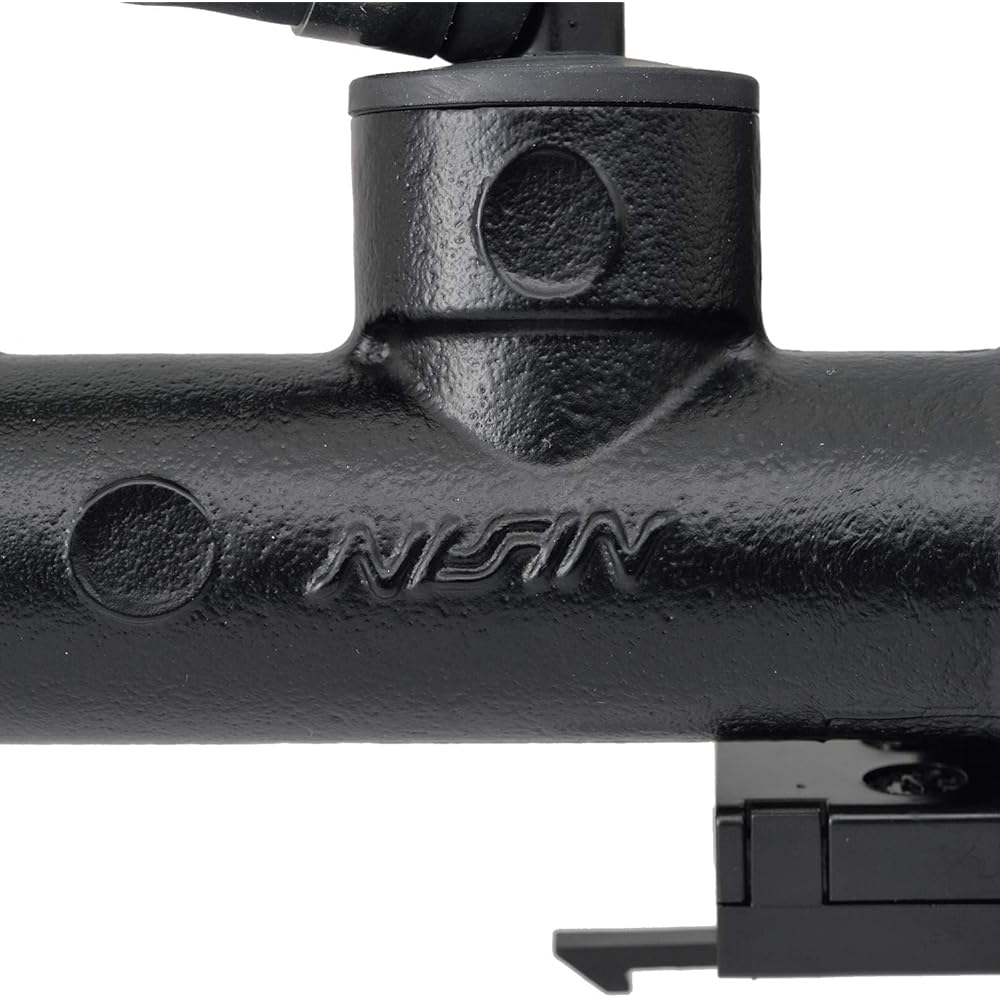

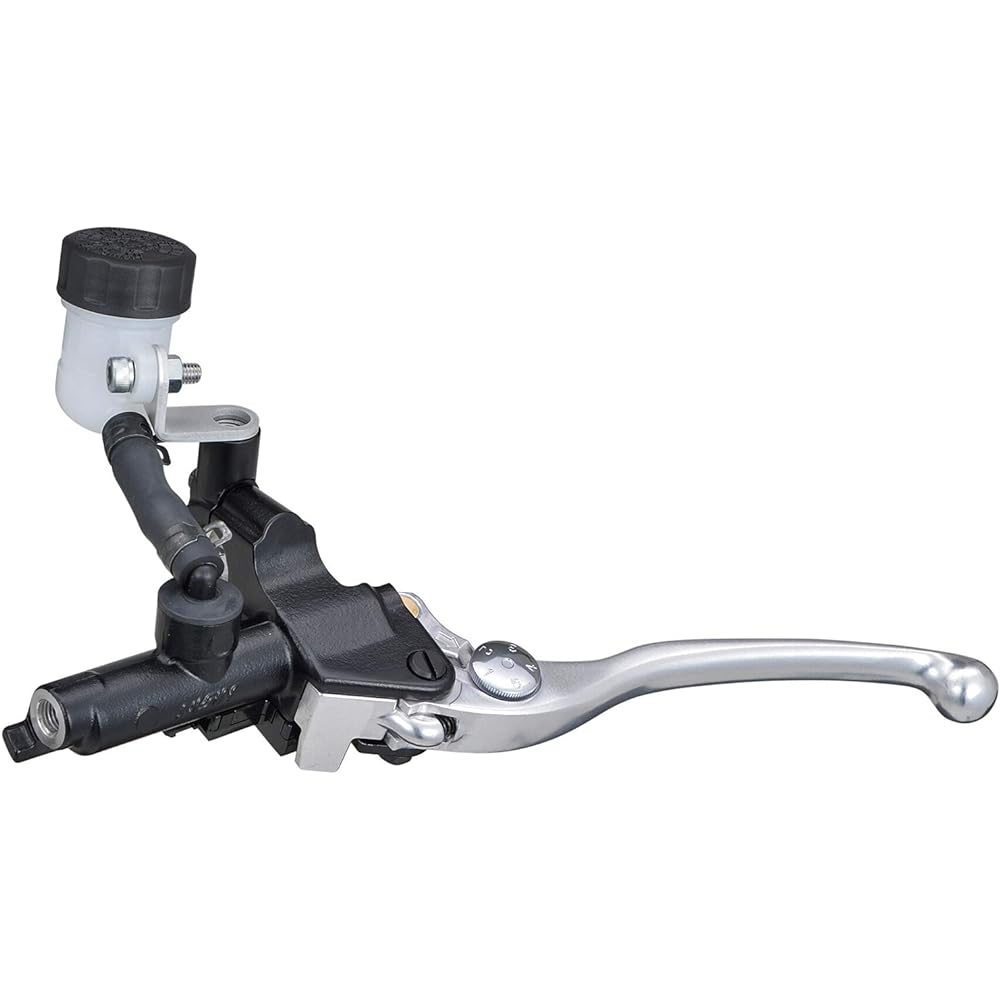

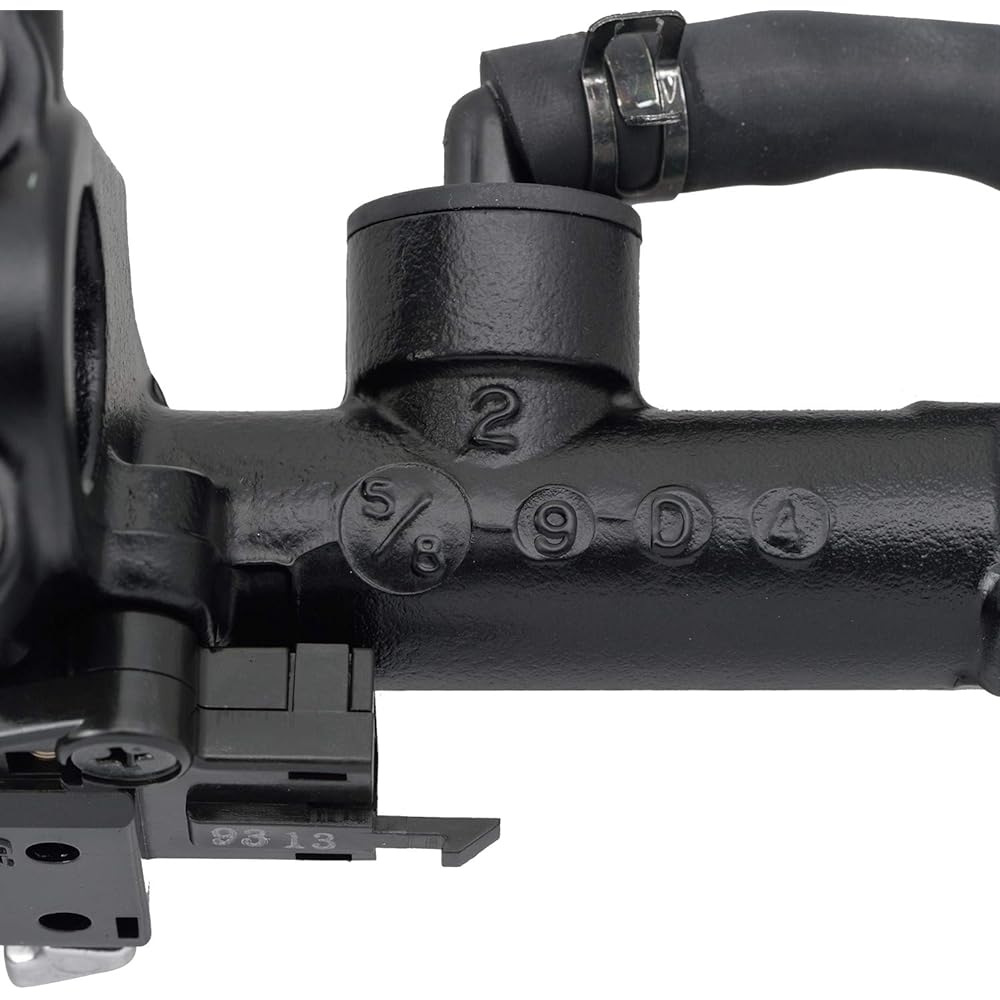

Daytona NISSIN Motorcycle Clutch Master Cylinder Horizontal 5/8 inch Black Body/Buff Clear Lever 61750
Daytona NISSIN Motorcycle Clutch Master Cylinder Horizontal 5/8 inch Black Body/Buff Clear Lever 61750
Regular price
$132.00 USD
Regular price
Sale price
$132.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

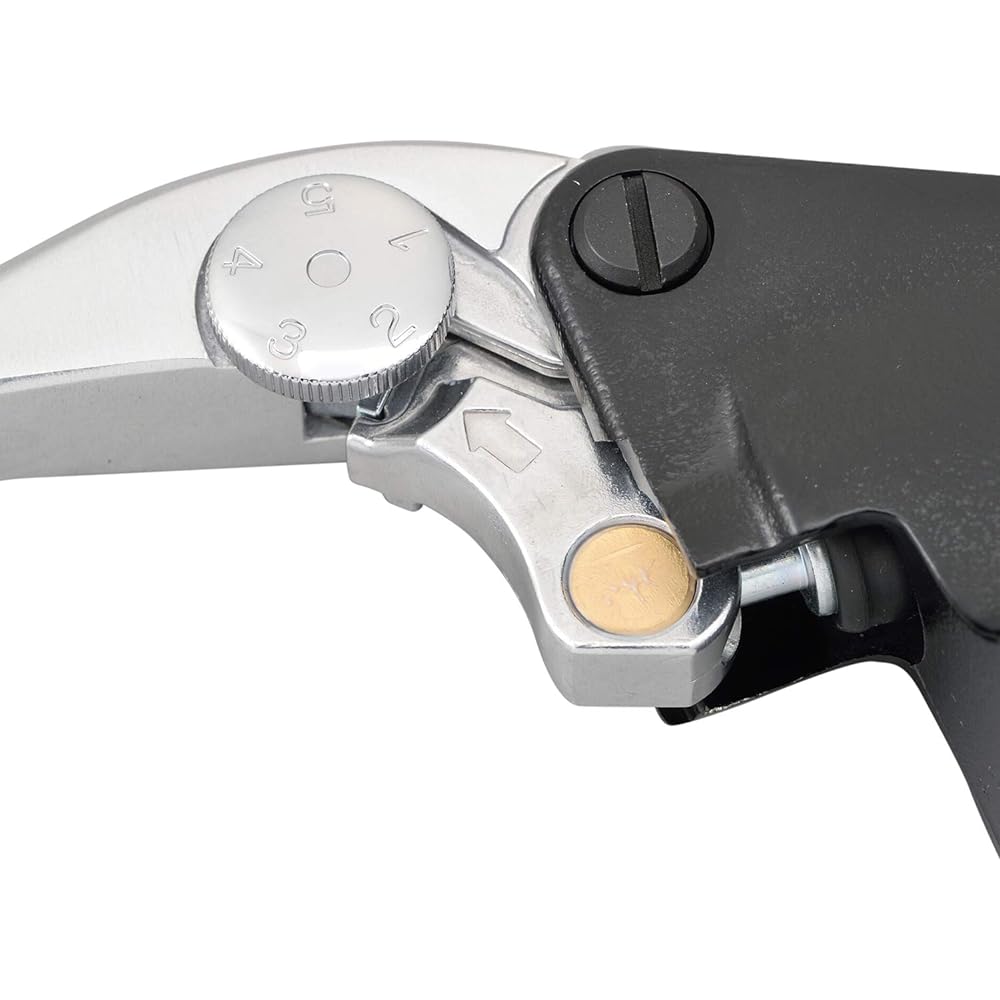

[Application] Motorcycle clutch master cylinder suitable for repair and customization [Suitable dimensions] XJR1300 (00-15) XJR1300 (98-99) ) YZF1000R Thunder Ace(96-00) GTS1000(96-99) FZR1000(87-95) YZF-R7(99) YZF750R(93-97) FZR750(87-88) FZ750(85-86) FZX750(86-00 ) [Specification 1] Φ22.2 for handle [Specification 2] Piston diameter: 5/8 inch (approx. 15.9mm) [Specification 3] Standard size lever with 5-step adjustment function [Specification 4] Tank stay and brake stay included [Note ] Due to the different internal structure, it cannot be used as a brake master cylinder.
[Application] Motorcycle clutch master cylinder suitable for repair and customization [Size compatible models] XJR1300 (00-15) XJR1300 (98-99) -93) YZF1000R Thunder Ace(96-00) GTS1000(96-99) FZR1000(87-95) YZF-R7(99) YZF750R(93-97) FZR750(87-88) FZ750(85-86) FZX750(86 -00) [Specification 1] Φ22.2 for handle [Specification 2] Piston diameter: 5/8 inch (approx. 15.9mm) [Specification 3] Standard size lever with 5-step adjustment function [Specification 4] Tank stay and brake stay included Precautions for use ●Standard lever type only. There is no short lever setting. ●The direction and angle of the clutch hose is different from the normal one. Depending on the car model, you may be able to use the genuine clutch hose. ●Make sure to replace the gasket with a new one. A single banjo requires two. -For vehicles with a flat terminal switch harness on the vehicle body side, the terminal shape is not compatible, so the clutch switch harness (29968) sold separately must be installed at the same time. ●Depending on the vehicle you are using, there may be lever adjuster positions where the lever hits the grip and cannot be used before the required hydraulic pressure is generated. Adjust the lever adjuster and use the lever adjuster at a position where the clutch is fully disengaged and the lever does not touch the grip. If you cannot adjust it completely, please use the optional 4-stage adjustment lever (buff clear: product number 28826) or (black: product number 27355). ●Do not use silicone brake fluid. ●Cannot be used as a left-hand brake as it is designed exclusively for the clutch.
Manufacturer: Daytona
Brand: Daytona
Model name: 617
Package size: 33.8 x 10.3 x 8.5 cm; 511.99 g
Item model number: 61750
Color: Black/Clear
Item weight: 512 g
[Application] Motorcycle clutch master cylinder suitable for repair and customization [Size compatible models] XJR1300 (00-15) XJR1300 (98-99) -93) YZF1000R Thunder Ace(96-00) GTS1000(96-99) FZR1000(87-95) YZF-R7(99) YZF750R(93-97) FZR750(87-88) FZ750(85-86) FZX750(86 -00) [Specification 1] Φ22.2 for handle [Specification 2] Piston diameter: 5/8 inch (approx. 15.9mm) [Specification 3] Standard size lever with 5-step adjustment function [Specification 4] Tank stay and brake stay included Precautions for use ●Standard lever type only. There is no short lever setting. ●The direction and angle of the clutch hose is different from the normal one. Depending on the car model, you may be able to use the genuine clutch hose. ●Make sure to replace the gasket with a new one. A single banjo requires two. -For vehicles with a flat terminal switch harness on the vehicle body side, the terminal shape is not compatible, so the clutch switch harness (29968) sold separately must be installed at the same time. ●Depending on the vehicle you are using, there may be lever adjuster positions where the lever hits the grip and cannot be used before the required hydraulic pressure is generated. Adjust the lever adjuster and use the lever adjuster at a position where the clutch is fully disengaged and the lever does not touch the grip. If you cannot adjust it completely, please use the optional 4-stage adjustment lever (buff clear: product number 28826) or (black: product number 27355). ●Do not use silicone brake fluid. ●Cannot be used as a left-hand brake as it is designed exclusively for the clutch.
Manufacturer: Daytona
Brand: Daytona
Model name: 617
Package size: 33.8 x 10.3 x 8.5 cm; 511.99 g
Item model number: 61750
Color: Black/Clear
Item weight: 512 g
