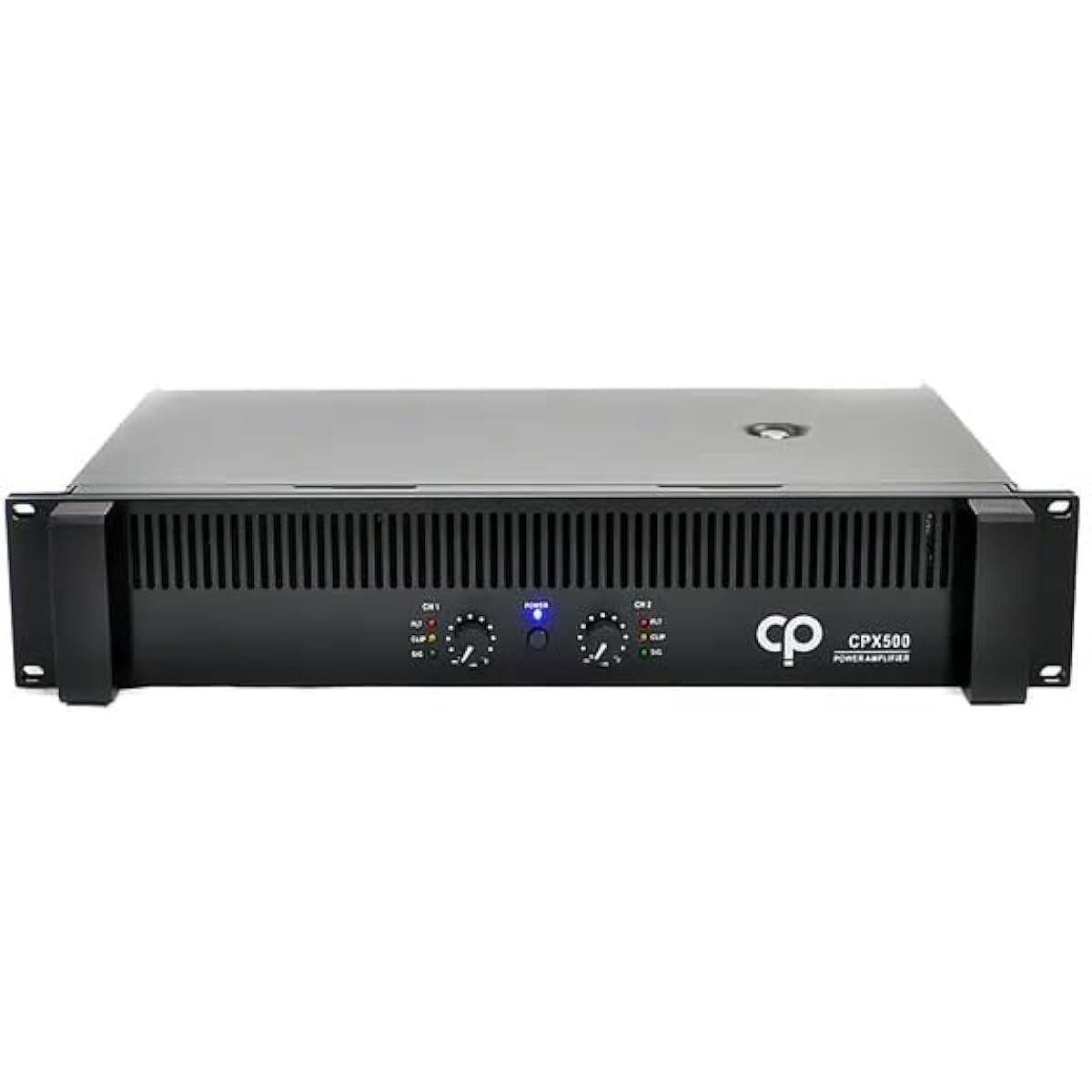

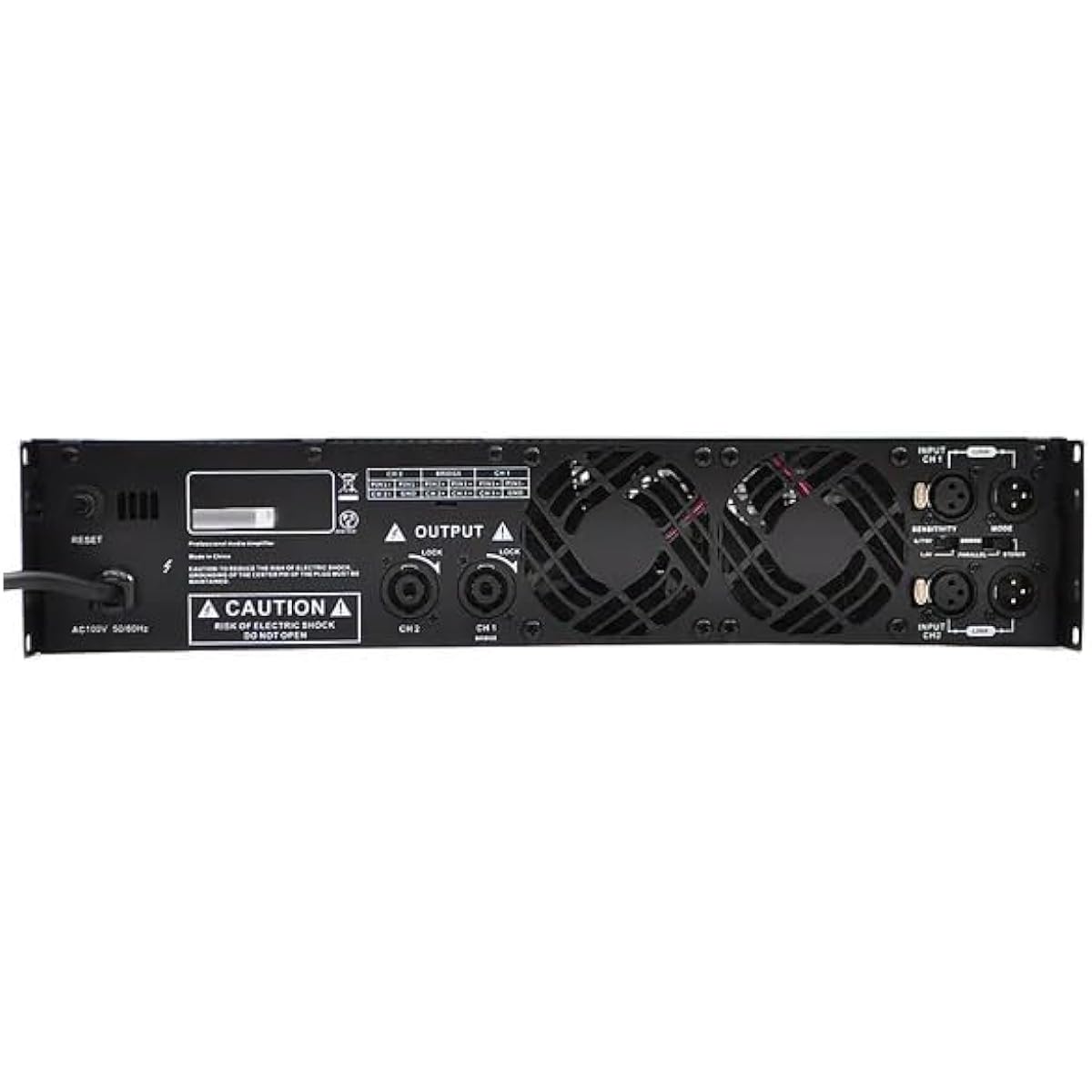

CLASSIC PRO Stereo Power Amplifier 2-channel stereo output (8ohms) 150Wx2 Bridged output (8ohms) 400Wx1 2U rack mount design

This is the latest 150W model of the CPX series, which offers the best cost performance. Although the body is lighter than before, it is equipped with uncompromising parts to achieve top-class powerful sound. In addition to a large toroidal transformer, a large heat sink, and a variable cooling fan, it uses the latest SMD technology to achieve higher stability and reliability. It features clear sound with minimal distortion. ■Type: 2-channel ■Stereo output (4ohms): 200Wx2 ■Stereo output (8ohms): 150Wx2 ■Bridged output (8ohms): 400Wx1 ■Frequency response: 20Hz-20kHz, +0-1dB ■Damping factor: >200 ■Input terminal: XLR ■Output terminal: Speakon ■Power consumption: 207W (1/8POWER) ■Dimensions: W48.2 x D22.7 x H8.8 cm ■Weight: 11.9kg ■Ventilation: Front to rear ■Cooling: Built-in heat sink, variable speed fan, thermal protection ■Amplification circuitry: Class AB ■Power cable: Approx. 1.6m, 2-pin ・Sophisticated black panel, 2U rack mount design ・Depth of 22.7cm fits in an effects rack
