CLASSIC PRO CWT804LSPLUS

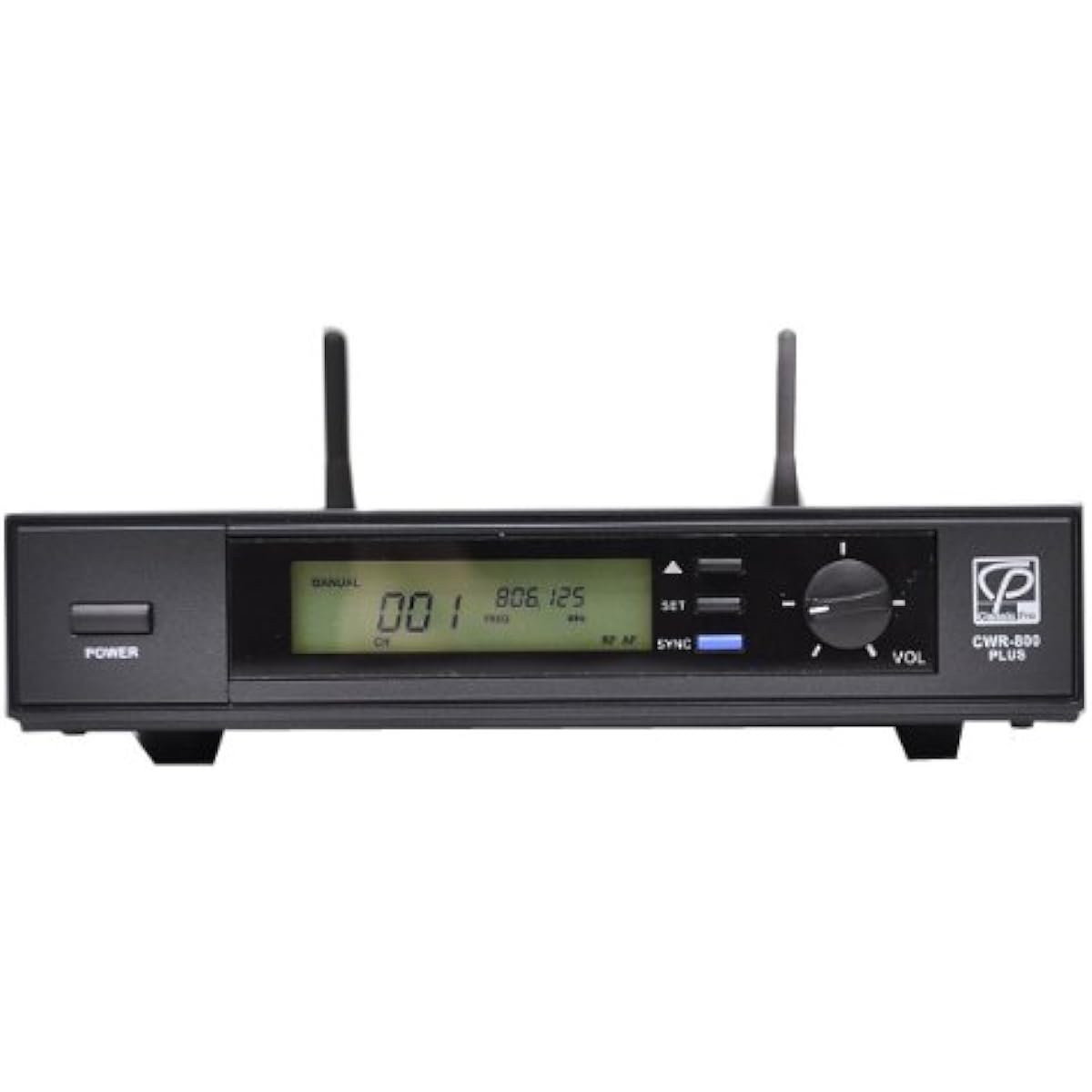

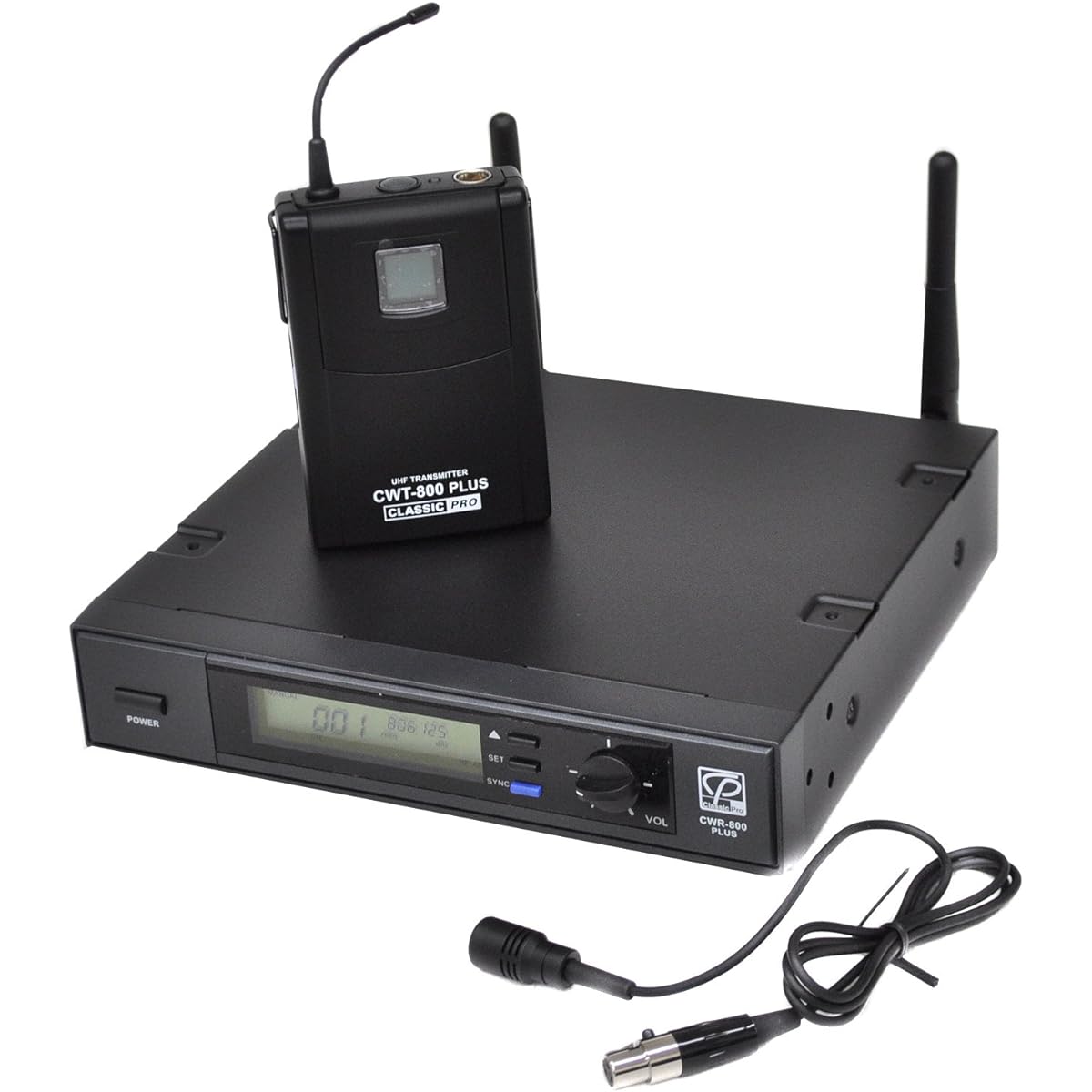

Receiver ■ Receiving frequency: B band ■ Oscillation method: PLL synthesizer method ■ Frequency stability: ±0.005% ■ S/N ratio: >94dB ■ AF response: 80Hz to 16Khz ■ T.H.D: <1% (at 1Khz) ■ Dynamic range: >100dB ■ Tone signal: 32.768kHz ■ Output terminal: Balanced/unbalanced ■ Power supply: DC12V ■ Current consumption: 260mA (Max) ■ Dimensions: 200 x 42 x 183 mm Beltpack transmitter ■ Transmission frequency: B band ■ Channel setting: Synchronizing ■ Transmission power: 10mW (Max) ■ Transmission method: PLL synthesizer method ■ Frequency stability: ±0.005% ■ T.H.D: <1% (at 1kHz) ■ Tone frequency Frequency: 32.768kHz Power consumption: 120mA±10mA Dimensions: 65 x 100 x 27mm Power source: 2 x AA alkaline batteries *The brackets for rack mounting one receiver are sold separately (CWR800RK). The brackets for mounting two receivers together are included with each receiver.
