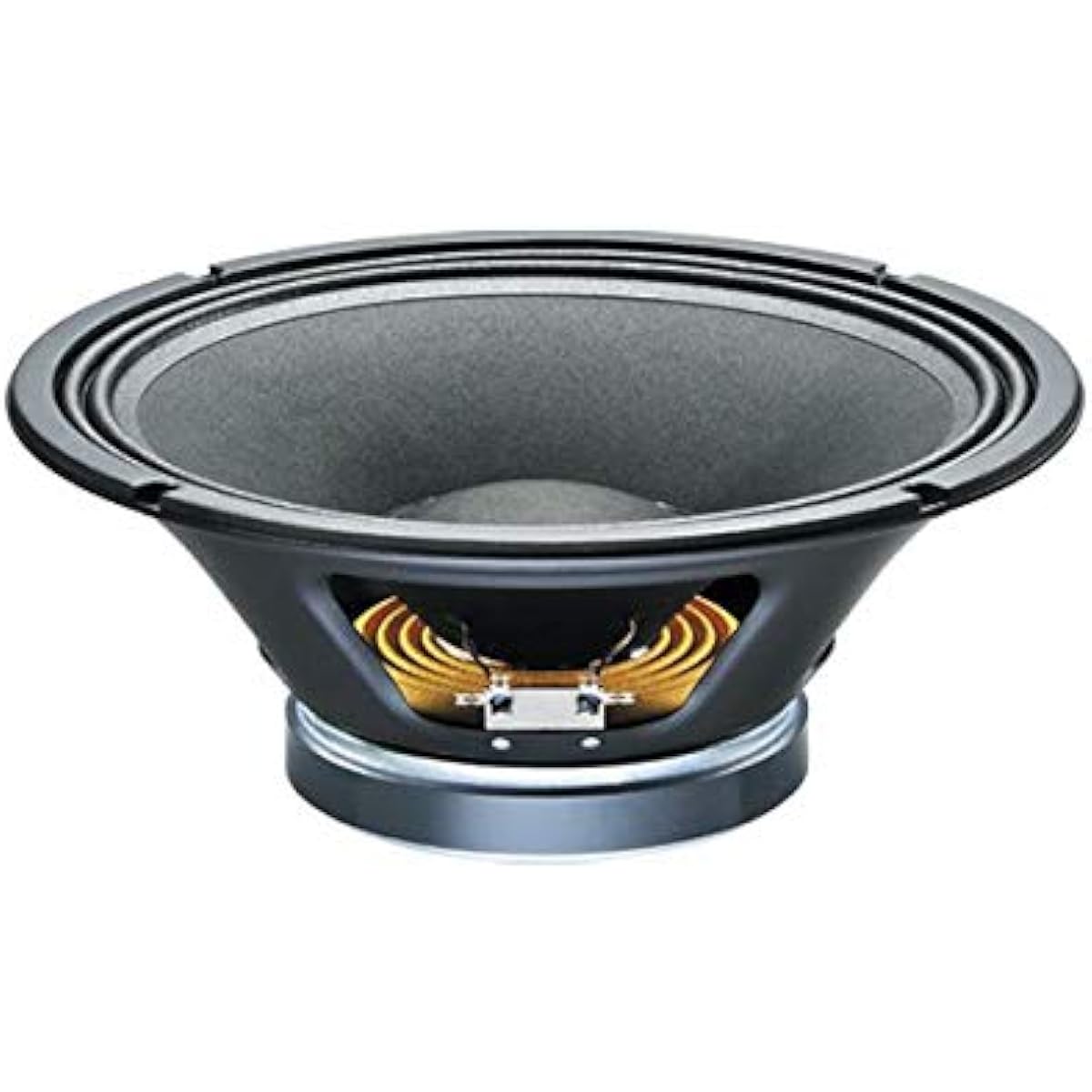

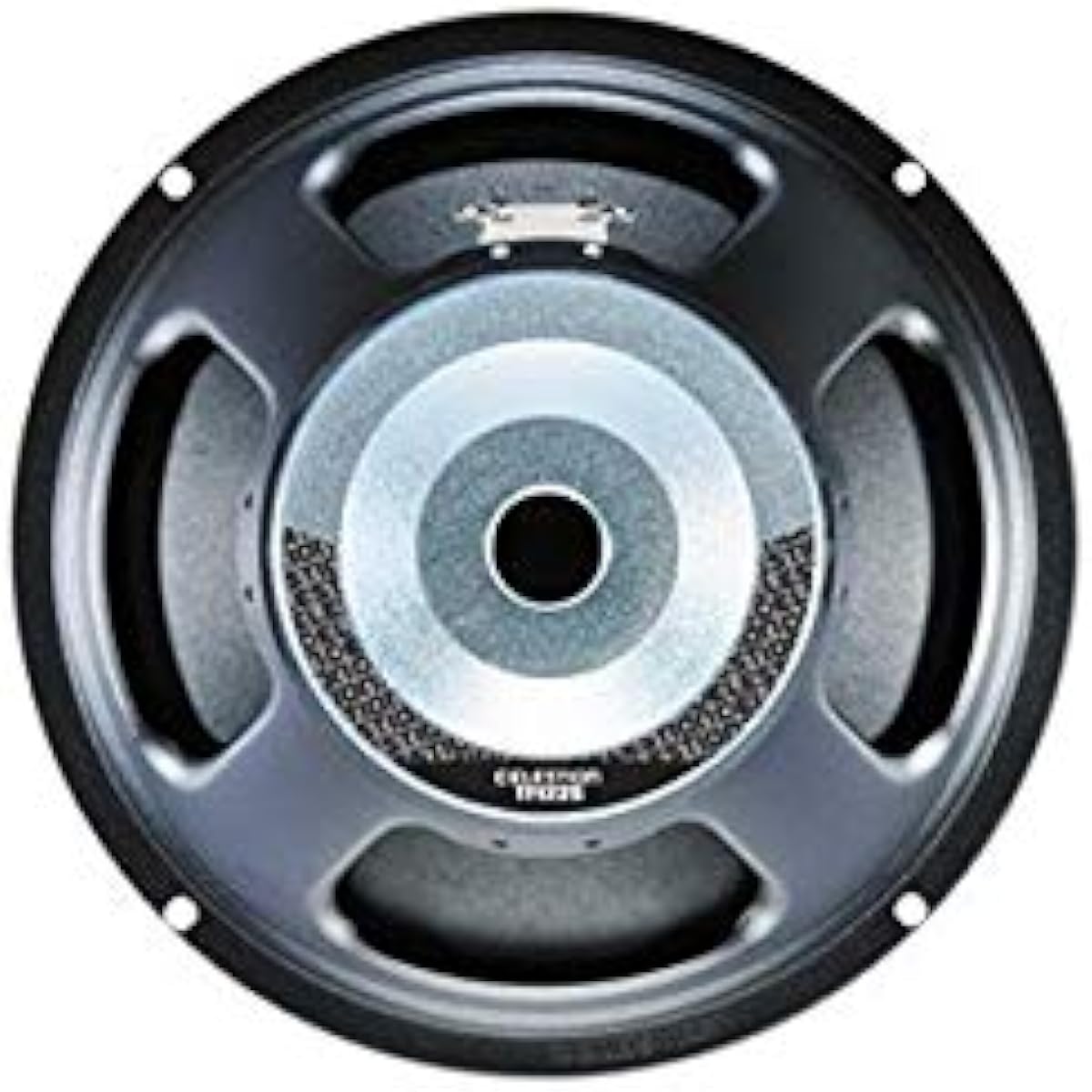

CELESTION Speaker Unit TF1225 8Ω PA Speaker Replacement Woofer

■Aperture: 12"■Impedance: 8Ω■Maximum input power: 500W■Frequency range: 50-4000Hz■Sensitivity (1W/1m): 97dB■Magnet: Ferrite■Size: 309mm x 309mm x 130mm■Weight: 4.1kg■Others:■Voice coil: 2.5"■Magnet weight: 1.2kg■Chassis: Pressed steel■Voice coil: Round copper■Former: Polyimide■Cone: Kevlar loaded paper■Surround: Cloth-sealed■Suspension: Single■Baffle diameter: 283mm■Screw hole size: φ7.9mm■Number of screw holes: 4■Diameter between mounting screw holes: 297mm Mounting PCD range＜Features＞・12" woofer unit for low/mid range using ferrite magnet・Maximum input power: 500W, sensitivity: 97dB・2.5" heat-resistant copper voice coil wound on highly reliable polyimide・Ferrite magnet optimized for light weight・Double roll surround provides excellent sound skipping ・Ideal for 2-way and small 3-way systems ■TF Series ■LF Pressed Chassis / Ferrite ■CELESTION Product images include images of use. Please note that items other than those specified in the are not included.
