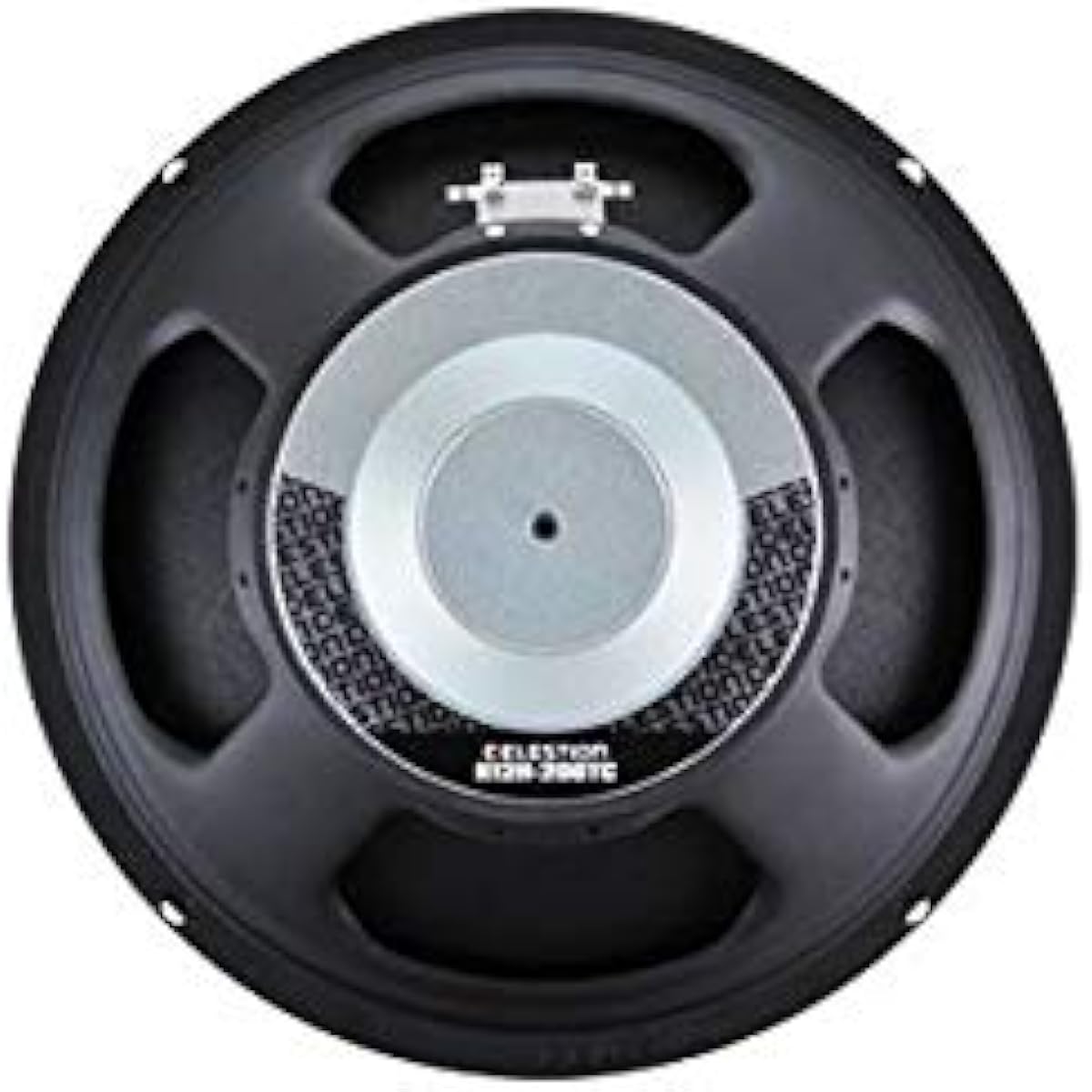

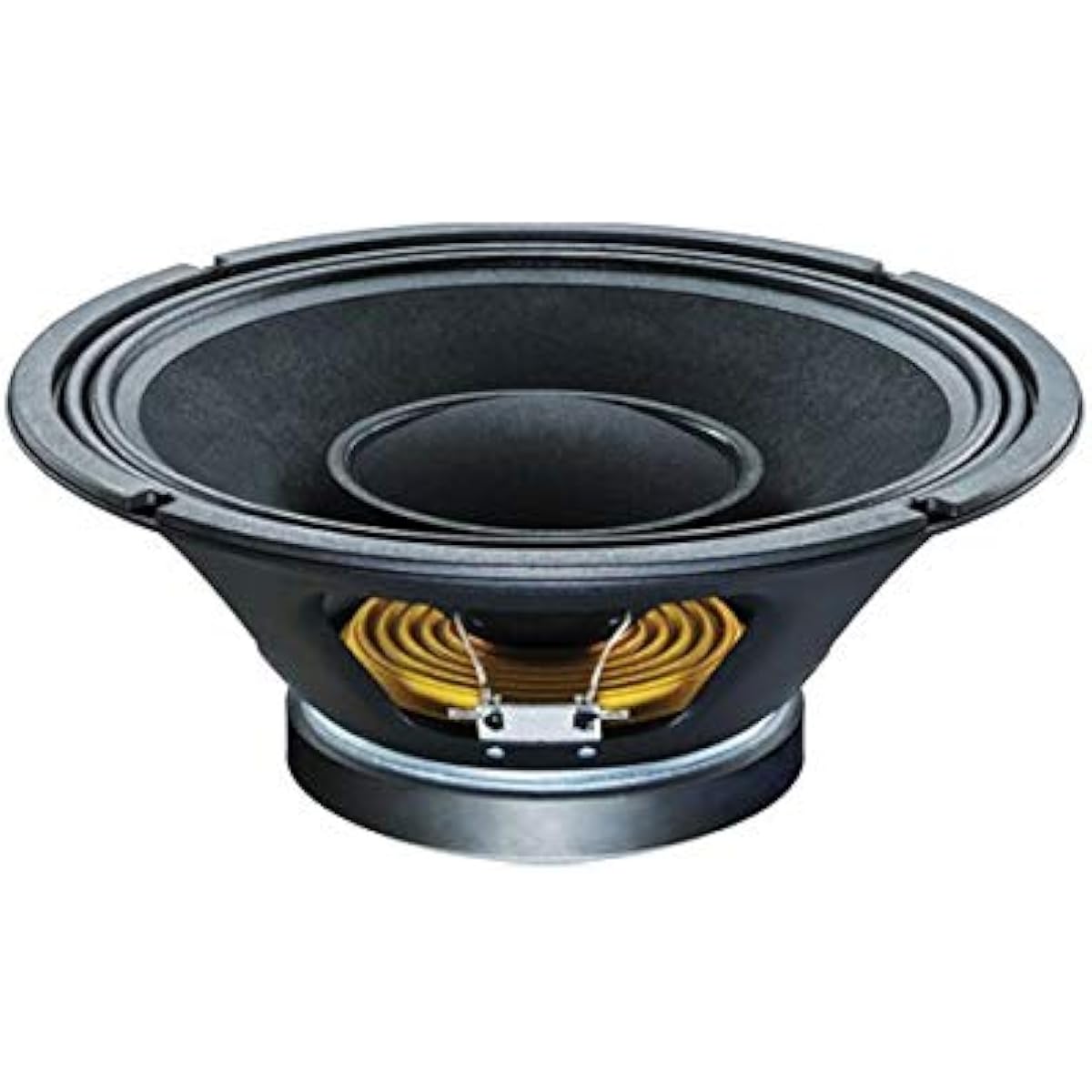

CELESTION Speaker Unit K12H-200TC 8Ω PA Speaker Replacement Woofer

■Diameter: 12"■Impedance: 8Ω■Power input: 400W■Frequency range: 50-10,000Hz■Sensitivity (1W/1m): 98dB■Magnet: Ferrite■Size: 309mm x 309mm x 130.25mm■Weight: 3.9kg■Others:■Voice coil: 2"■Chassis: Pressed steel■Magnet weight: 1.41kg■Voice coil: Round copper■Former: Kapton■Cone: Kevlar loaded paper■Surround: Cloth-sealed■Suspension: Single■Depth: 130.25mm■Baffle diameter: 283mm■Screw hole size: φ7.9mm■Number of screw holes: 4■Diameter between screw holes: 297mm Mounting PCD range■Features・12" twin cone driver for enhanced high frequency response・Reliable 2" heat-resistant copper voice coil・Power input: 200Wrms (AES standard)・By optimizing the structure of the cone neck/voice coil, not only is the strength increased, but the distortion in the high range is minimized and the sound quality is improved. ・The second cone in the center uses a compression-molded cloth dust cap that enhances the clarity of the midrange. ・High-efficiency magnet structure achieves high sensitivity. ・Double roll surround (edge) achieves excellent sound projection over a wide range of frequencies. ■Coaxial/Twin Cone■CELESTION Product images include images of use. Please note that items other than those specified in the are not included.
