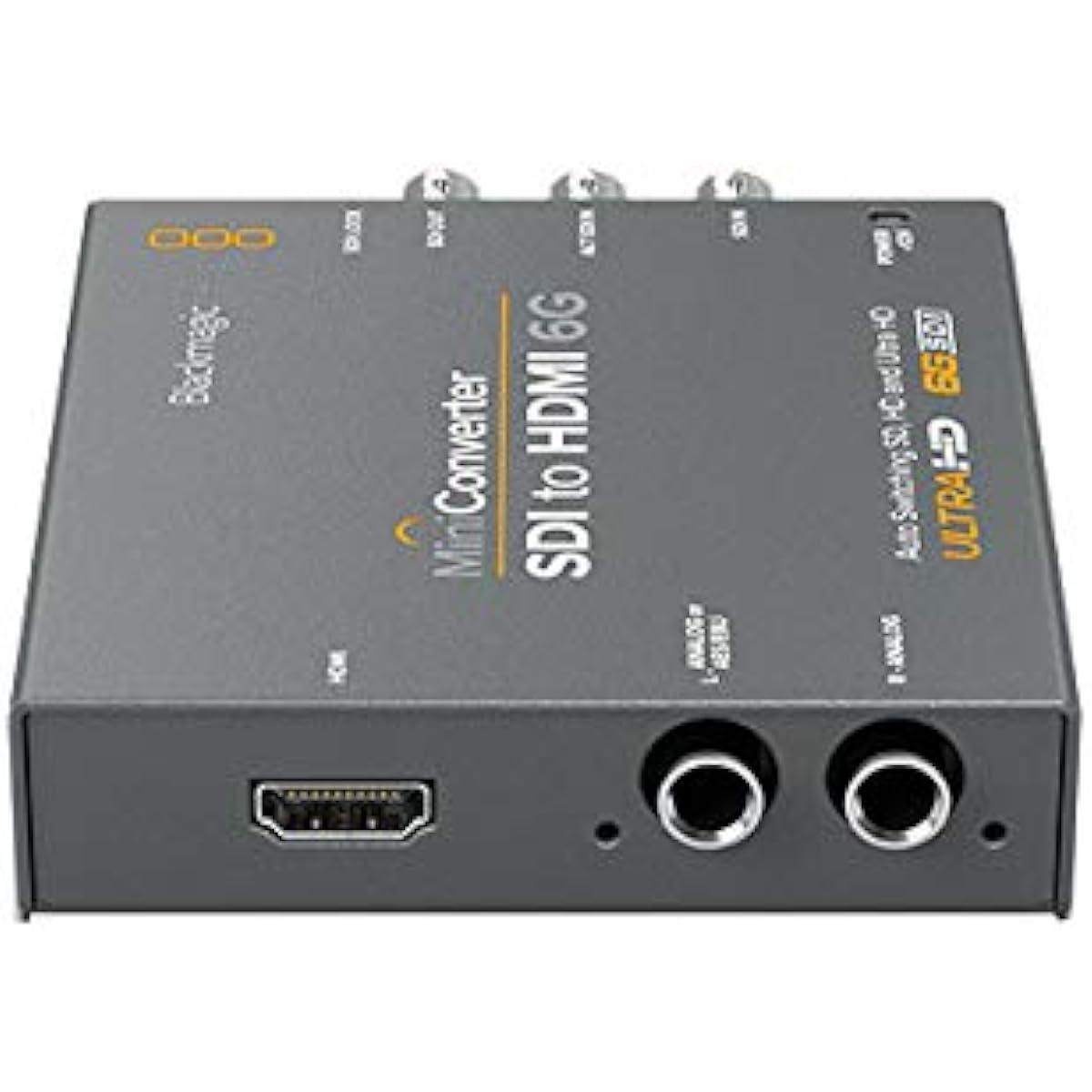

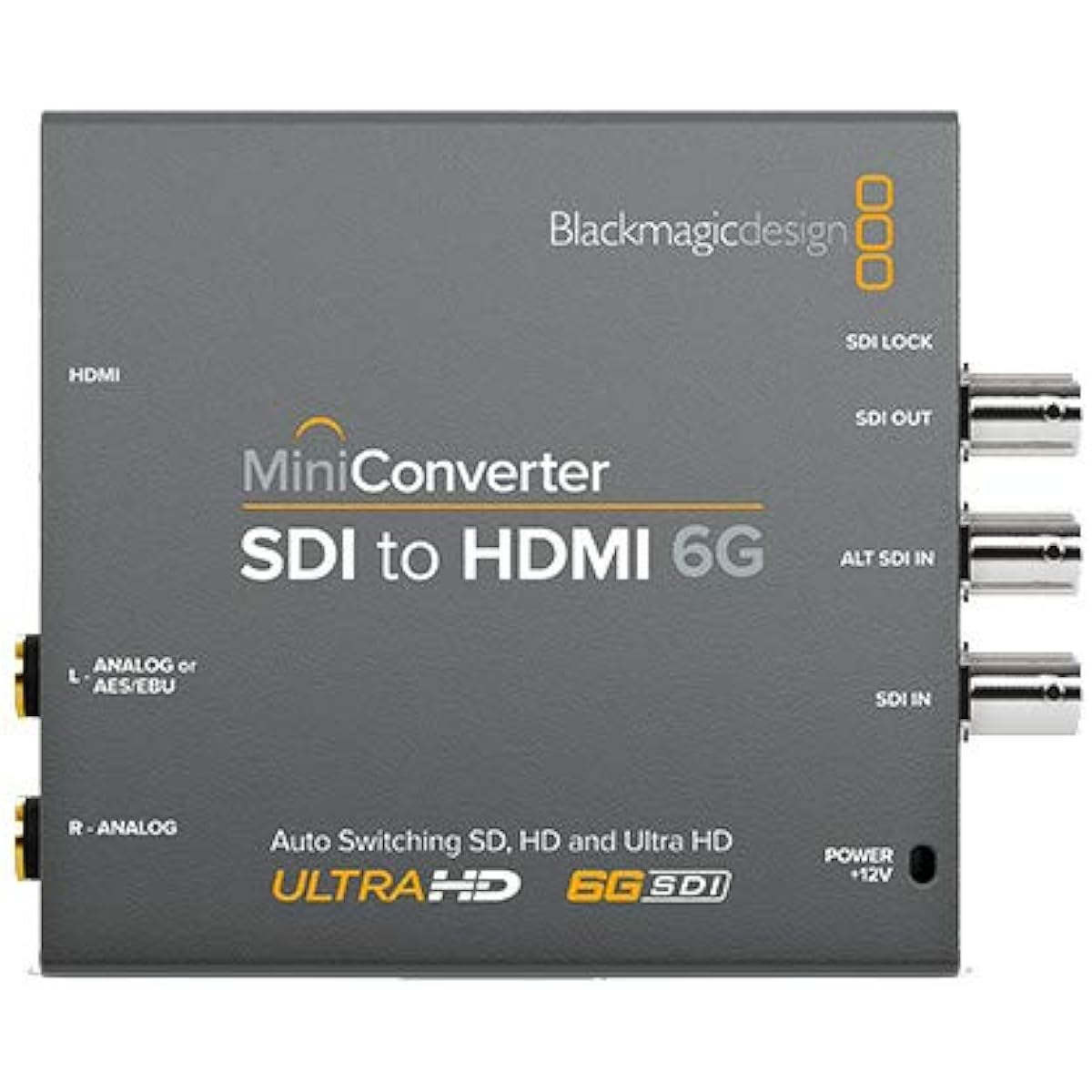

Blackmagic Design SDI/HDMI Converter Mini Converter - SDI to HDMI 6G SDI/HDMI Converter

■SDI/HDMI converter connection■SDI video input: 1x SD/HD/6G-SDI, 1x alternate SDI input (automatically switches to the main input if a failure occurs)■SDI video output: 1x SDI video loop output■HDMI video output: HDMI type A output■Analog audio output: 2ch balanced analog audio■Digital audio output: 4ch AES/EBU digital audio■SDI redundant input: automatically switches to the main SDI input if it is lost■Supported multi-rate: auto-detect SD/HD/6G-SDI■Update and configuration: USB■Reclocking: supported formats■SD video formats: 525i59.94 NTSC, 625i50 PAL■2K video formats: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF■Ultra HD video formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 ■4K video formats: 4K DCI 24p: ■SDI standards: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081 ■SDI video rates: SDI video connections can be switched between SD, HD, Level A/Level B 3G-SDI, and 6G-SDI ■SDI video sampling: 4:2:2, 4:4:4 Product images include images of use. Please note that nothing other than what is specified in the is included.
