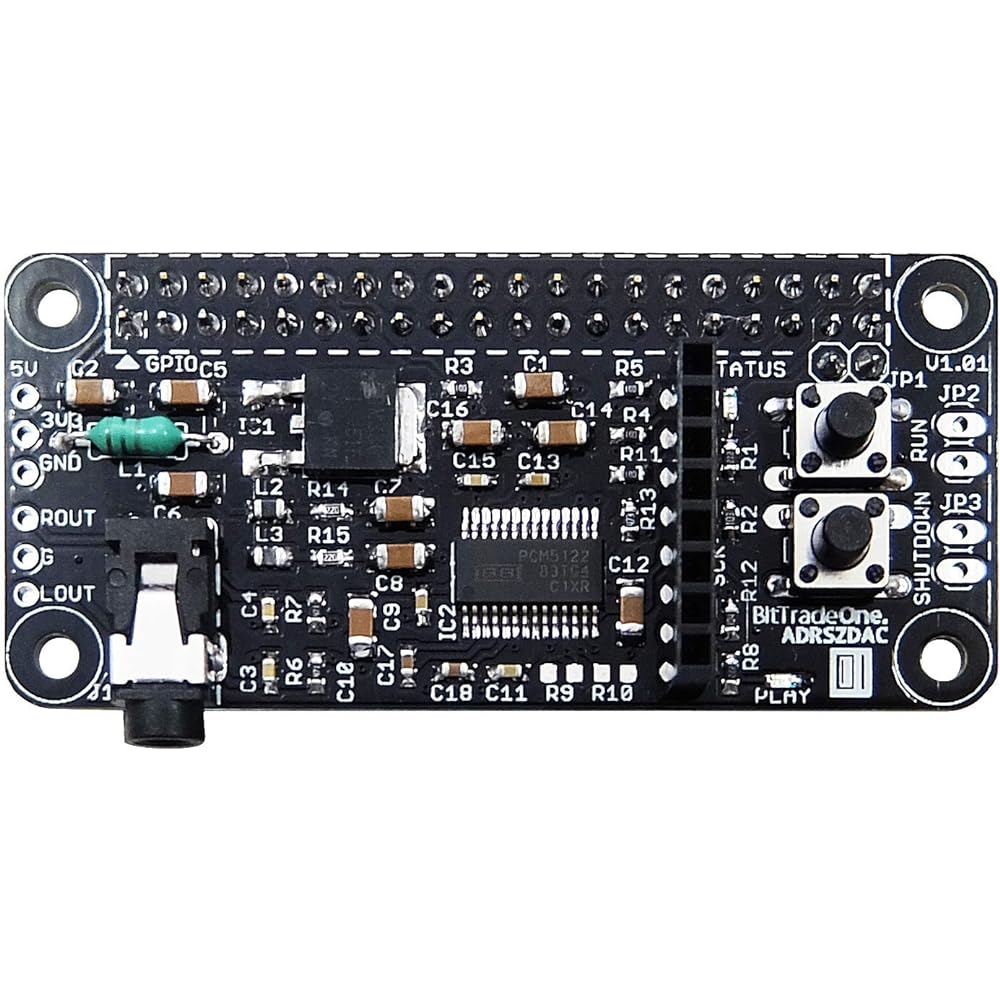

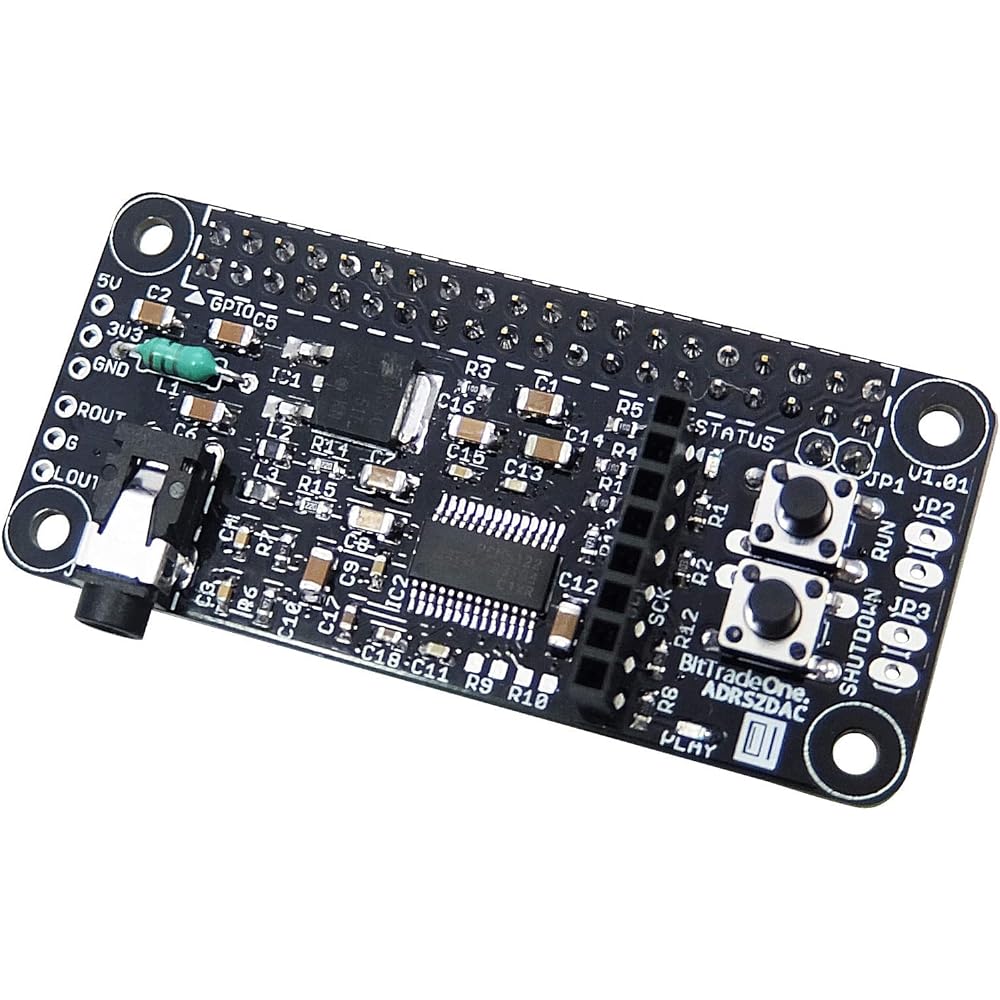

Bit Trade One ADRSZDAC Zero One High Resolution DAC Expansion Board
Bit Trade One ADRSZDAC Zero One High Resolution DAC Expansion Board
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
[Compatible models] Raspberry Pi Zero v1.3 / W / WH (v1.3, W requires soldering of GPIO pin header) Raspberry Pi 2/3 (screw fixation may not be possible, restart switch is (Cannot be used) [LED] Status x1, PLAY (lights up during playback) *It may not light up depending on the software used [Switch] Restart switch/shutdown switch (Please check the web page for shutdown etc. operations) ) [Audio data bit length] 16/24/32bit *PCM5122 specifications [Sampling frequency] Minimum 8kHz, maximum 384kHz *PCM5122 specifications [Analog output voltage] Standard 2.1Vrms [Load impedance]: Minimum 1kΩ

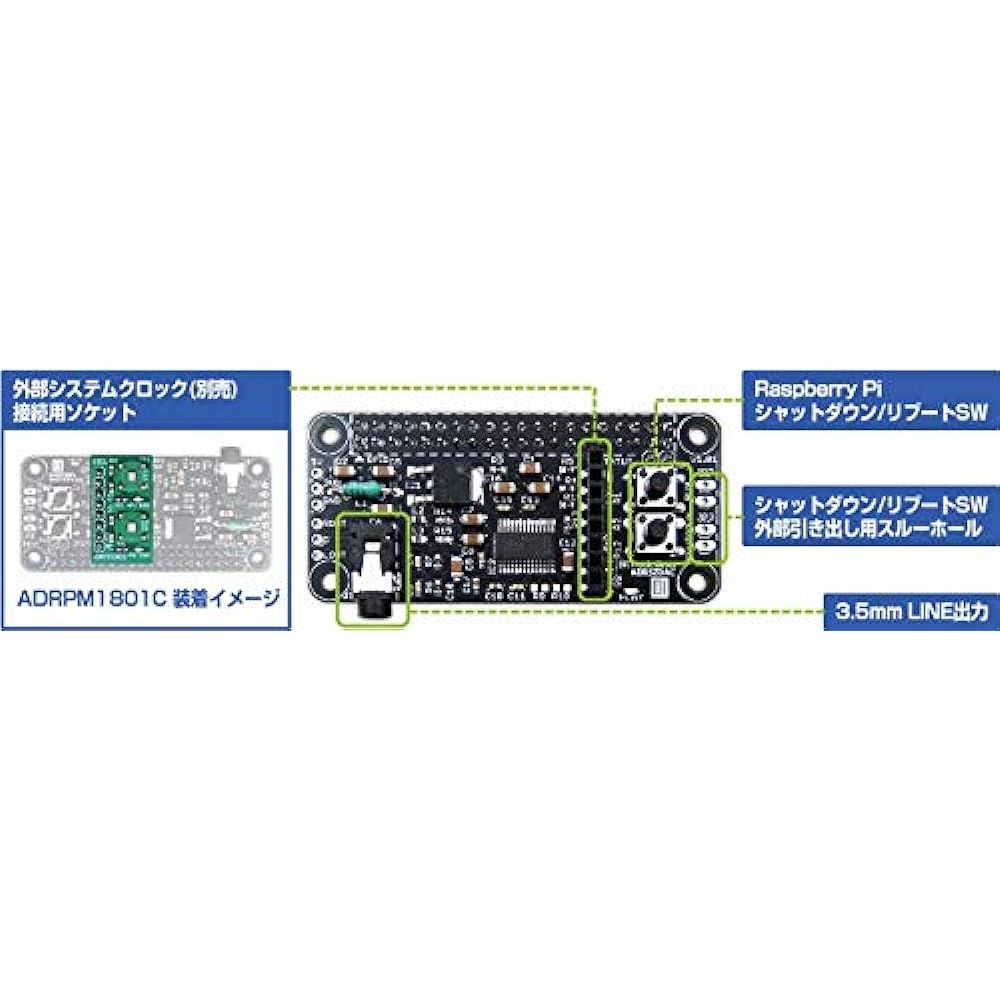

[Input/output] I2S input x 1 I2C x 1 3.5mm LINE output x1 [Accessories] Screw set x1/1X2 pin header x1/Warranty card x1 [Warranty period] 1 year from purchase Increase the number of items displayed
Product explanation - Achieves Hi-Res audio with a small board. Can also be used as a network audio terminal. Uses PCM5122 to control Hi-Res sound sources with a maximum bit length of 32 bits and a maximum sampling frequency of 384kHz. You can freely install your favorite software and use it as a network audio player, etc. Compatible with external system clock input (sold separately), further improving sound quality. - Equipped with an LED that allows you to see the operating status The status LED makes it easy to check the operating status, which is useful during experiments and maintenance.
Brand: Bit Trade One
Manufacturer: Bit Trade One
Packing size: 15.2 x 11.1 x 1.2 cm; 30 g
Product model number: ADRSZDAC
br>Discontinued by the manufacturer: No
Battery included: No
Product weight: 30 g
Product explanation - Achieves Hi-Res audio with a small board. Can also be used as a network audio terminal. Uses PCM5122 to control Hi-Res sound sources with a maximum bit length of 32 bits and a maximum sampling frequency of 384kHz. You can freely install your favorite software and use it as a network audio player, etc. Compatible with external system clock input (sold separately), further improving sound quality. - Equipped with an LED that allows you to see the operating status The status LED makes it easy to check the operating status, which is useful during experiments and maintenance.
Brand: Bit Trade One
Manufacturer: Bit Trade One
Packing size: 15.2 x 11.1 x 1.2 cm; 30 g
Product model number: ADRSZDAC
br>Discontinued by the manufacturer: No
Battery included: No
Product weight: 30 g
