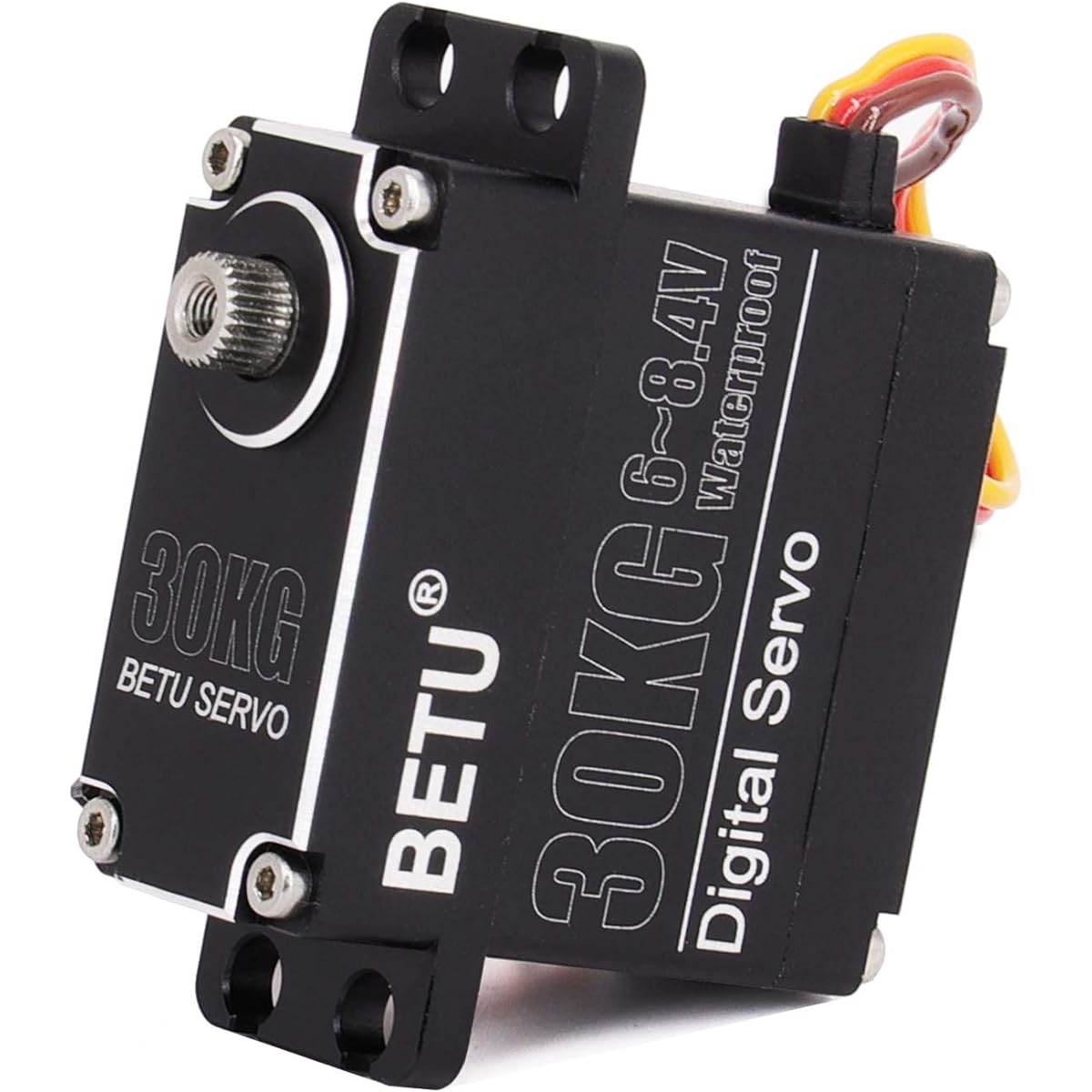

BETU 30kg Waterpoof Servo RC Car Servo Full Aluminum Case and Stainless Steel Gear High Torque Servo Compatible with 1/6, 1/8, 1/10, 1/12 RC Car/Robot/Boat
BETU 30kg Waterpoof Servo RC Car Servo Full Aluminum Case and Stainless Steel Gear High Torque Servo Compatible with 1/6, 1/8, 1/10, 1/12 RC Car/Robot/Boat
Regular price
$233.00 USD
Regular price
Sale price
$233.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

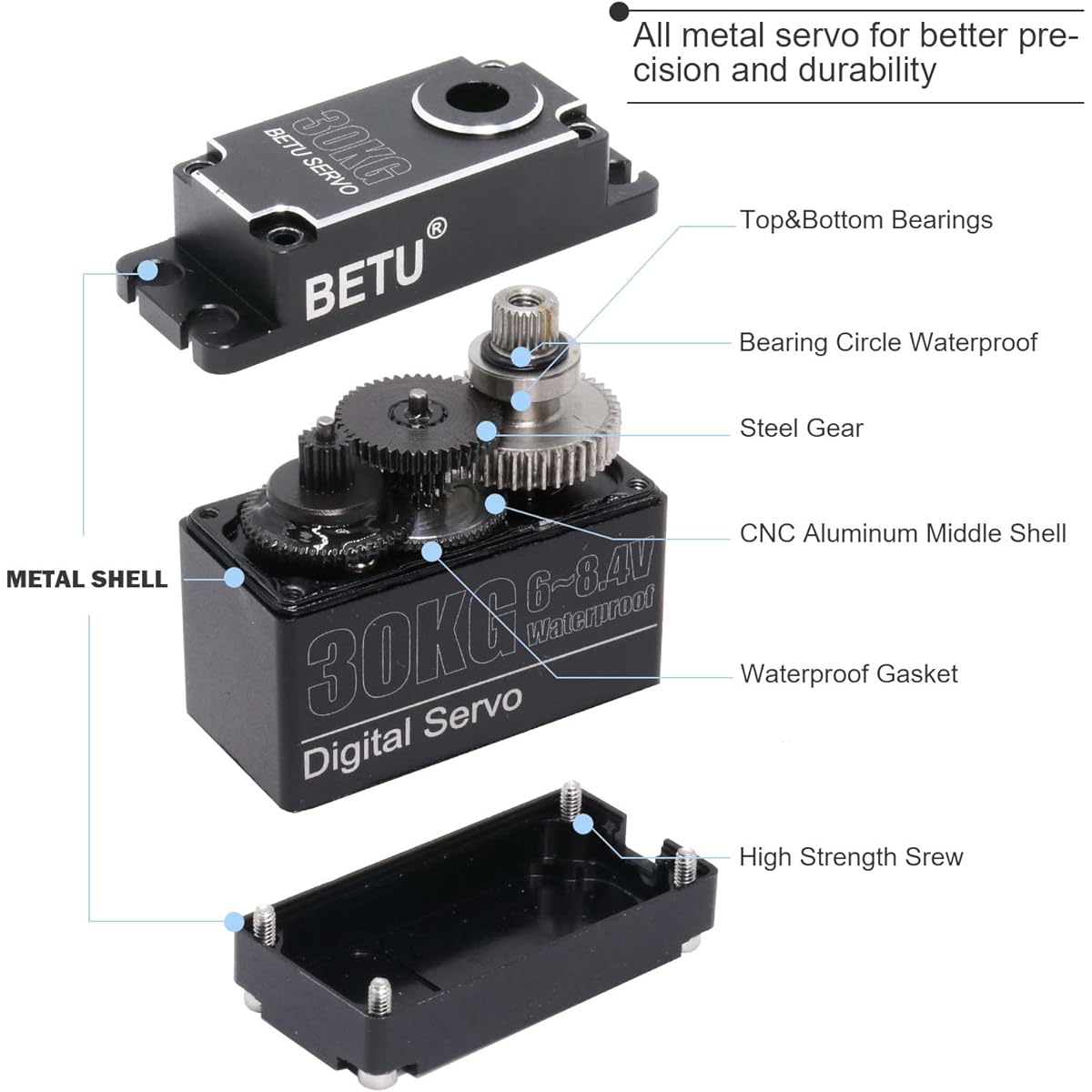

30kg Waterpoof Servo: Waterproof performance IP67. 0~270 degree angle adjustment possible. Excellent linearity, precision control. All-metal servo: Full aluminum case and stainless steel gear, CNC aluminum middle shell, less noise, light weight, high operation precision. BETU 30kg servo Product Dimensions: 1.57 x 0.78 x 1.57 inches (40 x 20 x 40 mm). Weight: 2.7 ounces (80g). 1 25T adjustable metal servo arm, 1 25T round type servo horn, 1 set of accessories. This digital servo is perfect for those who are interested in software development for robot parts such as RC cars, mechanical arms, quadcopter drones and other remote control devices.
Specification: 30KG High torque digital servo is perfect for cars, planes and robots. -High speed big torque digital servo. - The servo is made of full aluminum case and stainless steel gear. -CNC aluminum middle shell, high operation precision. -Low noise and light weight. -Stable and waterproof. Applicable environmental conditions Storage temperature range: -30℃~80℃. Operating temperature range: -20℃~60℃. Operating voltage range: 4.8~8.4V. Mechanical specifications Size: 40*20*40mm Weight: 78g Bearing: Double bearing Connector wire: 300±5mm. Diver type: Moss drive. Motor type: DC motor. Potentiometer type: Direct drive. Amplifier type: Digital control. Waterproof performance: IP67 Electrical specifications Test voltage: 6V / 7.4V / 8.4V. Idle current (at standstill): 270mA-6V / 320mA-7.4V / 350mA-8.4V. Operating speed (no load) 0.17s/60°-6V, 0.12s/60°-7.4V, 0.1s/60°-8.4V. Stall torque (locked): 22.7kg-cm/6V, 30kg-cm/7.4V, 32kg-cm/8.4V. Operating current: 2.2A-6V, 2.8A-7.4V, 3.2A-8.4V. Control specifications Control system: PWM (pulse width change). Pulse width range: 500~2500µsec Neutral position: 1500µsec. Travel angle: 270° (for 500~2500µsec) Dead band width: 1 µsec Operating frequency: 50-330Hz. Rotation direction: Counterclockwise (for 500~2500µsec) Package includes: -1 x 30kg waterproof digital servo. -1 x 25T adjustable metal servo arm -1 x 25T round servo horn. -1 set of accessories.
Specification: 30KG High torque digital servo is perfect for cars, planes and robots. -High speed big torque digital servo. - The servo is made of full aluminum case and stainless steel gear. -CNC aluminum middle shell, high operation precision. -Low noise and light weight. -Stable and waterproof. Applicable environmental conditions Storage temperature range: -30℃~80℃. Operating temperature range: -20℃~60℃. Operating voltage range: 4.8~8.4V. Mechanical specifications Size: 40*20*40mm Weight: 78g Bearing: Double bearing Connector wire: 300±5mm. Diver type: Moss drive. Motor type: DC motor. Potentiometer type: Direct drive. Amplifier type: Digital control. Waterproof performance: IP67 Electrical specifications Test voltage: 6V / 7.4V / 8.4V. Idle current (at standstill): 270mA-6V / 320mA-7.4V / 350mA-8.4V. Operating speed (no load) 0.17s/60°-6V, 0.12s/60°-7.4V, 0.1s/60°-8.4V. Stall torque (locked): 22.7kg-cm/6V, 30kg-cm/7.4V, 32kg-cm/8.4V. Operating current: 2.2A-6V, 2.8A-7.4V, 3.2A-8.4V. Control specifications Control system: PWM (pulse width change). Pulse width range: 500~2500µsec Neutral position: 1500µsec. Travel angle: 270° (for 500~2500µsec) Dead band width: 1 µsec Operating frequency: 50-330Hz. Rotation direction: Counterclockwise (for 500~2500µsec) Package includes: -1 x 30kg waterproof digital servo. -1 x 25T adjustable metal servo arm -1 x 25T round servo horn. -1 set of accessories.
