Beat-Sonic Camera Selector 4P Coupler Connection CS2A

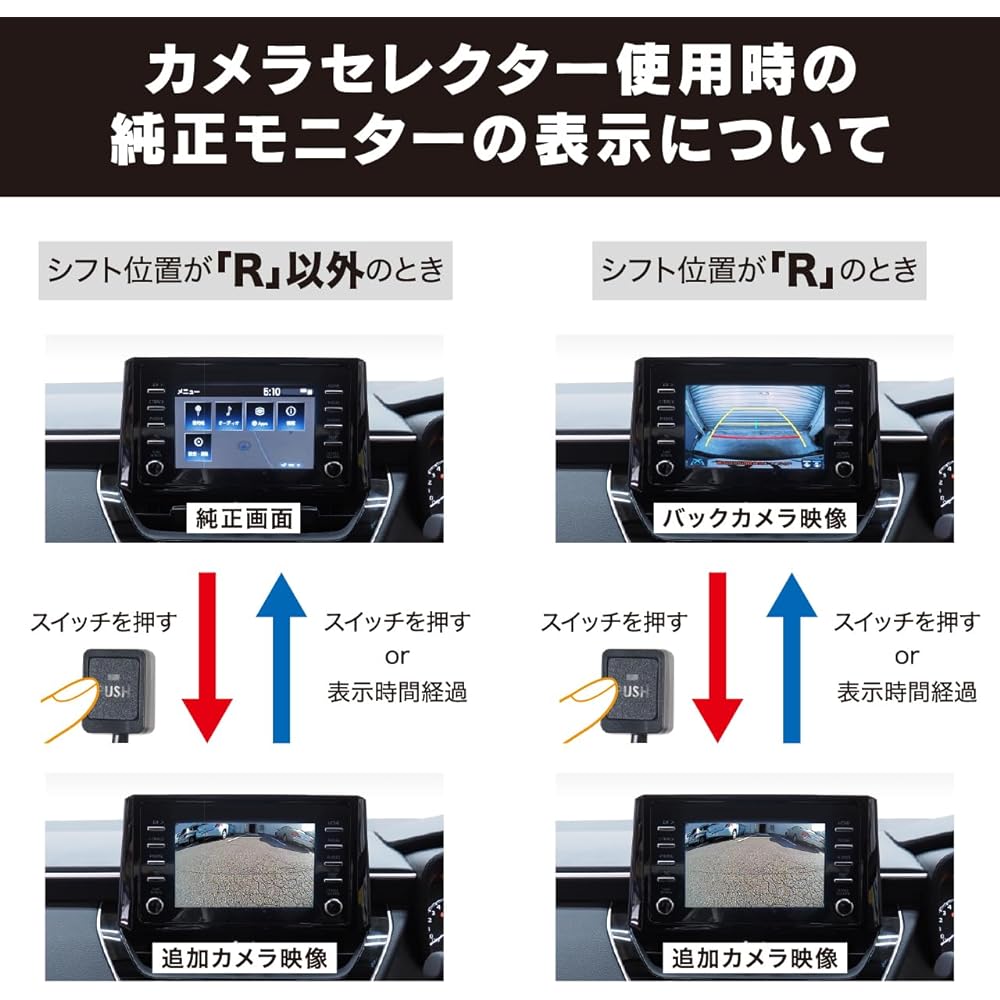

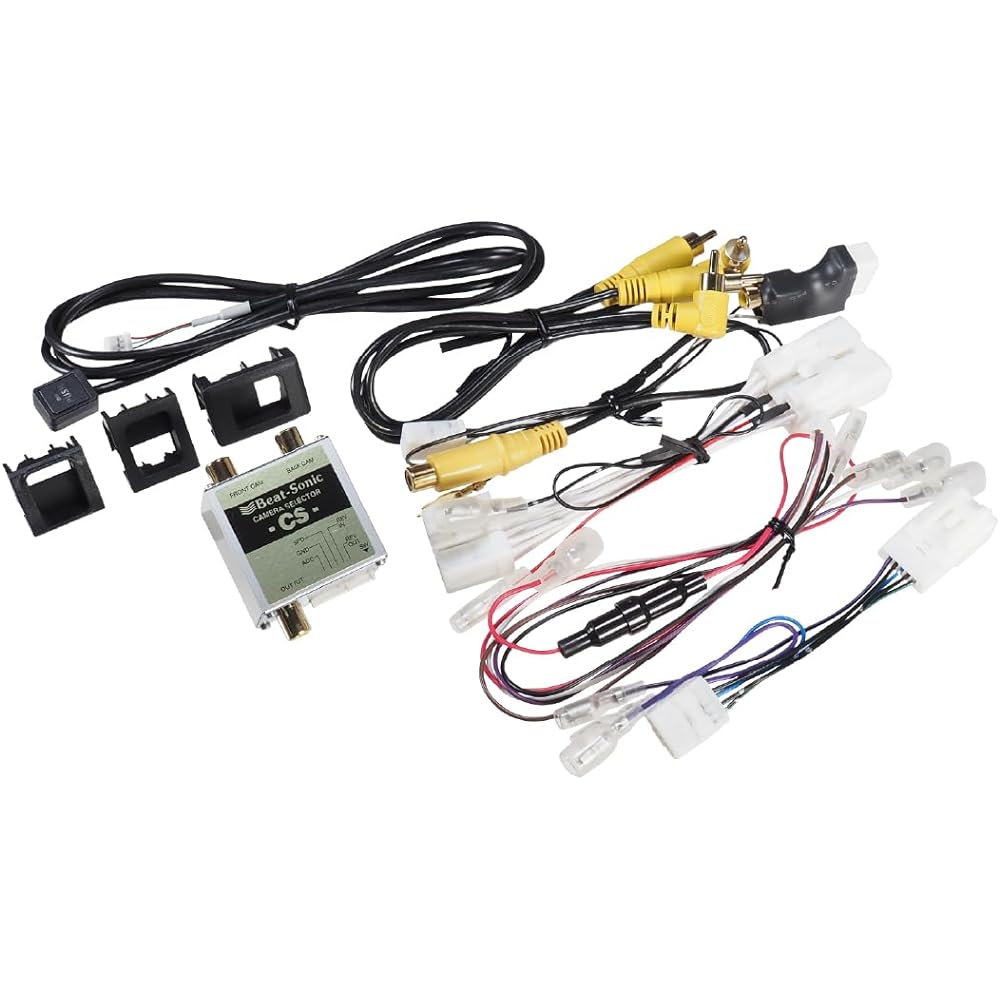

・A front camera can be added to a Toyota dealer optional navigation system without front camera input (navigation system with only rear camera input). The rear camera can also be used as before.・Can be connected to Toyota dealer option navigation with coupler on. Easy and reliable connection. *Suitable for navigation. - Manually switch to front camera image with a switch! Switch to the front camera image by operating the switch. Power supply voltage DC11V to 15V / Input terminal 1.0Vpp 75Ω RCA pin (female) x 2 / Output terminal 1.0Vpp 75Ω RCA pin (female) x 1 / Current consumption 50mA or less / External dimensions 40 x 25 x 57 mm (width x height x depth) Main unit only) / Weight approx. 55g (main unit only) / Applicable vehicle speed pulse number 2, 4, 8, 16 pulses Connection cable (4 types) / Switch (1.5 m) / Video pin cable (0.5 m x 2) / Handling Instructions (warranty)/




Manufacturer: ‎Beat-Sonic
Brand: ‎Beat-Sonic (Beat Sonic)
Model name: ‎CS2A
Product size : ‎22.81 x 14.4 x 6.2 cm; 285.99 g
Product model number: ‎CS2A
Product dimensions Depth x Width x Height: ‎22.8 x 14.4 x 6.2 cm
Product weight: ‎286 g
