Auto Parts Tokyo
Bay MARINE SUPPLY-30A-300A MRBF Terminal Hughes block kit (included in fuse)-Single stud 5/16 inch (M8) Compact high amplifier marine rated battery-58V DC maximum IP66 100A MRBF-M8-S100
Bay MARINE SUPPLY-30A-300A MRBF Terminal Hughes block kit (included in fuse)-Single stud 5/16 inch (M8) Compact high amplifier marine rated battery-58V DC maximum IP66 100A MRBF-M8-S100
Regular price
$152.00 USD
Regular price
Sale price
$152.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

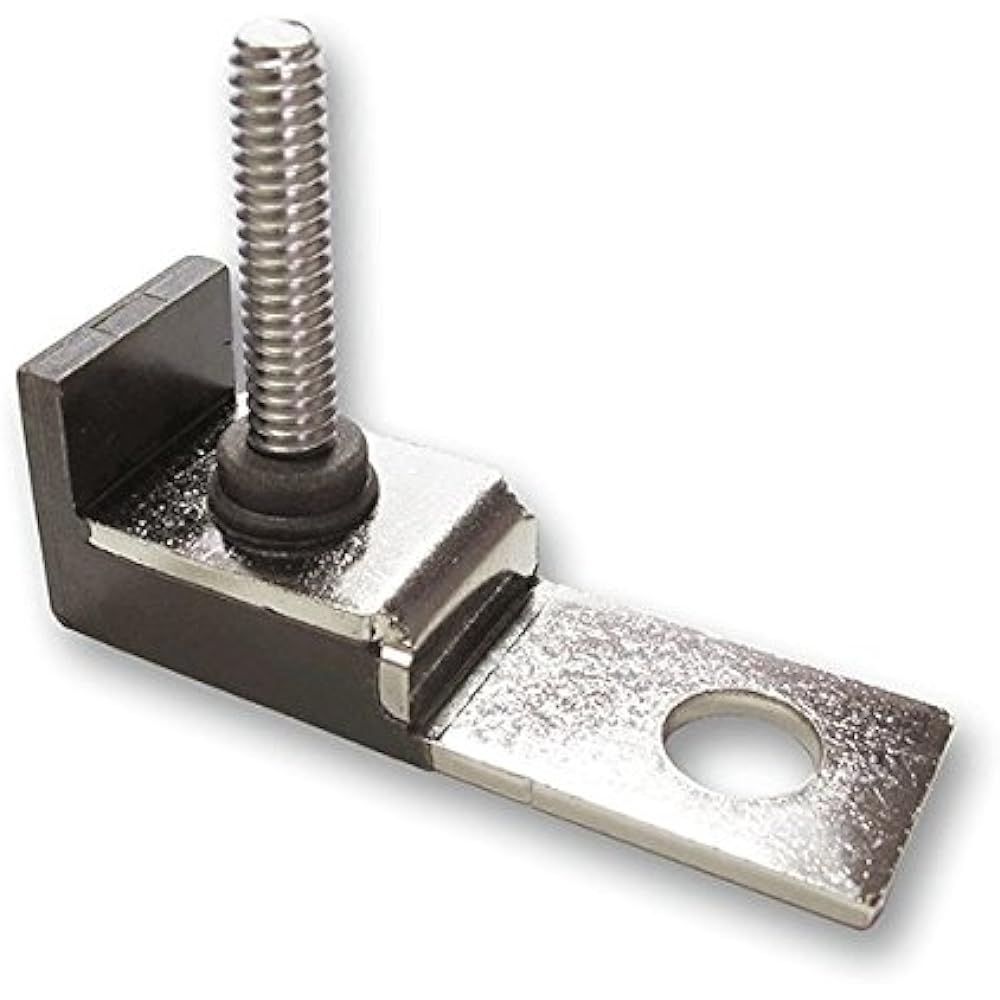

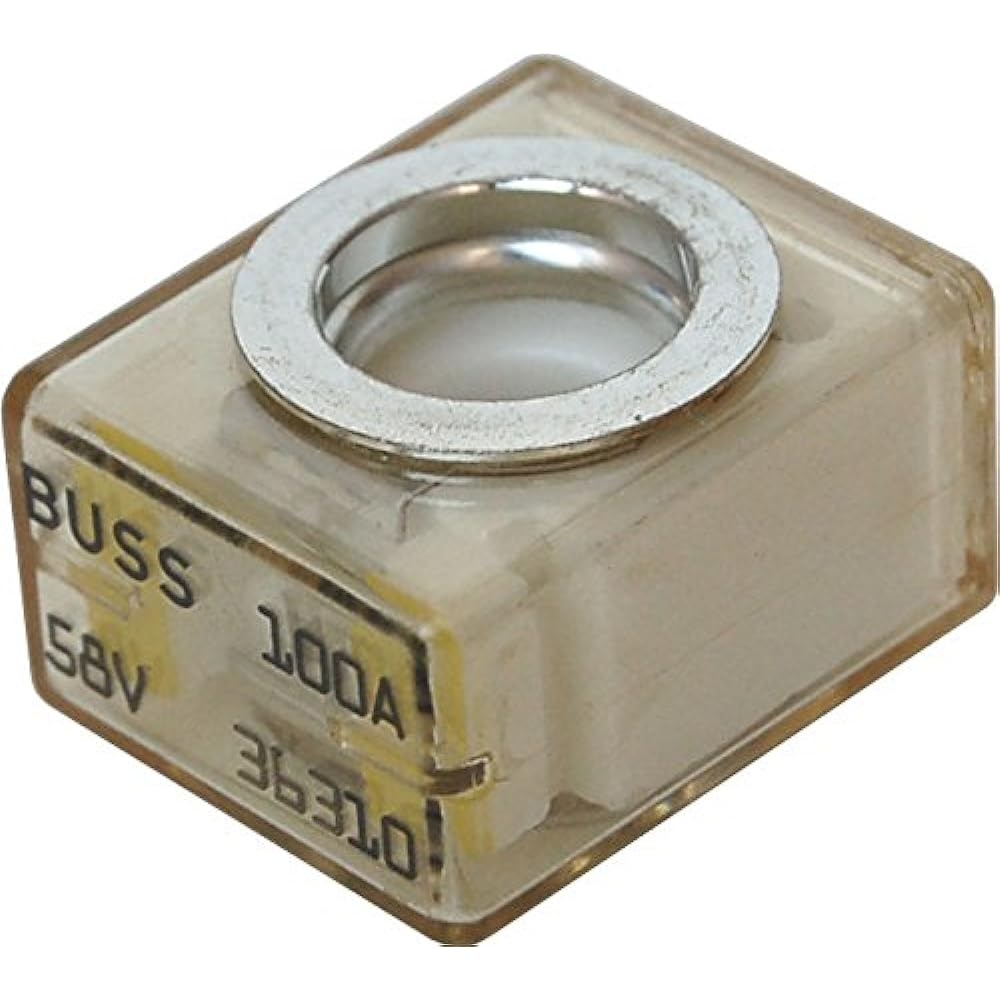

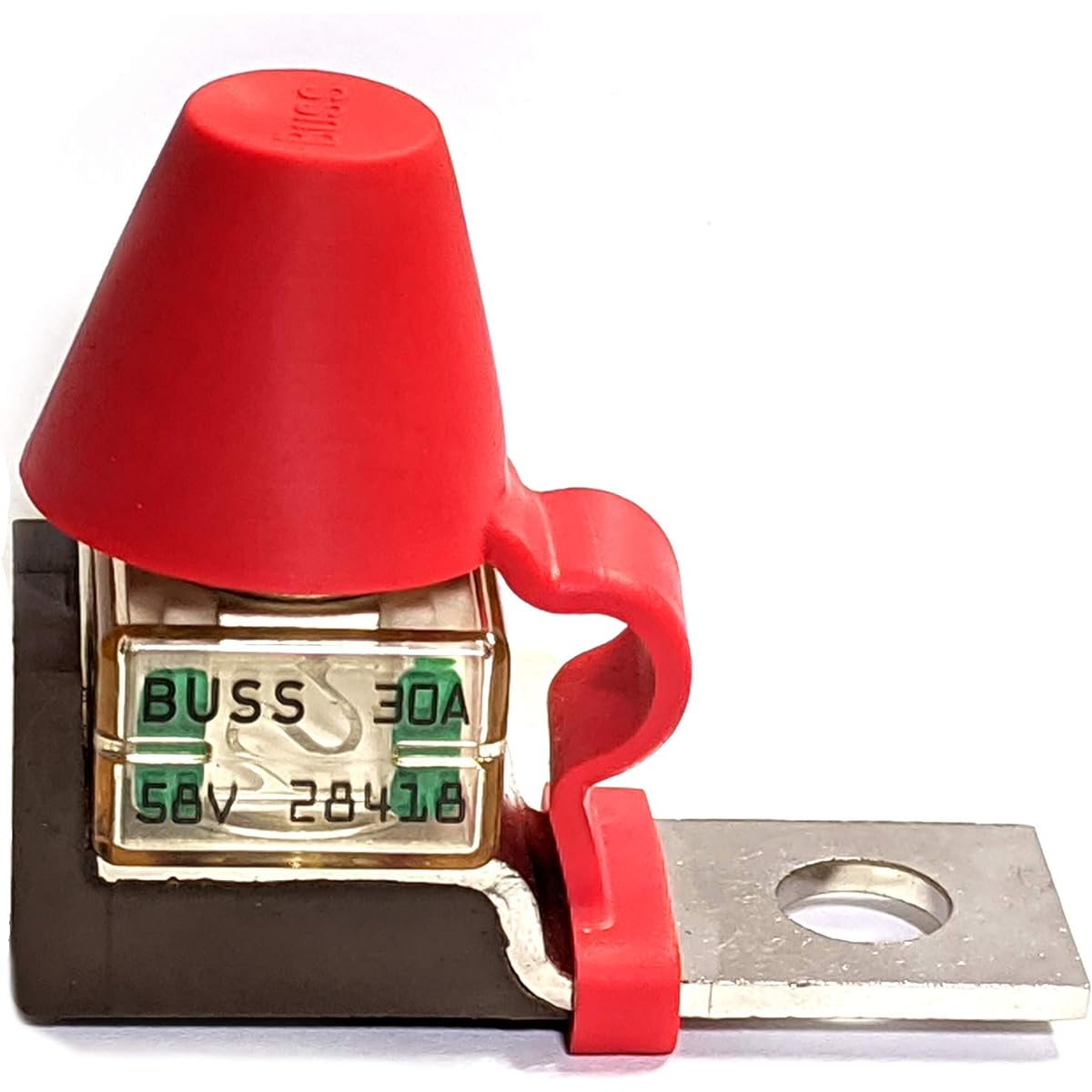

Terminal Fuse Block Kit (Fuses Included) - Link to list of MRBF fuses and fuse blocks is provided separately in the description. Fuse mount kit includes: 1 x MRBF terminal fuse block, (1) MRBF fuse of your choice from 30-300 amps, (1) red insulation cap, (1) washer, (1) lock washer, (1) M8 hex nut . Fuse Maximum Voltage Rating: 58V - Fuse Holder Amperage Rating: 30-300A - Fuse Holder Stud Size: M8 (5/16") - Fuse Holder Mounting Hole: M10 (3/8"). Small high amp fuse suitable for DC mains, inverter, windlass and bow thruster circuit protection. Provides high current protection in tight space constraints. Provides ignition protection when used with MRBF terminal fuse block. The insulated stud design uses standard M8 hardware and allows terminal stacking. Ignition Protection – Safe to install on gasoline-powered boats. IP66 – Protected from powerful water jets. 10,000 AIC at 14V DC meets ABYC requirements for DC main circuit protection in large battery banks. [Warning: Do not install fuses directly to battery terminals. Must be used with terminal fuse blocks. ]
Bay Marine Supply brand. Cooper Bussmann is an OEM original equipment manufacturer. Marine rated battery fuses and fuse terminal blocks can be purchased separately or in MRBF fuse mount kits. Fuse Holder Mounts: 5191 – Single Mount MRBF Terminal Fuse Block 30-300A Rating 2151 – Dual Mount MRBF Terminal Fuse Block 30-300A Rating Fuse Size List: 5175 – 30 Amps 5176 – 40 Amps 5177 – 50 Amps 5178 – 60 Amps 5180 – 75 Amps 5181 – 80 Amps 5182 – 90 Amps 5183-100 Amps 5184 – 125 Amps 5185 – 150 Amps 5186 – 175 Amps 5187 – 200 Amps 5188 – 225 Amps 5189 – 250 Amps 5190 – 300 Amps MR BF Single Terminal Fuse Mount Kit – Marine Battery Fuse Rated 30-300 Amps Kit Includes: (1) MRBF Single Terminal Fuse Mount (1) Red Insulation Cap. (1) Washer. (1) Lock washer. (1) M8 hex nut. (1) MRBF fuse sizes are available from 30 to 300 amps.
Brand: Bay Marine Supply
Product model number: MRBF-M8-S100
Product size: 6.35 x 2.54 x 5.08 cm; 91 g
Voltage: 14 Volts, 58 volts
Battery included: No
Usage: Terminal
Product weight: 91 g
Bay Marine Supply brand. Cooper Bussmann is an OEM original equipment manufacturer. Marine rated battery fuses and fuse terminal blocks can be purchased separately or in MRBF fuse mount kits. Fuse Holder Mounts: 5191 – Single Mount MRBF Terminal Fuse Block 30-300A Rating 2151 – Dual Mount MRBF Terminal Fuse Block 30-300A Rating Fuse Size List: 5175 – 30 Amps 5176 – 40 Amps 5177 – 50 Amps 5178 – 60 Amps 5180 – 75 Amps 5181 – 80 Amps 5182 – 90 Amps 5183-100 Amps 5184 – 125 Amps 5185 – 150 Amps 5186 – 175 Amps 5187 – 200 Amps 5188 – 225 Amps 5189 – 250 Amps 5190 – 300 Amps MR BF Single Terminal Fuse Mount Kit – Marine Battery Fuse Rated 30-300 Amps Kit Includes: (1) MRBF Single Terminal Fuse Mount (1) Red Insulation Cap. (1) Washer. (1) Lock washer. (1) M8 hex nut. (1) MRBF fuse sizes are available from 30 to 300 amps.
Brand: Bay Marine Supply
Product model number: MRBF-M8-S100
Product size: 6.35 x 2.54 x 5.08 cm; 91 g
Voltage: 14 Volts, 58 volts
Battery included: No
Usage: Terminal
Product weight: 91 g
