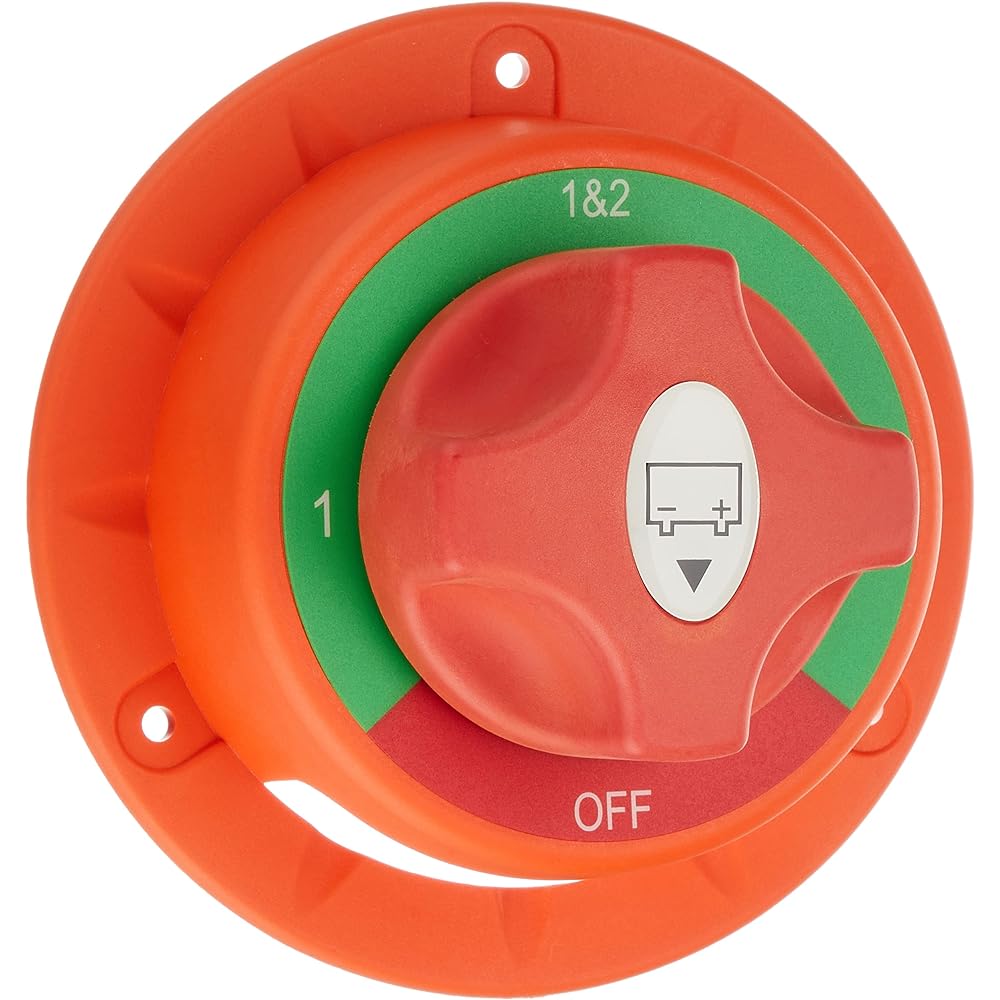

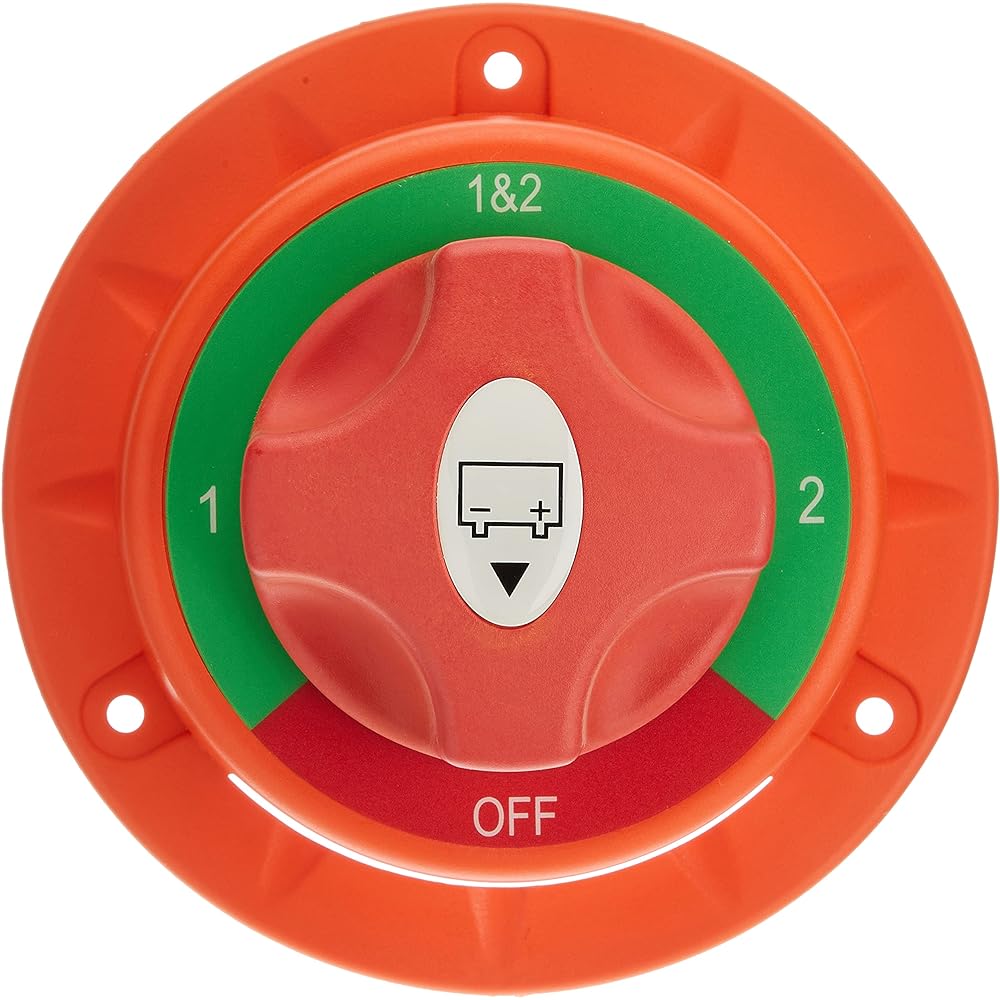

Battery selection switch 4 positions (200A) A23-1

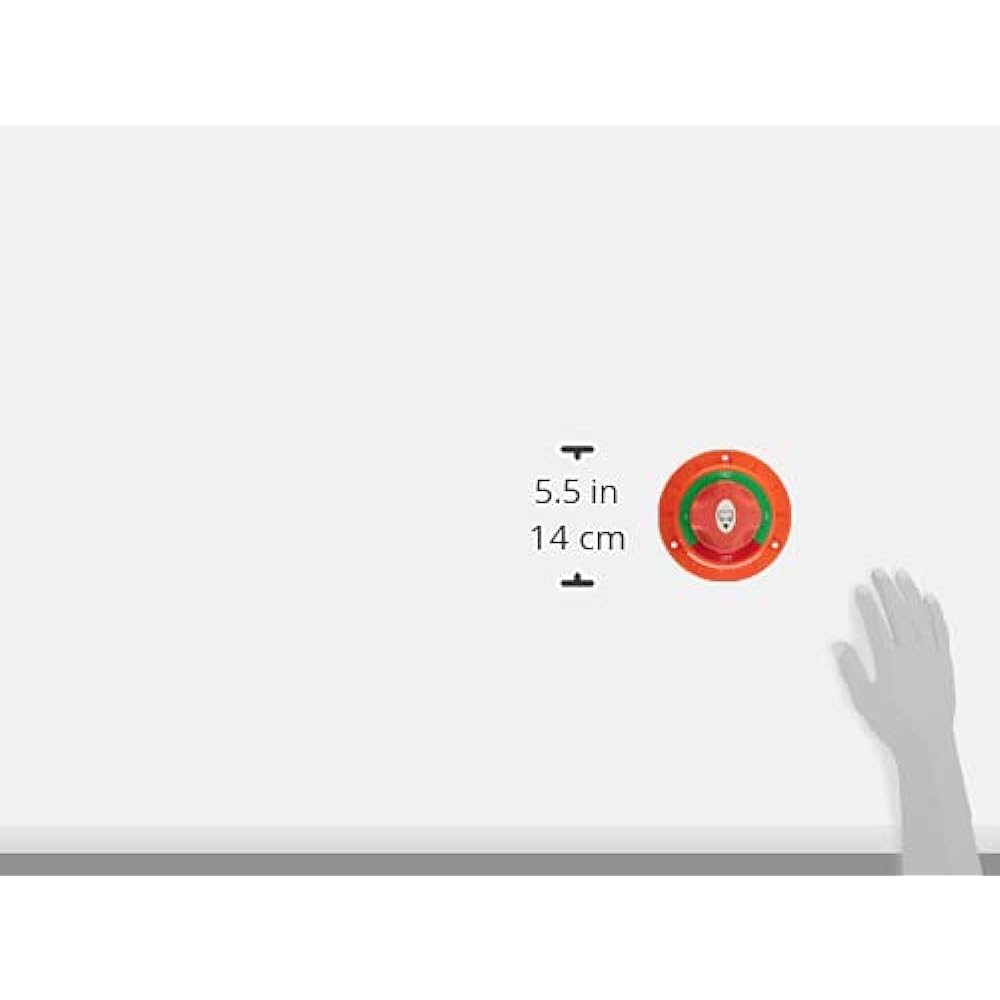

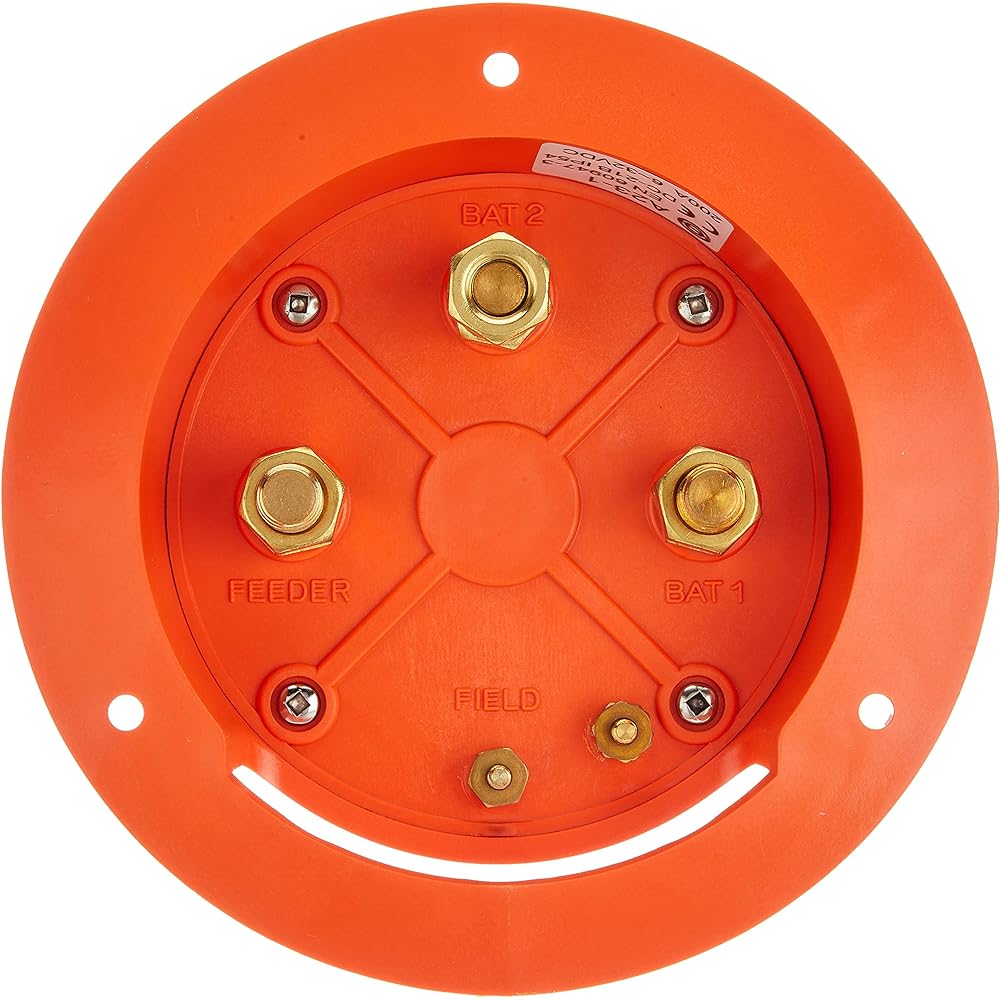

[Features] - You can use two battery systems (individuals) at the same time or select a battery. - Can be used with one or two batteries. -Knob switches enter and hold each position securely.・The knob, housing, and cover are made of PET resin. (UL heat resistant 94V-O) - The material of the screws and nuts that come into contact with the cord is super alloy. *Please do not use this product for any purpose other than battery switching. It is not covered by the warranty. [Specifications] Model number: A23-1 Continuous operating current/voltage: 200A / 12~50VDC Cranking current: 1000A (10 seconds) Contact resistance: Max. 50MΩ Insulation resistance: DC 1000V / 100MΩ Instantaneous withstand voltage: DC 2000V (1 minute) / AC 1000V (1 minute) Operating environment temperature: -20~80℃ Installation screw pitch (cm): 4.75 Terminal terminal (mm): 10 Size (mm): Φ140 x 75 (H)

Japanese instruction manual and warranty included Warranty: 6 months


Manufacturer: ONE GAIN Brand: ONE GAIN Model name: A23-1
Package size: ‎26.6 x 17.4 x 9.9 cm; 360 g
Product model number: ‎A23-1
Lift type: ‎ON-OFF
Product weight: ‎360 g
