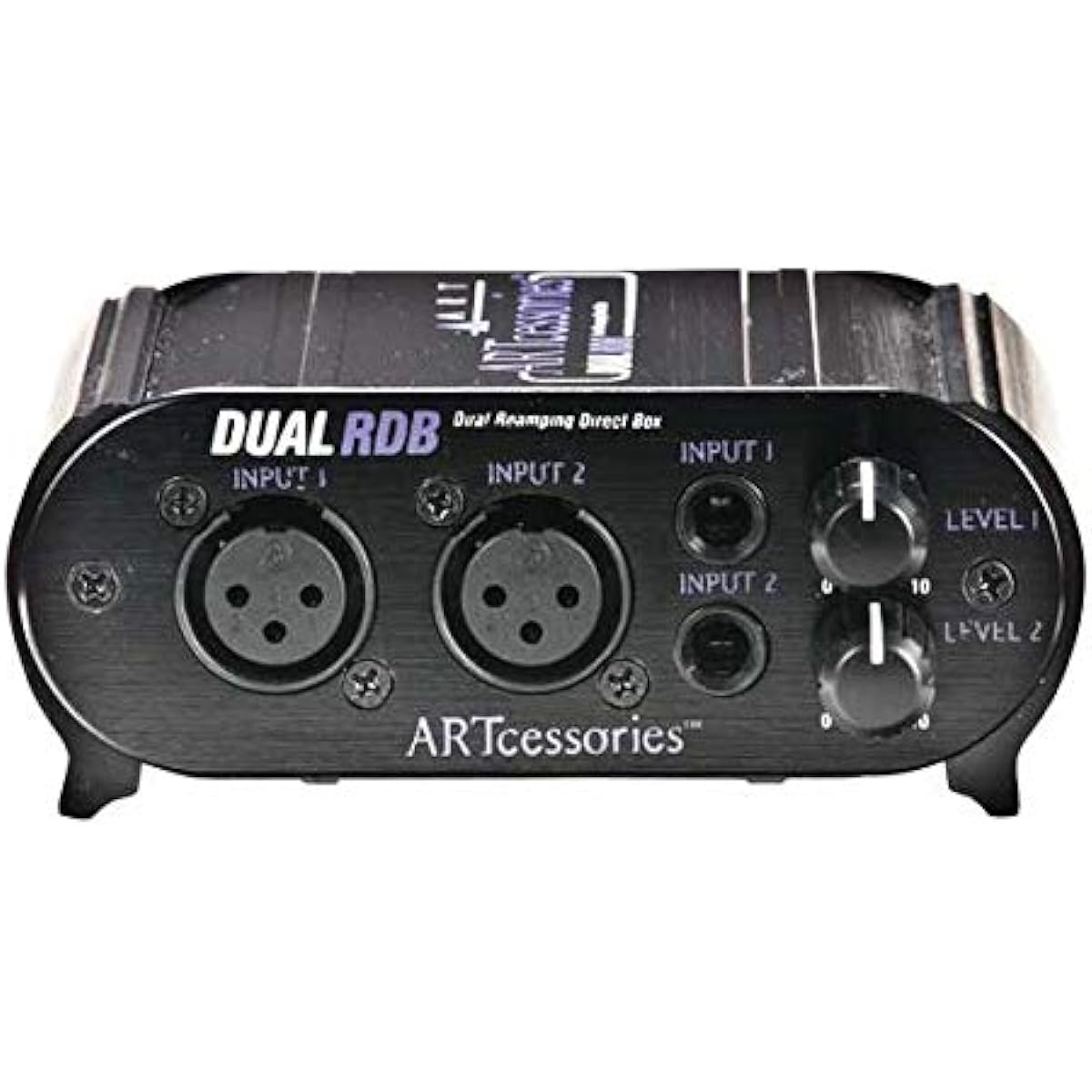

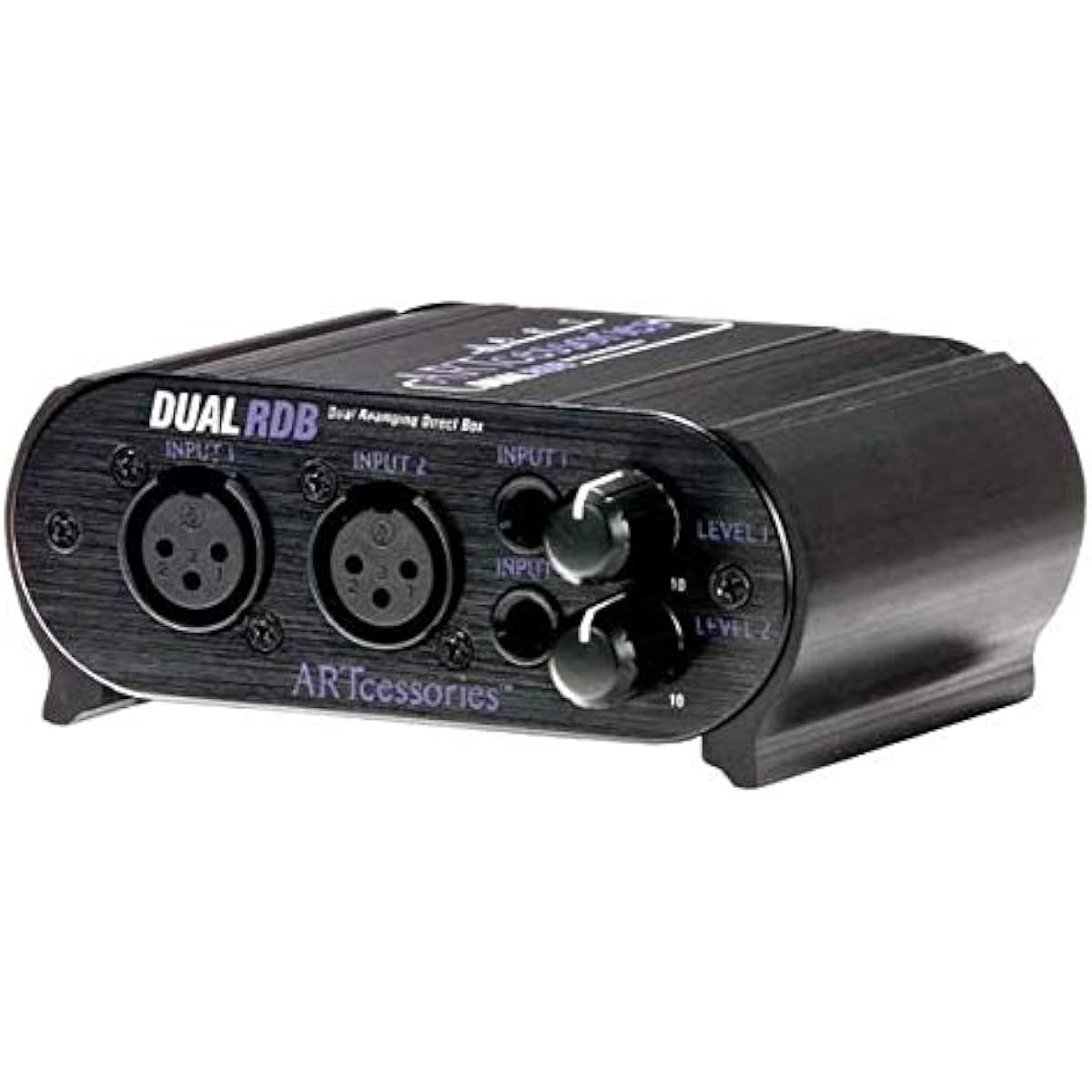

ART (ART) Reverse DI Dual RDB

■Re-amping interface that can be used with various amplifiers ■Stereo/dual direct box Features ■Dual 1/4” TRS line inputs ■Dual XLR line inputs ■Balanced output ■XLR mic level output (Transformer isolated) ■1/4" TRS instrument level output (Transformer isolated) ■Frequency response: 20 Hz to 20 kHz ■Variable level control for complete muting ■CH2 sound source can be selected from CH1 or CH2 input ■CH2 output can be selected with phase inversion switch Specifications ■Frequency response: 20 Hz to 20 kHz, +/-0.5dB @ +4dBu ■THD: 0.01% typical @ 1kHz, +18dBu, ■Channel separation: >80dB (typical) ■Input terminals: 1/4" TRS balanced, XLR balanced female ■Output terminals: 1/4" TRS balanced, XLR balanced male ■Insertion loss: -20dB @100K load, -25dB @600Ω load■Dimensions: 47H×117W×99Dmm■Weight: 0.4kg【Example of use】The line level output of the interface that recorded the guitar is converted to an instrument output through Dual RDB and connected to the input of a guitar amplifier. Product images include images of use. Please note that items other than those specified in the are not included.
