Antlion 09236-SL Bar Han Mount Kit, Fork Diameter 1.4 inches (36 mm), Silver

Antlion 09236-SL Bar Han Mount Kit, Fork Diameter 1.4 inches (36 mm), Silver

Regular price $159.00 USD
Regular price Sale price $159.00 USD
Sale Sold out
Shipping calculated at checkout.

Condition: New

Material/Material: Aluminum Color [Color]: Silver
Material [Material]: Aluminum
Compatibility: Fork diameter φ36 mm
Notes: Same color handle clamp included Application: Universal [General Purpose]

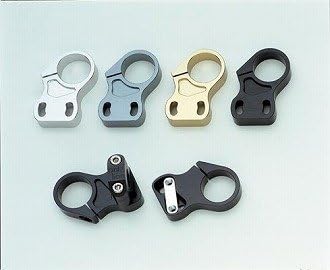

Product introduction ■Variable design with maximum front and rear handlebar positions of 69mm (maximum travel varies depending on vehicle model)■Can be installed if the front fork protrudes 20mm (cannot be installed if there are irregularities or interference on the top bridge) ) *Lower image: Bar handle mount kit/black [BK] For other colors, please refer to the mount plate. Base plate (R) x1, base plate (L) x1, aluminum plate nut x2, handle clamp (normal up clamp) x2, stainless steel button head bolt (M8xP1.25xL20) x2, stainless steel cap bolt (M8xP1.25xL50) x4 Precautions for use - The top surface of the top bridge must be flat.・The amount that the front fork protrudes from the top of the top bridge must be 20 mm or more. (Excluding cap and initial adjuster) - The protrusion of the front fork, including the air valve and initial adjuster, etc., must be within 30mm.


Manufacturer: Antlion
Brand: Antlion
Product size: 19.99 x 10.01 x 3 cm; 400 g
Product model number : 09236-SL
Product dimensions: Depth x Width x Height: 20 x 10 x 3 cm
Color: Silver
Product weight: 400 g
