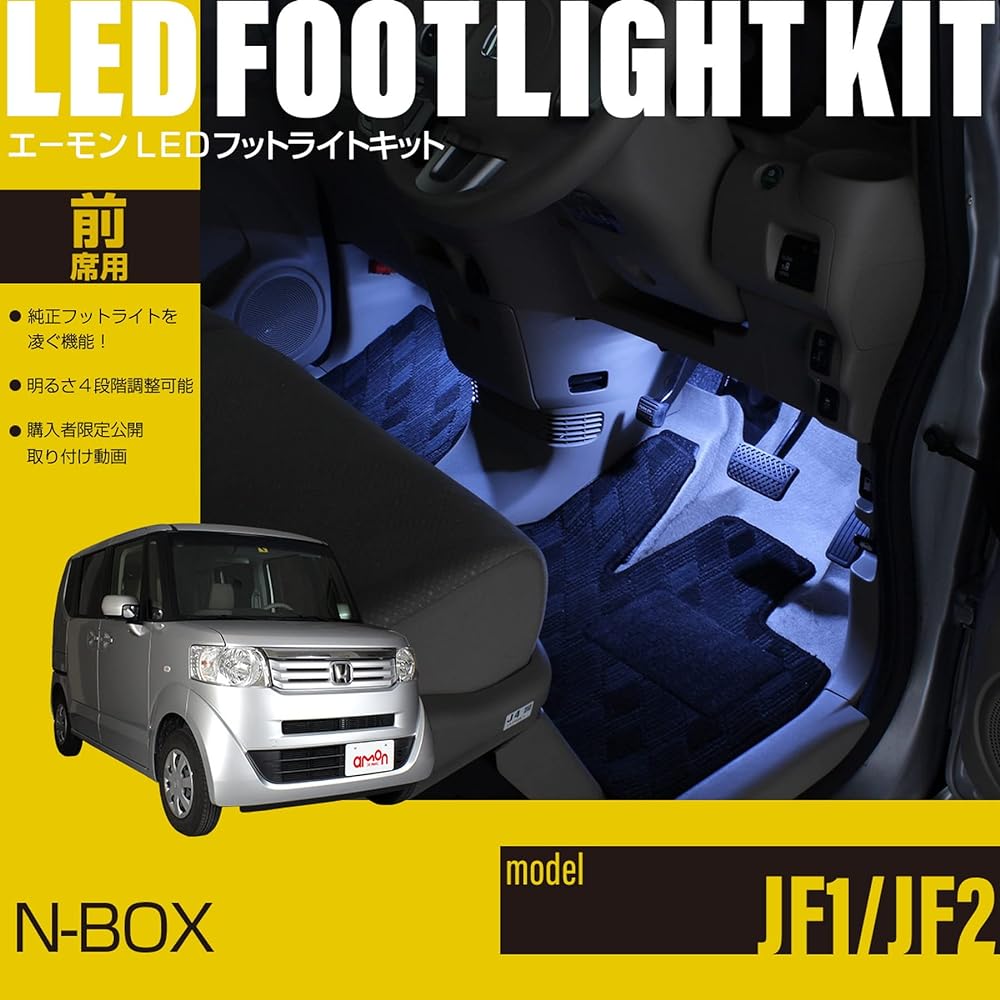

[Amon Online Exclusive] N-BOX (JF1/JF2) Exclusive LED Footlight Kit for Front Seats White WK759

The specifications of the lens cover will be changed sequentially. (There is no change to the LED itself) Compatible models: Honda N-BOX (JF1/JF2) [December 2011 to August 2017] Functionality and practicality that exceeds the genuine product. LED light that colors various scenes. Special tool. Not required《Limited to purchasers》 DIY footlight that you can work on while watching the installation video for each car model. Interlocks with the door (interlocks with the room lamp), the LED turns on and off gently. Interlocks with the illumination, dims the light at night. Brightness can be adjusted in 4 levels. Possible [100%] [30%] [10%] [3%] Reproduces the same functions as genuine optional products High-brightness LED and diffused lens reproduce brighter and softer light than the original.Coupler type allows one-touch connection by simply plugging in.More than 80 car model-specific designs, expandable with a variety of optional parts.Increase the number of displayed items

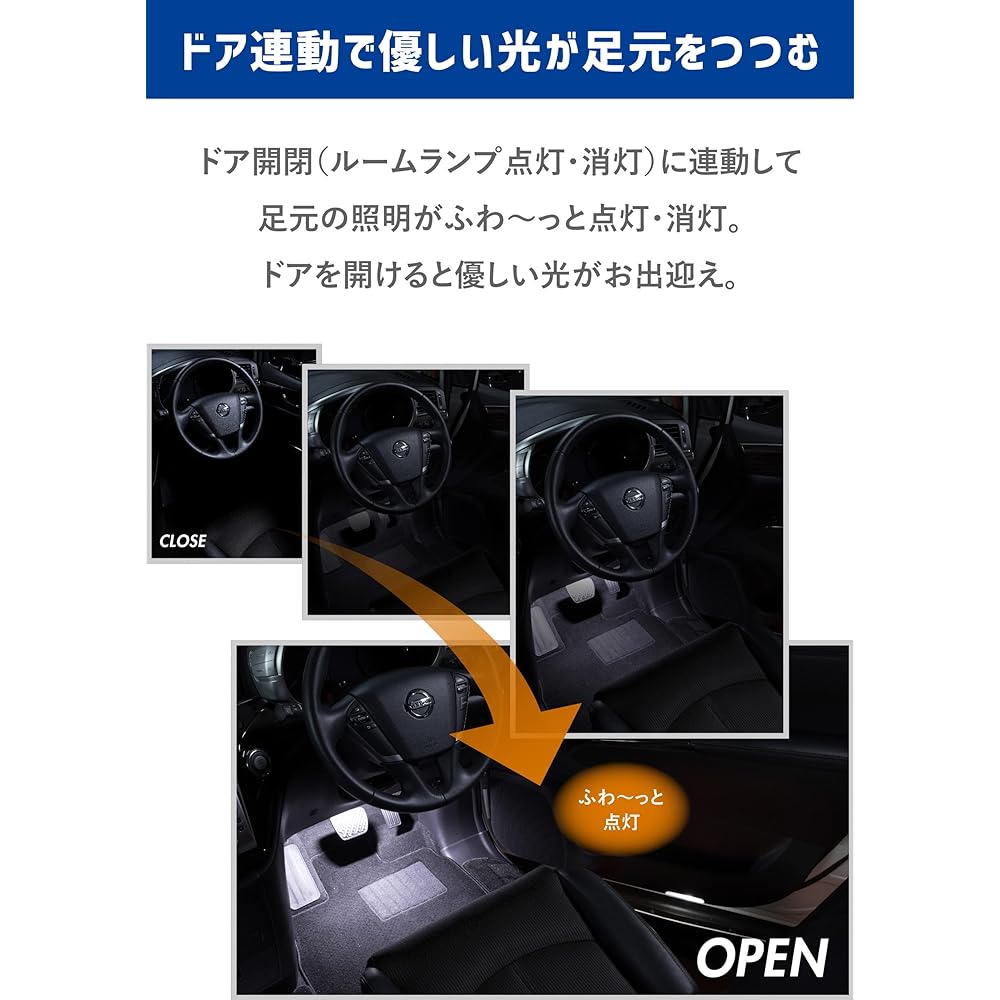

*Caution* [Please read before purchasing] ▼Cars equipped with dealer options or third-party products with interior lighting functions, such as rear seat monitors and room lamps with air purification functions, may not function properly. Because of this, it cannot be installed. ▼It is not compatible with cars that are equipped with genuine LED room lamps. ▼When using LEDs other than those included in this kit, please be aware of the available power. ▼For vehicles equipped with idling stop, the LED may flicker when the engine starts after the function is activated, but this is not damage to the unit. ▼Cannot be installed on cars with autopilot function. ▼Take out each power line from the fuse box at the foot of the driver's seat using a special coupler. ▼This kit cannot be used if a coupler is already inserted in the specified coupler insertion position. ▼The installation procedure is partially different for vehicles equipped with side airbags. [Product function] ◆The footlight gradually turns on and off as the door opens and closes. (It is possible to select ON/OFF of the function gradually.) ◆The footlight lights up in conjunction with the engine start. - Comes with a brightness setting function in 2 levels (100%/30%). ◆The footlight lights up in conjunction with the small lamp ON. - Comes with a brightness setting function in 4 levels (100%, 30%, 10%, 3%). ◆Event mode - Equipped with 2 patterns (slow flashing / fast flashing) ◆Battery load reduction function (automatic turn off) - If the door is left open for more than 10 minutes, the light will turn off automatically to reduce the burden on the battery. To do.・Does not operate during event mode. -Event mode will automatically change to normal mode after up to 1 hour of continuous use. [Kit contents] LED control unit x 1, unit dedicated harness x 1, double-sided tape x 1, dedicated triple flat LED x 2, extension harness x 1, LED fixing bracket x 2, low profile fuse x 1, power supply extraction Harness x 1, Harness with connector x 1, Panel peeler x 1, Wiring guide x 1, Wiring band x 6 [Product specifications] ■LED control unit, exclusive for DC12V vehicles, capable of outputting current: 2A or less ■Dedicated triple flat LED, For DC12V vehicles only / Current consumption: 60mA / piece / Cord: 0.2sq equivalent - length 1m ■ Dedicated harness / Black / White / Black (thin wire): 0.2sq equivalent - length 50cm / Yellow: 0.5sq equivalent - length 50cm・Red: Equivalent to 0.5sq - Length 50cm ・Black: Equivalent to 0.5sq - Length 1m ・Blue: Equivalent to 0.5sq - Length 50cm ・Orange: Equivalent to 0.5sq - Length 50cm


Manufacturer : ‎E-kurumalife
Brand: ‎E-kurumalife
Model name: ‎WK759
Package size: ‎31.7 x 16.7 x 13.1 cm; 540 g
>Product model number: WK759
Position: Front
Color: White
Certification: 6 months warranty after purchase
Product weight: 540 g
