American Denki Waterproof Flange Inlet Hook Type White 4225NW
American Denki Waterproof Flange Inlet Hook Type White 4225NW
Regular price
$42.00 USD
Regular price
Sale price
$42.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Specifications: Grounding surface 3P 20A 250V Type: Hook type RoHS compliance: Yes Main body flame retardant: UL94 V-0 Applicable wire: 2φ~2.6φ, 3.5mm2 Wire connection method: Crimp terminal type, tension type Applicable crimp terminal : R3.5-4 Waterproof and dustproof protection grade : IP44 compliant product

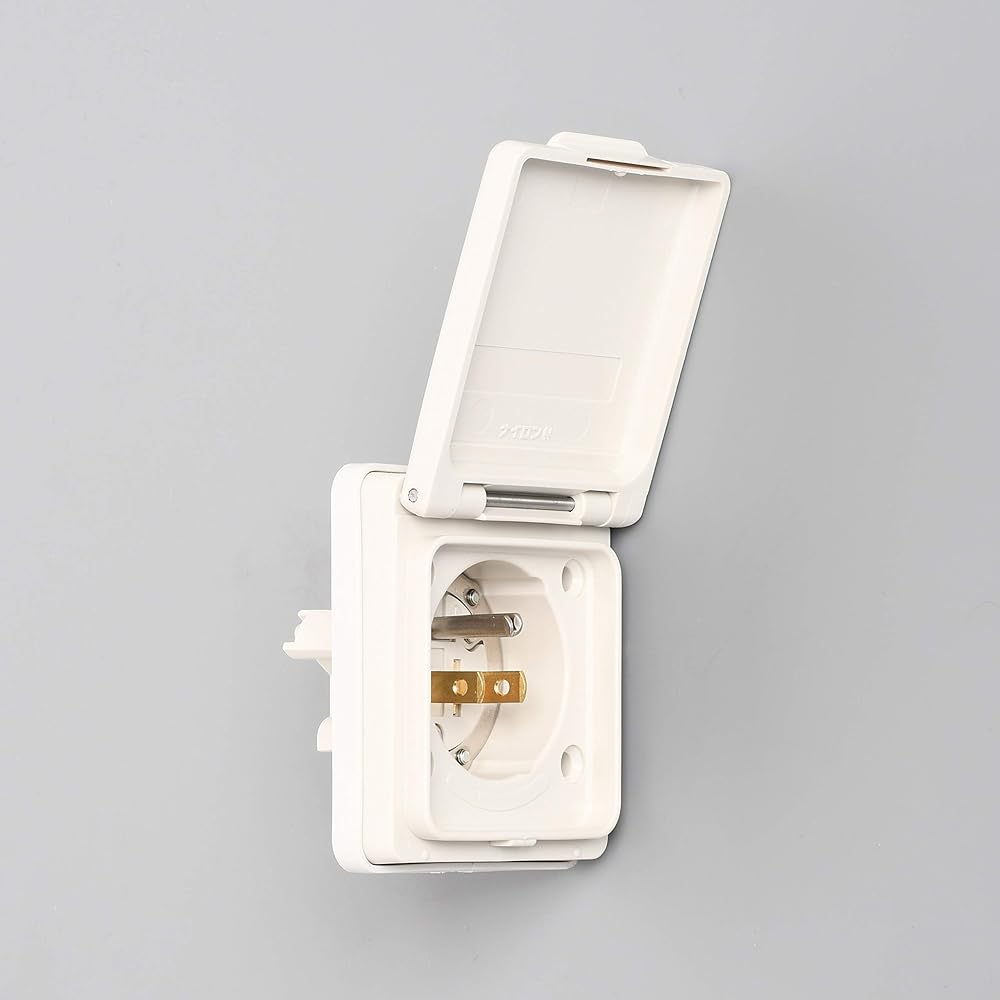

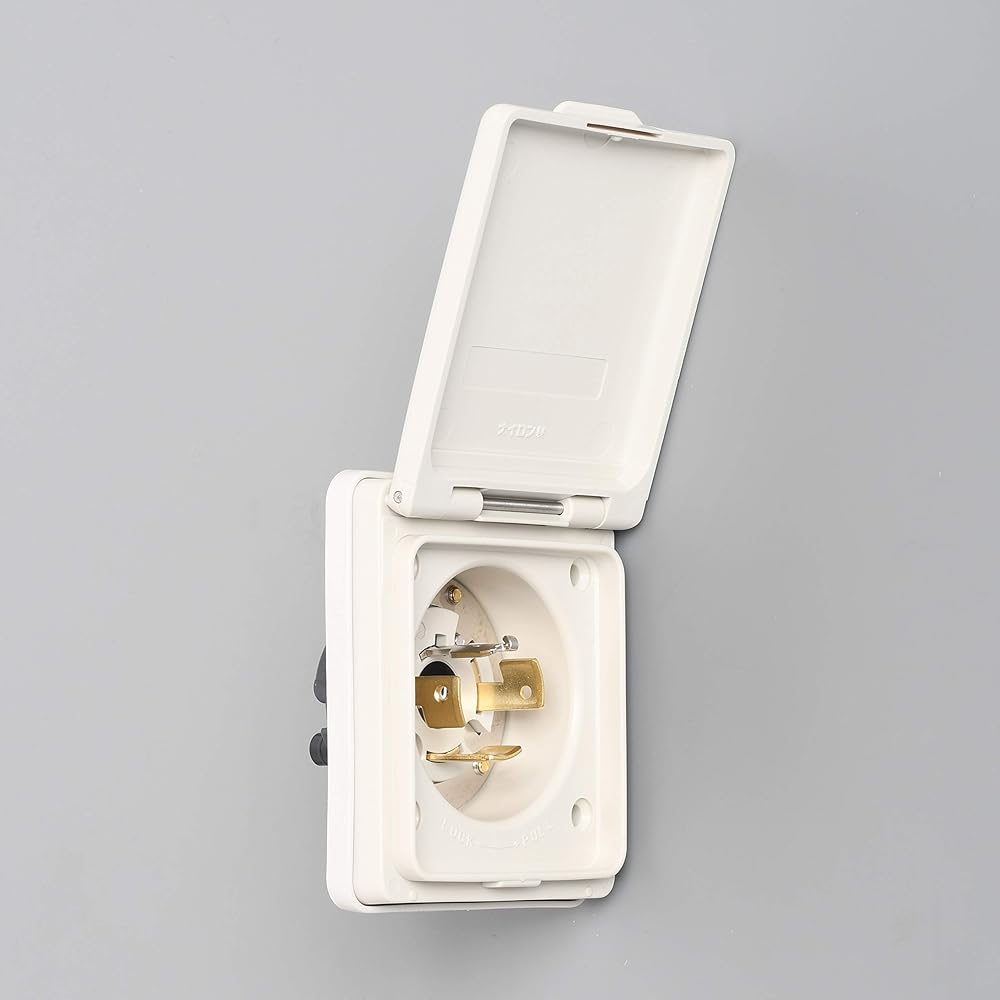

This is a device that can be attached to mobile equipment installed outdoors or equipment where you want to eliminate the power cable, and can be used in combination with a cord connector body to receive power. It becomes waterproof when the cover is fully closed. JIS C0920 (class of protection by outer enclosure for electrical machinery and equipment) IP44 compliant product. The liftable cover can be moved from fully closed (0°) to 80° when plugged in (when in use) and 160° when fully open. Suitable for charging battery vehicles such as golf carts, refrigerated vehicles, storage batteries, and power inlets for mobile lighting equipment. The body, cover, and base flange are made of nylon resin, which has heat resistance, tracking resistance, and is flame retardant (UL94 V-0) and does not contain harmful substances. Comes with a set of mounting screws and nuts and an insulating cover that prevents live parts from being exposed. Wire connection can be done in two ways: ``crimping terminal type'' by tightening the terminal screw, and ``tightening type'' using the wire insertion hole.
Brand: American Denki
Product model number: 4225NW
Product size: 9.6 x 8.5 x 6.95 cm; 200 g
Nameplate name: Hook type
>Material: Nylon
Voltage: 250 volts
Product weight: 200 g
This is a device that can be attached to mobile equipment installed outdoors or equipment where you want to eliminate the power cable, and can be used in combination with a cord connector body to receive power. It becomes waterproof when the cover is fully closed. JIS C0920 (class of protection by outer enclosure for electrical machinery and equipment) IP44 compliant product. The liftable cover can be moved from fully closed (0°) to 80° when plugged in (when in use) and 160° when fully open. Suitable for charging battery vehicles such as golf carts, refrigerated vehicles, storage batteries, and power inlets for mobile lighting equipment. The body, cover, and base flange are made of nylon resin, which has heat resistance, tracking resistance, and is flame retardant (UL94 V-0) and does not contain harmful substances. Comes with a set of mounting screws and nuts and an insulating cover that prevents live parts from being exposed. Wire connection can be done in two ways: ``crimping terminal type'' by tightening the terminal screw, and ``tightening type'' using the wire insertion hole.
Brand: American Denki
Product model number: 4225NW
Product size: 9.6 x 8.5 x 6.95 cm; 200 g
Nameplate name: Hook type
>Material: Nylon
Voltage: 250 volts
Product weight: 200 g
