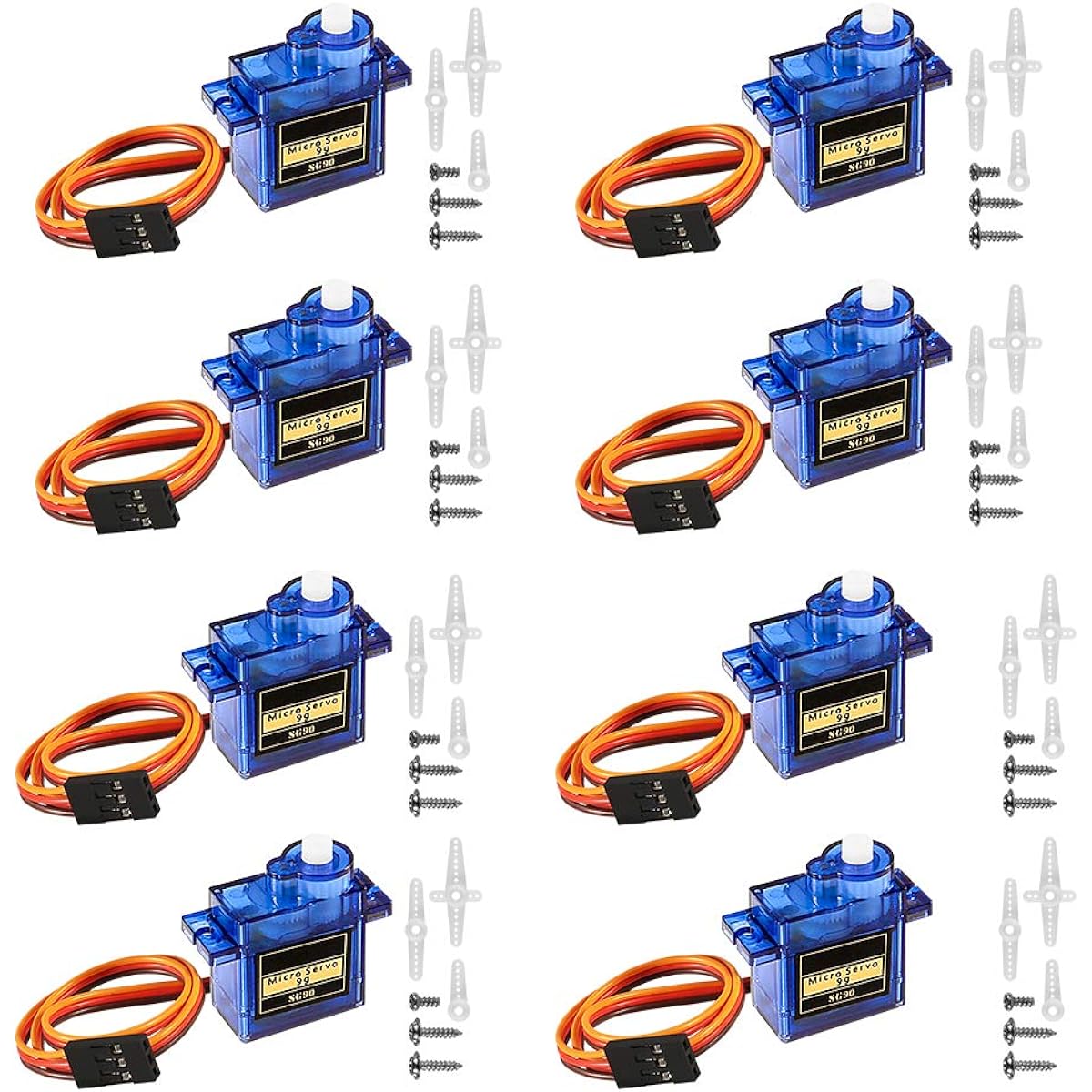

ALMOCN 8 Pieces SG90 9G Micro Servo Motor Kit for Mini RC Robot Arm Helicopter Airplane Car Boat Control Project

Application fields: remote control helicopters, micro robots, robot arms, boats. All kinds of R/C Toys and Arduino projects. Stall Torque (4.8V): 17.4oz/inch (1kg/cm); Operating Voltage: 3.0V~6V; Temperature Range: -30~+60; Dead Band Width: 7usec. Interface type: Compatible with JR and FUTABA interface. Running speed (no load): 0.09±0.01 seconds/60° (4.8V) 0.08±0.01 seconds/60° (6V) Maximum angle: 120° Amplifier type: Analog controller Operating voltage: 4.8V~6.0V. Note: The starting current of analog servo motor must be more than 1A. Miuzei Servo SG90 works normally because the analog servo needs to continuously supply the PMW signal.

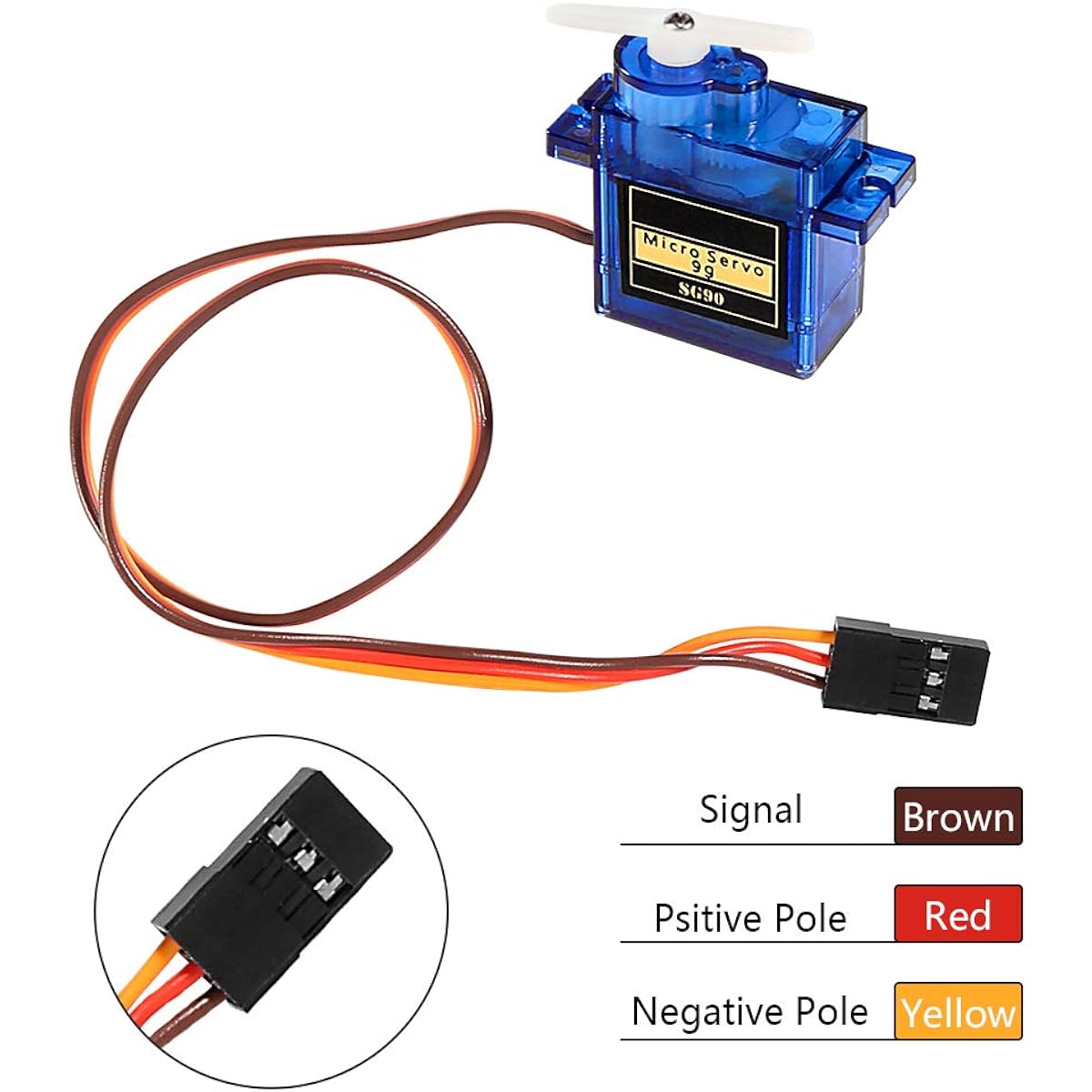

Specifications: Control system: change pulse width. Amplifier type: Analog controller. Operation movement: l120°±10° (900→2100μs). Left and right running angle deviation: ≤ 6° Centering deviation: ≤ 1° Neutral position: 1500μs. Deadband width: 7μs. Rotation direction: counterclockwise (900→2100μ seconds). Pulse width range: 900→2100μs. Maximum travel amount: Approximately 120° (900→2100μ seconds). Size: 22.8mmX12.2mmX28.5mm. Maximum angle: 180° Torsional moment: 2kg/cm. Operating voltage: 4.8V. Temperature range: 0℃ - 55℃. Operating speed: 0.11 seconds/60° (4.8V) Dead band setting: 5 microseconds. Line length: 300mm. Operating temperature range: -10℃~50℃. Operating voltage range: 4.8V~6.0V. Circuit connection: yellow line (signal line). Red line (power line). Brown (Ground) Package Contents: 8 x SG90 9g Micro Servos.
