Auto Parts Tokyo
AF34/35diozx For (47 mm) 67.9 CC Head with boaappukitto
AF34/35diozx For (47 mm) 67.9 CC Head with boaappukitto
Regular price
$181.00 USD
Regular price
Sale price
$181.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Live Dio/ZX AF34,35

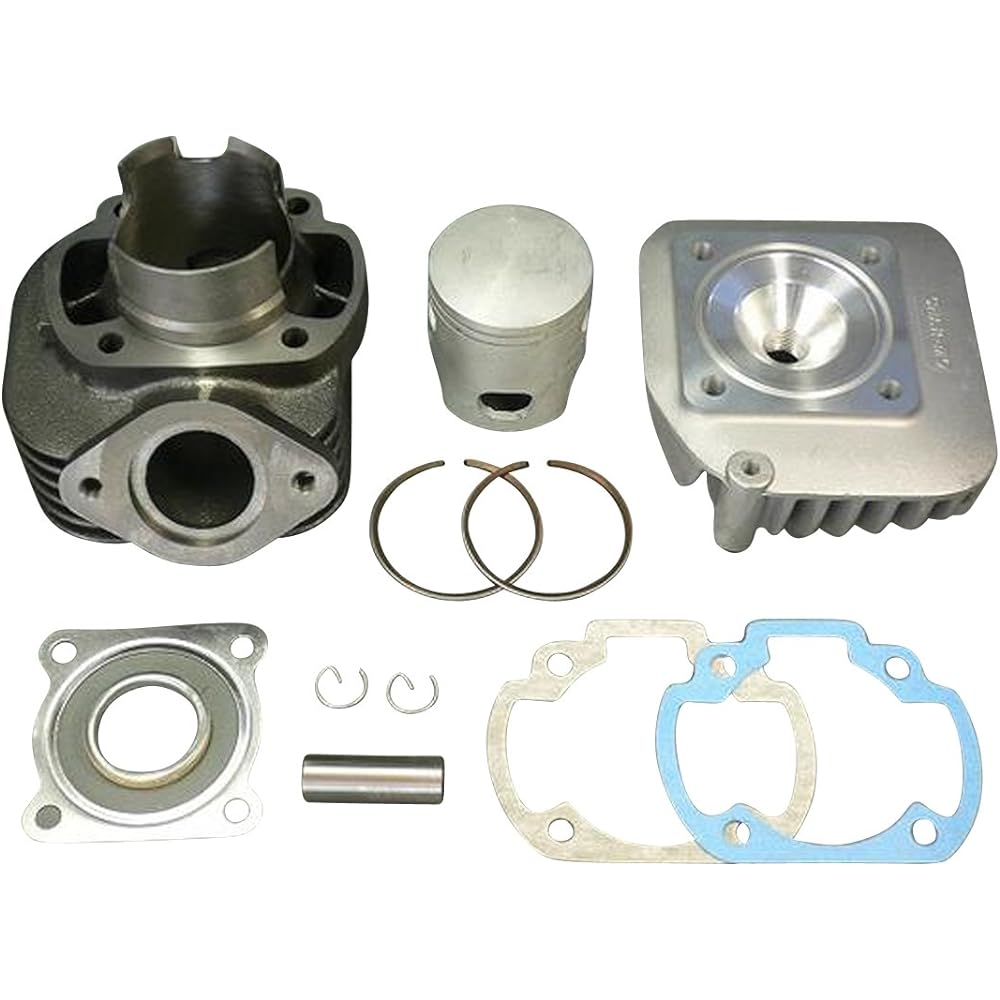

This is a product that we jointly developed with a Japanese OEM manufacturer of cylinders and pistons in Taiwan. A highly durable cast iron cylinder with a dedicated aluminum head. Displacement: 67.9 cc / Bore diameter: Φ 47.0 / Stroke: 39.2 mm Set contents Cylinder / Cylinder head / Piston / Piston ring / Piston pin / Piston pin clip / Head gasket / Base packing 2 types (0.5mm thickness / 1.0mm Thickness) Muffler gasket Notes: Standard muffler cannot be installed on exhaust gas regulated models. Please replace with an aftermarket muffler that does not contain a catalyst or a commercially available chamber. Although it is compatible with standard carburetor, it is necessary to replace the carburetor jet etc. as the displacement increases to 67.9cc. When assembling, be sure to check that the piston head does not interfere with the head.
Manufacturer: hunter
Brand: HUNTER
Model name: 3936
Packing size: 16.8 x 13.7 x 12.6 cm; 2.23 kg
Product model number: 3936
Product weight: 2.23 Kilograms
This is a product that we jointly developed with a Japanese OEM manufacturer of cylinders and pistons in Taiwan. A highly durable cast iron cylinder with a dedicated aluminum head. Displacement: 67.9 cc / Bore diameter: Φ 47.0 / Stroke: 39.2 mm Set contents Cylinder / Cylinder head / Piston / Piston ring / Piston pin / Piston pin clip / Head gasket / Base packing 2 types (0.5mm thickness / 1.0mm Thickness) Muffler gasket Notes: Standard muffler cannot be installed on exhaust gas regulated models. Please replace with an aftermarket muffler that does not contain a catalyst or a commercially available chamber. Although it is compatible with standard carburetor, it is necessary to replace the carburetor jet etc. as the displacement increases to 67.9cc. When assembling, be sure to check that the piston head does not interfere with the head.
Manufacturer: hunter
Brand: HUNTER
Model name: 3936
Packing size: 16.8 x 13.7 x 12.6 cm; 2.23 kg
Product model number: 3936
Product weight: 2.23 Kilograms
