Auto Parts Tokyo

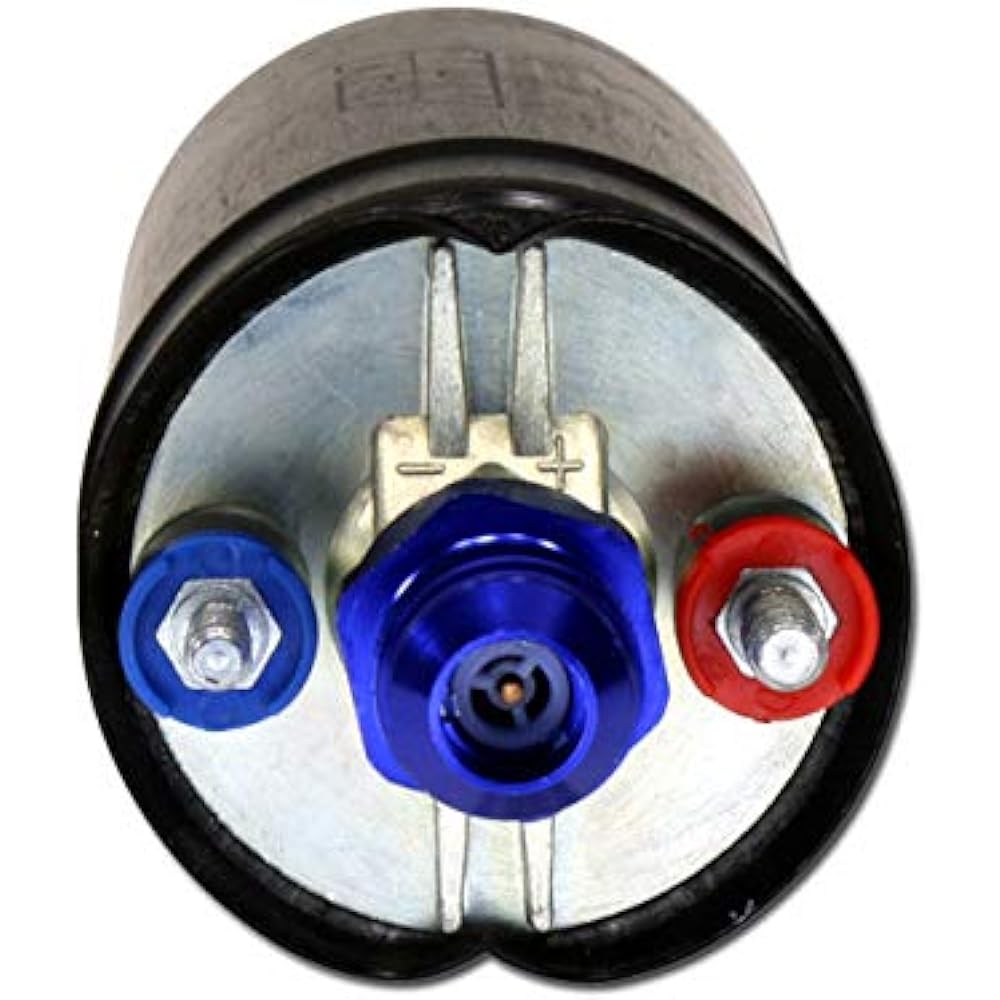

AEM 50-1005 Inline high flow fuel pump (400Lph)

AEM 50-1005 Inline high flow fuel pump (400Lph)

Regular price $351.00 USD
Regular price Sale price $351.00 USD
Sale Sold out
Shipping calculated at checkout.

Condition: New

AEM 400lph high flow fuel pump is designed for use with gasoline; alcohol fuel can be used but pump life will be reduced; inlet thread is -10 AN female ORB (O-ring port fitting) Includes a -6 AN ORB (O-ring port fitting) male -6 to -8 AN discharge fitting, integrated high pressure check valve, terminal nut, terminal boot, and installation instructions.High power naturally aspirated and Designed for forced induction EFI vehicles. It has the popular "044 Style" physical configuration, but with inlet & discharge port connections. Each pump is individually tested for a minimum flow rate of 400lph (100gph) at 40PSI.

AEM's 400lph high-flow, high-pressure fuel pump supports over 1,200 HP normally aspirated and 860 HP at 30 psi boost. It draws 400 lph (100 gph) at 40 PSI, 340 lph (90 gph) at 73 PSI, and 270 lph (71 gph) at 120 PSI. Full flow curves from 35 to 120 PSI and current draw and fuel pressure charts are available under the specs tab. Outer diameter: 60mm OD


Manufacturer: ‎AEM
Brand: ‎AEM
Model name: ‎50-1005
Product model number: ‎50-1005
Manufacturer Discontinued due to: ‎No
Original part number: ‎50-1005
Position: ‎Front
Color: ‎No Color
Product weight: ‎1.02 Kilograms
