Auto Parts Tokyo

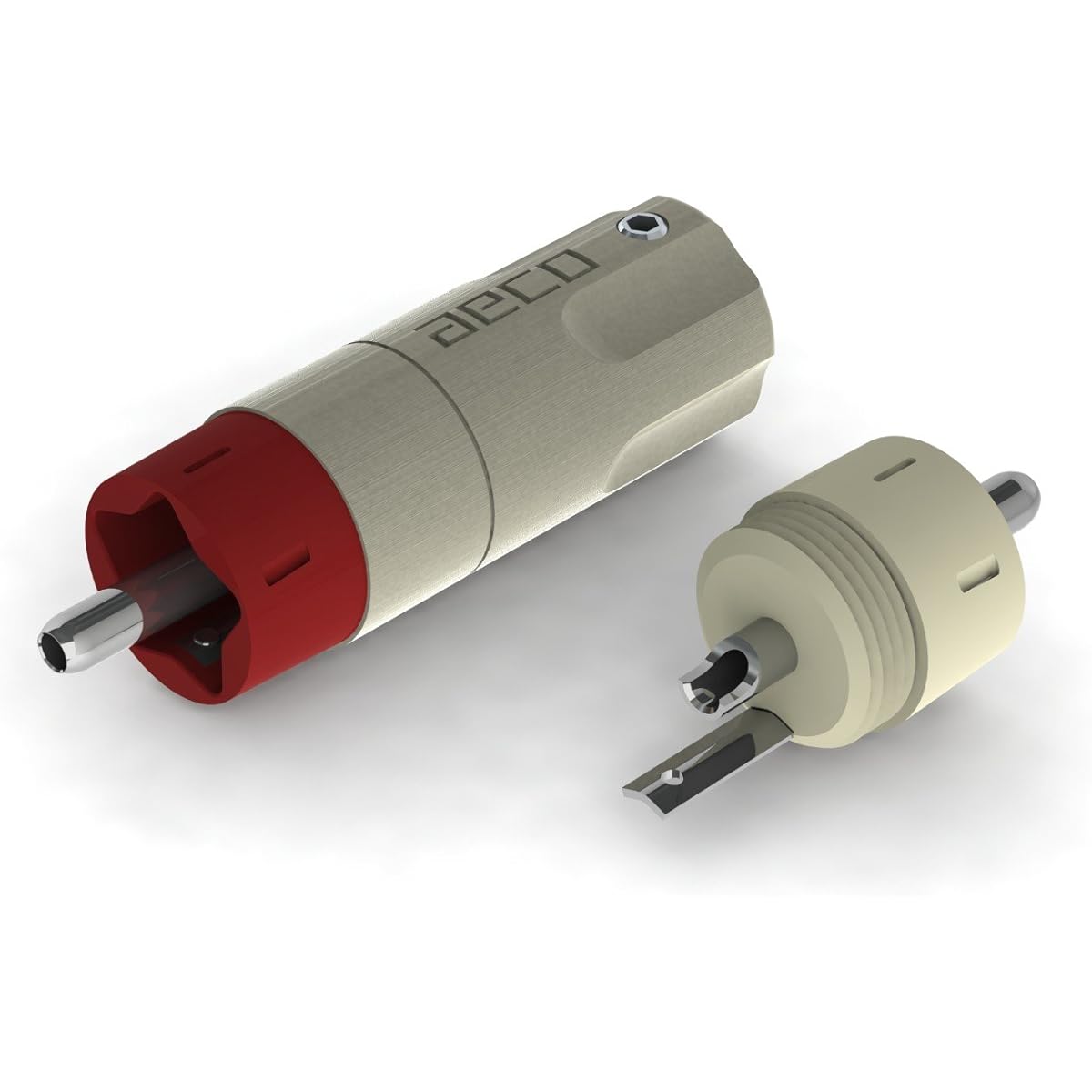

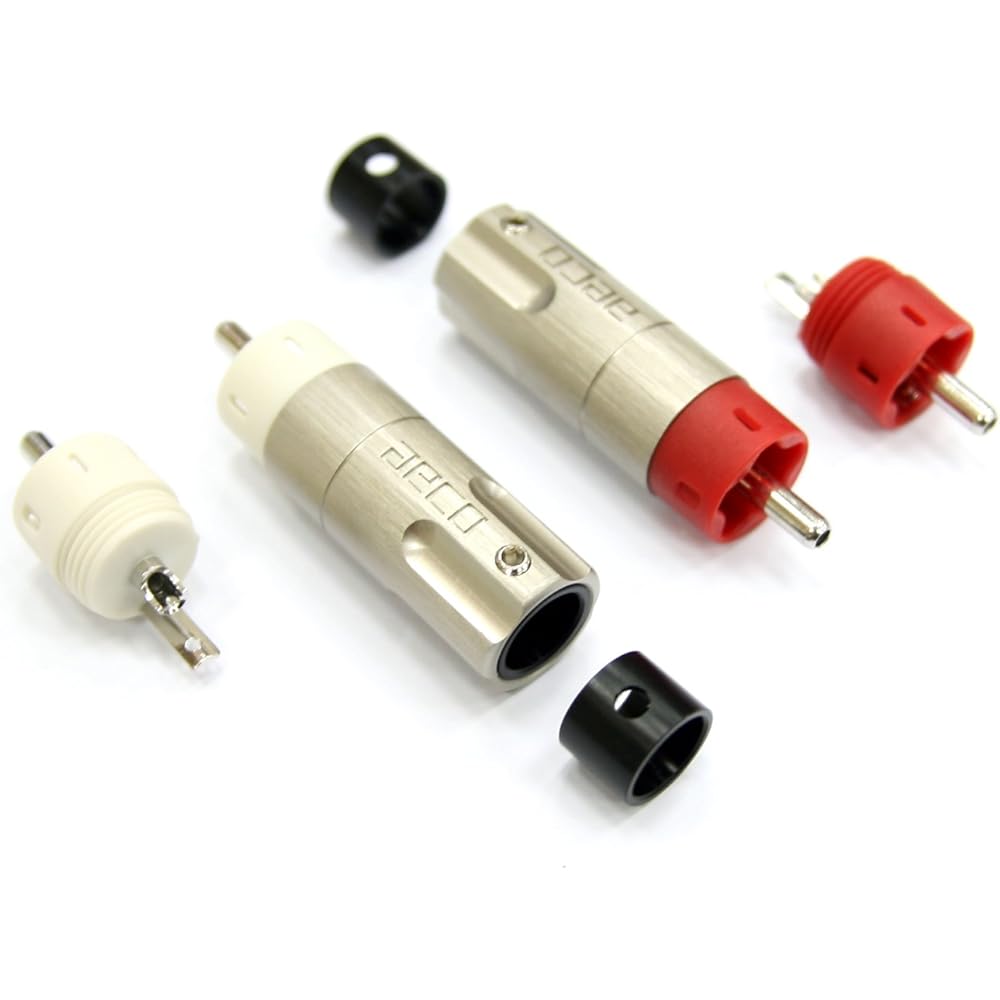

aeco RCA Plug ARP-4045R, 4pcs/1set, Rhodium Plating, Vacuum bag
aeco RCA Plug ARP-4045R, 4pcs/1set, Rhodium Plating, Vacuum bag
Regular price
$105.00 USD
Regular price
Sale price
$105.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
Can also be used with regular RCA plugs Single conductor connection Lightweight design High purity copper (over 99%) Nickel-free rhodium plating
Material: Center pin: Free-cutting copper (tellurium copper) (copper content min. 99.0%, C14500) Ground sheet: Tough pitch copper (copper content min. 99.5%, C1100) Body: Glass fiber reinforced nylon resin (red/white) Shell: Copper Zinc alloy (C3604) Screw: Iron surface treatment: Center pin: Nickel-free rhodium plating. Ground sheet: Nickel-free rhodium plating. Shell: Satin nickel plating, hairline finish, logo engraved by cutting. Screw: Nickel plated Size: Maximum outer diameter: 13.7mm Total length: 43.7mm Hole diameter: If black polyacetal is attached, the hole diameter will be 8.5mm. If black polyacetal is not attached, the hole diameter will be 10.5mm. Packing method: Vacuum bag Our product production process complies with the RoHS Directive. Our products comply with Taiwan New License No. M463447. Recommended temperature for soldering Soldering iron temperature 380 degrees C, 05~08 seconds Soldering iron temperature 360 degrees C, 09~13 seconds Soldering iron temperature 340 degrees C, 13~18 seconds Soldering iron temperature 320 degrees C, 19~25 seconds * We recommend a soldering iron with a temperature control function.
Color: White, Red
Battery included: No
Batteries used: No
Brand name: aeco.tw
Manufacturer: Aec Connectors Co ., Ltd.
Product model number: 8541765170
Package size: 25.4 x 19.05 x 1.27 cm; 68 g
Material: Center pin: Free-cutting copper (tellurium copper) (copper content min. 99.0%, C14500) Ground sheet: Tough pitch copper (copper content min. 99.5%, C1100) Body: Glass fiber reinforced nylon resin (red/white) Shell: Copper Zinc alloy (C3604) Screw: Iron surface treatment: Center pin: Nickel-free rhodium plating. Ground sheet: Nickel-free rhodium plating. Shell: Satin nickel plating, hairline finish, logo engraved by cutting. Screw: Nickel plated Size: Maximum outer diameter: 13.7mm Total length: 43.7mm Hole diameter: If black polyacetal is attached, the hole diameter will be 8.5mm. If black polyacetal is not attached, the hole diameter will be 10.5mm. Packing method: Vacuum bag Our product production process complies with the RoHS Directive. Our products comply with Taiwan New License No. M463447. Recommended temperature for soldering Soldering iron temperature 380 degrees C, 05~08 seconds Soldering iron temperature 360 degrees C, 09~13 seconds Soldering iron temperature 340 degrees C, 13~18 seconds Soldering iron temperature 320 degrees C, 19~25 seconds * We recommend a soldering iron with a temperature control function.
Color: White, Red
Battery included: No
Batteries used: No
Brand name: aeco.tw
Manufacturer: Aec Connectors Co ., Ltd.
Product model number: 8541765170
Package size: 25.4 x 19.05 x 1.27 cm; 68 g
