Auto Parts Tokyo
ACDelco Fully Automatic Battery Charger 12V Only AD-2002
ACDelco Fully Automatic Battery Charger 12V Only AD-2002
Regular price
$246.00 USD
Regular price
Sale price
$246.00 USD
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability

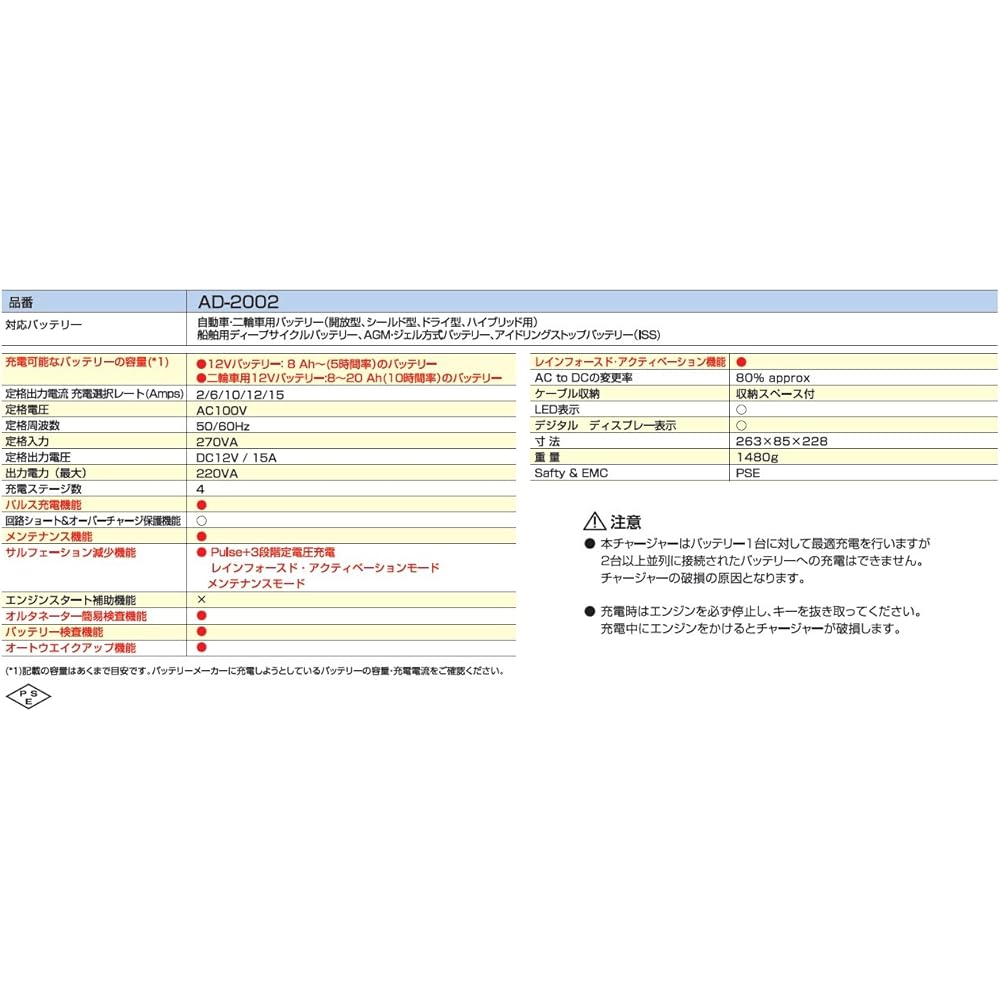

Compatible batteries] Automobile/motorcycle batteries (open type, shielded type, dry type, hybrid)/deep cycle battery for ships/AGM/gel type battery/idling stop battery (ISS) [Rechargeable battery capacity] 12V battery: 8Ah-(5 hour rate) / 12V battery for motorcycles: 8-20Ah (10 hour rate) [Rated output current] Charging selection rate: 2/6/10/12/15 (Amps) [Rated voltage] AC100V [Rated frequency] 50/60Hz [Rated input] 270VA [Rated output voltage] DC12V/15V [Output power (maximum)] 220VA [Number of charging stages] 4 stages [AC to DC conversion rate] 80% approx
●You can charge most batteries with this one device! Easy and fully automatic charging! Groundbreaking resilience. ●Speed charging! Safe, small and lightweight battery charger. ■New pulse charging method, 3-stage constant voltage charging, recovers weak batteries. Adopting a pulse charging method, the sulfation (lead sulfate) on the electrode plate is decomposed during charging, restoring the battery's stored power and extending its life. In addition, the synergistic effect with 3-stage constant voltage charging (high voltage charging) activates sulfated electrode plates, dramatically extending battery replacement cycles. ■Reinforced Activation Mode Charging that activates the battery using high voltage/high current. It is also effective as a first relief charge when normal charging is not possible. Charging time is an automatic timer of about 30 minutes and changes depending on the battery condition. ■Return to optimal condition with maintenance mode! This is a rescue charging mode that is effective when the battery is extremely deteriorated and cannot be charged normally, or when reinforced activation charging is not possible. We aim to perform auxiliary charging using constant voltage/constant current to restore the state to a state where normal charging is possible. (Aim for 2 hours, up to a maximum of 36 hours) ■Auto wake-up mode Normally functions automatically after charging is complete. (The display shows FUL). If the battery voltage becomes low due to natural discharge, a replenishment will be performed automatically. Furthermore, if an extreme voltage drop is detected during standby, automatic 4-stage charging will be performed again. In that case, the maximum output current will be the charging current rate selected at the start of charging, and the display will show the normal charging state. [Safe protection functions] ・Overcharge protection ・Overcurrent protection ・Short circuit protection ・Reverse connection & incorrect connection protection ・Sparkless function ・Heating protection ●Simple alternator inspection function, battery inspection function included *Engine start assist function is It's not on. Precautions for use *This charger performs optimal charging for one battery, but cannot charge two or more batteries connected in parallel. This may cause damage to the charger. *Be sure to stop the engine and remove the key when charging. If you start the engine while charging, the charger will be damaged. Precautions for use *This charger performs optimal charging for one battery, but cannot charge two or more batteries connected in parallel. This may cause damage to the charger. *Be sure to stop the engine and remove the key when charging. If you start the engine while charging, the charger will be damaged.
Manufacturer: ACDelco Brand: ACDelco Model name: ACDelco Product size: 8.5 x 26.3 x 22.8 cm; 1.48 kg
Product model number: AD-2002
Discontinued by manufacturer: No
Product dimensions: Depth x Width x Height: 8.5 x 26.3 x 22.8 cm
Color: Gold, Black
Certification: 1 year
Item weight: 1.48 Kilograms
●You can charge most batteries with this one device! Easy and fully automatic charging! Groundbreaking resilience. ●Speed charging! Safe, small and lightweight battery charger. ■New pulse charging method, 3-stage constant voltage charging, recovers weak batteries. Adopting a pulse charging method, the sulfation (lead sulfate) on the electrode plate is decomposed during charging, restoring the battery's stored power and extending its life. In addition, the synergistic effect with 3-stage constant voltage charging (high voltage charging) activates sulfated electrode plates, dramatically extending battery replacement cycles. ■Reinforced Activation Mode Charging that activates the battery using high voltage/high current. It is also effective as a first relief charge when normal charging is not possible. Charging time is an automatic timer of about 30 minutes and changes depending on the battery condition. ■Return to optimal condition with maintenance mode! This is a rescue charging mode that is effective when the battery is extremely deteriorated and cannot be charged normally, or when reinforced activation charging is not possible. We aim to perform auxiliary charging using constant voltage/constant current to restore the state to a state where normal charging is possible. (Aim for 2 hours, up to a maximum of 36 hours) ■Auto wake-up mode Normally functions automatically after charging is complete. (The display shows FUL). If the battery voltage becomes low due to natural discharge, a replenishment will be performed automatically. Furthermore, if an extreme voltage drop is detected during standby, automatic 4-stage charging will be performed again. In that case, the maximum output current will be the charging current rate selected at the start of charging, and the display will show the normal charging state. [Safe protection functions] ・Overcharge protection ・Overcurrent protection ・Short circuit protection ・Reverse connection & incorrect connection protection ・Sparkless function ・Heating protection ●Simple alternator inspection function, battery inspection function included *Engine start assist function is It's not on. Precautions for use *This charger performs optimal charging for one battery, but cannot charge two or more batteries connected in parallel. This may cause damage to the charger. *Be sure to stop the engine and remove the key when charging. If you start the engine while charging, the charger will be damaged. Precautions for use *This charger performs optimal charging for one battery, but cannot charge two or more batteries connected in parallel. This may cause damage to the charger. *Be sure to stop the engine and remove the key when charging. If you start the engine while charging, the charger will be damaged.
Manufacturer: ACDelco Brand: ACDelco Model name: ACDelco Product size: 8.5 x 26.3 x 22.8 cm; 1.48 kg
Product model number: AD-2002
Discontinued by manufacturer: No
Product dimensions: Depth x Width x Height: 8.5 x 26.3 x 22.8 cm
Color: Gold, Black
Certification: 1 year
Item weight: 1.48 Kilograms
