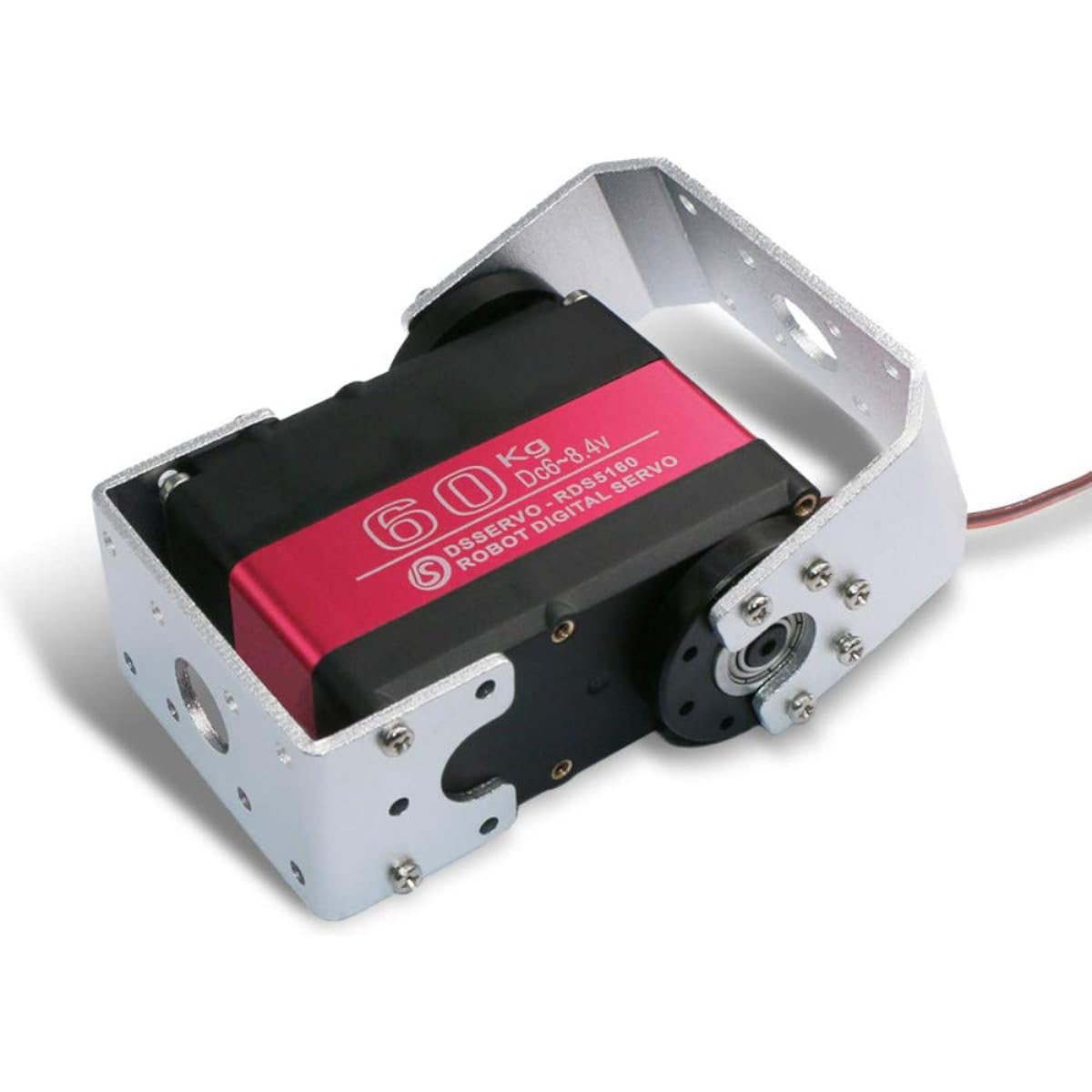

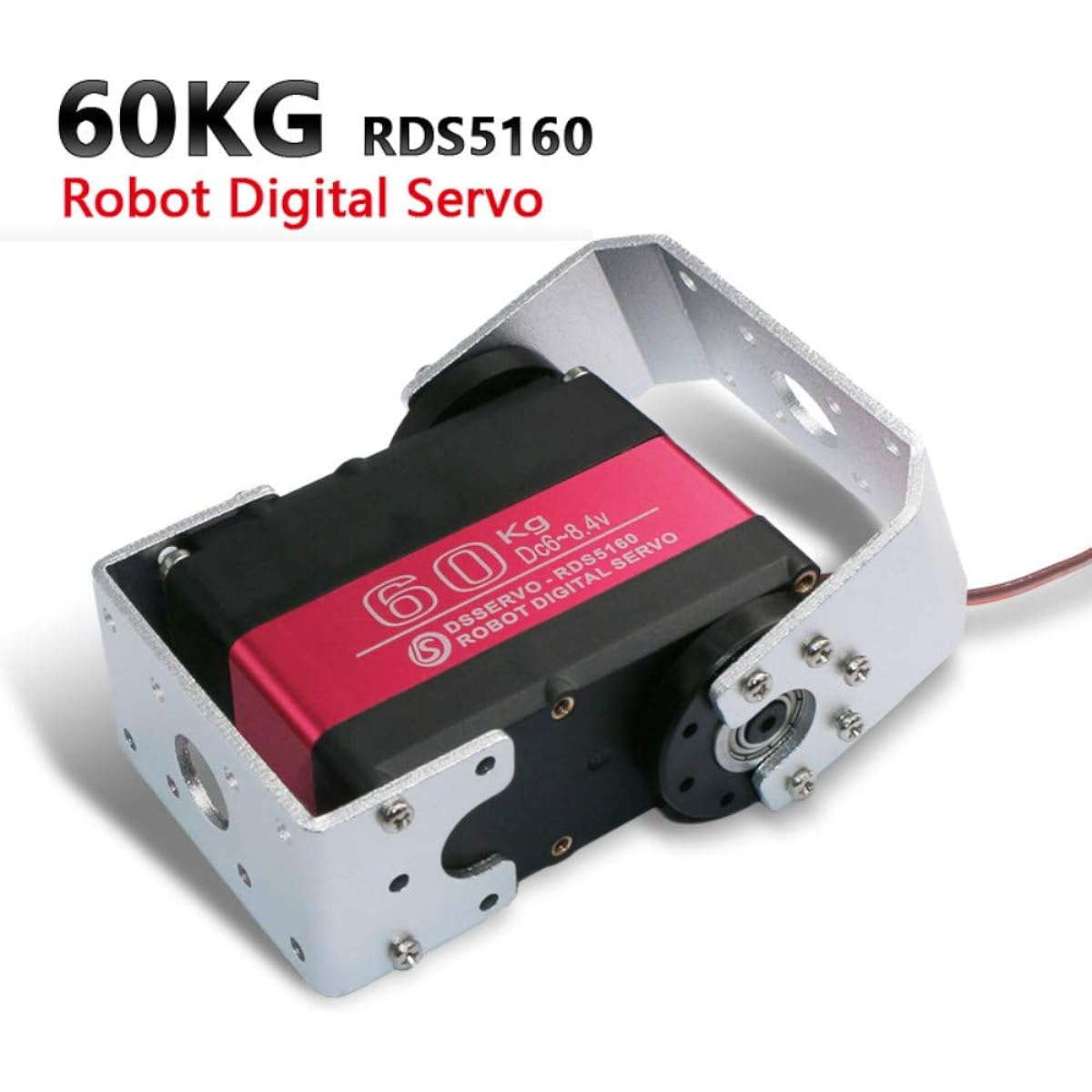

60Kg Biaxial Servo Educational Entertainment Robot Servo Smart Robot Servo (180°)

RDS5160 Torque Digital Robot Servo, Easy to design all types of robots, Compatible with Programmable digital amplifier, Durable metal gear, Bottom axial mounting hole Speed: 0.17sec/60 degree at (6v), 0.15sec/60 degree at (7.4v), 0.13sec/60 degree at (8.4v) Torque: 58kg.cm.at(6v) 65kg.cm.at(7.4v) 70kg.cm.at(8.4v) Voltage: 6v-8.4v Dead Zoon Settings: 3 Mics Durable metal gear, Dual ball bearings, Programmable digital amplifier with Mosft drive, Axial mounting hole at bottom, Less noise Includes: Long holder aluminum & Short holder aluminum & Circle holder, 18T & Circle holder, Direction angle: Max 180 degree (PWM: 500us-2500us), Mechanical angle: 360 degree Size: 65*30* 48 (Servo) Weight: 162g Wire length: 320mm

Note: 1. The optimum working voltage is 7.4v. It is recommended to use 2s battery for power supply (6v-8.4v) 2. The working angle of the servo is 180 degrees or 270 degrees (PWM: 500us-2500us) Some remote controls can only output 1000-2000. Recommend to buy 270degre Specification: Size: 65*30*48(Servo) Weight: 162g Wire length: 320mm Speed: 0.17sec/60 degree at (6v) 0.15sec/60 degree at (7.4v) 0.13sec/60 degree at (8.4v) Torque: 58kg.cm.at(6v) 65kg.cm.at(7.4v) 70kg.cm.at(8.4v) Voltage: 6v-8.4v Dead Zoon setting: 3 microseconds Features: -Durable metal gear -Dual ball bearings -Programmable digital amplifier with Mosft drive -Axis mounting holes on the bottom -Original factory product -Low noise Included: -Long holder aluminum & Short holder aluminum & Circle holder -18T & Circle holder -Direction angle: up to 180 degree -Mechanical angle: 360 degree (Plug/Output wheel/Radio control system compatible with Futaba JR Hitec) Package includes: 1 x RDS5160 Digital Metal Robot Servo 1 x Plastic Servo Arm 18T 1 x Plastic Servo Arm Drive 1 x Metal Long U 1 x Metal Short U A set of screws (as picture shown)
