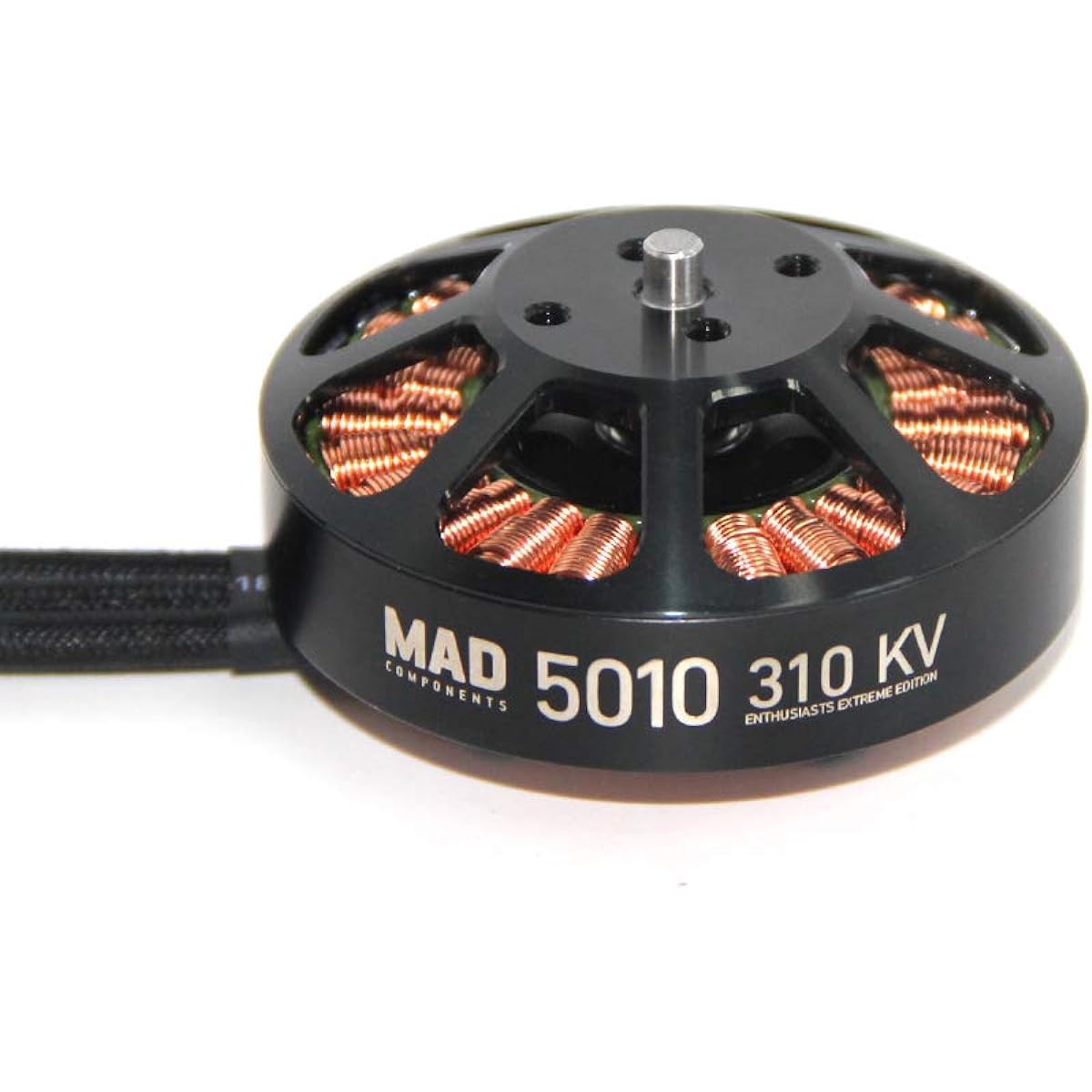

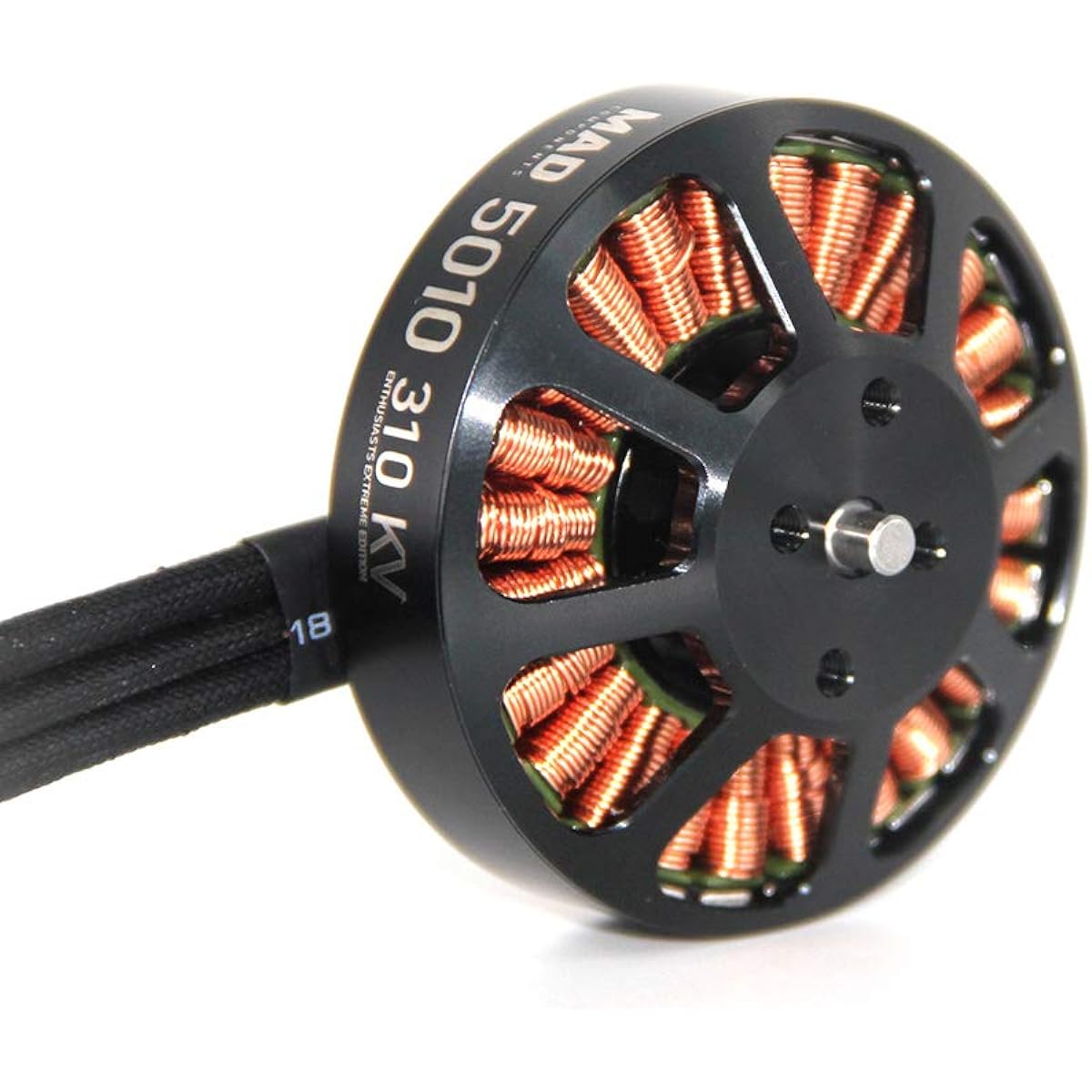

5010 EEE V2.0 370 KV MAD COMPONENTS Brushless Motor for Multirotor Quadcopter

Maximum hollow design, ultra-lightweight, fast heat dissipation. Unique stator design, 24N28P configuration Standardized mounting hole position, compatible with all kinds of racks. Simulation of magnetic flux density and magnetic envelope makes the motor with low energy consumption and high efficiency. Durable EZO imported bearings, more stable rotation, more resistance Using high-performance arc magnet, the performance is improved by 5% MAD 5010 EEE brushless motor with 14-24 inch carbon propeller, with single rotor load of 800-2000g. Supports lithium-ion 6S-12S. The maximum thrust of single rotor is up to 5000g. The motor weighs 158g. Maximum power 515W Maximum thrust 3403g Maximum torque 1.03N*m Recommended ESC AMPX 40A PRO ESC Propeller Flapping 15ft-20ft Propeller recommended 900g-1500g (15ft-20ft)

MAD 5010 EEE brushless motor is designed to carry 800-2000g payload with 14-24 inch propeller. Compatible with Li-ion 6S-12S. Maximum thrust per motor is 5000g. Motor weight is 158g. Faster heat dissipation, better system efficiency and longer flight time. MAD 50XX series is a multi-rotor aircraft brushless motor for professional aerial photography and industry applications. It can be used for surveying, mapping, patrol inspection and aerial photography. With excellent thrust, high efficiency, light weight and excellent reliability, it provides power support for all kinds of industry applications. Specifications Motor Model MAD 5010 EEE Configuration 24N28P Srator Imported Material Anti-corrosion Surface Motor Dimension: 56×27.5mm. Vamished Wire Degree 120℃ High Temperature ARC Magnet Degree 180℃ High Temperature. Protection Degree IP14 KV 370KV Rated Voltage 6-8S. No Load Current 1.67A/20V. Internal Resistance 42mΩ Motor Weight: 158g. Product Boxed Weight: 291g. Max Current 32.6A. Motor Takeoff Weight 6S-18ft/8kg--Quadcopter, 12kg--Hexocopter, 16kg--Octocopter Wire 150mm Centrifugal Heat Dissipation Active Heat Dissipation (Open Body Design) Rotor Balance ≤5Mg. Wire Pressure Test 500V AC. Propeller Mounting Hole M3 Ø12*2/ M3 Ø18*2 Motor Mount M3 Ø25*4/M3 Ø30*4 Box Size: 110mm x 110mm x 50mm Max Power 1042.9W Max Thrust 4405.8 Max Torque 1.50N*m Recommended ESC 6S-AMPX 40A PRO, 8S-AMPX 40A HV Recommended Propeller Fluxor 16ft-19in Recommended: 1300g-2100g(16ft-19in)


Manufacturer: ‎jiangxi MAD motor components co.LTD
Part Number: ‎0101DJ0042
Item Weight: ‎296 g
Package Size: ‎11.1 x 11 x 5 cm; 296 g
Size: ‎370KV
Voltage: ‎500 Volts
Horsepower: ‎515 Watts
Battery Included: ‎No
Battery Used: ‎No
