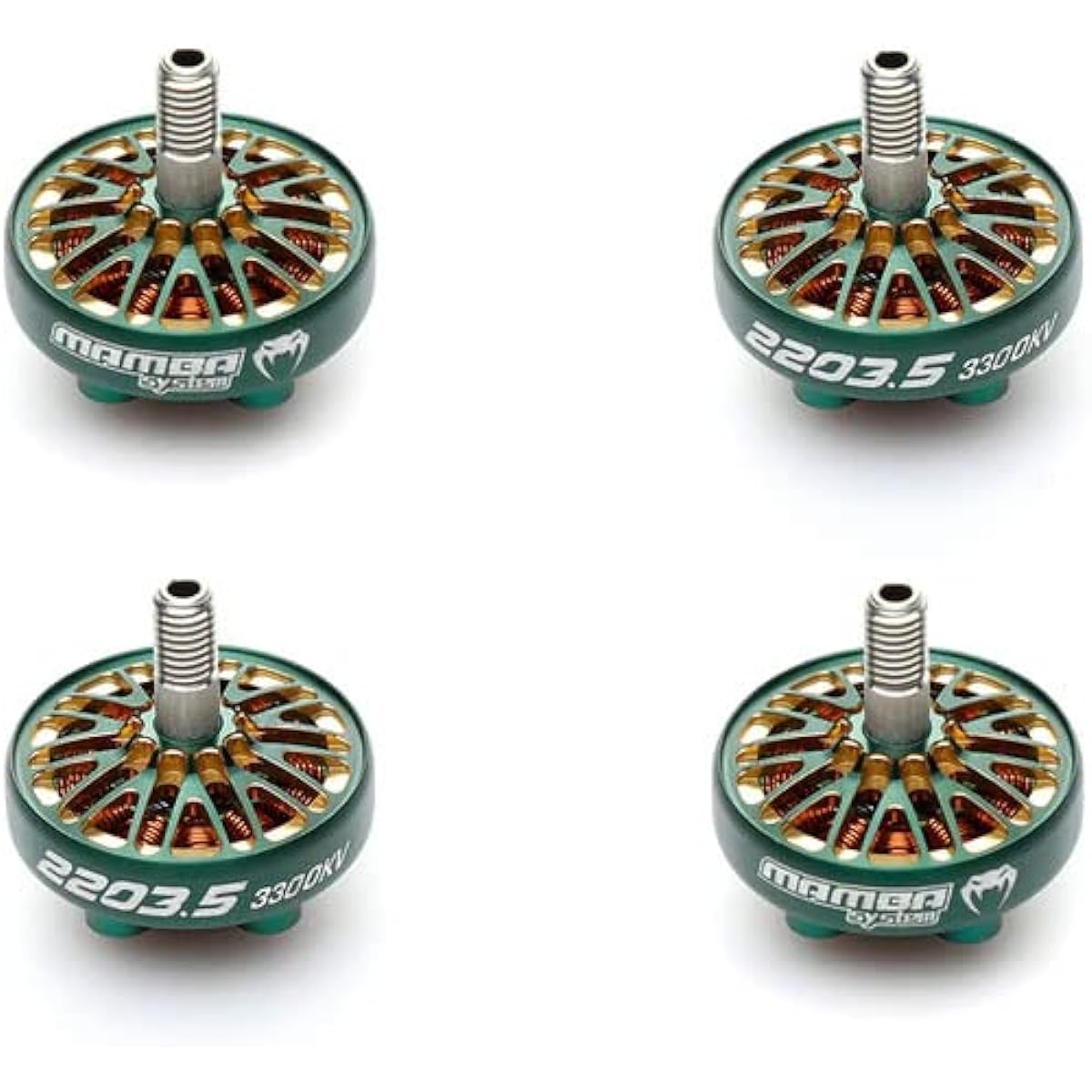

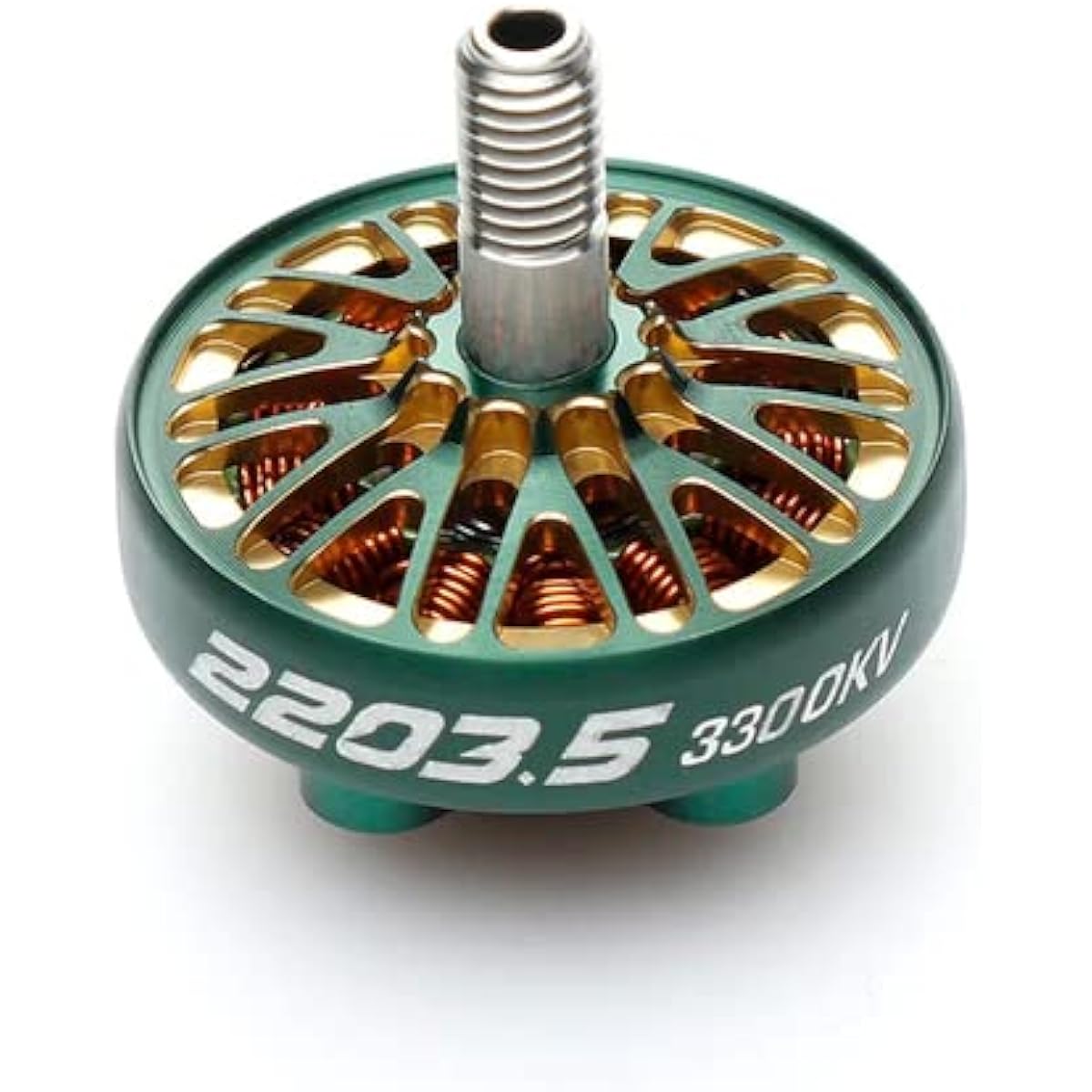

4pcs Diatone Mamba Toka 2003.5 Brushless Motor 4-6S 3300kV

Diatone built these powerhouse motors for maximum performance. Precision winding, bearings and balancing provide superior performance and efficiency. Set of 4 matched high performance motors. Package Includes: 4x Mamba Toka 2203.5 3300KV Motors.

Specifications: Diatone Mamba Toka 2003.5 Brushless Motor 3300KV Overall Dimensions: Φ28.9×29.4mm. Propeller Shaft Diameter: 5mm. Mounting Hole Location: 16×16mm, M3. Recommended Propeller: 3.5inch. Bearings: 9×4×4. Shaft Diameter: 4.0mm Lead Wire Size: 24AWG×190mm. Slot/Pole: 12N14P. Magnet Wire: 240℃ Enameled Wire Stator Diameter: 22mm. Stator Height: 3.5mm. Rated Voltage: 3~4S (12.6V~16.8V) Peak Current: 29.78A. Idle Current: 10V/1.5~2.2A. Maximum Power: 475.1W. Internal Resistance: 80mΩ. Package Includes: 4x Mamba Toka 2203.5 3300KV Motors.


Manufacturer: Diatone
Part Number: 656382918978
Item Weight: 245 g
Product Dimensions: 15.24 x 15.24 x 5.08 cm; 245 g
Voltage: 10 Volts
Horsepower: 475.1 Watts
Included Items: 4x Mamba Toka 2203.5 3300KV Motors.
Battery required: No
Product dimensions (L x W x H): 15.2 x 15.2 x 5.1 cm
