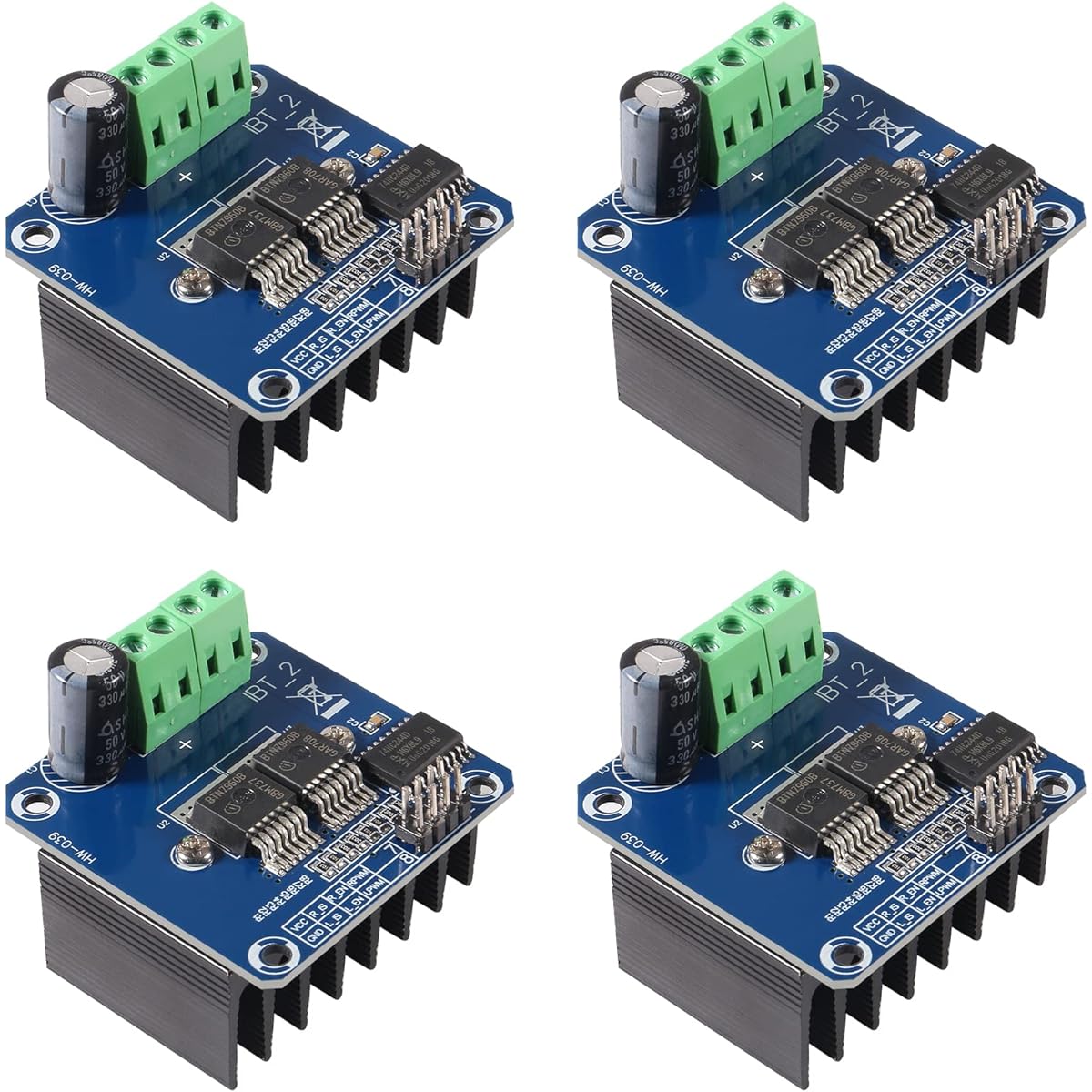

4pcs BTS7960 43A H Bridge Double High Power Motor Driver Module/DIY Smart Car Current Diagnosis

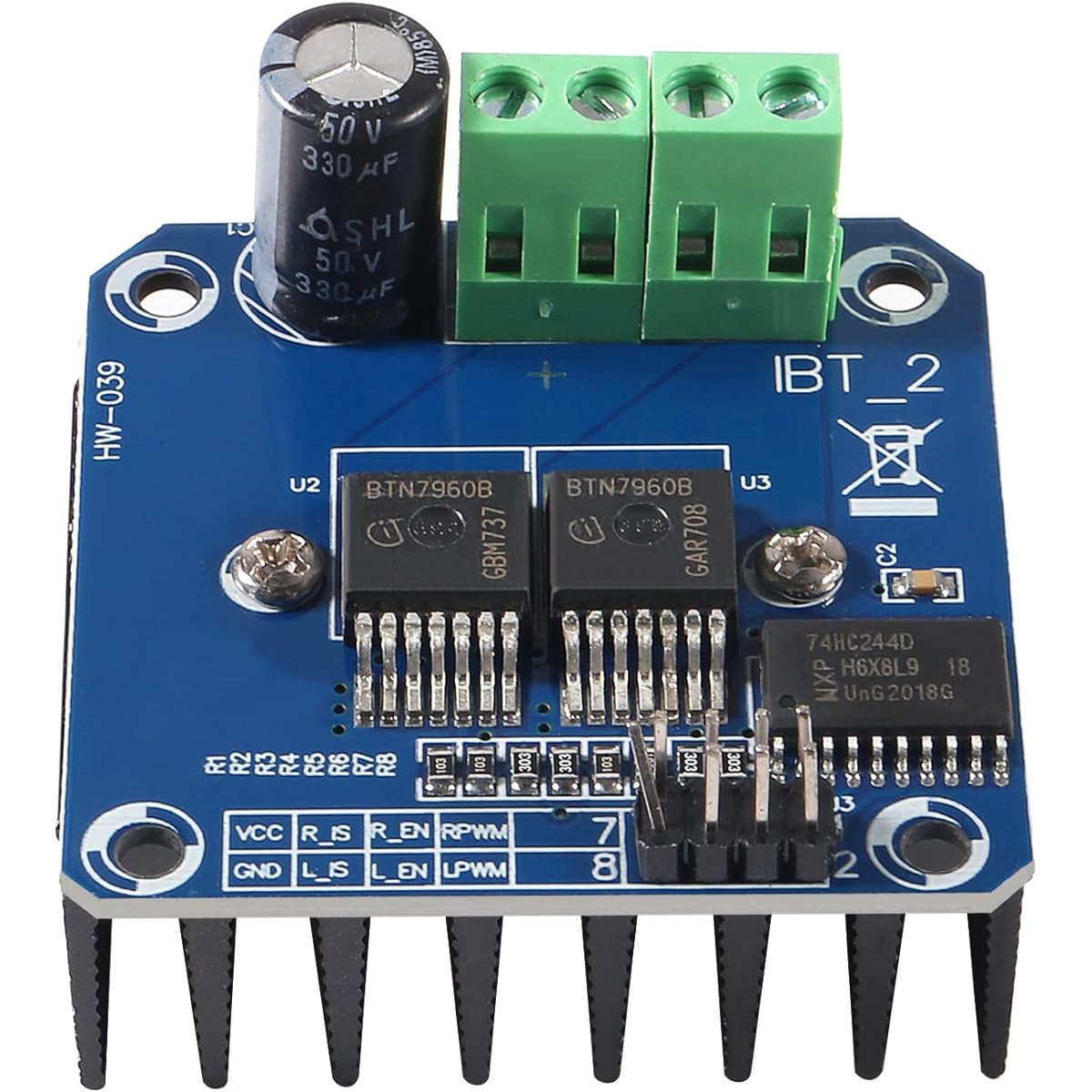

This driver uses the chip BTS7960, which consists of a high-power drive full H-bridge driver module with thermal overcurrent protection. Double BTS7960 H-bridge driver circuit, with strong drive and brake, effectively isolates the microcontroller and motor driver, high current 43A 5V is isolated with MCU, effectively protects MCU. 5V power indicator on board. Voltage display at motor driver output end.

Definition: RPWM: Right Turn PWM LPWM: Left Turn PWM R_EN: Right Turn Enabled (High Active) L_EN: Left Turn Enabled (High Active) R_IS: Right Rotation Current Warning (Floating) L_IS: Left Rotation Current Warning (Floating) VCC: (5V) GND connection: Method 1: VCC: 5V from microcontroller (MCU) GND: GND from microcontroller (MCU) L_PWM:PWM or 5V from microcontroller (MCU) for CCW (CW) turn R_PWM:PWM or 5V for CW (CCW) turn from microcontroller (MCU) R_EN and L_EN: 5V microcontroller (MCU) Method 2: VCC: 5V from microcontroller (MCU) GND: GND from microcontroller (MCU) L_PWM: CCW( CW) 5V from microcontroller (MCU) for turn R_PWM: 5V from microcontroller (MCU) for CW (CCW) turn R_EN and L_EN: PWM from microcontroller (MCU). MCU to driver module (GND. 5V. PWM1 PWM2). Isolated chip 5V power supply (can be shared with MCU 5V). The motor can be reversed forward and the two PWM input frequencies are up to 25kHz. Two heat flows passing through the error signal output. Isolated chip 5V power supply (can be shared with MCU 5V), onboard 5V power supply can also be used. Power supply voltage 5.5V to 27V. Package Contents: 4 x BTS7960 Motor Driver Modules


Brand: ‎Shutao
Product model number: ‎13391-1
Package size: ‎16.99 x 12.7 x 4.19 cm; 259 g
Product weight: ‎259 g
