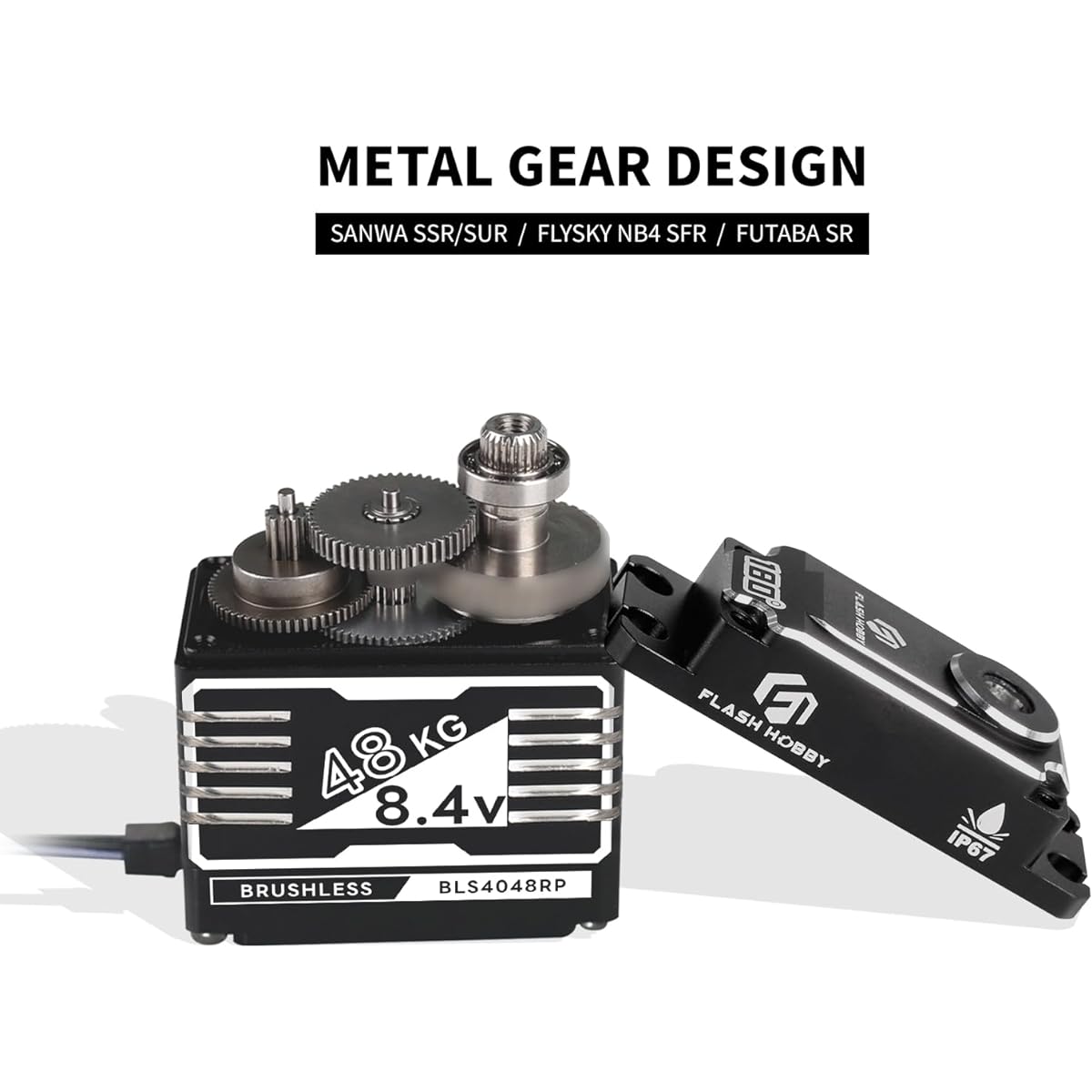

48kg High Torque Servo RC Brushless Servo with Full Metal Helical Gear IP67 Waterproof Servo Compatible with Sanwa SSR / NB4 / Futaba for 1/8 1/10 Scale RC Crawler Car Truck Robot Parts (180°)

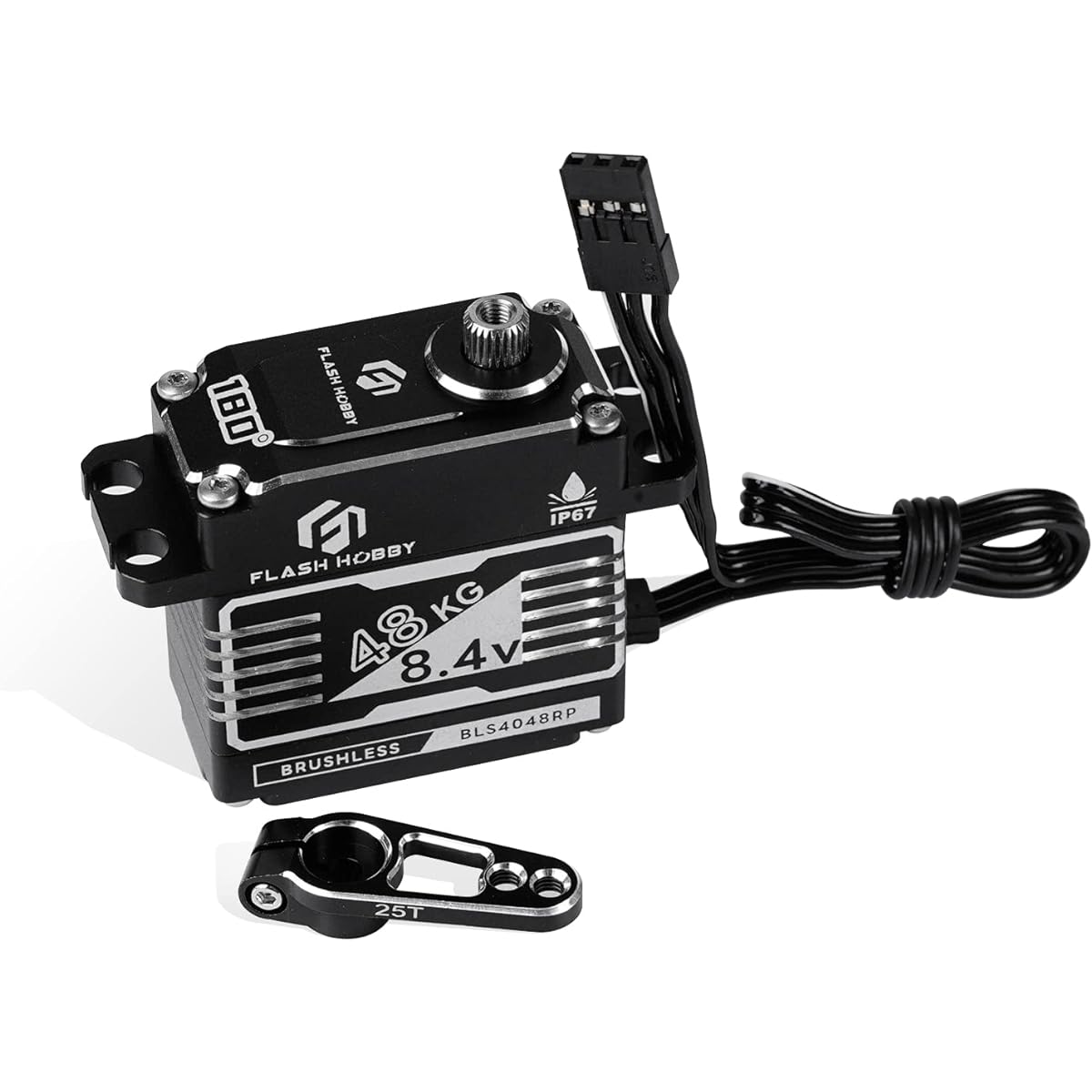

High Torque Servo: The max torque of the RC crawler servo is up to 48kg-cm at 8.4V, and the speed is up to 0.09sec/60° at 8.4V. Helical Gear & High Quality: With metal helical gear, two ball bearings and full CNC AL6061 aluminum heat sink shell, the brushless servo has high linearity and precision. Make the servo more stable, lower noise and longer life. IP67 Waterproof Servo: The RC car servo has built-in waterproof black O-ring, so the servo can work normally even in steamy or rainy days, making you more happy. Application: High torque servo compatible with 3 modes for Sanwa SSR, NB4, Futaba. Suitable for 1/8 1/10 scale RC crawler, RC car, truck, roller, boat, plane, fixed wing, robot parts, etc. Ideal to meet your different needs. Size & Package: 37KG The size of the RC servo is 1.57 x 0.79 x 1.59 inches (40 x 20 x 40.5mm). Package Includes: 1 Brushless Servo, 1 25T Servo Horn, Accessory Set.

Specifications: Refresh Rate: Compatible with 50Hz~1000Hz Torque Speed ​​and Voltage: 36kg-cm, 0.13sec/60° at 6.0V. 42kg-cm, 0.10sec/60° at 7.4V. 48kg-cm, 0.09sec/60° at 8.4V. Control System: PWM Control (1520usec at center point). Operating Voltage Range: DC6.0~8.4V. Operating Temperature Range: -20℃~+70℃. Pulse Width: 500~2500 usec. Circle: >1 million times without load. Operating Movement: 180°± 5°. Direction: CW Diver Type: Moss Drive Motor Type: Brushless Angle Sensor: Potentiometer Single Type: Digital Control Soft Start Function: Included Compatible Modes: Sanwa SSR/SUR, NB4, Futaba Waterproof Level: IP67 Dimensions(mm): 40x20x40.5mm Weight: 80g Ball Bearings: 2BB Gear Type: Helical Case Material: Full Aluminum CNC Connector Wire Length: 22AWG 260mm JR Wire Info(Black): Negative Wire Info(Black): Positive Wire Info(White): S Single
