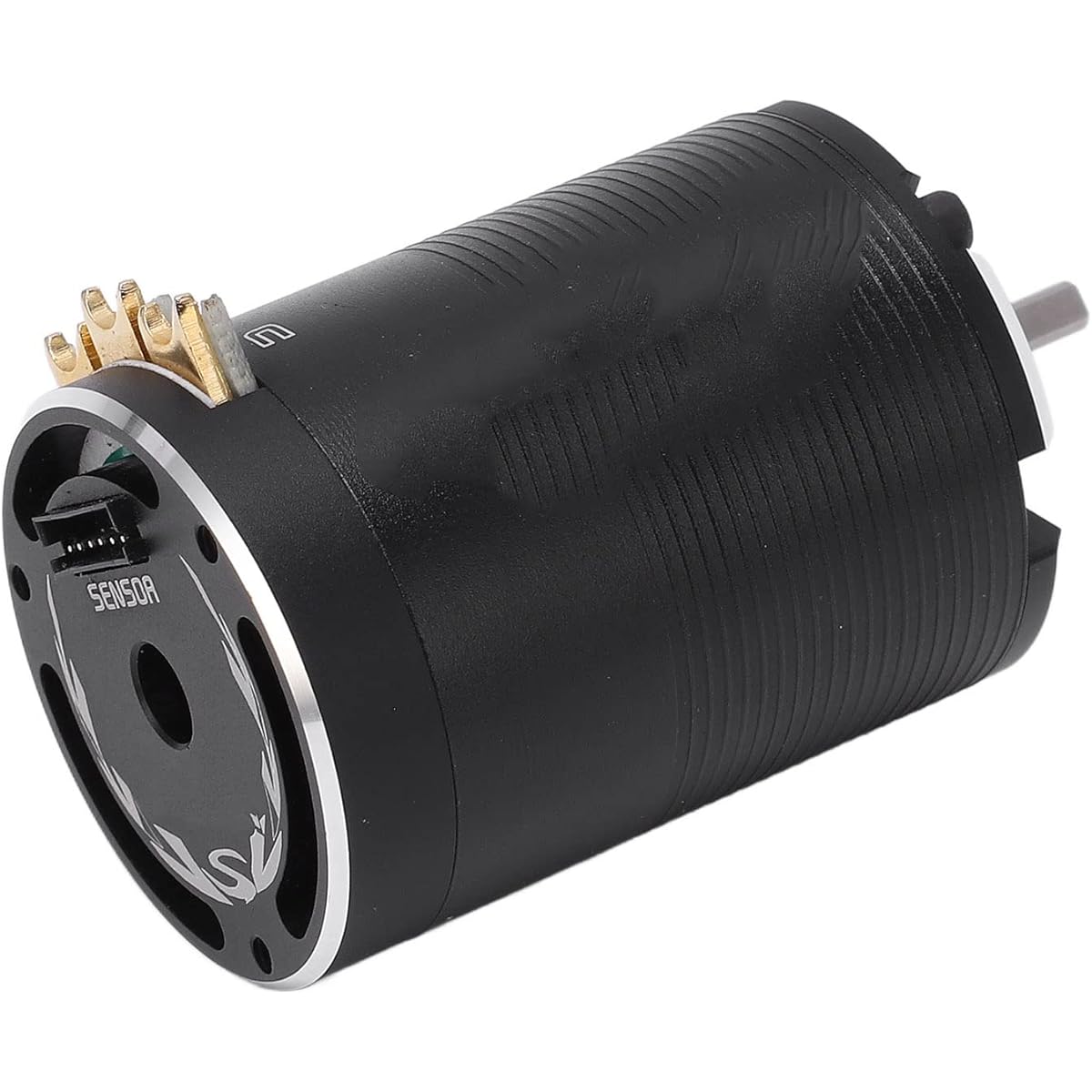

4200KV 540 Sensored Brushless Motor 250W 8.5T RC Motor with 3.175mm Shaft Fit for 1:10 Scale RC Racing Truck Vehicles

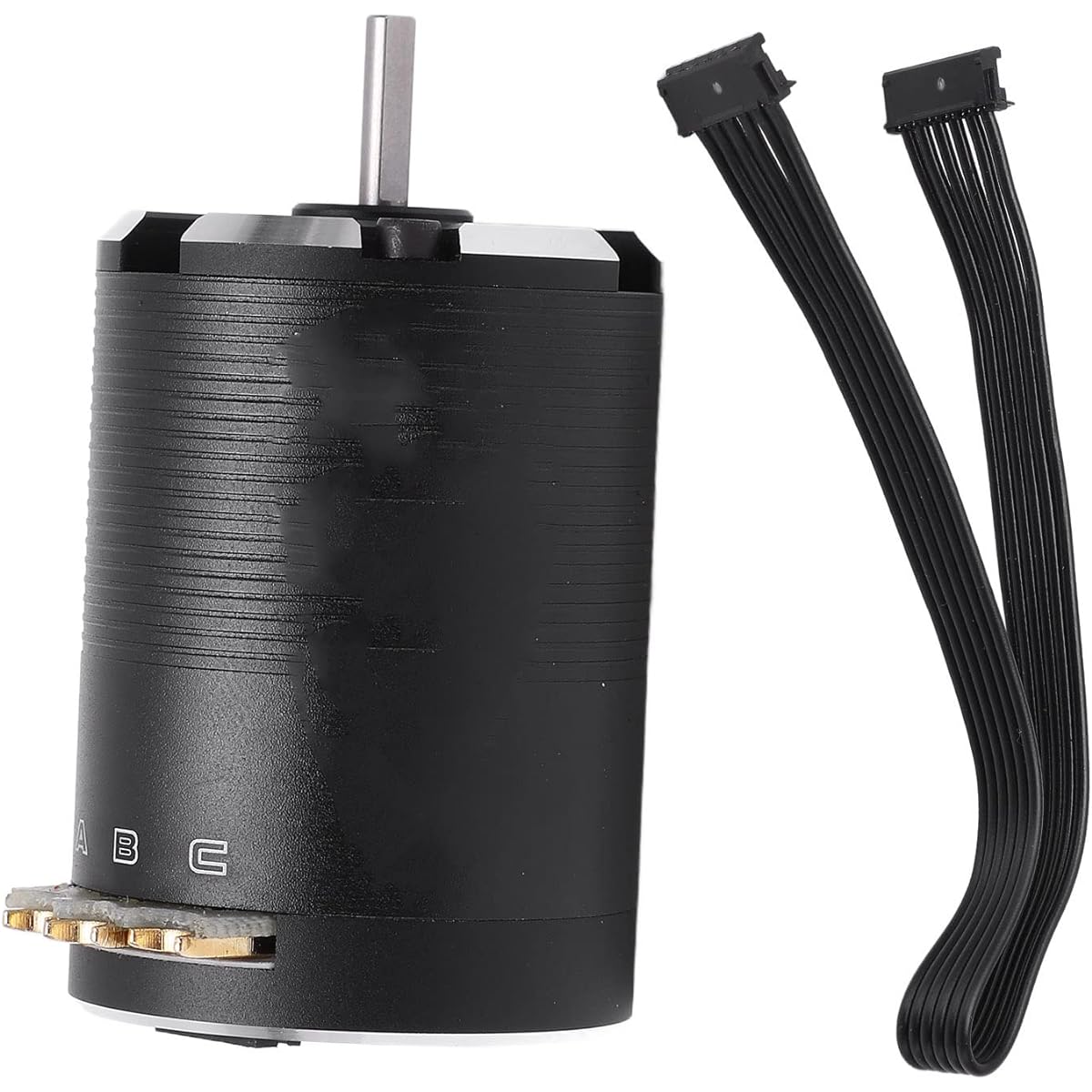

【What you need】1 x 540 sensored brushless motor, 1 x sensored line, 1 x manual, if you have any questions, please feel free to contact us. We are committed to providing better products and services. 【Quick heat dissipation】This 540 brushless motor uses CNC machined billet T6 aluminum heat sink can, high temperature resistant copper coil, and housing to effectively protect the internal components. 【High durability】540 sensored brushless motor features high power lug ABC wiring and replaceable rotor design. Easy to maintain, effectively extend the motor's lifespan. 【High power motor】RC brushless motor adopts high speed precision bearings and high purity copper windings to maximize conductivity. It has strong twist and stable output power. 【Upgrade replacement】4200KV sensored brushless motor provides smoother, better reliability and maximum speed. Compatible with any sensored and sensorless ESC. Use with universal lithium 1-3S. › View more

How to use: Installation and connection: 1. The motor mounting screw holes can be fixed with 6 M3 screws, the mounting hole spacing is 16mm and 19mm, and the panel screw holes can be fixed to a depth of 5mm, so it is recommended to use M3 screws below 8mm. Installation. The specific installation situation can be determined according to the frame. 2. The three connecting wires need to be welded to connect the motor. There is no color difference or color difference fixed between the three connecting wires. Specification: Item Type: Brushless Motor with Sensor Model: 540 Type: Modified Material: Aluminum Alloy, Copper Color: Black Weight: Approx. 198g / 7.0oz KV(RPM Volt): 4200KV Output Power: 250W Common Lithium Battery: 1-3S Max Current: 80A Number of Motor Pole: 2 No-load Current: 7.4V, 2.8A Resistance(Ω): 9.2 Motor T Number: 8.5T Motor Diameter: Approx. 36mm / 1.4in Motor Length: Approx. 50mm / 2.0in (without shaft) Shaft Diameter: Approx. 3.175mm / 0.1in Shaft Length: Approx. 12.8mm / 0.5in Rotor Size: Approx. 12.3x5x24.5mm / 0.5x0.2x1.0in Application: Suitable for 1/10 remote control car Package List: 1x540 Sensored Brushless Motor 1x Induction Wire 1x Manual



Packing Size : ‎11 x 7 x 4 cm; 198 g
