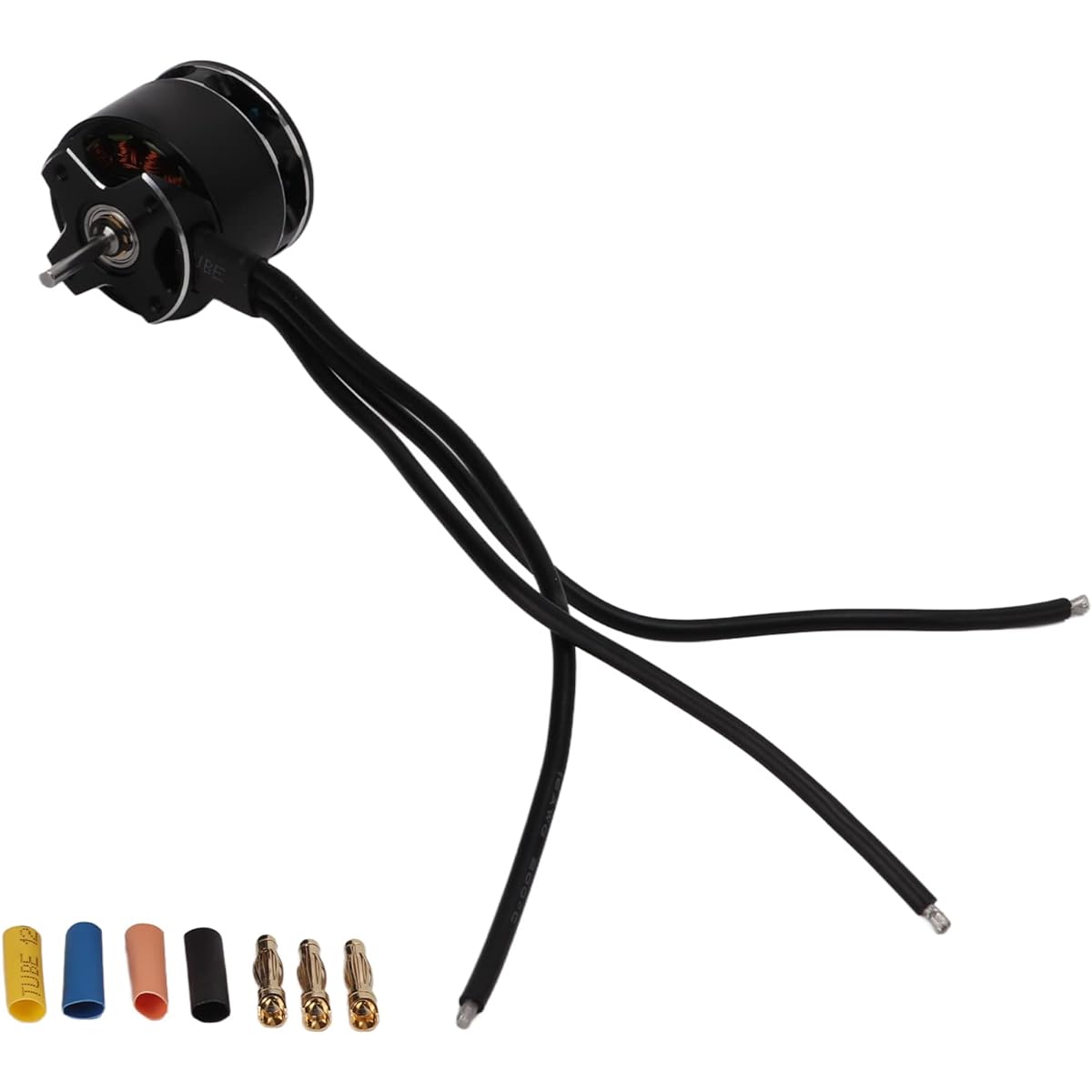

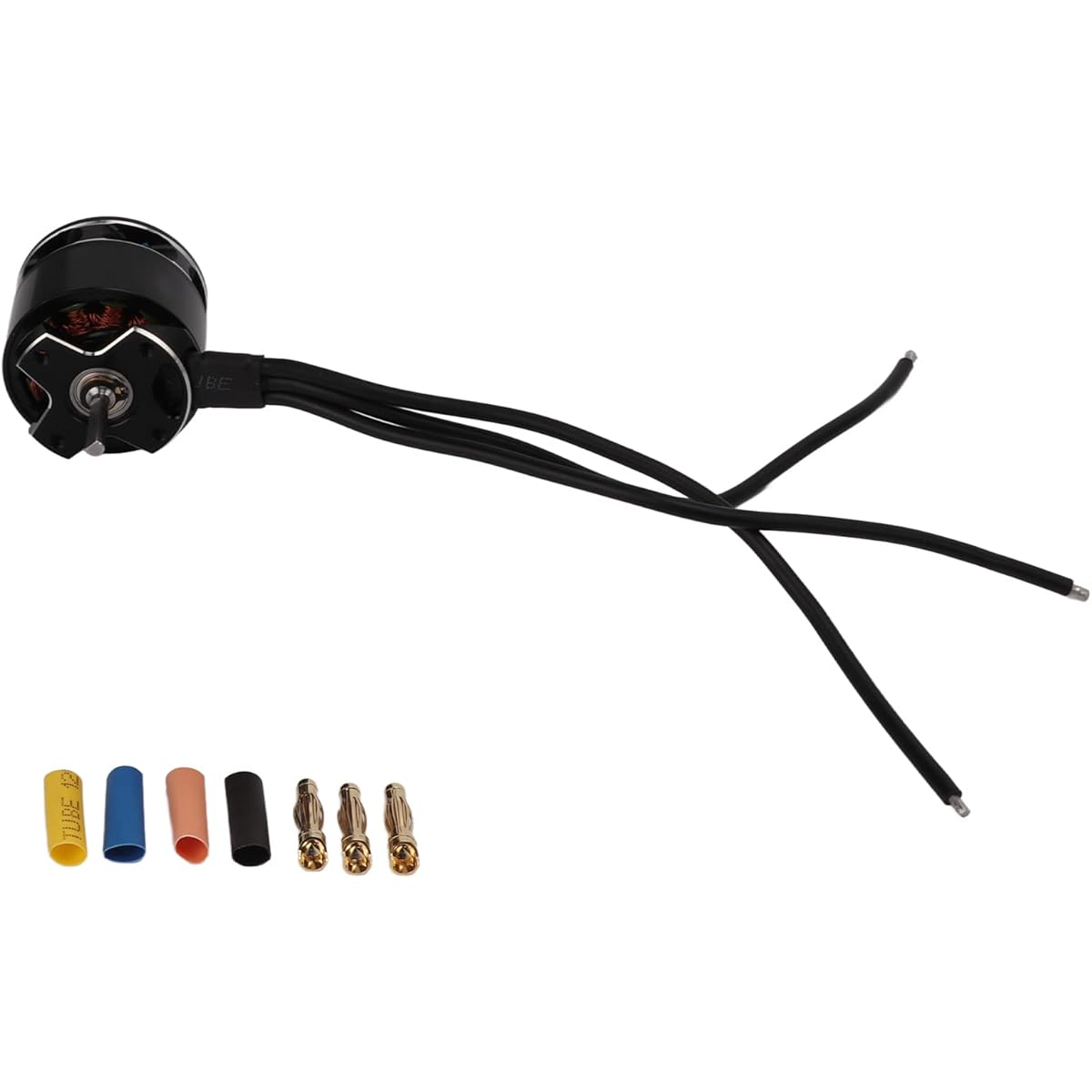

3532 1850Kv Outrunner Brushless Motor High Torsion Rc Car Brushless Motor Axial Scx10 for 1/10 Rc Crawler Car Model Accessories

[High-quality materials] The RC brushless motor is made of high-quality aluminum alloy, copper and stainless steel, with excellent heat dissipation. High-purity copper coil provides high efficiency. [Scope of application] Outrunner brushless motors are a great match. Compatible with all 1/10 brushless crawlers, including Axial SCX10. [Detachable design] The brushless motor adopts a detachable structure design, which is convenient for cleaning and maintenance. [High performance] The RC car motor has high performance. 14-pole 12-slot high-torque rotor design, strong torque and stable output power. Suitable for replacing old or damaged parts. [Fine workmanship] The brushless motor has fine workmanship, stable performance and high reliability. The high-toughness output shaft and high-precision bearings can effectively extend the life of the motor.

Specification: Item Type: 3532 Outrunner Brushless Motor Material: Aluminum Alloy + Copper + Stainless Steel Color: Black Model: 3532 KV (RPM): 1850KV Maximum Power: 450W Maximum Voltage: 14V (2-4S Lipo) Maximum Current: 45A Motor Poles: 14 No Load Current: 1.4A Internal Resistance (Ω): 0.295 Motor Length: Approx. 32mm / 1.3in (without shaft) Motor Diameter: Approx. 35mm / 1.4in Shaft Diameter: Approx. 3.175mm / 0.13in Shaft Length: Approx. 12mm / 0.5in Screw Hole: 4 x M3 Gold Plated Plug: Approx. 4.0mm / 0.16in Application: For 1/10 remote control crawler (e.g. for Axial SCX10) ESC recommendation: For HHCM and Micro X Package List: 1 x 3532 Brushless Motor 1 x Storage Box 4 x Heat Shrink Tubes 3 x Gold Plated Plugs 1 x Manual Note: 1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding. 2. The monitor may be the same.


Part Number : ‎Dilwexuytmsa7ch
Number of Players : ‎1
Battery Use : ‎No
Manufacturer Recommended Age : ‎12 months and above
Item Model Number : ‎Dilwexuytmsa7ch
Package Size : ‎11 x 7 x 4 cm; 146 g
